Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

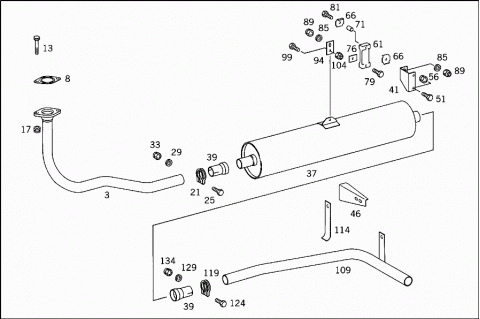

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | H 983084900019 | EXHAUST PIPE |
| Repalced by: A 3084907019 | ||
| 003 | A 3084907019 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 917003060001 | GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 013 | N 000933012136 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | H 983459900351 | NUT |
| Repalced by: A 3459900251 | ||
| 017 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 017 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 021 | H 983084920040 | CLAMP |
| Repalced by: A 3434920240 | ||
| 021 | A 3434920240 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 025 | N 000933008296 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 029 | N 000433008403 | WASHER |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 033 | H 983459900151 | NUT |
| Repalced by: A 3459907251 | ||
| 033 | A 3459907251 | NUT |
| Repalced by: N 913004008001 | ||
| 033 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 037 | A 3084900101 | EXHAUST MUFFLER |
| 037 | A 3084907101 | EXHAUST MUFFLER |
| 039 | A 3084910056 | PIPE |
| TO 308 490 01 01 | ||
| 041 | A 3094920016 | SUPPORT |
| Repalced by: A 3084920016 | ||
| 041 | A 3084920016 | SUPPORT |
| EXHAUST MUFFLER | ||
| 046 | A 3144920416 | SUPPORT |
| Repalced by: A 3084927016 | ||
| 046 | H 983084920316 | SUPPORT |
| Repalced by: A 3084927016 | ||
| 046 | A 3084927016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 051 | N 000933010174 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 056 | N 913004010004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 061 | A 1204920482 | DAMPING PAD |
| Repalced by: A 3084927082 | ||
| 061 | A 3084927082 | DAMPING PAD |
| DAMPING PAD TO SUPPORT | ||
| 066 | A 1204920118 | BASE PLATE |
| DAMPING PAD TO SUPPORT | ||
| 071 | A 1209911140 | SPACER TUBE |
| DAMPING PAD TO SUPPORT | ||
| 076 | A 1204920083 | INSULATION |
| DAMPING PAD TO SUPPORT | ||
| 079 | N 000933008358 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| M 8X45 | ||
| 081 | N 000931008066 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| M 8X40 | ||
| 085 | A 1159905140 | WASHER |
| 085 | N 000125008417 | WASHER |
| DAMPING PAD TO SUPPORT | ||
| 089 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 094 | A 3094920241 | BRACKET |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 099 | N 000933010294 | SCREW |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 104 | A 0019907851 | NUT |
| Repalced by: A 3459900151 | ||
| 104 | A 3459900151 | NUT |
| Repalced by: N 913004010000 | ||
| 104 | N 913004010000 | NUT |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 109 | A 3084900021 | EXHAUST PIPE |
| REAR | ||
| 114 | A 3094920141 | BRACKET |
| 119 | H 983084920040 | CLAMP |
| Repalced by: A 3434920240 | ||
| 119 | A 3434920240 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 124 | N 000933008296 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 129 | N 000433008403 | WASHER |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 134 | A 0019907751 | NUT |
| Repalced by: G 983459900151 | ||
| 134 | H 983459900151 | NUT |
| Repalced by: A 3459907251 | ||
| 134 | A 3459907251 | NUT |
| Repalced by: N 913004008001 | ||
| 134 | N 913004008001 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
