Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

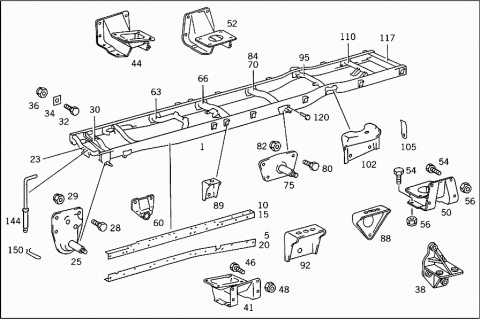

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | H 983083100001 | FRAME |
| Repalced by: A 3083100601 | ||
| 001 | A 3083100301 | FRAME |
| Repalced by: A 3083100601 | ||
| 001 | A 3083100601 | FRAME |
| H 983083100101 | FRAME | |
| Repalced by: A 3083100701 | ||
| A 3083100401 | FRAME | |
| Repalced by: A 3083100701 | ||
| 001 | A 3083100701 | FRAME |
| Repalced by: A 3083107201 | ||
| 001 | A 3083107201 | FRAME |
| 001 | A 3083107201 | FRAME |
| H 983083100201 | FRAME | |
| Repalced by: A 3083100801 | ||
| 001 | A 3083100801 | FRAME |
| Repalced by: A 3083107301 | ||
| 001 | A 3083107301 | FRAME |
| 001 | A 3083107301 | FRAME |
| H 983083110360 | REINFORCEMENT | |
| Repalced by: A 3083110360 | ||
| 005 | A 3083110360 | REINFORCEMENT |
| RIGHT BOTTOM | ||
| H 983083110160 | REINFORCEMENT | |
| Repalced by: A 3083110160 | ||
| 010 | A 3083110160 | REINFORCEMENT |
| RIGHT TOP | ||
| H 983083110060 | REINFORCEMENT | |
| Repalced by: A 3083110060 | ||
| 015 | A 3083110060 | REINFORCEMENT |
| LEFT TOP | ||
| H 983083110260 | REINFORCEMENT | |
| Repalced by: A 3083110260 | ||
| 020 | A 3083110260 | REINFORCEMENT |
| LEFT BOTTOM | ||
| 023 | A 3093101022 | CROSS MEMBER |
| FRONT | ||
| 025 | H 983083200070 | REAR SUBFRAME |
| Repalced by: A 3083207070 | ||
| 025 | A 3083207070 | REAR SUBFRAME |
| FRONT | ||
| 028 | N 000933010129 | SCREW |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| M 10X28 MM | ||
| 028 | N 000933010174 | SCREW |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| M 10X25 MM | ||
| 029 | N 913004010004 | NUT |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| 030 | H 983083120005 | ENGINE CROSS MEMBER |
| Repalced by: A 3083127005 | ||
| 030 | A 3083127005 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 030 | A 3083127005 | ENGINE CROSS MEMBER |
| NO.3 | ||
| 032 | N 000933010174 | SCREW |
| ENGINE CROSS MEMBER TO FRAME | ||
| H 983082410084 | SHIM | |
| Repalced by: A 3082417084 | ||
| 034 | A 3082417084 | SHIM |
| ENGINE CROSS MEMBER TO FRAME | ||
| 036 | N 913004010004 | NUT |
| ENGINE CROSS MEMBER TO FRAME | ||
| H 983083220040 | BRACKET | |
| Repalced by: A 3093220840 | ||
| A 3083227040 | BRACKET | |
| Repalced by: A 3093220840 | ||
| 038 | A 3093220840 | BRACKET |
| SPRING STOP,LEFT | ||
| A 3083227140 | BRACKET | |
| Repalced by: A 3093220940 | ||
| 038 | A 3093220940 | BRACKET |
| SPRING STOP,RIGHT | ||
| 041 | H 983082400106 | CONSOLE |
| Repalced by: A 3082407006 | ||
| 041 | A 3082407006 | CONSOLE |
| LEFT FRONT | ||
| 044 | H 983082400006 | CONSOLE |
| Repalced by: A 3082407106 | ||
| 044 | A 3082407106 | CONSOLE |
| RIGHT FRONT | ||
| 046 | N 000933010174 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X25 MM | ||
| 046 | N 000933010129 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 MM | ||
| 046 | N 000933010269 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X35 MM | ||
| 048 | N 913004010004 | NUT |
| CONSOLE TO FRAME | ||
| 050 | H 983082400206 | CONSOLE |
| Repalced by: A 3082407206 | ||
| 050 | A 3082407206 | CONSOLE |
| LEFT REAR | ||
| 052 | H 983082400306 | CONSOLE |
| Repalced by: A 3082407306 | ||
| 052 | A 3082407306 | CONSOLE |
| RIGHT REAR | ||
| 054 | N 000933010174 | SCREW |
| CONSOLE AND BRACKET TO FRAME | ||
| M 10X25 MM | ||
| 054 | N 000933010129 | SCREW |
| CONSOLE AND BRACKET TO FRAME | ||
| M 10X30 MM | ||
| 054 | N 000933010258 | SCREW |
| CONSOLE AND BRACKET TO FRAME | ||
| M 10X40 MM | ||
| 054 | N 000933010261 | SCREW |
| CONSOLE AND BRACKET TO FRAME | ||
| M 10X45 MM | ||
| 056 | N 913004010004 | NUT |
| CONSOLE AND BRACKET TO FRAME | ||
| 060 | A 3143200478 | CONSOLE |
| LEFT | ||
| 060 | A 3143200578 | CONSOLE |
| RIGHT | ||
| 063 | A 0183100032 | CROSS MEMBER |
| Repalced by: A 3083100032 | ||
| 063 | A 3083100032 | CROSS MEMBER |
| NO.4 | ||
| 066 | H 983083100037 | CROSS MEMBER |
| Repalced by: A 3083100037 | ||
| 066 | A 3083100037 | CROSS MEMBER |
| NO.5 | ||
| 070 | A 3093100537 | CROSS MEMBER |
| Repalced by: A 3083100137 | ||
| 070 | A 3083100137 | CROSS MEMBER |
| NO.6 | ||
| 070 | A 3083100137 | CROSS MEMBER |
| NO.5 | ||
| 070 | A 3083100137 | CROSS MEMBER |
| NO.7 | ||
| 070 | A 3083100137 | CROSS MEMBER |
| NO.8 | ||
| 075 | A 3103200275 | SPRING BRACKET |
| Repalced by: A 3103201075 | ||
| 075 | A 3103201075 | SPRING BRACKET |
| Repalced by: A 3103201575 | ||
| 075 | A 3103201575 | SPRING BRACKET |
| REAR | ||
| 080 | N 000933010092 | SCREW |
| 082 | N 913004010004 | NUT |
| A 0183100038 | CROSS MEMBER | |
| Repalced by: A 3083100038 | ||
| 084 | A 3083100038 | CROSS MEMBER |
| WITH BRACKET | ||
| NO.6 | ||
| 084 | A 3083107036 | CROSS MEMBER |
| WITH BRACKET | ||
| NO.6 | ||
| A 3094130742 | BRACKET | |
| Repalced by: A 3084130042 | ||
| H 983084130242 | BRACKET | |
| Repalced by: A 3084130042 | ||
| A 3084130042 | BRACKET | |
| 088 | A 3093110763 | CONSOLE |
| 089 | A 3093110363 | CONSOLE |
| Repalced by: A 6883117063 | ||
| 089 | A 6883117063 | CONSOLE |
| BODY MOUNTING | ||
| 089 | A 6883117063 | CONSOLE |
| BODY MOUNTING | ||
| 092 | A 3093110663 | CONSOLE |
| BODY MOUNTING | ||
| 095 | A 3093100941 | CROSS MEMBER |
| NO.7 | ||
| 095 | A 3093100941 | CROSS MEMBER |
| NO.8 | ||
| 095 | A 3093100941 | CROSS MEMBER |
| NO.9 | ||
| 102 | A 3093121140 | BRACKET |
| HOLLOW RUBBER SPRING | ||
| 105 | A 3094280240 | BRACKET |
| REAR BRAKE HOSE | ||
| 110 | A 3093100938 | CROSS MEMBER |
| NO.8 | ||
| 110 | A 3093100938 | CROSS MEMBER |
| NO.9 | ||
| 110 | A 3093100938 | CROSS MEMBER |
| NO.7 | ||
| 110 | A 3093100938 | CROSS MEMBER |
| NO.10 | ||
| 117 | H 983083120025 | CROSS MEMBER |
| Repalced by: A 3083120025 | ||
| 117 | A 3083120025 | CROSS MEMBER |
| REAR | ||
| 120 | H 980009900196 | RIVET |
| Repalced by: N 910005010006 | ||
| 120 | N 910005010006 | RIVET |
| 10X16 MM | ||
| A 0009901296 | RIVET | |
| Repalced by: N 910005010001 | ||
| 120 | N 910005010001 | RIVET |
| A 0009901396 | RIVET | |
| Repalced by: N 910005010002 | ||
| 120 | N 910005010002 | RIVET |
| 10X26 MM | ||
| A 0009901496 | RIVET | |
| Repalced by: N 910005010003 | ||
| 120 | N 910005010003 | RIVET |
| 10X28 MM | ||
| A 0009901696 | RIVET | |
| Repalced by: N 910005010004 | ||
| 120 | N 910005010004 | RIVET |
| 10X30 MM | ||
| A 0009901796 | RIVET | |
| Repalced by: N 910005010005 | ||
| 120 | N 910005010005 | RIVET |
| 10X34 MM | ||
| A 0009902596 | RIVET | |
| Repalced by: N 910005010005 | ||
| 120 | N 910005010005 | RIVET |
| 10X34 MM | ||
| 120 | N 910005010006 | RIVET |
| 10X36 MM | ||
| 120 | N 910005010036 | RIVET |
| 10X38 MM | ||
| A 0009902596 | RIVET | |
| Repalced by: N 910005010005 | ||
| 120 | N 910005010005 | RIVET |
| 10X40 MM | ||
| 144 | A 3083100007 | COUPLING PIN |
| 150 | A 3093150031 | LOCKING SPRING |
