Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

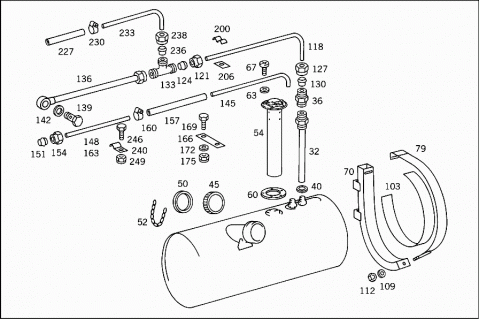

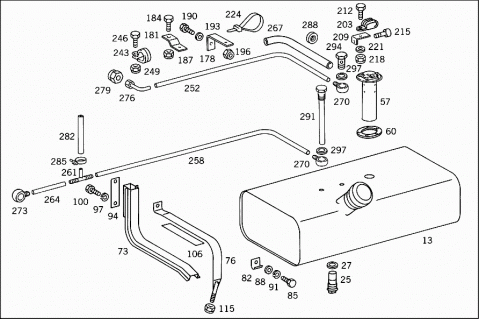

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| H 983084700001 | FUEL TANK | |
| Repalced by: A 3084707101 | ||
| A 3084707001 | FUEL TANK | |
| Repalced by: A 3084707101 | ||
| A 3084707101 | FUEL TANK | |
| Repalced by: A 3084700201 | ||
| H 983084700201 | FUEL TANK | |
| Repalced by: A 3084700201 | ||
| A 3084700101 | FUEL TANK | |
| Repalced by: A 3084700201 | ||
| A 3084700201 | FUEL TANK | |
| Repalced by: A 3084707401 | ||
| 013 | A 3084707401 | FUEL TANK |
| LESS SENDER UNIT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 052 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 053 | ||
| 025 | A 3444700006 | FUEL STRAINER |
| Repalced by: A 3604700006 | ||
| 025 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3504700006 | ||
| 025 | A 3504700006 | FUEL STRAINER |
| 027 | N 007603035301 | SEAL RING |
| Repalced by: A 0029977245 | ||
| 027 | A 0029977245 | SEAL RING |
| 032 | H 983084700026 | RISING PIPE |
| Repalced by: A 3084707026 | ||
| 032 | A 3084707026 | RISING PIPE |
| 032 | H 983084700126 | RISING PIPE |
| Repalced by: A 3084707126 | ||
| 032 | A 3084707126 | RISING PIPE |
| 036 | A 3214710220 | FITTING |
| 036 | A 3214710220 | FITTING |
| 040 | N 007603016301 | SEAL RING |
| 045 | A 3444700105 | FILLER CAP |
| Repalced by: A 3444700205 | ||
| 045 | A 3444700205 | FILLER CAP |
| 050 | A 3444710679 | SEAL RING |
| 052 | A 3034700031 | CHAIN |
| 054 | H 983085420017 | SENDER UNIT |
| Repalced by: A 3085427017 | ||
| 054 | A 3085427017 | SENDER UNIT |
| 057 | H 983085420117 | SENDER UNIT |
| Repalced by: A 3085420017 | ||
| 057 | A 3085420017 | SENDER UNIT |
| 060 | A 3524710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 063 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 067 | N 007985005183 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 067 | N 007985005171 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 070 | H 983084700042 | SUPPORT |
| 070 | A 3084700042 | SUPPORT |
| 073 | A 3084700242 | SUPPORT |
| 076 | H 983084700040 | STRAP |
| Repalced by: A 3284700140 | ||
| 076 | A 3284700140 | STRAP |
| A 3084700040 | STRAP | |
| 079 | H 983084700140 | STRAP |
| 082 | A 3454320026 | PLATE |
| STRAP TO SUPPORT | ||
| 085 | N 000961012154 | SCREW |
| STRAP TO SUPPORT | ||
| 088 | N 000125013012 | WASHER |
| STRAP TO SUPPORT | ||
| 091 | N 000127012201 | LOCK WASHER |
| STRAP TO SUPPORT | ||
| 094 | A 3224750184 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 097 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 100 | N 000961014106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 103 | A 3219870114 | RUBBER STRIP |
| 106 | A 3379870114 | RUBBER STRIP |
| Repalced by: A 3089837191 | ||
| 106 | A 3089837191 | CARDBOARD |
| STRAP | ||
| 109 | N 000125013012 | WASHER |
| 112 | N 000934012004 | NUT |
| STRAP | ||
| 115 | N 913004010004 | NUT |
| STRAP | ||
| 118 | A 3084700264 | LINE |
| H 983084700264 | LINE | |
| Repalced by: A 3084707064 | ||
| 118 | A 3084707064 | LINE |
| FROM FUEL TANK TO "T" CONNECTION FITTING | ||
| 121 | N 915001006002 | UNION NUT |
| 124 | N 915003006202 | SEAL CONE |
| 127 | N 915017010200 | UNION NUT |
| 130 | N 915004008204 | SEAL CONE |
| 133 | N 003908008001 | T-FITTING |
| 136 | A 0069979582 | HOSE |
| 139 | N 915011008103 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 142 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 145 | A 3084700364 | LINE |
| 148 | H 983084700164 | LINE |
| Repalced by: A 3084707264 | ||
| 148 | A 3084707264 | LINE |
| FROM RUBBER HOSE TO FUEL TANK | ||
| 151 | N 915004008204 | SEAL CONE |
| 154 | N 915017010200 | UNION NUT |
| RETURN LINE TO FILTER | ||
| 157 | A 1144760626 | HOSE |
| RETURN LINE | ||
| 160 | N 916017011000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 160 | N 000000000665 | CLAMP |
| RETURN LINE | ||
| 163 | H 983084700064 | LINE |
| Repalced by: A 3084707164 | ||
| 163 | A 3084707164 | LINE |
| FROM FUEL FILTER TO RUBBER HOSE | ||
| 166 | A 3084760036 | BRACKET |
| 169 | N 000933008282 | SCREW |
| 172 | N 000125008417 | WASHER |
| 175 | N 913002008001 | NUT |
| 178 | A 3094760036 | BRACKET |
| 178 | A 3094760036 | BRACKET |
| 178 | A 3524290740 | BRACKET |
| 181 | A 3094760636 | BRACKET |
| Repalced by: A 3094760236 | ||
| 181 | A 3094760236 | BRACKET |
| 181 | A 3094760236 | BRACKET |
| 184 | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 184 | N 000933010294 | SCREW |
| BRACKET TO FRAME | ||
| M 10X20 | ||
| 187 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 187 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 190 | N 000933008036 | SCREW |
| BRACKET TO FRAME | ||
| 190 | N 000933008288 | SCREW |
| BRACKET TO FRAME | ||
| 193 | A 1159905140 | WASHER |
| 193 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 193 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 196 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 196 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 200 | A 3199950132 | CLAMP |
| Repalced by: A 3379950332 | ||
| 200 | A 3379950332 | CLAMP |
| FUEL LINES | ||
| 203 | A 0009950805 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 203 | A 0009950905 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 206 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 206 | A 3124761236 | BRACKET |
| FUEL LINES | ||
| 209 | A 3224290042 | BRACKET |
| FUEL LINES | ||
| 212 | N 007985006515 | SCREW |
| 212 | N 000933006221 | SCREW |
| FUEL LINE TO BRACKET | ||
| 215 | N 007513106117 | TAPPING SCREW |
| 215 | N 007516006121 | TAPPING SCREW |
| BRACKET TO FRAME | ||
| 218 | N 913004006001 | NUT |
| 218 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 221 | N 000125006420 | WASHER |
| FUEL LINE TO BRACKET | ||
| 224 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 224 | A 3459977390 | LOOM TIE |
| LINE MOUNTING | ||
| 195 MM | ||
| 227 | A 0444760126 | HOSE |
| Repalced by: A 3440780081 | ||
| 227 | A 3440780081 | HOSE |
| Repalced by: A 3769978182 | ||
| 227 | A 3769978182 | HOSE |
| LEAK RETURN | ||
| 230 | N 916002010100 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 233 | A 0184700064 | LINE |
| Repalced by: A 3094701864 | ||
| 233 | A 3094701864 | LINE |
| SENDER UNIT | ||
| 236 | N 915003006202 | SEAL CONE |
| 238 | N 915001006002 | UNION NUT |
| 240 | A 1989950020 | CLAMP |
| LINE TO BRACKET | ||
| 243 | N 916016011200 | CLAMP |
| FUEL LINE TO ENGINE | ||
| 246 | N 000933006220 | SCREW |
| FUEL LINE TO ENGINE | ||
| 249 | N 913004006001 | NUT |
| FUEL LINE TO ENGINE | ||
| 252 | A 3084707075 | FUEL HOSE |
| A 3084707297 | PIPING | |
| 258 | A 3084767301 | LINE |
| Repalced by: A 0089975482 | ||
| 258 | A 3084767401 | LINE |
| Repalced by: A 0089975482 | ||
| 258 | A 0089975482 | HOSE |
| FEED | ||
| 8X11 MM / 2390 MM | ||
| 258 | A 0089975482 | HOSE |
| RETURN | ||
| 8X11 MM / 3100 MM | ||
| 261 | A 3084767023 | DISTRIBUTOR |
| LEAK LINE | ||
| 264 | A 3084767501 | LINE |
| Repalced by: A 0089975482 | ||
| 264 | A 0089975482 | HOSE |
| FEED | ||
| 8X11 MM / 240 MM | ||
| 267 | N 040621020200 | INSULATING HOSE |
| 2095 MM | ||
| 270 | A 0009905088 | BANJO UNION |
| FEED LINE AND RETURN LINE | ||
| 273 | A 0009904088 | BANJO UNION |
| Repalced by: N 915052008000 | ||
| 273 | N 915052008006 | BANJO UNION |
| FEED | ||
| 8/14 MM | ||
| 276 | A 3084767024 | CONNECTOR |
| Repalced by: A 3084767124 | ||
| 276 | A 3084767124 | CONNECTOR |
| RETURN | ||
| A 3504707079 | INTERMEDIATE PIECE | |
| RETURN | ||
| 279 | N 915017010200 | UNION NUT |
| 282 | A 3084767026 | HOSE |
| Repalced by: A 3449977582 | ||
| 282 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 282 | A 3769978182 | HOSE |
| LEAK LINE | ||
| 285 | N 916002010100 | CLAMP |
| LEAK LINE | ||
| 288 | A 3609970181 | GROMMET |
| 291 | A 3084707226 | RISING PIPE |
| LEAK LINE TO TANK | ||
| A 3084707126 | RISING PIPE | |
| LEAK LINE TO TANK | ||
| 294 | N 915036012150 | HOLLOW SCREW |
| 297 | N 007603016301 | SEAL RING |
| 297 | N 007603016301 | SEAL RING |
| 297 | N 007603016105 | SEAL RING |
| 297 | N 007603016105 | SEAL RING |
| A 3504707062 | ELBOW FITTING | |
| Repalced by: A 3084767124 | ||
| A 3084767124 | CONNECTOR | |
