Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

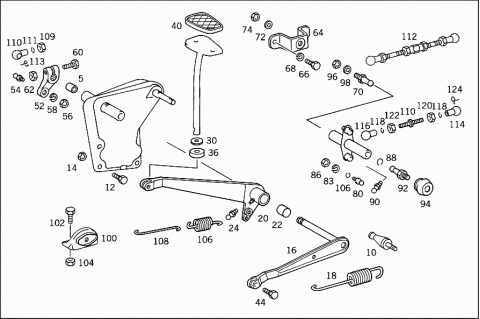

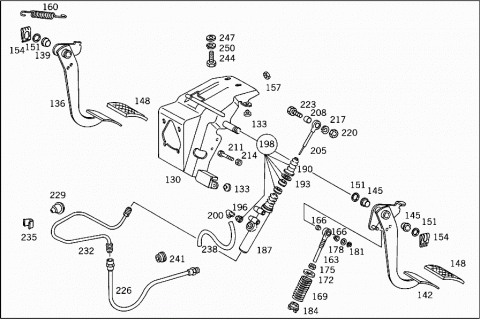

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3102900019 | BEARING BRACKET | |
| Repalced by: A 3082900119 | ||
| A 3082900119 | BEARING BRACKET | |
| 005 | H 983089920201 | BUSHING |
| Repalced by: A 3082940250 | ||
| 005 | A 3082940250 | BUSHING |
| 010 | A 3082910074 | PIN |
| N 913002012009 | NUT | |
| 012 | N 000933010174 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| 012 | N 000933010092 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| 012 | N 000933010258 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| 012 | N 000933010273 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| 014 | N 913002010001 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 014 | N 913002010001 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 016 | A 3092900716 | PEDAL |
| BRAKE PEDAL | ||
| 016 | A 3082907016 | PEDAL |
| 018 | A 3149931010 | SPRING |
| 020 | H 983082900018 | PEDAL |
| BRAKE PEDAL | ||
| 022 | A 3092920050 | BUSHING |
| 024 | N 071412008100 | GREASE NIPPLE |
| H 983082900024 | PEDAL PLATE | |
| 030 | N 009021017100 | WASHER |
| H 983082900124 | PEDAL PLATE | |
| 036 | A 3092920086 | BUFFER |
| 040 | A 3192920082 | PAD |
| 044 | N 000933010174 | SCREW |
| 052 | H 983082930010 | LEVER |
| Repalced by: A 3082900034 | ||
| 052 | A 3082900034 | LEVER |
| 054 | A 3099910015 | BALL PIVOT |
| A 3089910020 | BALL PIVOT | |
| Repalced by: A 3449917020 | ||
| A 3449917020 | BALL PIVOT | |
| Repalced by: A 3529910415 | ||
| 054 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 054 | A 3029910015 | BALL PIVOT |
| 056 | N 000934012010 | NUT |
| 056 | N 000936010006 | NUT |
| 058 | N 000127010202 | LOCK WASHER |
| 060 | N 000931008045 | SCREW |
| 062 | N 913002008001 | NUT |
| 064 | H 983082930040 | BRACKET |
| Repalced by: A 3082937040 | ||
| 064 | A 3082937040 | BRACKET |
| 066 | N 000933008288 | SCREW |
| 068 | N 912004008100 | LOCK WASHER |
| 070 | A 3149910115 | BALL PIVOT |
| 072 | A 3522930060 | SEAL RING |
| 074 | N 913002012009 | NUT |
| A 3092900026 | SHAFT | |
| Repalced by: A 3092900326 | ||
| A 3092900326 | SHAFT | |
| 080 | A 3099910015 | BALL PIVOT |
| 080 | A 3099910120 | BALL PIVOT |
| 083 | N 000127010202 | LOCK WASHER |
| 086 | N 000934010000 | NUT |
| 088 | N 071805016300 | SNAP RING |
| 090 | N 071412008100 | GREASE NIPPLE |
| 090 | N 071412010100 | GREASE NIPPLE |
| 092 | A 3149910115 | BALL PIVOT |
| 094 | A 3522930060 | SEAL RING |
| BALL PIVOT TO BRACKET | ||
| 096 | N 000125013012 | WASHER |
| BALL PIVOT TO BRACKET | ||
| 098 | N 913002012009 | NUT |
| BALL PIVOT TO BRACKET | ||
| 100 | A 3092900133 | BRACKET |
| 102 | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| 102 | N 000933010174 | SCREW |
| 102 | N 000933010089 | SCREW |
| BRACKET TO FRAME | ||
| 104 | N 913002010001 | NUT |
| BRACKET TO FRAME | ||
| 106 | A 3099930010 | SPRING |
| 108 | A 3092920042 | EXTENSION |
| A 3092931029 | ROD | |
| 109 | N 000934012004 | NUT |
| 110 | H 980009910023 | BALL SOCKET |
| Repalced by: A 3089917023 | ||
| 110 | A 3089917023 | BALL SOCKET |
| 111 | N 071805016300 | SNAP RING |
| 112 | A 3092901039 | ROD |
| 112 | A 3082907039 | ROD |
| 113 | N 071805016402 | CIRCLIP |
| 114 | A 3099910422 | BALL SOCKET |
| 116 | A 3099910522 | BALL SOCKET |
| 116 | N 071805016202 | BALL SOCKET |
| 118 | N 071805016300 | SNAP RING |
| 120 | N 000934010000 | NUT |
| 122 | N 000934010035 | NUT |
| A 3459960134 | NUT | |
| 124 | N 071805016402 | CIRCLIP |
| 130 | A 3092901133 | BRACKET |
| 133 | A 1152910186 | STOP |
| 136 | A 3092900918 | PEDAL |
| BRAKE PEDAL | ||
| 139 | A 1102910550 | BUSHING |
| 142 | A 3092901416 | PEDAL |
| CLUTCH PEDAL | ||
| 145 | A 1102910550 | BUSHING |
| 148 | A 1102910182 | PAD |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 107 291 01 82 | ||
| 151 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 154 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 157 | A 0009909251 | NUT |
| 160 | A 3099931110 | SPRING |
| 163 | A 3812900039 | ROD |
| 166 | A 1102910750 | BUSHING |
| 169 | A 1109930501 | SPRING |
| Repalced by: A 3869937001 | ||
| 169 | A 3869937001 | SPRING |
| 172 | A 1112910491 | SPRING RETAINER |
| 175 | N 070615010004 | NUT |
| 178 | N 000125008417 | WASHER |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 181 | N 006799006002 | LOCK PLATE |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 184 | A 3092910091 | SPRING RETAINER |
| 187 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 3082957006 | ||
| 187 | A 3082957006 | MASTER CYLINDER |
| 190 | A 0002951583 | BOOT |
| TO 000 295 77 06 | ||
| 190 | A 3082957083 | BOOT |
| TO 308 295 70 06 | ||
| 193 | N 000472019000 | LOCK RING |
| TO 000 295 77 06 | ||
| 196 | A 0009971186 | PLUG |
| TO 000 295 77 06 | ||
| 198 | A 0005862929 | REPAIR KIT |
| TO 000 295 77 06 | ||
| 198 | A 3085867129 | REPAIR KIT |
| TO 308 295 70 06 | ||
| 200 | A 3092950036 | INTERMEDIATE PIECE |
| 205 | A 1152900639 | ROD |
| 208 | A 1102950250 | BUSHING |
| 211 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 214 | N 913004006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 217 | N 912004008100 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 220 | A 1152950172 | NUT |
| PISTON ROD TO LEVER | ||
| 223 | N 000933008268 | SCREW |
| PISTON ROD TO LEVER | ||
| 226 | A 3092950035 | HOSE |
| 226 | A 3082957035 | HOSE |
| 229 | A 1109971481 | GROMMET |
| 232 | A 3092900013 | LINE |
| 235 | A 1072950073 | LOCK |
| CLUTCH HOSE TO BRACKET AT CAB | ||
| 238 | A 0009971252 | HOSE |
| 540 MM | ||
| 241 | A 3099970381 | GROMMET |
| 244 | N 000933008282 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 247 | N 000125008417 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 250 | N 000127008203 | LOCK WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
