Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304
Grupė: 41 PROPELLER SHAFT
41157

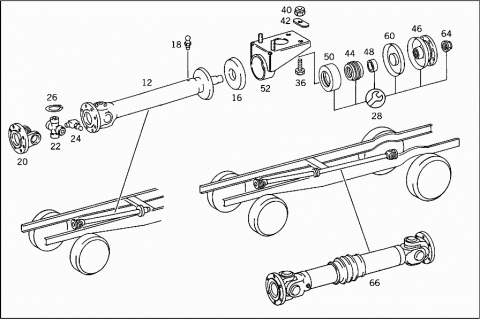

41158
# Kodas Pavadinimas
010 A 0184100301 PROPELLER SHAFT
Repalced by: A 3084107401
010 A 3084107401 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1138 MM
012 A 3084107801 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1137 MM
014 A 3104130061 PROTECTIVE CAP
016 A 3524130061 PROTECTIVE CAP
018 N 071412008100 GREASE NIPPLE
020 A 3524110011 DRIVE FLANGE
022 A 0444100031 UNIVERSAL JOINT CROSS
Repalced by: A 3454107031
022 A 3454107031 UNIVERSAL JOINT CROSS
022 A 0004101431 UNIVERSAL JOINT CROSS
024 N 071412008300 GREASE NIPPLE
024 A 3459977288 GREASE NIPPLE
026 A 0449940135 SNAP RING
Repalced by: A 3449947135
026 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
026 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
026 A 0449940235 SNAP RING
Repalced by: A 3449947235
026 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
026 A 0449940335 SNAP RING
Repalced by: A 3449947335
026 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
026 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
026 A 0449940435 SNAP RING
Repalced by: A 3449947435
026 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
026 A 0449940535 SNAP RING
Repalced by: A 3449947535
026 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
026 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
026 A 0449940635 SNAP RING
Repalced by: A 3449947635
026 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
026 A 0449940735 SNAP RING
Repalced by: A 3449947735
026 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
026 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
026 A 0449940835 SNAP RING
Repalced by: A 3449947835
026 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
026 A 0449940935 SNAP RING
Repalced by: A 3449947935
026 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
026 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
026 A 0449941035 SNAP RING
Repalced by: A 3449948035
026 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
026 A 0449941135 SNAP RING
Repalced by: A 3449948135
026 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
026 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
028 A 3084100010 INTERMEDIATE BEARING
REPAIR KIT
030 A 3104100922 INTERMEDIATE BEARING
032 A 3095860141 REPAIR KIT
Repalced by: A 3094100110
032 A 3094100110 REPAIR KIT
INTERMEDIATE SHAFT BEARING
034 N 000933010174 SCREW
BRACKET TO CROSS MEMBER
036 N 000961010039 SCREW
BRACKET TO CROSS MEMBER
038 N 000125010517 WASHER
BRACKET TO CROSS MEMBER
040 N 913002010000 NUT
BRACKET TO CROSS MEMBER
M 10
040 N 913002010010 NUT
BRACKET TO CROSS MEMBER
M 10X1
042 A 3093110684 SHIM
BRACKET TO CROSS MEMBER
044 A 0019811025 BALL BEARING
044 A 0019815925 BALL BEARING
044 A 3524100051 BALL BEARING
044 A 3454100051 BALL BEARING
046 A 0009947235 SNAP RING
Repalced by: N 912009072200
046 N 912009072200 SNAP RING
046 A 3109940035 SNAP RING
048 A 3124131231 BEARING RING
050 A 3524130012 RUBBER MOUNTING
052 A 3454107340 BRACKET
INTERMEDIATE BEARING
054 A 0184100030 CENTERING FLANGE
Repalced by: A 3084107030
054 H 983084100030 CENTERING FLANGE
Repalced by: A 3084107030
054 A 3084107030 CENTERING FLANGE
054 A 3524100130 CENTERING FLANGE
058 A 3104130061 PROTECTIVE CAP
060 A 3524130061 PROTECTIVE CAP
062 A 3104110072 NUT
062 A 3104110172 NUT
064 A 3449907050 NUT
A 0184100002 PROPELLER SHAFT
Repalced by: A 3084100002
066 A 3084100002 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1848 MM
066 A 3084100002 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1848 MM
068 A 0184100102 PROPELLER SHAFT
Repalced by: A 3084100102
068 A 3084100102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1247 MM
070 A 3444100008 UNIVERSAL JOINT YOKE
072 N 071412008100 GREASE NIPPLE
074 A 3374130080 SEAL RING
076 A 3214110158 SEAL HOLDER
078 A 3524110011 DRIVE FLANGE
080 A 0444100031 UNIVERSAL JOINT CROSS
Repalced by: A 3454107031
080 A 3454107031 UNIVERSAL JOINT CROSS
080 A 0004101431 UNIVERSAL JOINT CROSS
082 A 0449940135 SNAP RING
Repalced by: A 3449947135
082 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
082 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
082 A 0449940235 SNAP RING
Repalced by: A 3449947235
082 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
082 A 0449940335 SNAP RING
Repalced by: A 3449947335
082 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
082 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
082 A 0449940435 SNAP RING
Repalced by: A 3449947435
082 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
082 A 0449940535 SNAP RING
Repalced by: A 3449947535
082 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
082 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
082 A 0449940635 SNAP RING
Repalced by: A 3449947635
082 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
082 A 0449940735 SNAP RING
Repalced by: A 3449947735
082 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
082 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
082 A 0449940835 SNAP RING
Repalced by: A 3449947835
082 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
082 A 0449940935 SNAP RING
Repalced by: A 3449947935
082 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
082 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
082 A 0449941035 SNAP RING
Repalced by: A 3449948035
082 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
082 A 0449941135 SNAP RING
Repalced by: A 3449948135
082 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
082 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
084 N 071412008300 GREASE NIPPLE
084 A 3459977288 GREASE NIPPLE
086 A 3524100080 BOOT
086 A 0004110097 BOOT
Repalced by: A 3454107280
086 A 3454107280 BOOT
088 A 3214110053 WIRE RING
090 A 3449979790 CLAMP
090 A 3459979790 CLAMP
092 A 3529900401 SCREW
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
N 000127010202 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
096 N 913004010014 NUT
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
