Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

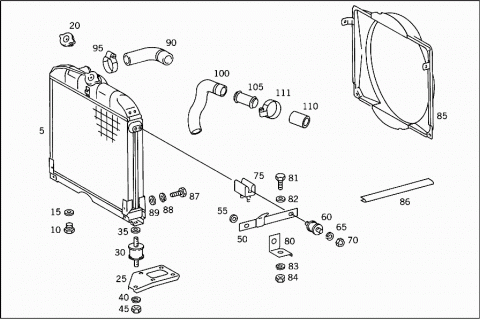

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3095000702 | RADIATOR | |
| Repalced by: H 983085000102 | ||
| 005 | H 983085000102 | RADIATOR |
| Repalced by: A 3085007003 | ||
| 005 | A 3085007003 | RADIATOR |
| 005 | A 3085007203 | RADIATOR |
| 005 | A 3085007303 | RADIATOR |
| 010 | N 007604014100 | SCREW PLUG |
| 015 | N 007603014104 | SEAL RING |
| 020 | A 0455010015 | RADIATOR CAP |
| Repalced by: A 3445010315 | ||
| 020 | A 3445010315 | RADIATOR CAP |
| 025 | A 3095040640 | BRACKET |
| LEFT | ||
| 025 | A 3095040740 | BRACKET |
| RIGHT | ||
| 030 | A 0019873140 | RUBBER BUFFER |
| RADIATOR MOUNTING,BOTTOM | ||
| 035 | N 000125010517 | WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 040 | N 000127010202 | LOCK WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 045 | N 000934008010 | NUT |
| 050 | A 3095041540 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 055 | N 000125008417 | WASHER |
| RADIATOR BRACING,TOP | ||
| 060 | A 0019872640 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 060 | A 0019875240 | RUBBER BUFFER |
| RADIATOR BRACING,TOP | ||
| 065 | N 912004008100 | LOCK WASHER |
| RADIATOR BRACING,TOP | ||
| 070 | N 000934008010 | NUT |
| RADIATOR BRACING,TOP | ||
| 075 | A 3097520041 | MOUNTING |
| ENGINE HOOD SUPPORT | ||
| 080 | A 3095040940 | BRACKET |
| LEFT | ||
| 080 | A 3095041040 | BRACKET |
| RIGHT | ||
| 081 | N 000933008282 | SCREW |
| BRACKET,LEFT AND RIGHT | ||
| M 8X20 | ||
| 082 | N 000933008282 | SCREW |
| BRACKET,LEFT AND RIGHT | ||
| M 8X20 | ||
| 083 | N 912004008100 | LOCK WASHER |
| BRACKET,LEFT AND RIGHT | ||
| 084 | N 000934008010 | NUT |
| BRACKET,LEFT AND RIGHT | ||
| 085 | A 3095000760 | FAN HOUSING |
| Repalced by: A 3095001460 | ||
| 085 | A 3095001460 | FAN HOUSING |
| A 1119870236 | RUBBER SECTION | |
| Repalced by: A 0009871036 | ||
| 086 | A 0009871036 | RUBBER SECTION |
| A 3098990108 | COVERING | |
| Repalced by: A 0009876870 | ||
| 086 | A 0009876870 | RUBBER SECTION |
| 087 | N 000933006223 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 088 | N 000127006203 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 089 | N 000125006420 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 090 | A 3095011682 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 095 | A 3449978690 | CLAMP |
| Repalced by: A 3461400040 | ||
| 095 | A 3461400040 | BRACKET |
| THERMOSTAT | ||
| 095 | A 3459977090 | CLAMP |
| THERMOSTAT | ||
| 095 | A 0019972590 | LOOM TIE |
| THERMOSTAT | ||
| 100 | A 3095011282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 105 | A 3095010269 | INTERMEDIATE PIECE |
| FROM RADIATOR TO WATER PUMP | ||
| 110 | A 3095011082 | HOSE |
| Repalced by: A 3095012182 | ||
| 110 | A 3095012182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 111 | A 3449978690 | CLAMP |
| Repalced by: A 3461400040 | ||
| 111 | A 3461400040 | BRACKET |
| FROM RADIATOR TO WATER PUMP | ||
| 111 | A 3459977090 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 111 | A 0019972590 | LOOM TIE |
| FROM RADIATOR TO WATER PUMP | ||
