Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304
Grupė: 35 REAR AXLE

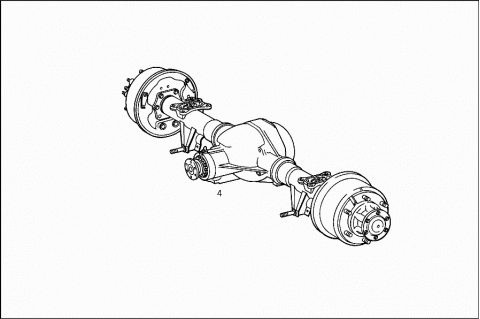

37523

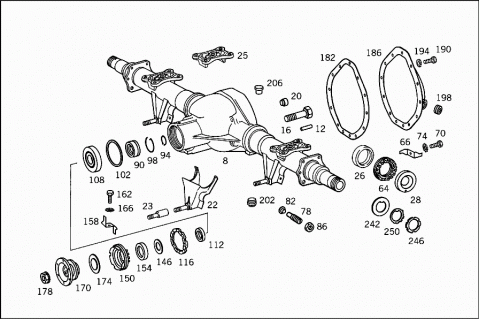

37524

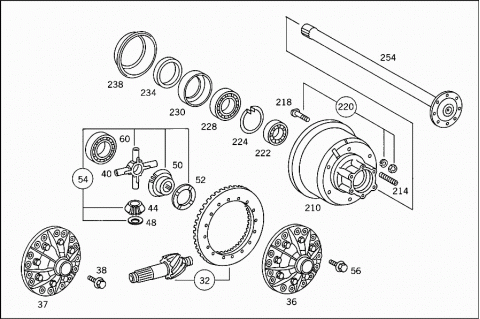

37525
# Kodas Pavadinimas
004 H 983083500000 REAR AXLE
Repalced by: A 3083500200
008 A 3083500000 REAR AXLE
Repalced by: A 3083500200
004 A 3083500200 REAR AXLE
WITH BRAKES
H 983083500200 REAR AXLE
Repalced by: A 3083507300
A 3083507300 REAR AXLE
LESS BRAKES
A 3103500620 AXLE HOUSING
Repalced by: A 3083507120
008 A 3083507020 AXLE HOUSING
Repalced by: A 3083507120
008 A 3083507120 AXLE HOUSING
012 N 000007006202 CYLINDRICAL PIN
016 N 000931016038 SCREW
020 A 3129971002 PLUG
022 A 3083500032 SUPPORT
023 A 3093570174 PIN
025 A 3093250212 SPRING SADDLE
026 A 3143560215 THRUST RING
LEFT
A 3143560315 THRUST RING
RIGHT
028 A 3143570082 OIL COLLECTOR
REAR AXLE SHAFT
032 A 3143501239 RING GEAR AND PINION
Repalced by: A 3183500939
032 A 3183500939 RING GEAR AND PINION
43:10
036 H 983083500223 DIFFERENTIAL GEAR
Repalced by: A 6883500223
036 A 6883500123 DIFFERENTIAL GEAR
037 A 3183500127 DIFFERENTIAL CASE
Repalced by: A 3183500227
037 A 3183500227 DIFFERENTIAL CASE
038 A 3609900601 SCREW
040 A 3243530020 DIFFERENTIAL SPIDER
H 983083530014 DIFFERENTIAL PINION
Repalced by: A 3083530014
044 A 3083530014 DIFFERENTIAL PINION
TO 308 353 00 15
048 A 3183530124 SPHERICAL WASHER
DIFFERENTIAL PINION
H 983083530015 SIDE GEAR
Repalced by: A 3083530015
050 A 3083530015 SIDE GEAR
CONIFLEX
052 A 3183530162 THRUST WASHER
Repalced by: A 3183530862
052 A 3183530862 THRUST WASHER
1.95 MM
054 A 3085860035 REPAIR KIT
CONIFLEX
056 A 3529900701 SCREW
RING GEAR TO DIFFERENTIAL CASE
TO 318 350 01 27
056 A 3189900001 SCREW
RING GEAR TO DIFFERENTIAL CASE
TO 318 350 02 27
056 A 3189900101 SCREW
RING GEAR TO DIFFERENTIAL CASE
TO 318 350 02 27
060 A 0029818005 TAPERED ROLLER BEARING
060 A 0039814905 TAPERED ROLLER BEARING
060 A 6889817205 TAPERED ROLLER BEARING
064 A 3183530025 SCREW COLLAR
Repalced by: A 3243530225
064 A 3243530225 SCREW COLLAR
066 A 3143530073 LOCK
Repalced by: A 6703530173
066 A 6703530173 LOCK
070 N 000933008005 SCREW
LOCK TO DIFFERENTIAL CASE BEARING COVER
074 N 006797008121 TOOTHED WASHER
LOCK TO DIFFERENTIAL CASE BEARING COVER
078 A 3143530076 SET SCREW
Repalced by: A 6703530276
078 A 6703530276 SET SCREW
RING GEAR CHECK
082 A 3123531049 SLIDE
086 N 000439022201 NUT
090 A 3249810001 CYLINDR. ROLLER BEARING
090 A 0019810301 CYLINDR. ROLLER BEARING
094 N 000471025001 LOCK RING
098 A 3249940037 SNAP RING
102 A 3143536552 SPACER WASHER
0.10 MM
102 A 3143536852 SPACER WASHER
0.15 MM
102 A 3143536652 SPACER WASHER
0.20 MM
102 A 3143536752 SPACER WASHER
0.50 MM
108 A 0029818705 TAPERED ROLLER BEARING
108 A 0029818805 TAPERED ROLLER BEARING
108 A 6889817405 TAPERED ROLLER BEARING
112 A 3143530451 SPACER RING
116 A 3163533251 SPACER RING
AS REQUIRED
6.74 MM
116 A 3163533351 SPACER RING
AS REQUIRED
6.76 MM
116 A 3163533451 SPACER RING
AS REQUIRED
6.78 MM
116 A 3163533551 SPACER RING
AS REQUIRED
6.80 MM
116 A 3163533651 SPACER RING
AS REQUIRED
6.82 MM
116 A 3163533751 SPACER RING
AS REQUIRED
6.84 MM
116 A 3163533851 SPACER RING
AS REQUIRED
6.86 MM
116 A 3163533951 SPACER RING
AS REQUIRED
6.88 MM
116 A 3163534051 SPACER RING
AS REQUIRED
6.90 MM
116 A 3163534151 SPACER RING
AS REQUIRED
6.92 MM
116 A 3163534251 SPACER RING
AS REQUIRED
6.94 MM
116 A 3163530151 SPACER RING
AS REQUIRED
6.96 MM
116 A 3163530251 SPACER RING
AS REQUIRED
6.98 MM
116 A 3163530351 SPACER RING
AS REQUIRED
7.00 MM
116 A 3163530451 SPACER RING
AS REQUIRED
7.02 MM
116 A 3163530551 SPACER RING
AS REQUIRED
7.04 MM
116 A 3163530651 SPACER RING
AS REQUIRED
7.06 MM
116 A 3163530751 SPACER RING
AS REQUIRED
7.08 MM
116 A 3163530851 SPACER RING
AS REQUIRED
7.10 MM
116 A 3163530951 SPACER RING
AS REQUIRED
7.12 MM
116 A 3163531051 SPACER RING
AS REQUIRED
7.14 MM
116 A 3163531151 SPACER RING
AS REQUIRED
7.16 MM
116 A 3163531251 SPACER RING
AS REQUIRED
7.18 MM
116 A 3163531351 SPACER RING
AS REQUIRED
7.20 MM
116 A 3163531451 SPACER RING
AS REQUIRED
7.22 MM
116 A 3163531551 SPACER RING
AS REQUIRED
7.24 MM
116 A 3163531651 SPACER RING
AS REQUIRED
7.26 MM
116 A 3163531751 SPACER RING
AS REQUIRED
7.28 MM
116 A 3163531851 SPACER RING
AS REQUIRED
7.30 MM
116 A 3163531951 SPACER RING
AS REQUIRED
7.32 MM
116 A 3163532051 SPACER RING
AS REQUIRED
7.34 MM
116 A 3163532151 SPACER RING
AS REQUIRED
7.36 MM
116 A 3163532251 SPACER RING
AS REQUIRED
7.38 MM
116 A 3163532351 SPACER RING
AS REQUIRED
7.40 MM
116 A 3163532451 SPACER RING
AS REQUIRED
7.42 MM
116 A 3163532551 SPACER RING
AS REQUIRED
7.44 MM
116 A 3163532651 SPACER RING
AS REQUIRED
7.46 MM
116 A 3163532751 SPACER RING
AS REQUIRED
7.48 MM
116 A 3163532851 SPACER RING
AS REQUIRED
7.50 MM
116 A 3163532951 SPACER RING
AS REQUIRED
7.52 MM
116 A 3163533051 SPACER RING
AS REQUIRED
7.54 MM
116 A 3163533151 SPACER RING
AS REQUIRED
7.56 MM
116 A 3163534351 SPACER RING
AS REQUIRED
7.58 MM
116 A 3163534451 SPACER RING
AS REQUIRED
7.60 MM
146 A 3123531951 SPACER RING
150 A 3163530025 SCREW COLLAR
154 A 0009976647 SEAL RING
Repalced by: A 0019973247
154 A 0019973247 SEAL RING
Repalced by: A 3089977346
154 A 3089977346 SEAL RING
154 A 0019975047 SEAL RING
Repalced by: A 0019973247
154 A 3089977346 SEAL RING
154 A 3089977446 SEAL RING
158 A 3123531173 LOCK
SCREW COLLAR
162 N 000933008005 SCREW
166 N 006797008121 TOOTHED WASHER
170 A 0183500045 FLANGE
Repalced by: H 983083500045
170 H 983083500045 FLANGE
Repalced by: A 3083507045
170 A 3083507045 FLANGE
174 A 3122621063 PROTECTIVE PLATE
178 A 3243530072 NUT
COUPLING FLANGE TO DRIVE PINION
178 A 3853510372 NUT
COUPLING FLANGE TO DRIVE PINION
182 A 3243510080 GASKET
TO 324 350 00 24
182 A 6703510080 GASKET
TO 670 350 00 21,670 351 02 08
186 A 3243500021 COVER
Repalced by: A 6703500021
186 A 6703500021 COVER
186 A 6703510208 COVER
190 N 000933010294 SCREW
COVER TO REAR AXLE HOUSING
M 10X18,TO 324 350 00 21
190 N 914112010016 SCREW
COVER TO REAR AXLE HOUSING
M 10X20,TO 670 350 00 21,670 351 02 08
194 N 000127010202 LOCK WASHER
COVER TO REAR AXLE HOUSING
TO 324 350 00 21
198 A 1869970032 SCREW PLUG
Repalced by: A 0009972632
202 A 0009971332 SCREW PLUG
Repalced by: A 0009972632
202 A 0009972632 SCREW PLUG
OIL DRAIN
M24X1,5 MM
202 A 0009972632 SCREW PLUG
OIL FILLING
M24X1,5 MM
202 A 0009973432 SCREW PLUG
OIL DRAIN
202 A 0009973432 SCREW PLUG
OIL FILLING
206 A 3123501090 VALVE
Repalced by: A 3453507290
206 A 3453507290 VALVE
210 A 3103560002 DRUM HUB
214 A 3149900105 STUD
218 A 3094020271 WHEEL MOUNTING BOLT
220 A 3094000274 PIN
(PARTS KIT),WHEEL MOUNTING
222 A 0019810505 TAPERED ROLLER BEARING
OUTSIDE
222 A 0019813805 TAPERED ROLLER BEARING
OUTSIDE
222 A 0029810505 TAPERED ROLLER BEARING
OUTSIDE
222 A 6889817505 TAPERED ROLLER BEARING
OUTSIDE
224 A 3143560055 LOCK RING
228 A 0019810405 TAPERED ROLLER BEARING
INSIDE
228 A 0019813905 TAPERED ROLLER BEARING
INSIDE
228 A 0029810605 TAPERED ROLLER BEARING
INSIDE
228 A 6889817105 TAPERED ROLLER BEARING
INSIDE
230 A 3143560051 SPACER RING
234 A 0029976846 SEAL RING
238 A 3243560082 OIL COLLECTOR
Repalced by: A 3163560082
238 A 3163560082 OIL COLLECTOR
242 A 3143560052 SPACER WASHER
HUB TO REAR AXLE TUBE
246 N 070852052000 NUT
HUB TO REAR AXLE TUBE
250 N 070952052103 LOCK PLATE
HUB TO REAR AXLE TUBE
254 A 3103570401 REAR AXLE SHAFT
N 000934012013 NUT
REAR AXLE SHAFT TO HUB
M12 X 1,5 MM
