Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

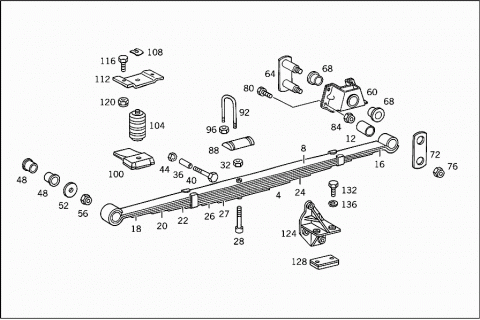

| 004 | A 3103200602 | FRONT SPRING |
| 008 | H 983083200494 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3093220050 | BUSHING |
| 016 | A 3103210112 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3103210512 | SPRING LEAF |
| NO.2 | ||
| 018 | H 983083200093 | SPRING LEAF |
| NO.3 | ||
| 018 | A 3103210513 | SPRING LEAF |
| NO.3 | ||
| 020 | H 983083200693 | SPRING LEAF |
| NO.4 | ||
| 022 | H 983083200193 | SPRING LEAF |
| WITH SPRING CLAMP | ||
| NO.5 | ||
| 022 | A 3103210515 | SPRING LEAF |
| NO.5 | ||
| 024 | H 983083200793 | SPRING LEAF |
| NO.6 | ||
| 026 | A 3103210517 | SPRING LEAF |
| NO.7 | ||
| 027 | A 3103210518 | SPRING LEAF |
| NO.8 | ||
| 028 | N 004626010154 | SPRING BOLT |
| 032 | N 913004010006 | NUT |
| 036 | A 0003212153 | SPACER TUBE |
| SPRING CLAMP | ||
| 040 | N 000931008387 | SCREW |
| SPRING CLAMP | ||
| 044 | N 913004008001 | NUT |
| SPRING CLAMP | ||
| 048 | H 983083240050 | BUSHING |
| Repalced by: A 3193240750 | ||
| 048 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 052 | A 3093250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 056 | N 913004016004 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 060 | H 983083200075 | SPRING BRACKET |
| Repalced by: A 3083207270 | ||
| 060 | A 3083207270 | REAR SUBFRAME |
| REAR | ||
| 064 | A 3193200662 | SHACKLE |
| 068 | H 983083240050 | BUSHING |
| Repalced by: A 3193240750 | ||
| 068 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 072 | A 3193250320 | SHACKLE |
| Repalced by: A 3193250720 | ||
| 072 | A 3193250720 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 076 | N 913004016004 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 080 | N 000933010129 | SCREW |
| BRACKET TO FRAME | ||
| 084 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 088 | A 3093310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 092 | A 3093311125 | U-BOLT |
| RIGHT | ||
| 092 | A 3093311225 | U-BOLT |
| LEFT | ||
| 096 | N 000934012013 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| M12 X 1,5 MM | ||
| 100 | A 3103300177 | STOP |
| LEFT | ||
| 100 | A 3103300377 | STOP |
| RIGHT | ||
| 104 | A 3093200177 | RUBBER SPRING |
| 108 | A 3093250040 | BRACKET |
| 112 | A 3103220240 | BRACKET |
| 116 | N 000933010092 | SCREW |
| BRACKET TO FRAME | ||
| 120 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| H 983083220040 | BRACKET | |
| Repalced by: A 3093220840 | ||
| A 3083227040 | BRACKET | |
| Repalced by: A 3093220840 | ||
| 124 | A 3093220840 | BRACKET |
| A 3083227140 | BRACKET | |
| Repalced by: A 3093220940 | ||
| 124 | A 3093220940 | BRACKET |
| 128 | A 3093200644 | RUBBER BUFFER |
| 132 | N 000933008282 | SCREW |
| RUBBER BUFFER | ||
| 136 | N 000127008203 | LOCK WASHER |
| RUBBER BUFFER | ||

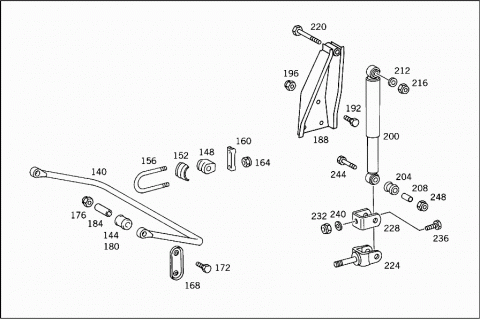

| 140 | A 3093230465 | TORSION BAR |
| FRONT AXLE | ||
| 144 | A 3093200073 | BEARING |
| AT TORSION BAR | ||
| 148 | A 3093230385 | RUBBER MOUNTING |
| Repalced by: A 3083237085 | ||
| 148 | A 3083237085 | RUBBER MOUNTING |
| Repalced by: A 6883237085 | ||
| 148 | A 6883237085 | RUBBER MOUNTING |
| TORSION BAR TO FRONT AXLE | ||
| 152 | A 3093230440 | BRACKET |
| Repalced by: A 6673230540 | ||
| 152 | A 6673230540 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 156 | A 3103230026 | CLAMP |
| Repalced by: A 3083230126 | ||
| 156 | A 3083230126 | CLAMP |
| TORSION BAR TO FRONT AXLE | ||
| 160 | A 3103230040 | BRACKET |
| Repalced by: A 3083230040 | ||
| 160 | A 3083230040 | BRACKET |
| TORSION BAR TO FRONT AXLE | ||
| 164 | N 913004010004 | NUT |
| TORSION BAR TO FRONT AXLE | ||
| 168 | A 0083200063 | SHACKLE |
| Repalced by: A 3143200063 | ||
| 168 | A 3143200063 | SHACKLE |
| Repalced by: A 3143260047 | ||
| 168 | A 3143260047 | SHACKLE |
| TORSION BAR,FRONT | ||
| 172 | N 000961012192 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 176 | N 913004012003 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 180 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 180 | A 3093200073 | BEARING |
| 184 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093260353 | ||
| 184 | A 3093260353 | SPACER TUBE |
| 188 | A 3093200378 | CONSOLE |
| Repalced by: A 3083207078 | ||
| 188 | A 3083207078 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 192 | N 000933010174 | SCREW |
| CONSOLE TO FRAME | ||
| 196 | N 913004010004 | NUT |
| CONSOLE TO FRAME | ||
| A 0013267700 | SHOCK ABSORBER | |
| 200 | A 0013268300 | SHOCK ABSORBER |
| Repalced by: A 3083267000 | ||
| 200 | A 3083267000 | SHOCK ABSORBER |
| FRONT | ||
| H 980013260200 | SHOCK ABSORBER | |
| Repalced by: A 3083267100 | ||
| 200 | A 3083267100 | SHOCK ABSORBER |
| FRONT | ||
| 200 | A 3083267200 | SHOCK ABSORBER |
| FRONT | ||
| 204 | A 0003230185 | RUBBER MOUNTING |
| 208 | A 0084630050 | BUSHING |
| 212 | H 983083250070 | SPHERICAL WASHER |
| Repalced by: A 3083267052 | ||
| 212 | A 3083267052 | SPACER WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 216 | N 913004014002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 220 | A 3093260371 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 224 | A 3093230540 | BRACKET |
| AT AXLE BEAM | ||
| H 983083230026 | CLAMP | |
| Repalced by: A 3083230026 | ||
| 228 | A 3083230026 | CLAMP |
| AT AXLE BEAM | ||
| 232 | N 913004014002 | NUT |
| SHOCK ABSORBER BRACKET TO FRONT AXLE BEAM | ||
| 232 | N 913004014005 | NUT |
| SHOCK ABSORBER BRACKET TO FRONT AXLE BEAM | ||
| 236 | N 000960014199 | SCREW |
| SHOCK ABSORBER BRACKET TO FRONT AXLE BEAM | ||
| A 3193260076 | WASHER | |
| Repalced by: A 3083267052 | ||
| A 3093230076 | WASHER | |
| Repalced by: A 3083267052 | ||
| 240 | A 3083267052 | SPACER WASHER |
| SHOCK ABSORBER BRACKET TO FRONT AXLE BEAM | ||
| 244 | A 3099900001 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| A 3089907001 | SCREW | |
| Repalced by: A 3099901101 | ||
| A 3099901101 | SCREW | |
| Repalced by: N 000960014241 | ||
| 244 | N 000960014241 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 248 | N 913004014002 | NUT |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||

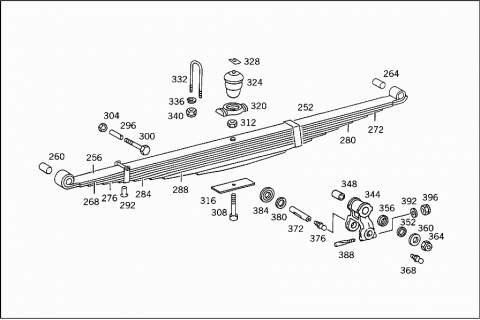

| 252 | A 3103200506 | REAR SPRING |
| 252 | A 3103200306 | REAR SPRING |
| 256 | H 983083200194 | SPRING LEAF |
| NO.1 | ||
| 256 | A 3103200393 | SPRING LEAF |
| NO.1 | ||
| 260 | A 3103250050 | BUSHING |
| Repalced by: A 3083257050 | ||
| 260 | A 3083257050 | BUSHING |
| 264 | A 3103250150 | BUSHING |
| Repalced by: A 3083257150 | ||
| 264 | A 3083257150 | BUSHING |
| 268 | A 3103240112 | SPRING LEAF |
| NO.2 | ||
| 268 | A 3103240312 | SPRING LEAF |
| NO.2 | ||
| 272 | A 3103240113 | SPRING LEAF |
| NO.3 | ||
| 272 | A 3103240313 | SPRING LEAF |
| NO.3 | ||
| 276 | A 3103240114 | SPRING LEAF |
| NO.4 | ||
| H 983083200293 | SPRING LEAF | |
| Repalced by: A 3083207493 | ||
| 280 | A 3083207493 | SPRING LEAF |
| NO.5 | ||
| 280 | A 3103200493 | SPRING LEAF |
| WITH SPRING CLAMP | ||
| NO. 5 | ||
| 284 | A 3103240116 | SPRING LEAF |
| NO.6 | ||
| A 3103240117 | SPRING LEAF | |
| NO.7 | ||
| 288 | H 983083200593 | SPRING LEAF |
| NO.8 | ||
| 288 | A 3103240318 | SPRING LEAF |
| NO.8 | ||
| A 3103240119 | SPRING LEAF | |
| NO.9 | ||
| A 3093211833 | SPRING CLAMP | |
| SPRING CLAMP TO SPRING LEAVES NOS.5 & 9 | ||
| 292 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 | ||
| 292 | N 910006008028 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X25 | ||
| A 0003212153 | SPACER TUBE | |
| Repalced by: A 0003212353 | ||
| 296 | A 0003212353 | SPACER TUBE |
| 300 | N 000601008039 | SCREW |
| 304 | N 000934008000 | NUT |
| 308 | N 004626010102 | SPRING BOLT |
| N 004626010125 | SPRING BOLT | |
| 312 | N 000934010000 | NUT |
| 316 | A 3093250084 | SHIM |
| REAR SPRING | ||
| 320 | A 3093250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 324 | A 3093200277 | RUBBER SPRING |
| 328 | A 3093250040 | BRACKET |
| 332 | A 3093510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 332 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 336 | N 074361012301 | SPRING LOCK WASHER |
| REAR SPRING TO REAR AXLE | ||
| 340 | N 000934012013 | NUT |
| REAR SPRING TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| A 3093250431 | PLATE | |
| REAR SPRING TO REAR AXLE | ||
| 344 | A 3103200063 | SHACKLE |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 348 | A 3103250250 | BUSHING |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 352 | A 3103250176 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 3.70 MM | ||
| 352 | A 3103250276 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 3.80 MM | ||
| 352 | A 3103250376 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 3.90 MM | ||
| 352 | A 3103250476 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 4.00 MM | ||
| 352 | A 3103250576 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 4.10 MM | ||
| 352 | A 3103250676 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 4.20 MM | ||
| 352 | A 3103250776 | WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 4.30 MM | ||
| 356 | A 0009978441 | SEAL RING |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 360 | A 3103250162 | THRUST WASHER |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 364 | A 0019902051 | NUT |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 368 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET | ||
| 372 | A 3103250022 | PIN |
| Repalced by: A 3083250022 | ||
| A 3083250022 | PIN | |
| Repalced by: A 3083257174 | ||
| 372 | A 3083257174 | PIN |
| REAR SPRING TO SPRING SHACKLE | ||
| 376 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING SHACKLE | ||
| 380 | A 3103250976 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 3.70 MM | ||
| 380 | A 3103251076 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 3.80 MM | ||
| 380 | A 3103251176 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 3.90 MM | ||
| 380 | A 3103251276 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 4.00 MM | ||
| 380 | A 3103251376 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 4.10 MM | ||
| 380 | A 3103251476 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 4.20 MM | ||
| 380 | A 3103251576 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 4.30 MM | ||
| 384 | A 0009978541 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE | ||
| 388 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE | ||
| 392 | N 000125010517 | WASHER |
| REAR SPRING TO SPRING SHACKLE | ||
| 396 | N 913004010004 | NUT |
| REAR SPRING TO SPRING SHACKLE | ||

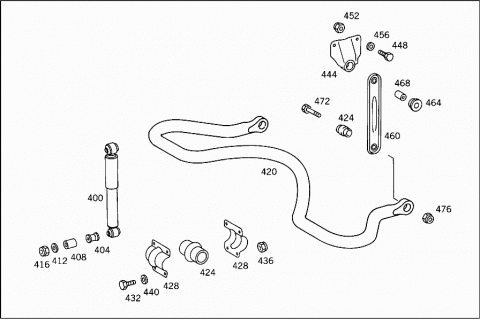

| A 0013267700 | SHOCK ABSORBER | |
| 400 | A 0013268300 | SHOCK ABSORBER |
| Repalced by: A 3083267000 | ||
| 400 | A 3083267000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 400 | H 980013260200 | SHOCK ABSORBER |
| Repalced by: A 3083267100 | ||
| 400 | A 3083267100 | SHOCK ABSORBER |
| REAR AXLE | ||
| 400 | A 3083267200 | SHOCK ABSORBER |
| REAR AXLE | ||
| 404 | A 0003230185 | RUBBER MOUNTING |
| 408 | A 0084630050 | BUSHING |
| 412 | A 3193260076 | WASHER |
| Repalced by: A 3083267052 | ||
| 412 | A 3083267052 | SPACER WASHER |
| SHOCK ABSORBER TO FRAME | ||
| 416 | N 913004014002 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 420 | H 983083260065 | TORSION BAR |
| Repalced by: A 3083260065 | ||
| 420 | A 3083260065 | TORSION BAR |
| Repalced by: A 3083260165 | ||
| 420 | A 3083260165 | TORSION BAR |
| REAR AXLE | ||
| 420 | A 3083260165 | TORSION BAR |
| REAR AXLE | ||
| 424 | A 3093200073 | BEARING |
| 424 | A 3093260281 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| TO 308 326 00 65 | ||
| 424 | A 3093260481 | RUBBER MOUNTING |
| TORSION BAR TO REAR AXLE | ||
| TO 308 326 01 65 | ||
| 428 | A 3093260740 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 432 | N 000933008282 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 436 | N 913004008001 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 440 | N 000433008403 | WASHER |
| TORSION BAR TO REAR AXLE | ||
| 444 | A 3143200478 | CONSOLE |
| LEFT | ||
| 444 | A 3143200578 | CONSOLE |
| RIGHT | ||
| 448 | N 000933010174 | SCREW |
| CONSOLE TO FRAME | ||
| 452 | N 913004010004 | NUT |
| CONSOLE TO FRAME | ||
| 456 | N 000440011102 | WASHER |
| CONSOLE TO FRAME | ||
| 460 | A 3093200363 | SHACKLE |
| Repalced by: A 3093260447 | ||
| 460 | A 3093260447 | SHACKLE |
| TORSION BAR,REAR | ||
| 464 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 464 | A 3093200073 | BEARING |
| 468 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093260353 | ||
| 468 | A 3093260353 | SPACER TUBE |
| 472 | N 000961012192 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 476 | N 913004012003 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
