Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

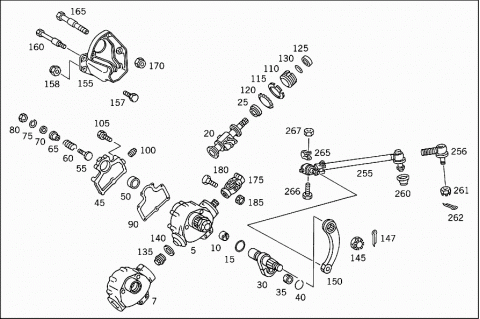

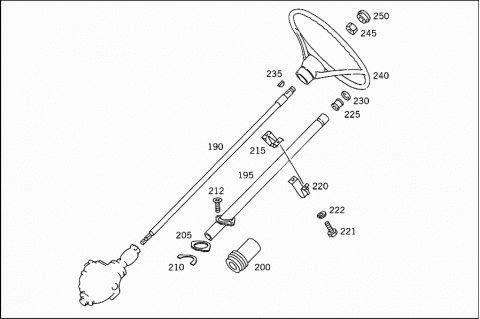

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 005 | A 0094600101 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 005 | A 3084600001 | STEERING BOX ASSEMBLY |
| A 3274600202 | STEERING BOX | |
| Repalced by: A 3084600002 | ||
| 007 | A 3084600002 | STEERING BOX |
| 010 | A 3214610350 | BUSHING |
| STEERING SHAFT BEARING | ||
| 015 | A 0019970645 | SEAL RING |
| Repalced by: A 3449970345 | ||
| 015 | A 0459970145 | SEAL RING |
| Repalced by: A 3449970345 | ||
| 015 | A 3459970045 | SEAL RING |
| Repalced by: A 3449970345 | ||
| 015 | A 3449970345 | SEAL RING |
| A 3094601018 | STEERING NUT | |
| WITH STEERING WORM | ||
| 020 | H 983454600108 | STEERING WORM |
| Repalced by: A 3084600018 | ||
| 020 | A 3084600018 | STEERING NUT |
| WITH STEERING WORM | ||
| 025 | A 0009810806 | BARREL-TYPE BEARING |
| Repalced by: A 0009811306 | ||
| 025 | A 0009811306 | BARREL-TYPE BEARING |
| Repalced by: A 3459817006 | ||
| 025 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING WORM | ||
| 030 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 035 | A 3214620537 | BALL CUP |
| STEERING SHAFT BEARING IN COVER | ||
| 040 | N 009045038001 | SNAP RING |
| STEERING SHAFT BEARING IN COVER | ||
| 060 | A 3219932201 | SPRING |
| STEERING SHAFT BEARING IN COVER | ||
| 055 | A 3214620171 | SCREW |
| STEERING SHAFT BEARING IN COVER | ||
| 065 | A 3214620185 | THRUST PIECE |
| Repalced by: A 3444620185 | ||
| 065 | A 0444620085 | THRUST PIECE |
| Repalced by: A 3444620185 | ||
| 065 | A 3444620085 | THRUST PIECE |
| Repalced by: A 3444620185 | ||
| 065 | A 3444620185 | THRUST PIECE |
| STEERING SHAFT BEARING IN COVER | ||
| 070 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 075 | A 0009946041 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 080 | A 3219900050 | NUT |
| Repalced by: A 0029900251 | ||
| A 0019976140 | SEAL RING | |
| Repalced by: A 0029900251 | ||
| 080 | A 0029900251 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| A 3274600314 | STEERING BOX COVER | |
| Repalced by: A 3214600514 | ||
| 045 | A 3214600514 | STEERING BOX COVER |
| STEERING BOX | ||
| 050 | A 3214620250 | BUSHING |
| STEERING SHAFT BEARING IN COVER | ||
| 090 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 090 | A 3524610180 | GASKET |
| COVER TO STEERING BOX | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| CONTAINING ASBESTOS | ||
| A 3524610180 | GASKET | |
| COVER TO STEERING BOX | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| ASBESTOS-FREE | ||
| 105 | N 000931008049 | SCREW |
| COVER TO STEERING BOX | ||
| 110 | A 3224620151 | RING |
| 125 | A 0029974346 | SEAL RING |
| INSIDE | ||
| H 980009970246 | SEAL RING | |
| Repalced by: A 3449977146 | ||
| 125 | A 3449977146 | SEAL RING |
| INSIDE | ||
| 125 | A 3459979246 | SEAL RING |
| INSIDE | ||
| 130 | A 0029979845 | SEAL RING |
| Repalced by: A 3449970445 | ||
| 130 | A 0459970045 | SEAL RING |
| Repalced by: A 3449970445 | ||
| 130 | A 3449970445 | SEAL RING |
| OUTSIDE | ||
| 115 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 115 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 120 | A 3229940115 | LOCK |
| Repalced by: A 6889940015 | ||
| 120 | A 6889940015 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 135 | N 007604030100 | SCREW PLUG |
| 140 | N 007603030400 | SEAL RING |
| 100 | A 3029970035 | PLUG |
| Repalced by: N 000906016000 | ||
| 100 | N 000906016000 | SCREW PLUG |
| OIL FILLING | ||
| 145 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 147 | N 000094006013 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 150 | A 3094630901 | PITMAN ARM |
| 155 | A 3094612240 | STEERING SUPPORT |
| 155 | A 3084617040 | STEERING SUPPORT |
| 157 | N 000931010111 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 157 | N 000931010399 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 158 | N 913004010004 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 160 | A 3099900114 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| 165 | A 3099900214 | SCREW |
| STEERING GEAR TO STEERING BRACKET | ||
| 170 | A 0019900951 | NUT |
| STEERING GEAR TO STEERING BRACKET | ||
| A 4214600457 | UNIVERSAL JOINT | |
| Repalced by: A 3444607057 | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 3444607057 | ||
| A 3614600157 | UNIVERSAL JOINT | |
| Repalced by: A 3444607057 | ||
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 3444607057 | ||
| 175 | A 3444607057 | UNIVERSAL JOINT |
| 175 | A 3444607157 | UNIVERSAL JOINT |
| 175 | A 3444607257 | UNIVERSAL JOINT |
| 180 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING | ||
| 185 | N 913002008001 | NUT |
| Repalced by: H 980019900051 | ||
| 185 | H 980019900051 | NUT |
| Repalced by: A 3459900351 | ||
| 185 | A 3459900351 | NUT |
| Repalced by: N 913004008005 | ||
| 185 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING | ||
| 190 | A 3094600309 | STEERING SHAFT |
| 195 | A 3104600016 | STEER. COLUMN JACKET TUBE |
| 200 | A 3094620596 | BOOT |
| Repalced by: A 3084627096 | ||
| 200 | A 3084627096 | BOOT |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 205 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 210 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 212 | N 000966006093 | SCREW |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 215 | A 3094610045 | STEERING COLUMN BRACKET |
| 220 | A 3094600165 | STRAP |
| 221 | N 000933008282 | SCREW |
| 222 | N 912004008100 | LOCK WASHER |
| 225 | A 3124621050 | BUSHING |
| STEERING COLUMN BEARING | ||
| 230 | A 3124621065 | RING |
| STEERING COLUMN BEARING | ||
| 235 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 240 | A 3144600403 | STEERING WHEEL |
| Repalced by: A 3084607003 | ||
| 240 | A 3144600303 | STEERING WHEEL |
| Repalced by: A 3084607003 | ||
| 240 | A 3084607003 | STEERING WHEEL |
| 245 | N 000439022203 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 250 | A 0004641731 | CAP |
| Repalced by: A 0004641231 | ||
| 250 | A 0004640431 | CAP |
| Repalced by: A 5454647131 | ||
| 250 | A 0004641231 | CAP |
| Repalced by: A 3454647131 | ||
| 250 | A 3454647131 | CAP |
| 250 | A 0004642631 | CAP |
| 255 | H 983084600105 | DRAG LINK |
| Repalced by: A 3084607005 | ||
| 255 | A 3084607005 | DRAG LINK |
| NAKATA | ||
| A 3094601205 | DRAG LINK | |
| Repalced by: A 3094602905 | ||
| A 3094602905 | DRAG LINK | |
| Repalced by: A 3094603105 | ||
| 255 | A 3094603105 | DRAG LINK |
| 256 | A 3083307235 | JOINT |
| TO 308 460 70 05 | ||
| A 3103300435 | JOINT | |
| Repalced by: A 0003305035 | ||
| 256 | A 0003305035 | JOINT |
| LEMFOERDER | ||
| A 3103300835 | JOINT | |
| Repalced by: A 3103301335 | ||
| 256 | A 3103301335 | JOINT |
| 260 | A 0003300085 | BOOT |
| TO 309 460 29 05 | ||
| 260 | A 3083387056 | DUST CAP |
| TO 308 460 70 05 | ||
| 261 | N 000937014004 | NUT |
| 262 | N 000094003024 | COTTER PIN |
| 265 | A 0003380563 | CLAMP |
| 265 | A 0003382745 | CLAMP |
| 266 | N 000960010072 | SCREW |
| CLAMP TO DRAG LINK | ||
| 267 | N 913004010014 | NUT |
| CLAMP TO DRAG LINK | ||
