Transporto priemonė: LO 608 D,LO 708 D/E; VIN numerio dalis: 308304

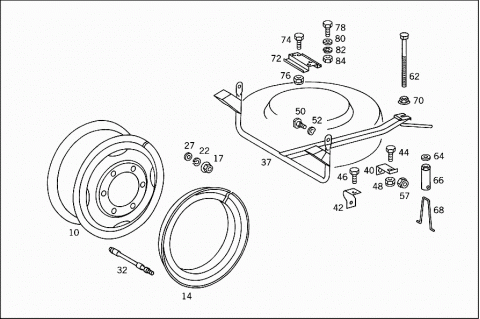

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3104000302 | DISC WHEEL |
| Repalced by: A 3084007002 | ||
| 010 | A 0184000002 | DISC WHEEL |
| Repalced by: A 3084007002 | ||
| 010 | A 3084007002 | DISC WHEEL |
| LEMMERZ | ||
| 010 | A 3084007202 | DISC WHEEL |
| FNV | ||
| 010 | A 3084007302 | DISC WHEEL |
| LEMMERZ | ||
| 014 | A 0004015906 | SIDE RING |
| Repalced by: A 3084017006 | ||
| 014 | A 0184010006 | SIDE RING |
| Repalced by: A 3084017006 | ||
| 014 | A 3084017006 | SIDE RING |
| TO 310 400 03 02,018 400 00 02 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 308 400 70 02,73 02 | ||
| 014 | A 3084017106 | SIDE RING |
| TO 308 400 72 02 | ||
| 017 | N 074361014202 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 022 | N 074361014353 | SPRING LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 022 | A 9019900047 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 027 | A 3194020075 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 032 | A 3214010013 | VALVE |
| 037 | H 983084000041 | MOUNTING BOW |
| Repalced by: A 3084007241 | ||
| 037 | A 3084007241 | MOUNTING BOW |
| 037 | A 3084007041 | MOUNTING BOW |
| 040 | H 983084030040 | BRACKET |
| Repalced by: A 3084037240 | ||
| 040 | A 3084037240 | BRACKET |
| 042 | A 3084037040 | BRACKET |
| 044 | N 000933008282 | SCREW |
| BRACKET TO FRAME | ||
| 046 | N 000933008050 | SCREW |
| BRACKET TO FRAME | ||
| 048 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 050 | H 983084030075 | PIN |
| Repalced by: A 3084037075 | ||
| 050 | A 3084037075 | PIN |
| 052 | N 900055014001 | SPRING WASHER |
| 057 | N 913004010004 | NUT |
| 062 | H 983084030071 | SCREW |
| Repalced by: A 3084037071 | ||
| 062 | A 3084037071 | SCREW |
| H 983084030171 | SCREW | |
| Repalced by: A 3084037171 | ||
| 062 | A 3084037171 | SCREW |
| 064 | N 000125010517 | WASHER |
| 066 | A 3094000470 | CLAMPING NUT |
| 068 | H 983084030073 | LOCK |
| Repalced by: A 3084037073 | ||
| 068 | A 3084037073 | LOCK |
| 070 | A 3094000072 | NUT |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 309 400 01 72 | ||
| 072 | A 3084037140 | BRACKET |
| Repalced by: A 3094030740 | ||
| 072 | A 3094030740 | BRACKET |
| 074 | N 000933008036 | SCREW |
| BRACKET TO FRAME | ||
| 076 | N 913002008001 | NUT |
| BRACKET TO FRAME | ||
| 078 | N 000933010269 | SCREW |
| SPARE WHEEL MOUNTING | ||
| 080 | N 009021010102 | WASHER |
| SPARE WHEEL MOUNTING | ||
| 082 | N 074361014353 | SPRING LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 082 | A 9019900047 | LOCK WASHER |
| SPARE WHEEL MOUNTING | ||
| 084 | N 913004010004 | NUT |
| SPARE WHEEL MOUNTING | ||
