Transporto priemonė: LUXUSKOMBI; VIN numerio dalis: 636813

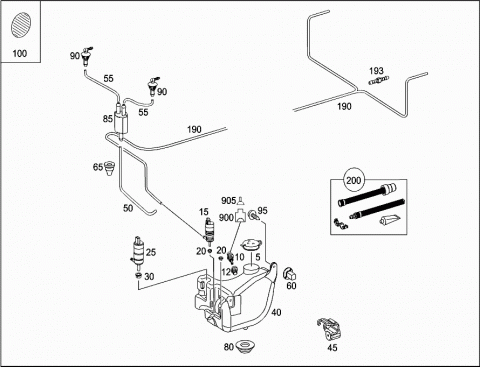

Grupė: 86 EMERGENCY EQUIPMENT/WASHER SYSTEM - 070 WINDSHIELD WASHER SYSTEM, HEADLAMP CLEANING SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1248690072 | COVER |
| WATER RESERVOIR | ||
| 010 | A 2205400045 | SWITCH |
| WASHING WATER STATUS | ||
| 012 | A 2209971981 | GROMMET |
| WATER LEVEL SWITCH TO RESERVOIR | ||
| 015 | A 2218690121 | PUMP |
| 020 | A 1239973681 | GROMMET |
| WASHER PUMP | ||
| 025 | A 2108691121 | PUMP |
| PARA HEADLAMP CLANING SYSTEM | ||
| 030 | A 0109971181 | GROMMET |
| HEADLAMP WIPER/WASHER PUMP | ||
| 040 | A 6368690020 | WATER CONTAINER |
| 045 | A 0009950577 | LINE HOLDER |
| 050 | A 6368691094 | HOSE ASSEMBLY |
| FROM PUMP TO CHECK VALVE | ||
| 055 | A 6368691094 | HOSE ASSEMBLY |
| FROM CHECK VALVE TO CONNECTOR | ||
| 060 | A 0009885425 | TREENAIL |
| PUMP | ||
| 065 | A 6369980201 | SEALING GROMMET |
| 080 | A 2019975181 | GROMMET |
| MOUNTING, TANK | ||
| 085 | A 0008600862 | CHECK VALVE |
| WIPER SYSTEM | ||
| 090 | A 6318690024 | CONNECTOR |
| WIPER ARM COVER | ||
| 095 | N 000000000866 | TAPPING SCREW |
| MOUNTING, TANK | ||
| 6.3X19 | ||
| 100 | A 0069893085 | ADHESIVE TAPE |
| 46 MM | ||
| 190 | A 0109978982 | HOSE |
| REAR WIPER SYSTEM | ||
| 4.6X1.8 MM | ||
| 193 | A 0009971169 | FITTING |
| REAR WIPER SYSTEM | ||
| 200 | A 0008600592 | HOSE |
| REAR WINDSHIELD WASHER SYSTEM REPAIR KIT | ||
| 900 | A 2105402081 | PIN BUSHING HOUSING |
| WASHER FLUID LEVEL SWITCH | ||
| 2-PIN MQS;S42, S42/1 | ||
| 905 | A 0085456326 | FEMALE CONTACT |
| WASHER FLUID LEVEL SWITCH | ||
| 0.5-0.75 MM2 MQS;S42, S42/1 | ||
| 905 | A 0005456980 | GASKET |
| WASHER FLUID LEVEL SWITCH | ||
| 1.4-1.9 MM;S42, S42/1 |
