Transporto priemonė: LUXUSKOMBI; VIN numerio dalis: 636813

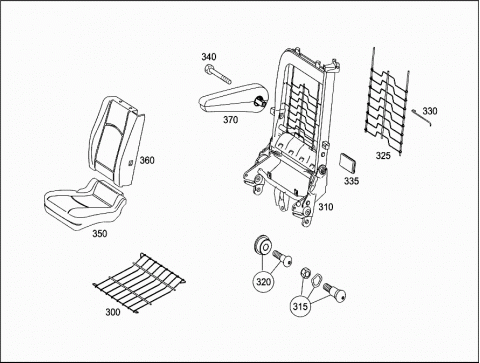

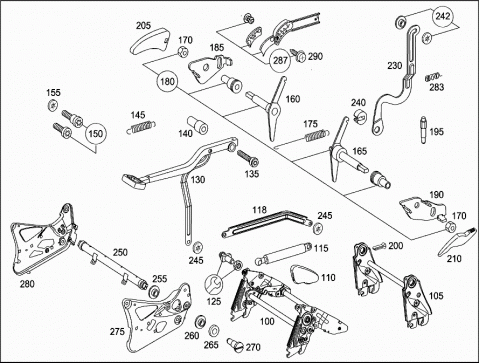

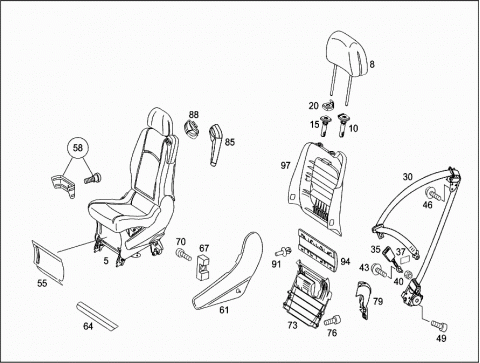

Grupė: 94 PASSENGER SEATS, SINGLE SEATER - 020 SINGLE OCCUPANCY SEAT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6369400001 | ONE SEATER BENCH |
| 005 | A 6369400101 | ONE SEATER BENCH |
| 005 | A 6369400001 | ONE SEATER BENCH |
| 005 | A 6369400101 | ONE SEATER BENCH |
| 005 | A 6369400001 | ONE SEATER BENCH |
| 005 | A 6369400101 | ONE SEATER BENCH |
| 005 | A 6369400001 | ONE SEATER BENCH |
| 005 | A 6369400101 | ONE SEATER BENCH |
| 008 | A 6369700150 | HEADREST |
| 008 | A 6369700150 | HEADREST |
| 008 | A 6369700150 | HEADREST |
| 008 | A 6369700150 | HEADREST |
| 010 | A 6399200067 | GUIDE |
| WITH DETENT | ||
| 010 | A 6399200067 | GUIDE |
| WITH DETENT | ||
| 010 | A 6399200067 | GUIDE |
| WITH DETENT | ||
| 010 | A 6399200067 | GUIDE |
| WITH DETENT | ||
| 015 | A 6399200167 | GUIDE |
| 015 | A 6399200167 | GUIDE |
| 015 | A 6399200167 | GUIDE |
| 015 | A 6399200167 | GUIDE |
| 020 | A 6398140001 | CLOTHES-HOOK |
| 020 | A 6398140001 | CLOTHES-HOOK |
| 020 | A 6398140001 | CLOTHES-HOOK |
| 020 | A 6398140001 | CLOTHES-HOOK |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 030 | A 6368600485 | SEAT BELT |
| 035 | A 6368600369 | SEAT BELT LOCK |
| 035 | A 6368600369 | SEAT BELT LOCK |
| 035 | A 6368600369 | SEAT BELT LOCK |
| 035 | A 6368600369 | SEAT BELT LOCK |
| 037 | A 0019832310 | FELT BAND |
| TO SEAT BELT BUCKLE | ||
| 40X2 MM | ||
| 037 | A 0019832310 | FELT BAND |
| TO SEAT BELT BUCKLE | ||
| 40X2 MM | ||
| 037 | A 0019832310 | FELT BAND |
| TO SEAT BELT BUCKLE | ||
| 40X2 MM | ||
| 040 | A 0049904251 | NUT |
| BUCKLE TO SEAT FRAME | ||
| 040 | A 0049904251 | NUT |
| BUCKLE TO SEAT FRAME | ||
| 043 | A 0009904302 | HEXAL. SOCKET CSK. BOLT |
| SEAT BELT BUCKLE | ||
| 043 | A 0009904302 | HEXAL. SOCKET CSK. BOLT |
| SEAT BELT BUCKLE | ||
| 046 | A 0009900506 | OVAL HEAD PHILLIPS SCREW |
| BELT OUTLET | ||
| 046 | A 0009900506 | OVAL HEAD PHILLIPS SCREW |
| BELT OUTLET | ||
| 049 | A 0009901299 | BOLT |
| BELT REEL | ||
| 049 | A 0009901299 | BOLT |
| BELT REEL | ||
| 055 | A 6369430028 | COVER |
| FRONT PANELLING | ||
| 055 | A 6369430028 | COVER |
| FRONT PANELLING | ||
| 058 | A 0009901699 | REPAIR KIT |
| FRONT PANELLING | ||
| 058 | A 0009901699 | REPAIR KIT |
| FRONT PANELLING | ||
| 061 | A 6369410021 | COVER |
| LEFT | ||
| 061 | A 6369410121 | COVER |
| RIGHT | ||
| 061 | A 6369410121 | COVER |
| RIGHT | ||
| 061 | A 6369410021 | COVER |
| LEFT | ||
| 064 | A 0009834694 | ELASTIC BAND |
| SELF-ADHESIVE | ||
| 064 | A 0009834694 | ELASTIC BAND |
| SELF-ADHESIVE | ||
| 067 | A 6369410014 | BRACKET |
| LEFT AND RIGHT SIDE PANELING | ||
| 067 | A 6369410014 | BRACKET |
| LEFT AND RIGHT SIDE PANELING | ||
| 070 | A 0009900906 | OVAL HEAD PHILLIPS SCREW |
| LEFT AND RIGHT SIDE PANELING | ||
| 070 | A 0009900906 | OVAL HEAD PHILLIPS SCREW |
| LEFT AND RIGHT SIDE PANELING | ||
| 073 | A 6369430128 | COVER |
| REAR PANELLING | ||
| 073 | A 6369430128 | COVER |
| REAR PANELLING | ||
| 076 | A 0009901006 | OVAL HEAD PHILLIPS SCREW |
| REAR PANELLING | ||
| 076 | A 0009901006 | OVAL HEAD PHILLIPS SCREW |
| REAR PANELLING | ||
| 079 | A 6369430228 | COVER |
| REAR LEFT | ||
| 079 | A 6369430328 | COVER |
| REAR RIGHT | ||
| 079 | A 6369430228 | COVER |
| REAR LEFT | ||
| 079 | A 6369430328 | COVER |
| REAR RIGHT | ||
| 085 | A 6369430528 | COVER |
| BELT OUTLET | ||
| 085 | A 6369430528 | COVER |
| BELT OUTLET | ||
| 088 | A 6369430628 | COVER |
| BELT OUTLET | ||
| 088 | A 6369430628 | COVER |
| BELT OUTLET | ||
| 091 | A 0009914240 | EXPANSION RIVET |
| COVERING | ||
| 091 | A 0009914240 | EXPANSION RIVET |
| TABLE POSITION | ||
| 094 | A 6369430728 | COVER |
| TABLE POSITION | ||
| 094 | A 6369430728 | COVER |
| TABLE POSITION | ||
| 097 | A 6369430428 | COVER |
| BACKREST | ||
| 097 | A 6369430428 | COVER |
| BACKREST | ||
| 100 | A 6369200100 | UNLOCKING |
| FRONT ANCHORING | ||
| 100 | A 6369200100 | UNLOCKING |
| FRONT ANCHORING | ||
| 105 | A 6369200200 | UNLOCKING |
| REAR ANCHORING | ||
| 105 | A 6369200200 | UNLOCKING |
| REAR ANCHORING | ||
| 110 | A 6369430036 | HANDLE |
| FRONT RELEASE | ||
| 110 | A 6369430036 | HANDLE |
| FRONT RELEASE | ||
| 115 | A 6369490081 | TOWBAR |
| PNEUMATIC SPRING | ||
| 115 | A 6369490081 | TOWBAR |
| PNEUMATIC SPRING | ||
| 118 | A 6369410007 | STRUT |
| 118 | A 6369410007 | STRUT |
| 125 | A 0009900799 | REPAIR KIT |
| FASTENING, GAS-OPERATED SPRING | ||
| 125 | A 0009900799 | REPAIR KIT |
| FASTENING, GAS-OPERATED SPRING | ||
| 130 | A 6369400062 | SINGLE LEVER |
| FORE AND AFT ADJUSTMENT | ||
| 130 | A 6369400062 | SINGLE LEVER |
| FORE AND AFT ADJUSTMENT | ||
| 135 | A 0009904002 | HEXAL. SOCKET CSK. BOLT |
| FORE AND AFT ADJUSTMENT | ||
| 135 | A 0009904002 | HEXAL. SOCKET CSK. BOLT |
| FORE AND AFT ADJUSTMENT | ||
| 140 | A 0009921150 | SLEEVE, CYLINDRICAL |
| FORE AND AFT ADJUSTMENT | ||
| 140 | A 0009921150 | SLEEVE, CYLINDRICAL |
| FORE AND AFT ADJUSTMENT | ||
| 145 | A 0009931511 | EXTENSION SPRING |
| FORE AND AFT ADJUSTMENT | ||
| 145 | A 0009931511 | EXTENSION SPRING |
| FORE AND AFT ADJUSTMENT | ||
| 150 | A 0009904102 | BOLT |
| FRONT ANCHORING | ||
| 150 | A 0009904102 | BOLT |
| FRONT ANCHORING | ||
| 155 | A 0009940119 | SUPPORTING PLATE |
| FRONT ANCHORING | ||
| 155 | A 0009940119 | SUPPORTING PLATE |
| FRONT ANCHORING | ||
| 160 | A 6369300048 | UNLOCKING |
| REAR RIGHT | ||
| 160 | A 6369300048 | UNLOCKING |
| REAR RIGHT | ||
| 165 | A 6369300148 | UNLOCKING |
| REAR LEFT | ||
| 165 | A 6369300148 | UNLOCKING |
| REAR LEFT | ||
| 170 | A 0009905952 | NUT SPECIAL SHAPE |
| REAR RELEASE | ||
| 170 | A 0009905952 | NUT SPECIAL SHAPE |
| REAR RELEASE | ||
| 175 | A 0009931611 | EXTENSION SPRING |
| REAR RELEASE | ||
| 175 | A 0009931611 | EXTENSION SPRING |
| REAR RELEASE | ||
| 180 | A 0009901599 | REPAIR KIT |
| REAR ANCHORING | ||
| 180 | A 0009901599 | REPAIR KIT |
| REAR ANCHORING | ||
| 185 | A 6369490031 | CONSOLE |
| REAR RIGHT | ||
| 185 | A 6369490031 | CONSOLE |
| REAR RIGHT | ||
| 190 | A 6369490131 | CONSOLE |
| REAR LEFT | ||
| 190 | A 6369490131 | CONSOLE |
| REAR LEFT | ||
| 195 | A 6369490014 | BRACKET |
| STOP | ||
| 195 | A 6369490014 | BRACKET |
| STOP | ||
| 200 | A 0009872039 | RUBBER STOP |
| SEAT BASE,REAR | ||
| 200 | A 0009872039 | RUBBER STOP |
| SEAT BASE,REAR | ||
| 205 | A 6369430136 | HANDLE |
| REAR RIGHT | ||
| 205 | A 6369430136 | HANDLE |
| REAR RIGHT | ||
| 210 | A 6369430236 | HANDLE |
| REAR LEFT | ||
| 210 | A 6369430236 | HANDLE |
| REAR LEFT | ||
| 230 | A 6369490181 | TOWBAR |
| CONNECTION | ||
| 230 | A 6369490181 | TOWBAR |
| CONNECTION | ||
| 240 | A 0109940641 | RETAINING RING |
| BOTTOM | ||
| 240 | A 0109940641 | RETAINING RING |
| BOTTOM | ||
| 242 | A 6369490024 | ELASTOMER BEARING |
| TO CONNECTING PIECE | ||
| 242 | A 6369490024 | ELASTOMER BEARING |
| TO CONNECTING PIECE | ||
| 245 | A 0009946010 | LOCK WASHER |
| TOP | ||
| 245 | A 0009946010 | LOCK WASHER |
| TOP | ||
| 250 | A 6369400010 | STRUT |
| FRONT ROD | ||
| 250 | A 6369400010 | STRUT |
| FRONT ROD | ||
| 255 | A 0009970463 | SLEEVE |
| FRONT ROD | ||
| 255 | A 0009970463 | SLEEVE |
| FRONT ROD | ||
| 260 | A 6369430099 | BORDER RING |
| FRONT ROD | ||
| 260 | A 6369430099 | BORDER RING |
| FRONT ROD | ||
| 265 | A 0009940419 | SUPPORTING PLATE |
| FRONT ROD | ||
| 265 | A 0009940419 | SUPPORTING PLATE |
| FRONT ROD | ||
| 270 | A 0079902104 | CAPSCREW W HEXAL. DRIVE |
| FRONT ROD | ||
| 270 | A 0079902104 | CAPSCREW W HEXAL. DRIVE |
| FRONT ROD | ||
| 275 | A 6369490231 | CONSOLE |
| LEFT | ||
| 275 | A 6369490231 | CONSOLE |
| LEFT | ||
| 280 | A 6369490331 | CONSOLE |
| RIGHT | ||
| 280 | A 6369490331 | CONSOLE |
| RIGHT | ||
| 283 | A 0009931811 | EXTENSION SPRING |
| PANELLING | ||
| 283 | A 0009931811 | EXTENSION SPRING |
| PANELLING | ||
| 287 | A 6369430336 | HANDLE |
| BACKREST ADJUSTER | ||
| 287 | A 6369430336 | HANDLE |
| BACKREST ADJUSTER | ||
| 290 | A 0009901106 | OVAL HEAD PHILLIPS SCREW |
| MOUNTING, HANDLE | ||
| Repalced by: N 000000000521 | ||
| 290 | N 000000000521 | TAPPING SCREW |
| MOUNTING, HANDLE | ||
| 4.2X13 | ||
| 290 | A 0009901106 | OVAL HEAD PHILLIPS SCREW |
| MOUNTING, HANDLE | ||
| Repalced by: N 000000000521 | ||
| 290 | N 000000000521 | TAPPING SCREW |
| MOUNTING, HANDLE | ||
| 4.2X13 | ||
| 300 | A 6369440001 | SEAT SUSPENSION ELEMENT |
| SEAT CUSHION | ||
| 300 | A 6369440001 | SEAT SUSPENSION ELEMENT |
| SEAT CUSHION | ||
| 310 | A 6369400020 | SEAT FRAME |
| BACKREST | ||
| 310 | A 6369400020 | SEAT FRAME |
| BACKREST | ||
| 315 | A 0009901799 | REPAIR KIT |
| LEFT BACKREST | ||
| 315 | A 0009901799 | REPAIR KIT |
| LEFT BACKREST | ||
| 320 | A 0009901899 | REPAIR KIT |
| RIGHT BACKREST | ||
| 320 | A 0009901899 | REPAIR KIT |
| RIGHT BACKREST | ||
| 325 | A 6369440002 | SEAT SUSPENSION ELEMENT |
| BACKREST | ||
| 325 | A 6369440002 | SEAT SUSPENSION ELEMENT |
| BACKREST | ||
| 330 | A 6369440029 | RETAINER SPRING |
| TOP | ||
| 330 | A 6369440129 | RETAINER SPRING |
| BOTTOM | ||
| 330 | A 6369440029 | RETAINER SPRING |
| TOP | ||
| 330 | A 6369440129 | RETAINER SPRING |
| BOTTOM | ||
| 335 | A 6369430436 | HANDLE |
| TABLE POSITION | ||
| 335 | A 6369430436 | HANDLE |
| TABLE POSITION | ||
| 340 | A 0079902204 | CAPSCREW W HEXAL. DRIVE |
| ARMREST | ||
| 340 | A 0079902204 | CAPSCREW W HEXAL. DRIVE |
| ARMREST | ||
| 350 | A 6369400121 | SEAT CUSHION |
| 350 | A 6369400121 | SEAT CUSHION |
| 360 | A 6369400031 | SEAT BACK REST |
| 360 | A 6369400031 | SEAT BACK REST |
| 370 | A 6369700001 | ARMREST |
| LEFT | ||
| 370 | A 6369700001 | ARMREST |
| LEFT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700001 | ARMREST |
| LEFT | ||
| 370 | A 6369700101 | ARMREST |
| LEFT | ||
| 370 | A 6369700101 | ARMREST |
| LEFT | ||
| 370 | A 6369700001 | ARMREST |
| LEFT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
| 370 | A 6369700101 | ARMREST |
| RIGHT | ||
