Transporto priemonė: LUXUSKOMBI; VIN numerio dalis: 639813

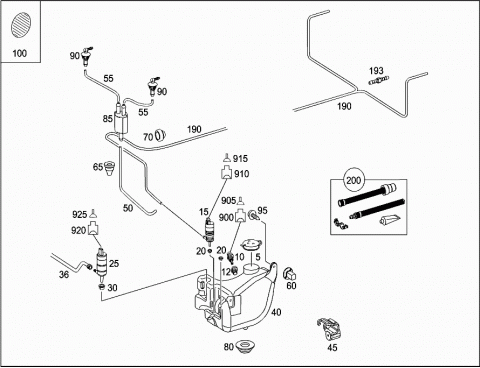

Grupė: 86 EMERGENCY EQUIPMENT/WASHER SYSTEM - 070 WINDSHIELD WASHER SYSTEM, HEADLAMP CLEANING SYSTEM

#	Kodas	Pavadinimas
005	A 1248690172	CATCH
		WATER RESERVOIR
010	A 2205400045	SWITCH
		WASHING WATER STATUS
012	A 2209971981	GROMMET
		WATER LEVEL SWITCH TO RESERVOIR
015	A 0008605826	PUMP
		PANE WASHER SYSTEM
	Repalced by: A 2218690121
015	A 2218690121	PUMP
		PANE WASHER SYSTEM
015	A 2108690821	PUMP
		PANE WASHER SYSTEM
015	A 0008605826	PUMP
		PANE WASHER SYSTEM
	Repalced by: A 2218690121
015	A 2218690121	PUMP
		PANE WASHER SYSTEM
015	A 2108690821	PUMP
		PANE WASHER SYSTEM
020	A 1239973681	GROMMET
		WASHER PUMP
020	A 1239973681	GROMMET
		WASHER PUMP
025	A 2108691121	PUMP
		FOR HEADLAMP WASH/WIPE SYSTEM
030	A 0109971181	GROMMET
		HEADLAMP WIPER/WASHER PUMP
030	A 2019975181	GROMMET
		TO PLUG THE HOLES USED FOR HEADLAMP WASHER
036	Q 0000000001	IMPORTANT INFORMATION
		SEE GROUP/TECHNICAL RANGE:
		88 060
040	A 0008694720	DASHPOT
040	A 0008694320	DASHPOT
040	A 0008694920	DASHPOT
040	A 0008694520	DASHPOT
040	A 0008694820	DASHPOT
040	A 0008694420	DASHPOT
040	A 0008695020	DASHPOT
040	A 0008694620	DASHPOT
040	A 0008695120	DASHPOT
040	A 0008695220	DASHPOT
040	A 0008695320	DASHPOT
040	A 0008695420	DASHPOT
045	A 0009950577	LINE HOLDER
050	A 0109978982	HOSE
		FROM PUMP TO CHECK VALVE
		4.6X1.8 MM
055	A 0109978982	HOSE
		FROM CHECK VALVE TO CONNECTOR
		4.6X1.8 MM
060	A 0009885425	TREENAIL
		PUMP
065	A 0109971381	GROMMET
		AT COWL
070	A 0109971381	GROMMET
		REAR WIPER
	Repalced by: A 1409975981
070	A 1409975981	GROMMET
		REAR WIPER
080	A 1109871044	EXPANSION PLUG
		HOSE
		15.5 MM
085	A 0008600862	CHECK VALVE
		WIPER SYSTEM
090	A 6318690024	CONNECTOR
		WIPER ARM COVER
095	N 000000000866	TAPPING SCREW
		MOUNTING, TANK
		6.3X19
100	A 0069893085	ADHESIVE TAPE
		TO PLUG THE HOLES
		46 MM
190	A 0109978982	HOSE
		REAR WIPER SYSTEM
		4.6X1.8 MM
193	A 0009971169	FITTING
		REAR WIPER SYSTEM
193	A 0009971169	FITTING
		REAR WIPER SYSTEM
200	A 0008600592	HOSE
		REAR WINDSHIELD WASHER SYSTEM REPAIR KIT
200	A 0008600592	HOSE
		REAR WINDSHIELD WASHER SYSTEM REPAIR KIT
900	A 2105402081	PIN BUSHING HOUSING
		WASHER FLUID LEVEL SWITCH
		2-PIN MQS;S42, S42/1
905	A 0005458780	BLIND PLUG
		4.1MM
905	A 0085456326	FEMALE CONTACT
		WASHER FLUID LEVEL SWITCH
		0.5-0.75 MM2 MQS;S42, S42/1
905	A 0005456980	GASKET
		WASHER FLUID LEVEL SWITCH
		1.4-1.9 MM;S42, S42/1
910	A 0165454626	PIN BUSHING HOUSING
		WASHER PUMP
		2-PIN MCP2.8;M5/1
910	A 0165454626	PIN BUSHING HOUSING
		REAR-END DOOR WASHER PUMP
		2-PIN MCP2.8;M5/3
915	A 0005402905	REP.SET CONTACT
		WITH GASKET
		1.0 MM2
915	A 0005456280	BLIND PLUG
		WASHER PUMP
		M5/1
915	A 0005456280	BLIND PLUG
		REAR-END DOOR WASHER PUMP
		M5/3
915	A 0145458326	FEMALE CONTACT
		WASHER PUMP
		0.5-1.0 MM2 MCP2.8;M5/1
915	A 0145458226	CONTACT SPRING
		WASHER PUMP
		1.5-2.5 MM2 MCP2.8;M5/1
915	A 0005452839	CORE BUNDLE SEALING
		WASHER PUMP
		0.5-1.0 MM;M5/1
915	A 0005452939	CORE BUNDLE SEALING
		WASHER PUMP
		1.0-2.5 MM;M5/1
915	A 0145458326	FEMALE CONTACT
		REAR-END DOOR WASHER PUMP
		0.5-1.0 MM2 MCP2.8;M5/3
915	A 0145458226	CONTACT SPRING
		REAR-END DOOR WASHER PUMP
		1.5-2.5 MM2 MCP2.8;M5/3
915	A 0005452839	CORE BUNDLE SEALING
		REAR-END DOOR WASHER PUMP
		0.5-1.0 MM;M5/3
915	A 0005452939	CORE BUNDLE SEALING
		REAR-END DOOR WASHER PUMP
		1.0-2.5 MM;M5/3
920	A 0185450026	PIN BUSHING HOUSING
		HEADLAMP WIPER/WASHER PUMP
		2-PIN MCP2.8;M5/2
925	A 0005403905	ELECTRICAL LINE
		1.5 MM2 SLK2.8
925	A 0005456280	BLIND PLUG
		HEADLAMP WIPER/WASHER PUMP
		M5/2
925	A 0145458226	CONTACT SPRING
		HEADLAMP WIPER/WASHER PUMP
		1.5-2.5 MM2 MCP2.8;M5/2
925	A 0005452939	CORE BUNDLE SEALING
		HEADLAMP WIPER/WASHER PUMP
		1.0-2.5 MM;M5/2
