Transporto priemonė: L 406 DG,L 407 D; VIN numerio dalis: 309111

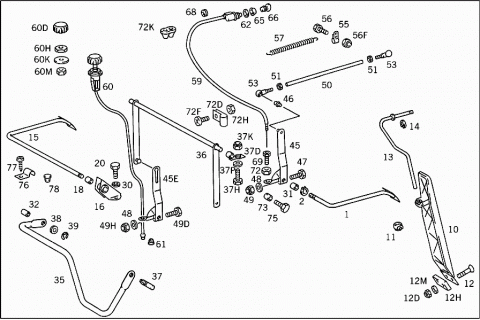

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3093000304 | ACCELERATOR PEDAL |
| 002 | N 900055010402 | LOCK RING |
| A 3093001204 | ACCELERATOR PEDAL | |
| Repalced by: A 3093001304 | ||
| 010 | A 3093001304 | ACCELERATOR PEDAL |
| 011 | A 3093010022 | JOINT |
| 012 | N 000965006014 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X16 | ||
| 012 | N 000965006040 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X30 | ||
| 012D | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 012D | N 913004006001 | NUT |
| ACCELERATOR PEDAL TO CAB | ||
| 012H | A 3093010184 | SHIM |
| ACCELERATOR PEDAL TO CAB | ||
| 012M | N 000125006421 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| A 3093001225 | LEVER | |
| Repalced by: A 3103000425 | ||
| A 3093002225 | LEVER | |
| Repalced by: A 3103000425 | ||
| 013 | A 3093002325 | LEVER |
| Repalced by: A 3103000425 | ||
| 013 | A 3103000425 | LEVER |
| (CONTROL LEVER) | ||
| 014 | N 900055010402 | LOCK RING |
| 015 | A 3093000404 | ACCELERATOR PEDAL |
| Repalced by: A 3093001504 | ||
| 015 | A 3093001504 | ACCELERATOR PEDAL |
| A 3093001404 | ACCELERATOR PEDAL | |
| Repalced by: A 3103000004 | ||
| 015 | A 3103000004 | ACCELERATOR PEDAL |
| Repalced by: A 3103000104 | ||
| 015 | A 3103000104 | ACCELERATOR PEDAL |
| 016 | A 3093000236 | BEARING BRACKET |
| Repalced by: A 3093000436 | ||
| 016 | A 3093000436 | BEARING BRACKET |
| ACCELERATOR PEDAL | ||
| 018 | A 3193010150 | BUSHING |
| 018 | A 3193010150 | BUSHING |
| 020 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 020 | N 304017006018 | SCREW |
| BEARING BRACKET TO CAB FLOOR | ||
| 030 | N 912004006102 | LOCK WASHER |
| BEARING BRACKET TO CAB FLOOR | ||
| 031 | A 3193010150 | BUSHING |
| 031 | A 3193010150 | BUSHING |
| 031 | A 3193010150 | BUSHING |
| 032 | A 3093010053 | SPACER TUBE |
| 035 | A 3093010319 | SHAFT |
| Repalced by: A 3093010519 | ||
| 035 | A 3093010519 | SHAFT |
| CONTROL | ||
| 036 | A 3093000120 | SHAFT |
| CONTROL | ||
| 037 | A 3093010121 | PIVOT PIN |
| Repalced by: A 3093010221 | ||
| 037 | A 3093010221 | PIVOT PIN |
| CONTROL | ||
| 037D | A 1233010118 | BEARING |
| CONTROL | ||
| 037H | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 037H | N 304017006020 | SCREW |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 037K | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 037K | N 913004006001 | NUT |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 037P | N 000125006421 | WASHER |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 038 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 038 | N 000125010532 | WASHER |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 039 | N 006799007007 | LOCK PLATE |
| CONTROL SHAFT TO WINDOW SILL GIRDER | ||
| 045 | A 3093000325 | LEVER |
| Repalced by: A 3103000025 | ||
| 045 | A 3093002525 | LEVER |
| Repalced by: A 3103000025 | ||
| 045 | A 3103000025 | LEVER |
| (CONTROL LEVER) | ||
| 045 | A 3103000025 | LEVER |
| (CONTROL LEVER) | ||
| 045 | A 3103000525 | LEVER |
| (CONTROL LEVER) | ||
| A 3093003125 | LEVER | |
| Repalced by: A 3093004925 | ||
| 045E | A 3093004925 | LEVER |
| CONTROL | ||
| 045E | A 3093004125 | LEVER |
| CONTROL | ||
| 046 | N 071803008207 | BALL PIVOT |
| 047 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 047 | N 304017006012 | SCREW |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 048 | N 000125006421 | WASHER |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 049 | N 913002006000 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 049D | N 000931006144 | SCREW |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| N 000137010201 | SPRING WASHER | |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 049H | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 049H | N 913004006001 | NUT |
| CONTROL LEVER TO ACCELERATOR PEDAL | ||
| 050 | A 3093000615 | ROD |
| Repalced by: A 3093011315 | ||
| 050 | A 3093011315 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050 | A 3093011315 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 050 | A 3093012515 | ROD |
| Repalced by: A 3093011315 | ||
| 050 | A 3093011315 | ROD |
| FROM PEDAL PLATE TO LEVER | ||
| 051 | N 000934005008 | NUT |
| FROM PEDAL PLATE TO LEVER | ||
| 051 | N 000934006007 | NUT |
| FROM PEDAL PLATE TO LEVER | ||
| 053 | A 0009910620 | BALL SOCKET |
| Repalced by: A 0009911220 | ||
| 053 | A 0009911220 | BALL SOCKET |
| FROM PEDAL PLATE TO LEVER | ||
| 053 | A 0009914722 | BALL SOCKET |
| FROM PEDAL PLATE TO LEVER | ||
| 055 | A 3099950044 | CLAMP |
| ROD | ||
| 056 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 056 | N 304017005002 | SCREW |
| CLAMP MOUNTING | ||
| 056F | N 913004005001 | NUT |
| CLAMP MOUNTING | ||
| 057 | A 1819930310 | SPRING |
| (RELEASE SPRING) | ||
| 059 | A 3093000032 | WIRE CABLE |
| Repalced by: A 3633000032 | ||
| 059 | A 3633000032 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 059 | A 3633000032 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 059 | A 3093000132 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 060 | A 3093001407 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 060D | A 3093020001 | KNOB |
| WIRE CABLE | ||
| 060H | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 060H | A 3129901151 | NUT |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 060K | A 0003020052 | SPACER WASHER |
| WIRE CABLE TO INSTRUMENT PANEL | ||
| 060M | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 060M | N 304035008001 | NUT |
| WIRE CABLE TO BRACKET | ||
| 061 | A 3093020050 | BUSHING |
| PULL WIRE TO LEVER | ||
| 062 | A 1539902240 | WASHER |
| IDLING ADJUSTMENT | ||
| 062 | A 3099900840 | WASHER |
| IDLING ADJUSTMENT | ||
| 065 | A 1105450272 | NUT |
| IDLING ADJUSTMENT | ||
| 066 | A 1105450937 | BUTTON |
| IDLING ADJUSTMENT | ||
| 066 | A 1105451137 | BUTTON |
| IDLING ADJUSTMENT | ||
| 068 | A 0009972481 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 068 | A 0009972881 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 069 | A 1863050115 | SCREW |
| WIRE CABLE TO BRACKET | ||
| 072 | N 000934006007 | NUT |
| WIRE CABLE TO BRACKET | ||
| 072D | A 3609950301 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 072F | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 072F | N 000000001145 | SCREW |
| WIRE CABLE TO BRACKET | ||
| 072H | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 072H | N 913004006001 | NUT |
| WIRE CABLE TO BRACKET | ||
| 072K | A 3183020091 | GROMMET |
| WIRE CABLE TO BRACKET | ||
| 073 | A 3093020068 | END PIECE |
| Repalced by: A 1233000086 | ||
| 073 | A 1233000086 | END PIECE |
| 075 | A 3099900015 | SCREW |
| Repalced by: N 000933005058 | ||
| 075 | N 000933005058 | SCREW |
| 076 | A 1869950220 | CLAMP |
| Repalced by: N 072571001035 | ||
| 076 | N 072571001035 | CLAMP |
| Repalced by: A 1279950020 | ||
| 076 | A 1279950020 | CLAMP |
| CHOKE CABLE TO COWL | ||
| 077 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 077 | N 000000002062 | SCREW |
| CHOKE CABLE TO COWL | ||
| 078 | N 900083016000 | PLUG |
| CHOKE CABLE TO COWL | ||
