Transporto priemonė: L 408 DG; VIN numerio dalis: 309312
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
69674
69675

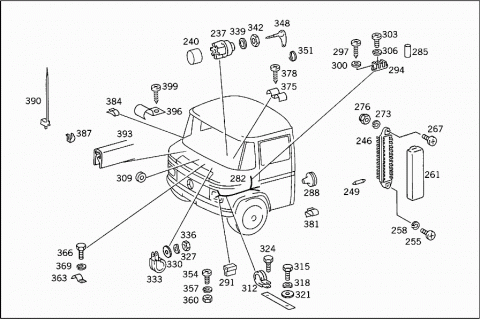

69676
69677
69678
69679
69680
69681
69682
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING

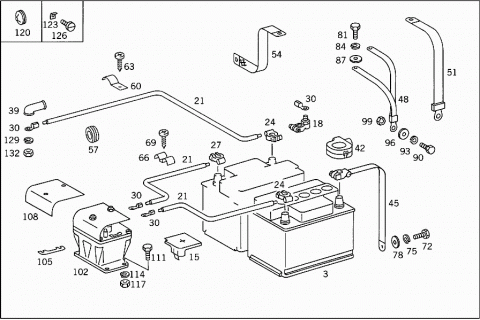

BATTERY,STARTING CABLES AND MAIN CABLE HARNESS
A 0005419401 BATTERY
Repalced by: A 0005417401
A 0005417401 BATTERY
Repalced by: A 0025419901
003 A 0025419901 BATTERY
12V/70AH
015 A 0005462335 BOOT
POS. POLE
018 A 0005469844 CLAMPING PIECE
POS. POLE
021 N 922002070000 ELECTRIC CABLE
Repalced by: A 6735460013
021 A 6735460013 ELECTRIC CABLE
BATTERY
024 N 072332013100 SOLDERING TERMINAL
POS. POLE
027 N 072332013200 SOLDERING TERMINAL
NEG.POLE
030 N 046234010007 CABLE SHOE
A 3095460035 BOOT
Repalced by: A 0005460135
039 A 0005460135 BOOT
POS. CABLE
042 A 0005463735 BOOT
NEG.POLE
045 A 3145400931 NEG. CABLE
FROM BATTERY TO BATTERY SUPPORT
A 3095400341 GROUND STRAP
Repalced by: A 3135400041
048 A 3135400041 GROUND STRAP
FROM CAB RIGHT SIDE MEMBER TO BELL HOUSING
A 3095400441 GROUND STRAP
Repalced by: A 3145400041
A 3145400041 GROUND STRAP
Repalced by: A 3525400041
051 A 3525400041 GROUND STRAP
FROM CAB CROSS MEMBER TO BELL HOUSING
054 A 3095460120 GROUND STRAP
FROM CAB RIGHT SIDE MEMBER TO FRAME SIDE MEMBER
057 A 1869970781 GROMMET
ELECTRIC CABLE THRU DRIVER'S SEAT BOX
060 A 3129952420 CLAMP
Repalced by: A 1109950401
060 A 1109950401 CLAMP
BATTERY CABLE TO CAB CROSS MEMBER
063 N 007981006208 SHEET METAL SCREW
Repalced by: N 007981006305
063 N 007981006305 SHEET METAL SCREW
CLAMP MOUNTING
066 A 3039950232 CLAMP
MAIN CABLE HARNESS & STARTING CABLE TO CAB LEFT SIDE MEMBER
069 N 007981006208 SHEET METAL SCREW
Repalced by: N 007981006305
069 N 007981006305 SHEET METAL SCREW
CLAMP MOUNTING
072 N 000933010128 SCREW
BATTERY CABLE TO BATTERY SUPPORT
075 N 912004010102 LOCK WASHER
BATTERY CABLE TO BATTERY SUPPORT
078 N 009021010202 WASHER
Repalced by: N 009021010209
078 N 009021010209 WASHER
BATTERY CABLE TO BATTERY SUPPORT
081 N 000125010532 WASHER
Repalced by: N 304017010043
081 N 304017010043 SCREW
GROUND STRAP TO CAB SIDE MEMBER
084 N 912004010102 LOCK WASHER
GROUND STRAP TO CAB SIDE MEMBER
087 N 009021010202 WASHER
Repalced by: N 009021010209
087 N 009021010209 WASHER
GROUND STRAP TO CAB SIDE MEMBER
090 N 000933010128 SCREW
GROUND STRAP TO FRAME SIDE MEMBER
093 N 912004010102 LOCK WASHER
GROUND STRAP TO FRAME SIDE MEMBER
096 N 009021010202 WASHER
Repalced by: N 009021010209
096 N 009021010209 WASHER
GROUND STRAP TO FRAME SIDE MEMBER
099 N 000934010014 NUT
GROUND STRAP TO FRAME SIDE MEMBER
102 A 0005450908 SWITCH
BATTERY
105 A 0005450334 FUSE
108 A 3095450046 COVERING
SWITCH
111 N 000933008153 SCREW
Repalced by: N 304017008034
111 N 304017008034 SCREW
SWITCH
114 N 912004008102 LOCK WASHER
SWITCH
117 N 304032008006 NUT
SWITCH
A 3095401939 ELECTRIC CABLE
FROM STARTING MOTOR TO ALTERNATOR
A 3525401439 ELECTRIC CABLE
FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT
A 3129970521 PART NAME MISSING
Repalced by: A 1109970481
120 A 1109970481 GROMMET
BATTERY CABLE TO BATTERY SUPPORT
120 A 1109970481 GROMMET
MAIN CABLE HARNESS THRU CAB FLOOR
A 0001510276 WASHER
Repalced by: A 0001510011
123 A 0001510011 MOUNTING BOW
STARTING MOTOR
126 N 000084004175 SCREW
STARTING MOTOR
129 N 912004010102 LOCK WASHER
AT STARTER TERMINAL 30
132 N 000934010014 NUT
AT STARTER TERMINAL 30

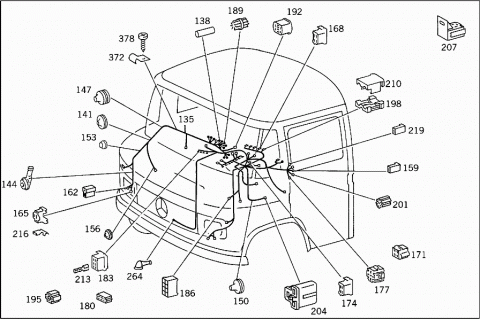

135 A 3095400805 CABLE HARNESS
CAB MAIN CABLE HARNESS
A 3105400005 CABLE HARNESS
Repalced by: A 3105400705
135 A 3105407305 CABLE HARNESS
CAB MAIN CABLE HARNESS
A 3105400305 CABLE HARNESS
Repalced by: A 3105400705
135 A 3105400705 CABLE HARNESS
CAB MAIN CABLE HARNESS
135 A 3105401005 CABLE HARNESS
CAB MAIN CABLE HARNESS
135 A 3095400905 CABLE HARNESS
CAB MAIN CABLE HARNESS
A 3105400105 CABLE HARNESS
Repalced by: A 3105400805
A 3105407405 CABLE HARNESS
Repalced by: A 3105400805
135 A 3105400805 CABLE HARNESS
CAB MAIN CABLE HARNESS
135 A 3105401105 CABLE HARNESS
CAB MAIN CABLE HARNESS
138 A 0009970381 GROMMET
138 A 0009970581 GROMMET
138 A 0009970681 GROMMET
141 A 1109970481 GROMMET
144 A 3149970181 GROMMET
147 A 3359970081 GROMMET
150 A 3109970081 GROMMET
153 A 3099970081 GROMMET
156 A 3099970681 GROMMET
159 A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
162 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
165 A 0015458528 PIN BUSHING HOUSING
3-POLE
168 A 0015458428 PIN BUSHING HOUSING
4-POLE
171 A 0075457328 PIN BUSHING HOUSING
4-POLE
174 A 0015454128 PIN BUSHING HOUSING
4-POLE
177 A 0065450728 PIN BUSHING HOUSING
5-POLE
180 A 0055458428 PIN BUSHING HOUSING
6-POLE
A 0035451028 PIN BUSHING HOUSING
Repalced by: A 0015458128
183 A 0015458128 PIN BUSHING HOUSING
6-POLE
186 A 0015458328 PIN BUSHING HOUSING
8-POLE
189 A 0045451428 PLUG
8-POLE
192 A 0065455528 PIN BUSHING HOUSING
10-POLE
195 A 0025451728 PIN BUSHING HOUSING
4-POLE
A 0065457928 PLUG
Repalced by: A 0025454928
A 0025454928 PLUG
Repalced by: A 0085453728
198 A 0085453728 PIN BUSHING HOUSING
BIPOLAR
201 A 0055459928 PIN BUSHING HOUSING
7-POLE
204 A 0025459528 PIN BUSHING HOUSING
3-POLE
207 A 0065451428 PIN BUSHING HOUSING
RELAY
210 A 0005452403 CAP
A 0005454526 PIN BUSHING
Repalced by: A 0005453726
213 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
213 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
213 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
213 A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
213 A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
213 A 0005454626 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
4 MM2
216 A 0005453626 PIN BUSHING
Repalced by: A 0075457426
216 A 0075457426 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4 MM2
216 A 0005457926 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
219 A 0005451745 BOOT
237 A 0005453013 SWITCH
(IGNITION AND LIGHT SWITH)
240 A 3099971181 GROMMET
SWITCH BOX
246 A 3145450001 FUSE BOX
10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED
246 A 0005458501 FUSE BOX
12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED
246 A 0005458401 FUSE BOX
12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED
249 A 0005458234 FUSE
Repalced by: N 072581008101
249 N 072581008101 FUSE
8 A
255 N 007985004136 SCREW
CABLE TO FUSE BOX
258 N 912004004102 LOCK WASHER
CABLE TO FUSE BOX
261 A 0005452303 CAP
FUSE BOX
A 0005460235 BOOT
Repalced by: A 0005463335
264 A 0005463335 BOOT
267 N 007985005175 SCREW
Repalced by: N 000000001181
267 N 000000001181 SCREW
FUSE BOX MOUNTING
267 N 007985006154 SCREW
Repalced by: A 0029903712
267 A 0029903712 SCREW
Repalced by: N 000000001149
267 N 000000001149 SCREW
FUSE BOX MOUNTING
273 N 000127005101 LOCK WASHER
FUSE BOX MOUNTING
276 N 000934005008 NUT
FUSE BOX MOUNTING
276 N 913004006002 NUT
Repalced by: N 913004006001
276 N 913004006001 NUT
FUSE BOX MOUNTING
282 A 3095402537 ELECTRIC CABLE
FROM ALTERNATOR TO REGULATOR AND TO CABLE CONNECTOR
285 A 0009970381 GROMMET
285 A 0009970581 GROMMET
288 A 3109970081 GROMMET
291 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
294 A 0005468041 CABLE CONNECTOR
IN ENGINE COMPARTMENT
297 N 007981004244 SHEET METAL SCREW
Repalced by: N 000000000453
297 N 000000000453 SHEET METAL SCREW
IN ENGINE COMPARTMENT
300 N 000125004311 WASHER
Repalced by: N 000125004319
300 N 000125004319 WASHER
IN ENGINE COMPARTMENT
303 N 007985006161 SCREW
Repalced by: N 007985006580
303 N 007985006580 SCREW
CABLE CONNECTOR
303 N 007985004107 SCREW
CABLE CONNECTOR
306 N 912004006102 LOCK WASHER
CABLE CONNECTOR
306 N 912004004102 LOCK WASHER
CABLE CONNECTOR
309 A 3109970181 GROMMET
REGULATOR FEED CABLE TO VENTILATION DUCT
312 N 916016012200 CLAMP
CABLE TO ALTERNATOR
A 3141500173 BRACKET
CABLE TO ALTERNATOR
315 N 000933006103 SCREW
Repalced by: N 304017006018
315 N 304017006018 SCREW
BRACKET MOUNTING
318 N 000137006204 SPRING WASHER
BRACKET MOUNTING
321 N 009021006205 WASHER
Repalced by: N 009021006208
321 N 009021006208 WASHER
BRACKET MOUNTING
324 N 000933005059 SCREW
CLAMP TO BRACKET
327 N 000137005203 SPRING WASHER
CABLE TO ALTERNATOR
330 N 009021005202 WASHER
Repalced by: N 009021005205
330 N 009021005205 WASHER
CABLE TO ALTERNATOR
333 N 916016015201 CLAMP
CABLE TO ALTERNATOR
336 N 000934005008 NUT
CABLE TO ALTERNATOR
A 0005450176 WASHER
Repalced by: A 0005450376
339 A 0005450376 WASHER
IGNITION SWITCH TO INSTRUMENT PANEL
A 0005450672 NUT
Repalced by: A 0005451072
342 A 0005451072 NUT
IGNITION SWITCH TO INSTRUMENT PANEL
342 A 0005451072 NUT
(LIGHT SWITCH)
A 3875450037 BUTTON
Repalced by: A 2015400183
A 2015400183 HANDLE
Repalced by: A 2025450081
A 2025450081 KNOB
(LIGHT SWITCH)
348 A 0005451235 KEY
IGNITION AND LIGHT SWITCH
351 A 0005830296 RING
IGNITION AND LIGHT SWITCH
354 N 007985006128 SCREW
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
357 N 912004006102 LOCK WASHER
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
360 N 000934006007 NUT
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
363 A 1989950020 CLAMP
TO MOUNT MAIN CABLE HARNESS BRANCH-OFF TO WINDSHIELD WIPER MOTOR
366 N 000933006103 SCREW
Repalced by: N 304017006018
366 N 304017006018 SCREW
CLAMP MOUNTING
369 N 912004006102 LOCK WASHER
CLAMP MOUNTING
372 A 3049951920 CLAMP
Repalced by: A 3049951620
372 A 3049951620 CLAMP
MAIN CABLE HARNESS TO CAB STAY
372 A 3049951520 CLAMP
MAIN CABLE HARNESS TO CAB STAY
375 A 3039950232 CLAMP
MAIN CABLE HARNESS TO CAB SIDE MEMBER
378 N 007981004279 SHEET METAL SCREW
CLAMP MOUNTING
381 A 0009881778 CLIP
MAIN CABLE HARNESS TO CAB FLOOR PLATE
384 A 0009883478 CLIP
MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER
387 A 0009885378 CLIP
MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER
390 A 0005461143 BRACKET
MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER
A 3099870072 EDGE GUARD SECTION
Repalced by: A 0009876870
393 A 0009876870 RUBBER SECTION
MAIN CABLE HARNESS TO FIRE WALL
396 A 3129952420 CLAMP
Repalced by: A 1109950401
396 A 1109950401 CLAMP
MAIN CABLE HARNESS TO CAB SIDE MEMBER
399 N 007981006208 SHEET METAL SCREW
Repalced by: N 007981006305
399 N 007981006305 SHEET METAL SCREW
CLAMP MOUNTING
A 3095400373 BRACKET
Repalced by: A 3095401873

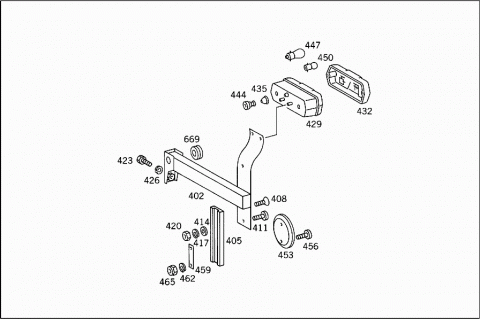

402 A 3095401873 BRACKET
LEFT TAIL LAMP
A 3095400473 BRACKET
Repalced by: A 3095401973
402 A 3095401973 BRACKET
RIGHT TAIL LAMP
405 A 3525440538 BRACKET
REFLECTOR
408 N 000963006005 SCREW
BRACKET TO TAIL LAMP BRACKET
411 N 000084006137 SCREW
BRACKET TO TAIL LAMP BRACKET
A 3095440084 SHIM
BRACKET TO TAIL LAMP BRACKET
414 N 000125006421 WASHER
BRACKET TO TAIL LAMP BRACKET
417 N 912004006102 LOCK WASHER
BRACKET TO TAIL LAMP BRACKET
420 N 000934006007 NUT
BRACKET TO TAIL LAMP BRACKET
423 N 000933010128 SCREW
TAIL LAMP BRACKET TO SIDE MEMBER
423 N 000933010105 SCREW
TAIL LAMP BRACKET TO SIDE MEMBER
426 N 912004010102 LOCK WASHER
TAIL LAMP BRACKET TO SIDE MEMBER
A 0008260144 TAIL LAMP
Repalced by: A 0015445403
A 0015441203 TAIL LAMP
Repalced by: A 0015445403
A 0015445403 TAIL LAMP
Repalced by: A 0025441503
429 A 0025441503 TAIL LAMP
LEFT
429 A 0015447603 TAIL LAMP
Repalced by: A 0015449203
429 A 0015449203 TAIL LAMP
LEFT
A 0008260444 TAIL LAMP
Repalced by: A 0015441303
A 0015441303 TAIL LAMP
Repalced by: A 0015445503
A 0015445503 TAIL LAMP
Repalced by: A 0025441603
429 A 0025441603 TAIL LAMP
RIGHT
429 A 0015447703 TAIL LAMP
RIGHT
A 0008260244 TAIL LAMP
Repalced by: A 0015445303
A 0015441403 TAIL LAMP
Repalced by: A 0015445303
A 0015445303 TAIL LAMP
Repalced by: A 0025441403
429 A 0025441403 TAIL LAMP
RIGHT
429 A 0015447503 TAIL LAMP
Repalced by: A 0015449103
429 A 0015449103 TAIL LAMP
RIGHT
A 0008260344 TAIL LAMP
Repalced by: A 0015445203
A 0015441503 TAIL LAMP
Repalced by: A 0015445203
A 0015445203 TAIL LAMP
Repalced by: A 0025441303
429 A 0025441303 TAIL LAMP
LEFT
429 A 0015447803 TAIL LAMP
LEFT
432 A 0018265390 LENS
LEFT
432 A 0015447790 LENS
LEFT
432 A 0018265490 LENS
RIGHT
432 A 0015447890 LENS
RIGHT
435 A 0009978081 GROMMET
A 3095860054 REPAIR KIT
Repalced by: A 0009970434
A 0009970434 SCREW
CABLE SEALING AT TAIL LAMPS
444 A 6019972181 GROMMET
CABLE SEALING AT TAIL LAMPS
447 N 072601012190 BULB
BLINKER AND STOP LIGHTS
447 N 072601024190 BULB
Repalced by: N 072601024192
447 N 072601024192 BULB
STOP AND BLINKER LIGHTS
450 N 072601012702 BULB
TAIL LIGHT
450 N 072601024702 BULB
Repalced by: N 072601024704
450 N 072601024704 BULB
TAIL LIGHT
A 0005441605 REFLECTOR
Repalced by: A 0005443305
453 A 0005443305 REFLECTOR
456 N 007985005146 SCREW
REFLECTOR TO BRACKET
459 A 3225440184 SHIM
REFLECTOR TO BRACKET
462 N 912004005103 LOCK WASHER
REFLECTOR TO BRACKET
465 N 913004005001 NUT
REFLECTOR TO BRACKET
X XXXXXXXXXXXX PART NAME MISSING
FOR BRACKETS & TAIL LAMPS ON DELIVERY VAN, SEE BODY PARTS LIST,GROUP 82

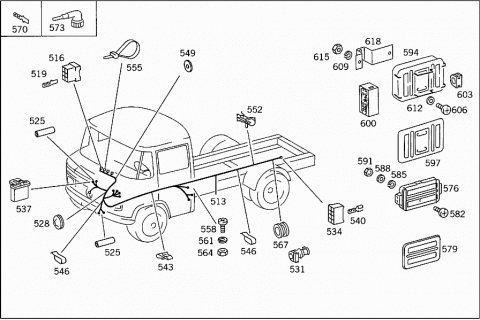

513 A 3095400127 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3095402127 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
A 3105400127 ELECTRIC CABLE
Repalced by: A 3105400327
513 A 3105400327 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3105403727 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3095401327 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3095402427 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3105400527 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
A 3095402827 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3105400927 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
A 3095400227 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3095402227 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
A 3105400227 ELECTRIC CABLE
Repalced by: A 3105400327
513 A 3105400327 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3105403827 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
A 3095401427 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
A 3095402627 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3105400627 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3095402927 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
513 A 3105401027 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
516 A 0015456028 PLUG HOUSING
6-POLE
519 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
525 A 0009970381 GROMMET
525 A 0009970581 GROMMET
528 A 0009972881 GROMMET
531 A 0005461237 GROMMET
534 A 0015458328 PIN BUSHING HOUSING
8-POLE
537 A 0025459528 PIN BUSHING HOUSING
3-POLE
540 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
540 A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
540 A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
543 A 0005460875 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
546 A 3099950240 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
546 A 3099950140 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
549 N 009021006005 WASHER
552 A 0049882678 CLIP
555 A 0019978390 LOOM TIE
CABLE HARNESS MOUNTING
280 MM
555 A 0019978490 LOOM TIE
CABLE HARNESS MOUNTING
376 MM
558 N 007985006157 SCREW
Repalced by: N 000000001145
558 N 000000001145 SCREW
GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME
561 N 912004006102 LOCK WASHER
GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME
564 N 000934006007 NUT
GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME
567 A 3099970181 GROMMET
ELECTRIC CABLE THRU FRAME SIDE MEMBER
570 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
573 A 3805402281 PLUG SOCKET
REPAIR SIZE
M 27X1
576 A 0005466141 CABLE CONNECTOR
REAR,6-POLE
579 A 0005460781 COVERING
WITH GASKET
582 N 007985004179 SCREW
CABLE CONNECTOR TO FRAME
585 N 912004004102 LOCK WASHER
CABLE CONNECTOR TO FRAME
588 N 000125004308 WASHER
CABLE CONNECTOR TO FRAME
591 N 000934004006 NUT
CABLE CONNECTOR TO FRAME
A 0005469541 CABLE CONNECTOR
Repalced by: A 0015463341
A 0015463341 CABLE CONNECTOR
Repalced by: A 0015463841
A 0015463841 CABLE CONNECTOR
Repalced by: A 0015465441
594 A 0015465441 CABLE CONNECTOR
REAR
A 0005460481 COVERING
Repalced by: A 0005460581
597 A 0005460581 COVERING
A 0045458928 PLUG
Repalced by: A 0105456728
600 A 0105456728 PLUG
603 A 0009872844 EXPANSION PLUG
CABLE CONNECTOR
606 N 007985005175 SCREW
Repalced by: N 000000001181
606 N 000000001181 SCREW
CABLE CONNECTOR TO BRACKET
609 N 912004005103 LOCK WASHER
CABLE CONNECTOR TO BRACKET
612 N 000125005317 WASHER
Repalced by: N 000433005304
612 N 000433005304 WASHER
CABLE CONNECTOR TO BRACKET
615 N 000934005008 NUT
CABLE CONNECTOR TO BRACKET
A 3095403573 BRACKET
Repalced by: A 3095405173
A 3095405173 BRACKET
Repalced by: A 6675400273
618 A 6675400273 BRACKET
CABLE CONNECTOR

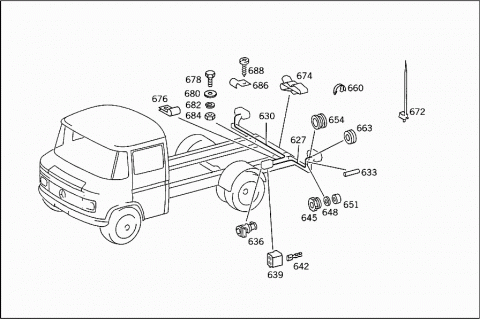

A 3095400327 ELECTRIC CABLE
FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP
627 A 3095407827 ELECTRIC CABLE
FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP
627 A 3095402932 ELECTRIC CABLE
FROM REAR CABLE CONNECTOR TO TAIL LAMP
627 A 3095406932 ELECTRIC CABLE
FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP
630 A 3095400427 ELECTRIC CABLE
FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP
630 A 3095407927 ELECTRIC CABLE
FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP
633 A 0009970381 GROMMET
PIN BUSHING
636 A 3805461937 GROMMET
BATTERY CABLE CONNECTOR
639 A 0015458428 PIN BUSHING HOUSING
4-POLE
642 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
642 A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
645 A 0009970434 SCREW
CABLE SEALING AT TAIL LAMPS
648 A 0009910145 RING
CABLE SEALING AT TAIL LAMPS
651 A 0009975486 PLUG
CABLE SEALING AT TAIL LAMPS
654 A 0005461237 GROMMET
REAR CABLE CONNECTOR
660 A 0015460144 CLAMPING PIECE
ELECTRIC CABLE TENSILE STRESS RELIEF
663 A 3129970481 GROMMET
TAIL LAMP CABLES THRU FRAME SIDE MEMBERS
663 A 3129970481 GROMMET
ELECTRIC CABLE THRU TAIL LAMP BRACKET
669 A 0009972281 GROMMET
TAIL LAMP CABLES THRU TAIL LAMP BRACKETS
669 A 8339970081 GROMMET
TAIL LAMP CABLES THRU TAIL LAMP BRACKETS
672 A 0005461143 BRACKET
ELECTRIC CABLE TO BRACKET
A 3129951040 CLAMP
Repalced by: A 0005460875
674 A 0005460875 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
A 3529950040 CLAMP
Repalced by: A 3099950140
676 A 3099950140 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
678 N 000933010128 SCREW
ELECTRIC CABLE TO FRAME
680 N 009021010202 WASHER
Repalced by: N 009021010209
680 N 009021010209 WASHER
ELECTRIC CABLE TO FRAME
682 N 912004010102 LOCK WASHER
ELECTRIC CABLE TO FRAME
684 N 000934010014 NUT
ELECTRIC CABLE TO FRAME
686 N 072571001030 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
688 A 0009900232 SCREW
ELECTRIC CABLE TO FRAME SIDE MEMBER
A 0055426306 SPEEDOMETER
Repalced by: A 0075422506
A 0075422506 SPEEDOMETER
Repalced by: A 0075429210
A 0055426606 SPEEDOMETER
Repalced by: A 0075422906
A 0075422906 SPEEDOMETER
Repalced by: A 0075429210

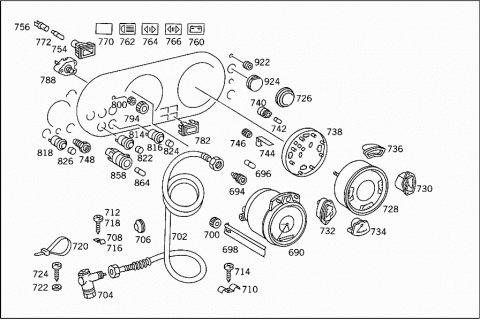

690 A 0075429210 TACHOGRAPH
ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H
A 0005423394 DIAGRAM PAPER
SET = 100 PIECES
694 A 0005421347 COUPLER
TACHOGRAPH
696 N 072601012800 BULB
12V 2W
696 A 0015442594 BULB
12 V 1.2 W
696 A 0015442694 BULB
24 V 1.2 W
698 A 0005421840 BRACKET
TACHOGRAPH
700 N 000934005008 NUT
TACHOGRAPH
702 A 0015427507 FLEXIBLE SHAFT
2000 MM
702 A 0045428607 FLEXIBLE SHAFT
2000 MM
702 A 0025421207 FLEXIBLE SHAFT
2450 MM
702 A 0045423207 FLEXIBLE SHAFT
2450 MM
A 0015421530 ANGLE DRIVE
Repalced by: A 0015421730
704 A 0015421730 ANGLE DRIVE
RATIO 1:
0.909
A 0025428730 ANGLE DRIVE
Repalced by: A 0005424230
704 A 0005424230 ANGLE DRIVE
RATIO 1:
0.882
A 0005425830 ANGLE DRIVE
Repalced by: A 0025422330
704 A 0025422330 ANGLE DRIVE
RATIO 1:
0.937
706 A 3359970081 GROMMET
FLEXIBLE SHAFT THRU WINDOW SILL
706 A 3099971081 GROMMET
FLEXIBLE SHAFT THRU WINDOW SILL
708 A 3129952020 CLAMP
708 A 3049951920 CLAMP
Repalced by: A 3049951620
708 A 3049951620 CLAMP
FLEXIBLE SHAFT TO CAB STAY
708 A 3609951901 CLAMP
FLEXIBLE SHAFT TO CAB STAY
710 A 3039950232 CLAMP
STARTING CABLE AND FLEXIBLE SHAFT TO CROSS MEMBER
712 N 007981004279 SHEET METAL SCREW
FLEXIBLE SHAFT TO CAB STAY
714 N 007981006208 SHEET METAL SCREW
Repalced by: N 007981006305
714 N 007981006305 SHEET METAL SCREW
FLEXIBLE SHAFT TO CAB STAY
716 A 3049951520 CLAMP
FLEXIBLE SHAFT TO CAB
718 N 007981006208 SHEET METAL SCREW
Repalced by: N 007981006305
718 N 007981006305 SHEET METAL SCREW
FLEXIBLE SHAFT TO CAB
720 A 0019978390 LOOM TIE
FLEXIBLE SHAFT THRU WINDOW SILL
722 N 000125004311 WASHER
Repalced by: N 000125004319
722 N 000125004319 WASHER
FLEXIBLE SHAFT THRU WINDOW SILL
724 N 007981003214 SHEET METAL SCREW
FLEXIBLE SHAFT THRU WINDOW SILL
726 A 3099970981 GROMMET
TO PLUG THE BORE IN WINDOW SILL LOWER PART

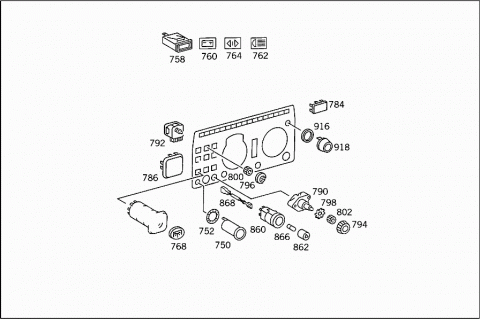

728 A 0015406347 INSTRUMENT CLUSTER
A 0025402447 INSTRUMENT CLUSTER
Repalced by: A 0025406647
728 A 0025406647 INSTRUMENT CLUSTER
A 0025408947 INSTRUMENT CLUSTER
Repalced by: A 0035408747
A 0035408747 INSTRUMENT CLUSTER
Repalced by: A 0035407347
728 A 0035407347 INSTRUMENT CLUSTER
A 0025409547 INSTRUMENT CLUSTER
Repalced by: A 0035408847
A 0035408847 INSTRUMENT CLUSTER
Repalced by: A 0035407447
728 A 0035407447 INSTRUMENT CLUSTER
A 0025425505 TEMPERATURE GAUGE
Repalced by: A 0035421005
730 A 0035421005 TEMPERATURE GAUGE
TO 001 540 63 47,002 540 24 47/66 47
730 A 0035423805 TEMPERATURE GAUGE
TO 002 540 89 47
730 A 0035428905 TEMPERATURE GAUGE
TO 003 540 87 47
730 A 0035423305 TEMPERATURE GAUGE
TO 002 540 95 47
730 A 0035428805 TEMPERATURE GAUGE
TO 003 540 88 47
730 A 0035429605 TEMPERATURE GAUGE
TO 003 540 73 47
730 A 0035427405 TEMPERATURE GAUGE
TO 003 540 74 47
732 A 0015424102 OIL PRESSURE GAUGE
TO 001 540 63 47,002 540 24 47/66 47
732 A 0025420202 OIL PRESSURE GAUGE
TO 002 540 89 47
732 A 0025422802 OIL PRESSURE GAUGE
TO 003 540 87 47
732 A 0015429905 TEMPERATURE GAUGE
TO 002 540 95 47
732 A 0025422702 OIL PRESSURE GAUGE
TO 003 540 88 47
732 A 0025424202 OIL PRESSURE GAUGE
TO 003 540 73 47
732 A 0025421702 OIL PRESSURE GAUGE
TO 003 540 74 47
734 A 0005428503 FUEL GAUGE DASH UNIT
TO 001 540 63 47,002 540 24 47/66 47
734 A 0015425103 FUEL GAUGE DASH UNIT
TO 002 540 89 47
734 A 0025429103 FUEL GAUGE DASH UNIT
TO 003 540 87 47
734 A 0015424503 FUEL GAUGE DASH UNIT
TO 002 540 95 47
734 A 0025429203 FUEL GAUGE DASH UNIT
TO 003 540 88 47
734 A 0025428503 FUEL GAUGE DASH UNIT
TO 003 540 74 47
734 A 0025429303 FUEL GAUGE DASH UNIT
TO 003 540 73 47
A 0015424208 AIR PRESSURE GAUGE
TO 003 540 73 47,003 540 74 47
736 A 0005420332 TELL-TALE LAMP
738 A 0005422878 CONNECTION PLATE
TO 002 540 95 47,002 540 89 47
738 A 0005423278 CONNECTION PLATE
TO 003 540 87 47
738 A 0005422978 CONNECTION PLATE
TO 003 540 88 47
738 A 0005423878 CONNECTION PLATE
TO 003 540 73 47
738 A 0005423778 CONNECTION PLATE
TO 003 540 74 47
740 A 0005451219 SOCKET
742 N 072601012800 BULB
12V 2W
742 N 072601024801 BULB
24V 2W
744 A 0005421740 BRACKET
INSTRUMENT CLUSTER
746 A 0005421072 NUT
INSTRUMENT CLUSTER
A 0005453926 PLUG SOCKET
Repalced by: A 0015458526
A 0005454426 PLUG SOCKET
Repalced by: A 0015458526
A 0005453526 PLUG SOCKET
Repalced by: A 0015458526
748 A 0015458526 PLUG SOCKET
TO HAND LAMP
750 A 0005458026 PLUG SOCKET
Repalced by: A 0045454326
750 A 0045454326 PLUG SOCKET
AT INSTRUMENT PANEL
752 A 0009900946 WASHER
AT INSTRUMENT PANEL
A 0015450615 TELL-TALE LAMP
Repalced by: A 0005451630
754 A 0005451630 SHELL
LESS LENS
756 A 0005452319 SOCKET
758 A 0015451815 TELL-TALE LAMP
LESS LENS
760 A 0005450190 LENS
CHARGE CONTROL
A 0005453790 LENS
Repalced by: A 0035453290
760 A 0035453290 LENS
CHARGE CONTROL
762 A 0005451190 LENS
HIGH BEAM
A 0005455290 LENS
Repalced by: A 0035453390
A 0035453390 LENS
Repalced by: A 0065451990
762 A 0065451990 LENS
HIGH BEAM
764 A 0005451290 LENS
TRUCK-TRACTOR BLINKER
A 0005455390 LENS
Repalced by: A 0035454190
A 0035454190 LENS
Repalced by: A 0035455290
764 A 0035455290 LENS
BLINKER LIGHT CONTROL
766 A 0005451390 LENS
TRAILER BLINKER
A 0005459090 LENS
Repalced by: A 0005459590
768 A 0005459590 LENS
INTERIOR LIGHTING
770 A 0015450690 LENS
LESS SYMBOL; RED
TO 001 545 06 15
770 A 0015450790 LENS
LESS SYMBOL; GREEN
TO 001 545 06 15
770 A 0015450890 LENS
LESS SYMBOL; AMBER
TO 001 545 06 15
770 A 0015450990 LENS
LESS SYMBOL; WHITE
TO 001 545 06 15
772 N 072601012800 BULB
12 V 2 W
772 N 072601024801 BULB
24V 2W
782 A 0009973535 PLUG
TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
784 A 0009974335 PLUG
TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
786 A 0009974435 PLUG
TO PLUG THE FREE HOLES IN INSTRUMENT PANEL
A 0005421425 POTENTIOMETER
Repalced by: A 3015420025
788 A 3015420025 POTENTIOMETER
INSTRUMENT LIGHTING
A 0005422525 POTENTIOMETER
Repalced by: A 0005422925
A 0005422925 POTENTIOMETER
Repalced by: A 6155420125
790 A 6155420125 POTENTIOMETER
INSTRUMENT LIGHTING
A 0005423025 POTENTIOMETER
Repalced by: A 6155420225
790 A 6155420225 POTENTIOMETER
INSTRUMENT LIGHTING
792 A 0005421325 POTENTIOMETER
HEATER BLOWER
792 A 0005421725 POTENTIOMETER
HEATER BLOWER
A 0005420689 KNOB
Repalced by: A 0005421189
A 0005421189 KNOB
Repalced by: A 0005421889
794 A 0005421889 KNOB
SYMBOL: INSTRUMENT LIGHTING
A 0005421089 KNOB
Repalced by: A 3095420089
796 A 3095420089 KNOB
SYMBOL: HEATER BLOWER
798 N 006797012153 TOOTHED WASHER
INSTRUMENT LIGHTING
800 A 0005450372 NUT
HEATER BLOWER SWITCH
800 A 0005450372 NUT
INSTRUMENT LIGHTING
A 0005451472 NUT
Repalced by: A 0029906251
802 A 0029906251 NUT
INSTRUMENT LIGHTING
A 0025452624 SWITCH,AUTOMATIC
Repalced by: A 0025457724
804 A 0025457724 SWITCH,AUTOMATIC
STEERING COLUMN MOUNTED
A 0035453324 SWITCH,AUTOMATIC
Repalced by: A 0035455724
804 A 0035455724 SWITCH,AUTOMATIC
STEERING COLUMN MOUNTED
804 A 0055453124 SWITCH,AUTOMATIC
STEERING COLUMN MOUNTED
A 0055453124 SWITCH,AUTOMATIC
Repalced by: A 0065450324
804 A 0065450324 SWITCH,AUTOMATIC
STEERING COLUMN MOUNTED
808 A 0005454237 BUTTON
808 A 0005454437 BUTTON
810 A 0005453445 BOOT
812 A 0019978390 LOOM TIE
STEERING-COLUMN-MOUNTED-SWITCH CABLE TO SUSPENDED PEDAL SUPPORT
814 A 0005458211 SWITCH
WINDSHIELD WIPER O F F O N
814 A 0005459311 SWITCH
WINDSHIELD WIPER O F F O N
816 A 0005459211 SWITCH
"FAST-SLOW"
A 0005458111 SWITCH
Repalced by: A 0005459111
818 A 0005459111 SWITCH
INTERIOR LIGHTING
822 A 0005451483 CAP
WINDSHIELD WIPER O F F O N
824 A 0005451583 CAP
"FAST-SLOW"
826 A 0005451883 CAP
INTERIOR LIGHTING
830 A 0005458305 RELAY
IGNITION/STARTING SWITCH
830 A 0005455505 RELAY
IGNITION/STARTING SWITCH
832 A 0055450524 SENDER UNIT
Repalced by: A 0055451324
832 A 0055451324 SENDER UNIT
WIPER INTERMITTENT ACTION
832 A 0055451524 SENDER UNIT
WIPER INTERMITTENT ACTION
832 A 0055450624 SENDER UNIT
Repalced by: A 0225452532
832 A 0225452532 CONTROL UNIT
WIPER PULSE SENDER UNIT
832 A 0055451424 SENDER UNIT
WIPER PULSE SENDER UNIT
832 A 0055451624 SENDER UNIT
WIPER PULSE SENDER UNIT
834 N 007981006208 SHEET METAL SCREW
Repalced by: N 007981006305
834 N 007981006305 SHEET METAL SCREW
WIPER PULSE SENDER UNIT
A 3149970281 GROMMET
Repalced by: A 3359970081
836 A 3359970081 GROMMET
STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY
838 N 007603014400 SEAL RING
OIL PRESSURE GAUGE
A 0015424417 SENDER UNIT
Repalced by: A 0015424917
A 0015424917 SENDER UNIT
Repalced by: A 0045428917
840 A 0045428917 SENDER UNIT
OIL PRESSURE GAUGE
842 N 007603014400 SEAL RING
TEMPERATURE GAUGE
844 A 0015422317 SENDER UNIT
TEMPERATURE GAUGE
A 0005452209 SWITCH
Repalced by: A 0005456109
846 A 0005456109 SWITCH
Repalced by: A 0015450809
846 A 0015450809 SWITCH
STOP LIGHT
A 0005454709 SWITCH
Repalced by: A 0005455009
A 0005455009 SWITCH
Repalced by: A 0005455909
848 A 0005455909 SWITCH
STOP LIGHT
850 A 0015442532 SENDER UNIT
BLINKER
850 A 0015442732 SENDER UNIT
BLINKER
852 A 3095440032 CONVERSION KIT
HAZARD WARNING LIGHT
A 0015445132 SENDER UNIT
Repalced by: A 0025447332
A 0025440932 SENDER UNIT
Repalced by: A 0025447332
A 0015447932 SENDER UNIT
Repalced by: A 0025447332
854 A 0025447332 SENDER UNIT
HAZARD WARNING LIGHT
A 0025444832 SENDER UNIT
Repalced by: A 0025449832
856 A 0025449832 SENDER UNIT
HAZARD WARNING LIGHT
856 A 0025448632 SENDER UNIT
HAZARD WARNING LIGHT
HELLA
856 A 0025448332 SENDER UNIT
HAZARD WARNING LIGHT
856 A 0025449432 SENDER UNIT
HAZARD WARNING LIGHT
858 A 0025457124 SWITCH,AUTOMATIC
HAZARD WARNING LIGHT
860 A 0045450224 SWITCH
HAZARD WARNING LIGHT
862 A 0005453637 BUTTON
HAZARD WARNING LIGHT SWITCH
864 N 072601012110 BULB
HAZARD WARNING LIGHT SWITCH
866 N 072601012800 BULB
HAZARD WARNING LIGHT SWITCH
12 V 2 W
866 N 072601024801 BULB
HAZARD WARNING LIGHT SWITCH
24 V 2 W
868 A 3015400165 RESISTOR
HAZARD WARNING LIGHT SWITCH
868 A 3015400265 RESISTOR
HAZARD WARNING LIGHT SWITCH
870 A 3095402527 ELECTRIC CABLE
HAZARD WARNING LIGHT
872 N 007985005157 SCREW
BLINKER SENDER UNIT TO BODY
874 N 912004005103 LOCK WASHER
BLINKER SENDER UNIT TO BODY
A 0011548506 REGULATOR AND CUT-OUT
Repalced by: A 0021542806
A 0021542806 REGULATOR AND CUT-OUT
Repalced by: A 0021543606
A 0021543606 REGULATOR AND CUT-OUT
Repalced by: A 0021547406
880 A 0021547406 REGULATOR AND CUT-OUT
SHIELDED
882 N 007985006157 SCREW
Repalced by: N 000000001145
882 N 000000001145 SCREW
REGULATOR AND CUT-OUT TO BODY
884 N 912004006102 LOCK WASHER
REGULATOR AND CUT-OUT TO BODY
886 N 007976004217 SHEET METAL SCREW
Repalced by: N 914128004303
886 N 914128004303 SHEET METAL SCREW
REGULATOR TO VENTILATION DUCT
A 0015428020 HORN
Repalced by: A 0025426220
A 0015427920 HORN
Repalced by: A 0025426220
A 0015428320 HORN
Repalced by: A 0025426420
A 0025425320 HORN
Repalced by: A 0025426420
A 0025426220 HORN
Repalced by: A 0035423220
888 A 0035423220 HORN
Repalced by: A 6315420120
888 A 6315420120 HORN
Repalced by: A 0035422720
888 A 0035422720 HORN
888 A 0025426420 HORN
Repalced by: A 6315420120
888 A 6315420120 HORN
Repalced by: A 0035422720
888 A 0035422720 HORN
890 N 000933010128 SCREW
HORN TO BRACKET
892 N 912004010102 LOCK WASHER
HORN TO BRACKET
894 N 000934010014 NUT
HORN TO BRACKET
896 A 3044310076 WASHER
HORN TO FRAME
898 N 000933008153 SCREW
Repalced by: N 304017008034
898 N 304017008034 SCREW
HORN TO FRAME
900 N 000125008418 WASHER
Repalced by: N 000125008443
900 N 000125008443 WASHER
HORN TO FRAME
902 N 912004008102 LOCK WASHER
HORN TO FRAME
904 N 304032008006 NUT
HORN TO FRAME
906 N 007985004123 SCREW
CABLE TO DISC-TYPE HORN
908 N 912004010102 LOCK WASHER
CABLE TO DISC-TYPE HORN
910 A 3095421340 BRACKET
HORN
912 N 000933010105 SCREW
BRACKET TO FRAME
914 N 913004010008 NUT
Repalced by: N 910113010000
914 N 910113010000 NUT
BRACKET TO FRAME
916 A 3099900640 WASHER
SWITCH
918 A 0015454914 SWITCH
STARTING MOTOR
A 3129971681 GROMMET
Repalced by: A 0009870344
922 A 0009870344 EXPANSION PLUG
HEATER PLUG STARTING SWITCH
924 A 3099870244 EXPANSION PLUG
HEATER-PLUG INDICATOR RESISTOR
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
