Transporto priemonė: L 408 DG; VIN numerio dalis: 309312

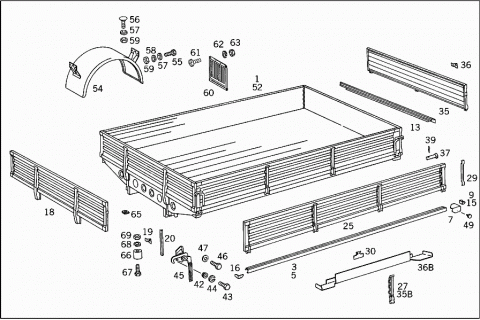

Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3096001203 | PLATFORM |
| Repalced by: A 3096008803 | ||
| 001 | A 3096008803 | PLATFORM |
| Repalced by: A 3096009503 | ||
| 001 | A 3096009503 | PLATFORM |
| LESS FLOOR PANELS | ||
| 3060 X 2000 MM | ||
| 001 | A 3096001403 | PLATFORM |
| Repalced by: A 3096009003 | ||
| 001 | A 3096009003 | PLATFORM |
| 2054 X 2000 MM | ||
| 001 | A 3096001303 | PLATFORM |
| Repalced by: A 3096008903 | ||
| 001 | A 3096008903 | PLATFORM |
| Repalced by: A 3096009603 | ||
| 001 | A 3096009603 | PLATFORM |
| LESS FLOOR PANELS | ||
| 4060 X 2000 MM | ||
| 001 | A 3096001503 | PLATFORM |
| Repalced by: A 3096009103 | ||
| 001 | A 3096009103 | PLATFORM |
| Repalced by: A 3096009803 | ||
| 001 | A 3096009803 | PLATFORM |
| LESS FLOOR PANELS | ||
| 3060X2000 MM | ||
| 003 | A 3096160085 | EDGING |
| Repalced by: A 3096160585 | ||
| 003 | A 3096160585 | EDGING |
| Repalced by: A 3096161885 | ||
| 003 | A 3096161885 | EDGING |
| Repalced by: A 3096160785 | ||
| 003 | A 3096160285 | EDGING |
| Repalced by: A 3096160785 | ||
| 003 | A 3096160785 | EDGING |
| LEFT | ||
| 005 | A 3096160185 | EDGING |
| Repalced by: A 3096160685 | ||
| 005 | A 3096160685 | EDGING |
| Repalced by: A 3096160985 | ||
| 005 | A 3096160385 | EDGING |
| Repalced by: A 3096160885 | ||
| 005 | A 3096160885 | EDGING |
| RIGHT | ||
| 007 | A 3096160078 | CORNER PIECE |
| REAR | ||
| A 3096120914 | CROSS MEMBER | |
| 2016 MM | ||
| 009 | A 3096160030 | HINGE MOUNTING |
| 013 | A 3096160485 | EDGING |
| Repalced by: A 3096160985 | ||
| 013 | A 3096160985 | EDGING |
| Repalced by: A 3096161685 | ||
| 013 | A 3096161685 | EDGING |
| Repalced by: A 3096160885 | ||
| 013 | A 3096160885 | EDGING |
| REAR | ||
| 015 | A 3096160030 | HINGE MOUNTING |
| 016 | A 3096160178 | CORNER PIECE |
| FRONT LEFT | ||
| 016 | A 3096160278 | CORNER PIECE |
| FRONT RIGHT | ||
| 018 | A 3096200002 | FRONT PANEL |
| 019 | A 3096270043 | RAIL |
| Repalced by: A 3096270116 | ||
| 019 | A 3096270116 | REINFORCEMENT |
| 020 | A 3096210022 | RAIL |
| Repalced by: A 3096210322 | ||
| 020 | A 3096210322 | RAIL |
| 025 | A 3096300103 | SIDE PANEL |
| 025 | A 3096300003 | SIDE PANEL |
| 025 | A 3096300203 | SIDE PANEL |
| Repalced by: A 3096300903 | ||
| 025 | A 3096300903 | SIDE PANEL |
| LEFT | ||
| 025 | A 3096300203 | SIDE PANEL |
| Repalced by: A 3096304904 | ||
| 025 | A 3096304904 | SIDE PANEL |
| RIGHT | ||
| 027 | A 3096300082 | HINGE |
| 029 | A 3096210022 | RAIL |
| Repalced by: A 3096210322 | ||
| 029 | A 3096210322 | RAIL |
| LATERAL | ||
| 030 | A 3096370014 | BRACKET |
| CHAIN ON PLATFORM SIDE PANEL | ||
| 035 | A 3096400202 | REAR PANEL |
| Repalced by: A 3096403802 | ||
| 035 | A 3096403802 | REAR PANEL |
| 2052X407 MM | ||
| 035B | A 3096300082 | HINGE |
| 036 | A 3096270043 | RAIL |
| Repalced by: A 3096270116 | ||
| 036 | A 3096270116 | REINFORCEMENT |
| LATERAL | ||
| 036B | A 3096210022 | RAIL |
| Repalced by: A 3096210322 | ||
| 036B | A 3096210322 | RAIL |
| LATERAL | ||
| A 3098500002 | FOLDING STEP | |
| FOR REAR PANEL | ||
| N 000966008006 | SCREW | |
| Repalced by: N 000966008031 | ||
| N 000966008031 | SCREW | |
| FOLDING STEP TO REAR PANEL | ||
| M 8X16 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| FOLDING STEP TO REAR PANEL | ||
| N 912004008102 | LOCK WASHER | |
| FOLDING STEP TO REAR PANEL | ||
| N 000917008007 | NUT | |
| FOLDING STEP TO REAR PANEL | ||
| A 0019874740 | RUBBER BUFFER | |
| FOLDING STEP TO REAR PANEL | ||
| 037 | N 001444012202 | PIN |
| PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE | ||
| 039 | N 000094004043 | COTTER PIN |
| PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE | ||
| A 3526370011 | PLATE | |
| THREADED | ||
| 042 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 043 | A 3609902101 | SCREW |
| WASHER TO FRONT AND REAR PANELS | ||
| 044 | N 912004010102 | LOCK WASHER |
| 045 | A 3526370063 | HOOK |
| FRONT LEFT AND REAR RIGHT | ||
| 045 | A 3526370163 | HOOK |
| FRONT RIGHT AND REAR LEFT | ||
| 046 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 046 | N 304017008016 | SCREW |
| HOOK TO PLATFORM SIDE PANEL | ||
| M 8X16 | ||
| 047 | N 912004008102 | LOCK WASHER |
| HOOK TO PLATFORM SIDE PANEL | ||
| 049 | A 3099870040 | RUBBER BUFFER |
| PLATFORM SIDE AND REAR PANELS | ||
| 052 | A 3096003203 | PLATFORM |
| Repalced by: A 3096008803 | ||
| 052 | A 3096003403 | PLATFORM |
| Repalced by: A 3096009003 | ||
| 052 | A 3096003303 | PLATFORM |
| Repalced by: A 3096008903 | ||
| 052 | A 3096003503 | PLATFORM |
| Repalced by: A 3096008803 | ||
| 054 | A 3098800021 | REAR FENDER |
| Repalced by: A 3098800221 | ||
| 054 | A 3098800221 | REAR FENDER |
| LEFT | ||
| 054 | A 3098800321 | REAR FENDER |
| RIGHT | ||
| 055 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 055 | N 304017008016 | SCREW |
| FENDER TO PLATFORM | ||
| M 8X16 | ||
| 056 | N 000603008027 | SCREW |
| FENDER TO PLATFORM | ||
| M 8X35 | ||
| 057 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 057 | N 009021008213 | WASHER |
| FENDER TO PLATFORM | ||
| 058 | N 912004008102 | LOCK WASHER |
| FENDER TO PLATFORM | ||
| 059 | N 304032008006 | NUT |
| FENDER TO PLATFORM | ||
| 060 | H 603198820005 | SPLASH GUARD |
| Repalced by: A 3198820005 | ||
| 060 | A 3198820005 | SPLASH GUARD |
| 061 | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 061 | N 000000001181 | SCREW |
| M 5X16 | ||
| 062 | N 000127005204 | LOCK WASHER |
| 063 | N 000934005008 | NUT |
| 065 | A 3148910111 | PLATE |
| PLATFORM TO CHASSIS | ||
| 066 | A 3098990017 | BUSHING |
| PLATFORM TO CHASSIS | ||
| 067 | N 000960012221 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X80 | ||
| 067 | N 000960012222 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X130 | ||
| 068 | N 912004012100 | LOCK WASHER |
| PLATFORM TO CHASSIS | ||
| 069 | N 000934012022 | NUT |
| PLATFORM TO CHASSIS | ||
