Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0004307530 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014301430 | ||
| A 0004309730 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014301430 | ||
| A 0014300330 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0014301430 | ||
| 095 | A 0014301430 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0044300630 | ||
| 095 | A 0044300630 | BRAKE BOOSTER ASSEMBLY |
| 095 | A 0044300630 | BRAKE BOOSTER ASSEMBLY |
| 096 | A 0004350712 | DAMPING RING |
| 098 | A 0004350612 | FILTER RING |
| Repalced by: A 0015864143 | ||
| 098 | A 0004303681 | CONNECTION HOUSING |
| 099 | A 0004312987 | PROTECTIVE CAP |
| 099 | A 0004315387 | PROTECTIVE CAP |
| 100 | A 0004311940 | BRACKET |
| UPPER PART | ||
| 101 | A 0004312040 | BRACKET |
| LOWER PART | ||
| 102 | A 0004311091 | CLAMPING RING |
| 103 | A 0015864143 | REPAIR KIT |
| TO 001 430 14 30,001 430 25 30, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 002 430 56 30 | ||
| 105 | A 0014302530 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0024305630 | ||
| 105 | A 0024305630 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0024304830 | ||
| 105 | A 0024304830 | BRAKE BOOSTER ASSEMBLY |
| 105E | A 0004350712 | DAMPING RING |
| 105H | A 0004350612 | FILTER RING |
| Repalced by: A 0015864143 | ||
| 105K | A 0004312987 | PROTECTIVE CAP |
| 105M | A 0004319960 | SEAL RING |
| 105R | A 0049973245 | SEAL RING |
| 106 | A 3094350080 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL AND TO SUPPORT | ||
| 107 | A 3094350180 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL AND TO SUPPORT | ||
| 108 | A 1154310180 | GASKET |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL AND TO SUPPORT | ||
| 109 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 109 | N 913004008001 | NUT |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL AND TO SUPPORT | ||
| 110 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 110 | N 000125008443 | WASHER |
| BRAKE BOOSTER ASSEMBLY TO FIRE WALL AND TO SUPPORT | ||

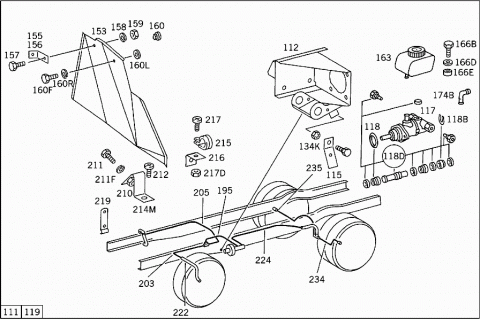

| 111 | A 3104300039 | SUPPORT |
| Repalced by: A 3104301039 | ||
| 112 | A 3104301039 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| A 3104300139 | SUPPORT | |
| Repalced by: A 3104301139 | ||
| 112T | A 3104301139 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 113 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 113 | N 304017010019 | SCREW |
| SUPPORT TO FRAME | ||
| 113 | N 304017010019 | SCREW |
| SUPPORT TO FRAME | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 114 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 114E | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 114E | N 913004008001 | NUT |
| BRAKE BOOSTER ASSEMBLY TO SUPPORT | ||
| 115 | A 3104312740 | BRACKET |
| 115 | A 3104312740 | BRACKET |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRAKE BOOSTER ASSEMBLY TO SUPPORT | ||
| N 913004008001 | NUT | |
| BRAKE BOOSTER ASSEMBLY TO SUPPORT | ||

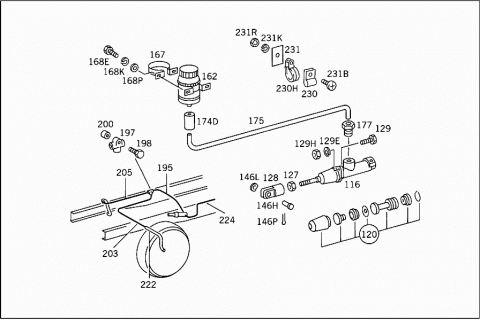

| 116 | A 0024300201 | BRAKE MASTER CYLINDER |
| 20.64 MM | ||
| 116 | A 0024301301 | BRAKE MASTER CYLINDER |
| 20.64 MM | ||
| A 0024305901 | BRAKE MASTER CYLINDER | |
| Repalced by: A 0024306301 | ||
| 117 | A 0024306301 | BRAKE MASTER CYLINDER |
| 117 | A 0024306301 | BRAKE MASTER CYLINDER |
| 117 | A 0034300301 | BRAKE MASTER CYLINDER |
| 118 | A 0049973245 | SEAL RING |
| 118B | N 000472025000 | LOCK RING |
| TO 003 430 03 01 | ||
| 118D | A 0005866543 | REPAIR KIT |
| TO 002 430 63 01 | ||
| 118D | A 0015866543 | REPAIR KIT |
| TO 003 430 03 01 | ||
| 118H | A 0024306401 | BRAKE MASTER CYLINDER |
| 22.2 MM | ||
| 119A | A 0049973245 | SEAL RING |
| 119B | N 000472025000 | LOCK RING |
| 119H | A 0034300401 | BRAKE MASTER CYLINDER |
| 22.2 MM | ||
| 119J | A 0049973245 | SEAL RING |
| 119K | A 0004308081 | VALVE |
| 119M | N 000472025000 | LOCK RING |
| 119P | A 0005866643 | REPAIR KIT |
| Repalced by: A 0004302183 | ||
| 119P | A 0004302183 | REPAIR KIT |
| TO 002 430 64 01,003 430 04 01 | ||
| 120 | A 0005863643 | REPAIR KIT |
| BRAKE MASTER CYLINDER | ||
| 124 | A 0009904968 | FITTING |
| 124 | A 0009904968 | FITTING |
| 125 | N 007603022102 | SEAL RING |
| 127 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 127 | N 308675012000 | NUT |
| 128 | A 3199960101 | YOKE |
| R.H. THREAD | ||
| 129 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 129 | N 304017008034 | SCREW |
| MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 129E | N 912004008102 | LOCK WASHER |
| MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 129H | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 129H | N 913004008001 | NUT |
| MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| A 3104200081 | LEVER | |
| Repalced by: A 3104200781 | ||
| A 3104200481 | LEVER | |
| Repalced by: A 3104200781 | ||
| 130 | A 3104200781 | LEVER |
| (BRAKE INTERMEDIATE LEVER) | ||
| 130 | A 3104200781 | LEVER |
| (BRAKE INTERMEDIATE LEVER) | ||
| 132 | A 3104260003 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 132 | A 3104260003 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 133 | A 3149940101 | LOCK |
| INTERMEDIATE LEVER TO BRACKET | ||
| 133 | A 3149940101 | LOCK |
| INTERMEDIATE LEVER TO BRACKET | ||
| 134 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 134 | N 304017008021 | SCREW |
| INTERMEDIATE LEVER TO BRACKET | ||
| 134 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 134 | N 304017008016 | SCREW |
| INTERMEDIATE LEVER TO BRACKET | ||
| 134 | N 304017008016 | SCREW |
| INTERMEDIATE LEVER TO BRACKET | ||
| 134E | N 912004008102 | LOCK WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 134E | N 912004008102 | LOCK WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 134K | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 134K | N 913004008001 | NUT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 135 | N 071412010100 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 135 | N 071412010300 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 135 | N 071412010300 | GREASE NIPPLE |
| INTERMEDIATE LEVER TO BRACKET | ||
| 136 | A 3104260071 | SCREW |
| PUSH ROD TO BRAKE PEDAL | ||
| 136 | A 3104260071 | SCREW |
| PUSH ROD TO BRAKE PEDAL | ||
| A 3094260071 | SCREW | |
| Repalced by: A 3094260171 | ||
| 136B | A 3094260171 | SCREW |
| PUSH ROD TO BRAKE PEDAL | ||
| 136F | A 1262920074 | PIN |
| PUSH ROD TO BRAKE PEDAL | ||
| 137 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 137 | N 913004008001 | NUT |
| PUSH ROD TO BRAKE PEDAL | ||
| 138 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 138 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 138 | N 910113006000 | NUT |
| PUSH ROD TO BRAKE PEDAL | ||
| 139 | N 000125006421 | WASHER |
| PUSH ROD TO BRAKE PEDAL | ||
| Repalced by: N 000125006449 | ||
| 139 | N 000125006449 | WASHER |
| PUSH ROD TO BRAKE PEDAL | ||
| 139S | N 912011008000 | LOCK |
| PUSH ROD TO BRAKE PEDAL | ||
| A 3104200074 | ROD | |
| Repalced by: A 3104201174 | ||
| 140 | A 3104260430 | ROD |
| 140 | A 3104260430 | ROD |
| 141 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| 141 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| 142 | A 3199960101 | YOKE |
| R.H. THREAD | ||
| 142 | A 3199960101 | YOKE |
| R.H. THREAD | ||
| 143 | N 000934012022 | NUT |
| YOKE TO PUSH ROD | ||
| 143 | N 000934012022 | NUT |
| YOKE TO PUSH ROD | ||
| 144 | N 000934012037 | NUT |
| L.H. THREAD | ||
| 144 | N 000934012037 | NUT |
| L.H. THREAD | ||
| 145 | N 001434012106 | PIN |
| ROD TO LEVER | ||
| 145 | N 001434012106 | PIN |
| ROD TO LEVER | ||
| 146 | N 000094004051 | COTTER PIN |
| ROD TO LEVER | ||
| 146 | N 000094004051 | COTTER PIN |
| ROD TO LEVER | ||
| 146E | N 900055012001 | SPRING WASHER |
| ROD TO LEVER | ||
| 146E | N 900055012001 | SPRING WASHER |
| ROD TO LEVER | ||
| 146H | N 001434012106 | PIN |
| YOKE TO BRAKE PEDAL | ||
| 146L | N 900055012001 | SPRING WASHER |
| YOKE TO BRAKE PEDAL | ||
| 146P | N 000094004065 | COTTER PIN |
| YOKE TO BRAKE PEDAL | ||
| A 3109970182 | HOSE | |
| Repalced by: A 3109970282 | ||
| 147 | A 3109970282 | HOSE |
| 147 | A 3109970282 | HOSE |
| 148 | A 3104311440 | BRACKET |
| LINE MOUNTING | ||
| 148 | A 3104311440 | BRACKET |
| LINE MOUNTING | ||
| 148C | A 3094281240 | BRACKET |
| LINE MOUNTING | ||
| 148E | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 148E | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 148K | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 148K | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 148K | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 148M | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 148M | N 304017010019 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 148P | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 148P | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 149 | A 3104310135 | CONNECTOR |
| 149 | A 3104310135 | CONNECTOR |
| 150 | A 3104310035 | CONNECTOR |
| 150 | A 3104310035 | CONNECTOR |
| 150S | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 150S | N 000000000667 | CLAMP |
| LINE CONNECTION | ||
| 151 | N 916016022206 | CLAMP |
| HOSE TO BRACKET | ||
| 151 | N 916016022206 | CLAMP |
| HOSE TO BRACKET | ||
| 152 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 152 | N 000000001146 | SCREW |
| HOSE TO BRACKET | ||
| M 6X16 | ||
| 152 | N 000000001146 | SCREW |
| HOSE TO BRACKET | ||
| M 6X16 | ||
| 152E | N 913004006006 | NUT |
| HOSE TO BRACKET | ||
| 152E | N 913004006006 | NUT |
| HOSE TO BRACKET | ||
| 153 | A 3104310462 | COVERING |
| 153 | A 3104310562 | COVERING |
| 153 | A 3104310662 | COVERING |
| 153 | A 3104310762 | COVERING |
| 155 | A 3104312640 | BRACKET |
| 155 | A 3104312640 | BRACKET |
| 156 | A 3104312940 | BRACKET |
| Repalced by: A 3184923641 | ||
| 156 | A 3184923641 | BRACKET |
| Repalced by: A 3184923441 | ||
| 156 | A 3184923441 | BRACKET |
| 156 | A 3184923441 | BRACKET |
| 157 | N 000933006102 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 157 | N 000933006102 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 158 | N 000125006421 | WASHER |
| BRACKET TO COVER PLATE | ||
| Repalced by: N 000125006449 | ||
| 158 | N 000125006449 | WASHER |
| BRACKET TO COVER PLATE | ||
| 158 | N 000125006449 | WASHER |
| BRACKET TO COVER PLATE | ||
| 159 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 159 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 159 | N 910113006000 | NUT |
| BRACKET TO COVER PLATE | ||
| 159 | N 910113006000 | NUT |
| BRACKET TO COVER PLATE | ||
| 160 | N 913010006106 | RIVETED NUT |
| BRACKET AND COVER PLATE TO CAB | ||
| 160 | N 913010006106 | RIVETED NUT |
| BRACKET AND COVER PLATE TO CAB | ||
| 160F | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 160F | N 304017006020 | SCREW |
| BRACKET AND COVER PLATE TO CAB | ||
| M 6X20 | ||
| 160F | N 304017006020 | SCREW |
| BRACKET AND COVER PLATE TO CAB | ||
| M 6X20 | ||
| 160L | N 000125006421 | WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| Repalced by: N 000125006449 | ||
| 160L | N 000125006449 | WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| 160L | N 000125006449 | WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| 160R | N 912004006102 | LOCK WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| 160R | N 912004006102 | LOCK WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| 161 | A 0004318302 | RESERVOIR |
| FRONT | ||
| 161 | A 0004318302 | RESERVOIR |
| FRONT | ||
| 161 | A 0004318302 | RESERVOIR |
| FRONT | ||
| 162 | A 0004314702 | RESERVOIR |
| REAR | ||
| 162 | A 0004314702 | RESERVOIR |
| REAR | ||
| 162 | A 0004314702 | RESERVOIR |
| REAR | ||
| A 0004316502 | RESERVOIR | |
| Repalced by: A 0004318302 | ||
| A 0004311202 | RESERVOIR | |
| Repalced by: A 0004318302 | ||
| 163 | A 0004318502 | RESERVOIR |
| 163P | A 0004318602 | RESERVOIR |
| 164 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 164 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 164 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 165 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 165 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 166 | A 0004314334 | STRAINER |
| TO 000 431 47 02,001 431 29 02, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 000 431 83 02,001 431 39 02 | ||
| 166B | A 0004311371 | SCREW |
| 166D | A 0004316287 | PROTECTIVE CAP |
| 166E | A 0014310060 | SEAL RING |
| 167 | A 0004311040 | CLAMP |
| 167 | A 0004311040 | CLAMP |
| TO 000 431 47 02 | ||
| 168 | A 3094310043 | CLAMP |
| FLUID RESERVOIR TO FIRE WALL | ||
| 168 | A 3094310043 | CLAMP |
| FLUID RESERVOIR TO FIRE WALL | ||
| 168E | N 000933006183 | SCREW |
| FLUID RESERVOIR TO FIRE WALL | ||
| 168E | N 000933006102 | SCREW |
| FLUID RESERVOIR TO FIRE WALL | ||
| 168K | N 912004006102 | LOCK WASHER |
| FLUID RESERVOIR TO FIRE WALL | ||
| 168P | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 168P | N 009021006208 | WASHER |
| FLUID RESERVOIR TO FIRE WALL | ||
| 169 | A 3094311840 | BRACKET |
| FLUID RESERVOIR TO SEAT BOX | ||
| 170 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 170 | N 007985006580 | SCREW |
| FLUID RESERVOIR TO SEAT BOX | ||
| 171 | N 000934006007 | NUT |
| FLUID RESERVOIR TO SEAT BOX | ||
| 172 | N 912006006002 | LOCK WASHER |
| FLUID RESERVOIR TO SEAT BOX | ||
| 174 | A 6039970482 | HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 174 | A 6039970482 | HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 174B | A 3092950036 | INTERMEDIATE PIECE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 174D | A 0099973882 | HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 175 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 175 | A 0009872727 | PLASTIC PIPE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 6X8 MM | ||
| 175 | A 3104282301 | LINE |
| FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER | ||
| 175 | A 0004290801 | LINE |
| FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER | ||
| 176 | A 3104208528 | LINE |
| FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER | ||
| 176 | A 3104208528 | LINE |
| FROM RESERVOIR HOSE TO BRAKE MASTER CYLINDER | ||
| 177 | A 1809900066 | UNION SCREW |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 177R | N 915052006021 | BANJO UNION |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 177T | A 3109970081 | GROMMET |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 178 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 178 | N 915036010108 | HOLLOW SCREW |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 178 | N 915036010108 | HOLLOW SCREW |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 179 | N 007603014405 | SEAL RING |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 179 | N 007603014405 | SEAL RING |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| N 900269014100 | CLAMP | |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| N 900269014100 | CLAMP | |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 179L | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 179L | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 179L | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 179L | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| 179R | N 007981005214 | SHEET METAL SCREW |
| LINE MOUNTING | ||
| 180 | A 3094280440 | BRACKET |
| LINE MOUNTING | ||
| 180 | A 3094280440 | BRACKET |
| LINE MOUNTING | ||
| 180C | A 3094280540 | BRACKET |
| LINE MOUNTING | ||
| 180F | A 3094280840 | BRACKET |
| LINE MOUNTING | ||
| 181 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 181 | N 304017010019 | SCREW |
| LINE MOUNTING | ||
| 181 | N 304017010019 | SCREW |
| LINE MOUNTING | ||
| 181E | N 000933006102 | SCREW |
| LINE MOUNTING | ||
| 182 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 182 | N 000125010532 | WASHER |
| LINE MOUNTING | ||
| 182 | N 000125010532 | WASHER |
| LINE MOUNTING | ||
| 182F | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 183 | N 913002010000 | NUT |
| LINE MOUNTING | ||
| 183 | N 913002010000 | NUT |
| LINE MOUNTING | ||
| 183N | N 913010006106 | RIVETED NUT |
| LINE MOUNTING | ||
| 183N | N 913010006106 | RIVETED NUT |
| LINE MOUNTING | ||
| 184 | A 0009951205 | CLAMP |
| LINE MOUNTING | ||
| 184 | A 0009951205 | CLAMP |
| LINE MOUNTING | ||
| 184F | N 000933006102 | SCREW |
| LINE MOUNTING | ||
| 184F | N 000933006102 | SCREW |
| LINE MOUNTING | ||
| 185 | N 000125006421 | WASHER |
| LINE MOUNTING | ||
| Repalced by: N 000125006449 | ||
| 185 | N 000125006449 | WASHER |
| LINE MOUNTING | ||
| 185 | N 000125006449 | WASHER |
| LINE MOUNTING | ||
| 185F | N 913002006000 | NUT |
| LINE MOUNTING | ||
| 185F | N 913002006000 | NUT |
| LINE MOUNTING | ||
| 185K | A 0019900371 | ELBOW FITTING |
| VACUUM LINE TO BRAKE BOOSTER | ||
| 186D | A 3094300229 | LINE |
| Repalced by: A 3094350281 | ||
| 186D | A 3094350281 | CONNECTOR |
| Repalced by: A 1154350225 | ||
| 186D | A 1154350225 | CONNECTOR |
| FROM INTAKE MANIFOLD TO CHECK VALVE | ||
| 186F | N 915017010201 | UNION NUT |
| 186F | N 915017010201 | UNION NUT |
| VACUUM LINE | ||
| A 0009907454 | NUT | |
| 186F | N 915017010100 | UNION NUT |
| FROM FITTING TO VALVE | ||
| 186F | N 915017012100 | UNION NUT |
| LINE MOUNTING | ||
| Repalced by: N 000000006239 | ||
| 186F | N 000000006239 | UNION NUT |
| LINE MOUNTING | ||
| A 1154350325 | LINE | |
| 186H | A 3094350325 | LINE |
| FROM FITTING TO VALVE | ||
| A 1154350125 | LINE | |
| FROM INTAKE MANIFOLD TO CHECK VALVE | ||
| 186K | A 0004358382 | HOSE |
| FROM INTAKE MANIFOLD TO CHECK VALVE | ||
| 186K | A 0004358382 | HOSE |
| FROM INTAKE MANIFOLD TO CHECK VALVE | ||
| 187 | A 0004313607 | VALVE |
| CHECK | ||
| 187 | A 0004313607 | VALVE |
| CHECK | ||
| 187 | A 0004314007 | VALVE |
| Repalced by: A 0004316107 | ||
| 187 | A 0004316107 | VALVE |
| CHECK | ||
| 187 | A 0004316107 | VALVE |
| CHECK | ||
| 187L | A 3094300829 | LINE |
| VACUUM LINE | ||
| 187L | A 3094350625 | LINE |
| VACUUM LINE | ||
| 188 | A 0004358382 | HOSE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 188 | A 0004358382 | HOSE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| A 3104300029 | LINE | |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| A 3094350172 | NUT | |
| LINE MOUNTING | ||
| N 003861012007 | GLAND | |
| Repalced by: A 0019901967 | ||
| A 0019901967 | SEAL CONE | |
| LINE MOUNTING | ||
| N 915017012100 | UNION NUT | |
| LINE MOUNTING | ||
| Repalced by: N 000000006239 | ||
| N 000000006239 | UNION NUT | |
| LINE MOUNTING | ||
| 189 | A 3104300229 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 189 | A 3104300529 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 189 | A 3104350625 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 189C | N 915013008002 | SCREW FITTING |
| Repalced by: A 4039971172 | ||
| 189C | A 4039971172 | FITTING |
| FROM INTAKE MANIFOLD TO VACUUM LINE | ||
| 189C | A 4039971172 | FITTING |
| FROM INTAKE MANIFOLD TO VACUUM LINE | ||
| 189D | N 007603014405 | SEAL RING |
| FROM INTAKE MANIFOLD TO VACUUM LINE | ||
| 189F | A 3099970172 | FITTING |
| FROM VACUUM PUMP TO BRAKE BOOSTER | ||
| N 003901010001 | SCREW-IN FITTING | |
| FROM INTAKE MANIFOLD TO VACUUM LINE | ||
| 189H | A 3094350281 | CONNECTOR |
| VACUUM LINE | ||
| 189K | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 189K | A 0019901967 | SEAL CONE |
| LINE MOUNTING | ||
| 189K | N 003861010009 | GLAND |
| FROM FITTING TO VALVE | ||
| 190 | A 3094760636 | BRACKET |
| VACUUM LINE | ||
| 190 | A 3094760636 | BRACKET |
| VACUUM LINE | ||
| 190H | A 3104312240 | BRACKET |
| VACUUM LINE | ||
| 190H | A 3104312240 | BRACKET |
| VACUUM LINE | ||
| 190H | A 3104312240 | BRACKET |
| VACUUM LINE | ||
| A 3094350040 | BRACKET | |
| VACUUM LINE | ||
| A 3094351140 | BRACKET | |
| VACUUM LINE | ||
| N 000934010034 | NUT | |
| N 000934010034 | NUT | |
| N 913002010001 | NUT | |
| N 913002010001 | NUT | |
| A 1169972981 | GROMMET | |
| Repalced by: A 0009972881 | ||
| A 0009972881 | GROMMET | |
| VACUUM LINE | ||
| 193 | A 1879950037 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 193S | A 3609950301 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 193T | N 916016012200 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 194 | A 3049951920 | CLAMP |
| Repalced by: A 3049951620 | ||
| 194 | A 3049951620 | CLAMP |
| VACUUM LINE TO SIDE MEMBER | ||
| 194E | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 194E | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 194E | N 000000001149 | SCREW |
| VACUUM LINE TO BRACKET | ||
| M 6X25 | ||
| 194T | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 194T | N 000000001146 | SCREW |
| VACUUM LINE TO BRACKET | ||
| M 6X16 | ||
| 194P | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 194P | N 000000000460 | SHEET METAL SCREW |
| VACUUM LINE TO SIDE MEMBER | ||
| 194T | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 194T | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 194T | N 910113006000 | NUT |
| VACUUM LINE TO BRACKET | ||
| 194T | N 910113006000 | NUT |
| VACUUM LINE TO BRACKET | ||
| 195 | A 3404200529 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 400 MM | ||
| 195 | A 3404201129 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 700 MM | ||
| 195 | A 3404202529 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1400 MM | ||
| 195 | A 3404202829 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1550 MM | ||
| 196 | A 3404202929 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1600 MM | ||
| 196 | A 3404203129 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1700 MM | ||
| 196 | A 3404203329 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1800 MM | ||
| 197 | A 0004290437 | DISTRIBUTOR |
| 197 | A 0004294337 | DISTRIBUTOR |
| 198 | N 000931008244 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| 199 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 199 | N 304017008043 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| 200 | A 1801550053 | SPACER TUBE |
| DISTRIBUTOR TO FRAME | ||
| 200B | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO FRAME | ||
| 200C | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 200C | N 000125008443 | WASHER |
| DISTRIBUTOR TO FRAME | ||
| 201 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 201 | N 913004008001 | NUT |
| DISTRIBUTOR TO FRAME | ||
| 203 | A 3404201329 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 800 MM | ||
| 203 | A 3404201329 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 800 MM | ||
| 203 | A 3404201229 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 750 MM | ||
| 203 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 500 MM | ||
| 205 | A 3404203829 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 2200 MM | ||
| 205 | A 3404203829 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 2200 MM | ||
| 205 | A 3404203829 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 2200 MM | ||
| 205 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1900 MM | ||
| 205 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1900 MM | ||
| A 3404203429 | LINE | |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1850 MM | ||
| 205 | A 3404201429 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 850 MM | ||
| 207 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 207 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 207 | N 000000000319 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 208 | N 007981005214 | SHEET METAL SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 210 | A 3094300110 | BRACKET |
| LEFT,BRAKE LINE TO CROSS MEMBER | ||
| 210 | A 3094300110 | BRACKET |
| LEFT,BRAKE LINE TO CROSS MEMBER | ||
| 210 | A 3094300210 | BRACKET |
| RIGHT,BRAKE LINE TO CROSS MEMBER | ||
| 210 | A 3094300210 | BRACKET |
| RIGHT,BRAKE LINE TO CROSS MEMBER | ||
| 211 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 211 | N 304017010028 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 211F | N 912004010102 | LOCK WASHER |
| BRAKE LINE TO CROSS MEMBER | ||
| 212 | N 007985006109 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| N 007516006105 | TAPPING SCREW | |
| BRAKE LINE TO CROSS MEMBER | ||
| 213 | N 007981006216 | SHEET METAL SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 213 | N 007981006209 | SHEET METAL SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 214 | A 1369912240 | SPACER TUBE |
| BRAKE LINE TO CROSS MEMBER | ||
| 214M | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 214M | N 913002006009 | NUT |
| BRAKE LINE TO FRAME | ||
| 215 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 215 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 215 | N 000000000319 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 216 | A 3604280143 | ANGLE |
| BRAKE LINE TO FRAME | ||
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRAKE LINE TO FRAME | ||
| M 6X16 | ||
| 217 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 217 | N 000000001146 | SCREW |
| BRAKE LINE TO FRAME | ||
| M 6X16 | ||
| 217D | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 217D | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 217D | N 910113006000 | NUT |
| BRAKE LINE TO FRAME | ||
| 217H | A 0049881478 | CLIP |
| BRAKE LINE TO FRAME | ||
| 218 | A 3094280043 | ANGLE |
| LEFT | ||
| 218 | A 3094280443 | ANGLE |
| LEFT | ||
| 218A | A 3094280143 | ANGLE |
| RIGHT | ||
| 218A | A 3094280543 | ANGLE |
| RIGHT | ||
| 218A | A 3094280643 | ANGLE |
| RIGHT | ||
| 218B | N 000933010045 | SCREW |
| MOUNTING ANGLE TO FRAME | ||
| M 10X28 | ||
| 218B | N 000931010331 | SCREW |
| MOUNTING ANGLE TO FRAME | ||
| M 10X65 | ||
| 218D | N 007349010007 | WASHER |
| MOUNTING ANGLE TO FRAME | ||
| 218H | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 218H | N 910113010000 | NUT |
| MOUNTING ANGLE TO FRAME | ||
| 219 | A 3092920440 | BRACKET |
| RELEASE SPRING | ||
| 219 | A 3092920440 | BRACKET |
| RELEASE SPRING | ||
| 219H | A 3092921840 | BRACKET |
| LINE MOUNTING | ||
| 219K | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 219K | N 304017010019 | SCREW |
| BRACKET TO FRAME | ||
| 219P | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 219P | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 220 | A 3129970582 | HOSE |
| 221 | A 3129950935 | CLAMP |
| Repalced by: A 0019978290 | ||
| 221C | N 000084004151 | SCREW |
| HOSE TO BRAKE LINE | ||
| 221H | N 000934004006 | NUT |
| HOSE TO BRAKE LINE | ||
| 221N | A 0019978390 | LOOM TIE |
| HOSE TO BRAKE LINE | ||
| 280 MM | ||
| 222 | A 0024280535 | BRAKE HOSE |
| FRONT | ||
| 222 | A 0014285535 | BRAKE HOSE |
| FRONT | ||
| 223 | A 1072950173 | LOCK |
| BRAKE HOSE TO BRACKET | ||
| 223 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 223 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 224 | A 3404204229 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3000 MM | ||
| 224 | A 3404204229 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3000 MM | ||
| 224 | A 3404204029 | LINE |
| 2600 MM | ||
| 224 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 2600 MM | ||
| 224 | A 3404204029 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2600 MM | ||
| 224 | A 3404204029 | LINE |
| 2600 MM | ||
| 224 | A 3404204629 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3800 MM | ||
| 224 | A 3404204529 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3600 MM | ||
| 224 | A 3404204529 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3600 MM | ||
| 224 | A 3404204329 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3200 MM | ||
| 224 | A 3404204829 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 4200 MM | ||
| 226 | A 3404203829 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 2200 MM | ||
| 226 | A 3404202129 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 1200 MM | ||
| 226 | A 3404202429 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 1350 MM | ||
| 228 | A 3404204229 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 3000 MM | ||
| 228 | A 3404204429 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 3400 MM | ||
| 228 | A 3404203529 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 1900 MM | ||
| 228 | A 3404203529 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 1900 MM | ||
| 228 | A 3404204029 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2600 MM | ||
| 228 | A 3404204129 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 2800 MM | ||
| 229 | A 0004292736 | CONNECTOR |
| BETWEEN THE LINES | ||
| 229 | A 0004292736 | CONNECTOR |
| BETWEEN THE LINES | ||
| 229B | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 229B | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 229B | N 000000000319 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 229H | N 000933006102 | SCREW |
| BRAKE LINE TO FRAME | ||
| 229K | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO FRAME | ||
| 229N | N 000934006007 | NUT |
| BRAKE LINE TO FRAME | ||
| 229R | A 0049881478 | CLIP |
| LINE MOUNTING | ||
| 229T | A 0049882678 | CLIP |
| LINE MOUNTING | ||
| 230 | A 3609950101 | CLAMP |
| LINE MOUNTING | ||
| 230H | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 230H | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 230H | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| 230R | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 231 | A 3125421039 | PLATE |
| LINE MOUNTING | ||
| 231B | N 007985005157 | SCREW |
| LINE MOUNTING | ||
| 231K | N 912004005103 | LOCK WASHER |
| LINE MOUNTING | ||
| 231R | N 000934005008 | NUT |
| LINE MOUNTING | ||
| 232 | A 0004280135 | BRAKE HOSE |
| REAR | ||
| 232H | A 1072950173 | LOCK |
| BRAKE HOSE TO BRACKET | ||
| 232H | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 232H | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 233 | A 0004290437 | DISTRIBUTOR |
| 233 | A 0004294337 | DISTRIBUTOR |
| 233E | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 233E | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 233E | A 0099900101 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X28 | ||
| 233E | N 000931008266 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X40 | ||
| 233L | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO REAR AXLE | ||
| 234 | A 3404200729 | LINE |
| TO LEFT REAR WHEEL | ||
| 500 MM | ||
| 234 | A 3404200829 | LINE |
| TO LEFT REAR WHEEL | ||
| 550 MM | ||
| 234L | A 3404201929 | LINE |
| TO LEFT REAR WHEEL | ||
| 1100 MM | ||
| 234L | A 3404202129 | LINE |
| TO LEFT REAR WHEEL | ||
| 1200 MM | ||
| 235 | A 3404201829 | LINE |
| TO RIGHT REAR WHEEL | ||
| 1050 MM | ||
| 235 | A 3404201929 | LINE |
| TO RIGHT REAR WHEEL | ||
| 1100 MM | ||
| 236 | A 3404200829 | LINE |
| TO RIGHT REAR WHEEL | ||
| 550 MM | ||
| 236 | A 3404200629 | LINE |
| TO RIGHT REAR WHEEL | ||
| 450 MM | ||
| 238 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 239 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 240 | N 000933008175 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 241 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||

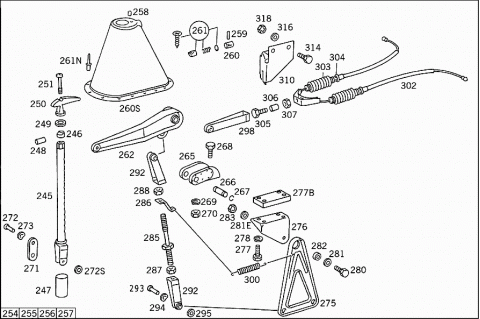

| 245 | A 3094200088 | RATCHET ROD |
| PISTOL-GRIP HAND BRAKE | ||
| A 3094200188 | RATCHET ROD | |
| Repalced by: A 3094200288 | ||
| A 3094200188 | RATCHET ROD | |
| Repalced by: A 3094200388 | ||
| 245 | A 3094200288 | RATCHET ROD |
| PISTOL-GRIP HAND BRAKE | ||
| 245 | A 3094200788 | RATCHET ROD |
| PISTOL-GRIP HAND BRAKE | ||
| 245 | A 3094200388 | RATCHET ROD |
| PISTOL-GRIP HAND BRAKE | ||
| 246 | A 3124271151 | SPACER RING |
| PISTOL-GRIP HAND BRAKE | ||
| 247 | A 3534270095 | PROTECTIVE CAP |
| PISTOL-GRIP HAND BRAKE | ||
| 248 | N 001473004021 | GROOVED PIN |
| PISTOL-GRIP HAND BRAKE | ||
| 249 | A 3124271086 | DAMPING RING |
| PISTOL-GRIP HAND BRAKE | ||
| 250 | A 3144270120 | HANDLE |
| PISTOL-GRIP HAND BRAKE | ||
| 250 | A 3094270020 | HANDLE |
| PISTOL-GRIP HAND BRAKE | ||
| 251 | N 000964006017 | SCREW |
| PISTOL-GRIP HAND BRAKE | ||
| 251 | N 007985010120 | SCREW |
| Repalced by: N 000965010006 | ||
| 251 | N 000965010006 | SCREW |
| PISTOL-GRIP HAND BRAKE | ||
| A 3144270072 | NUT | |
| PISTOL-GRIP HAND BRAKE | ||
| A 3094200478 | BEARING BRACKET | |
| PISTOL-GRIP HAND BRAKE | ||
| 254 | A 3094200144 | PROTECTIVE PLATE |
| Repalced by: A 3094200044 | ||
| 255 | A 3124271215 | PAWL |
| Repalced by: A 3145860142 | ||
| 256 | A 1539930701 | SPRING |
| Repalced by: A 3145860142 | ||
| 257 | A 3129900043 | PLATE |
| Repalced by: A 3145860142 | ||
| 258 | N 001472003009 | GROOVED PIN |
| AS REQUIRED | ||
| N 000965003013 | SCREW | |
| 259 | N 001470003002 | GROOVED PIN |
| 260 | A 3099870115 | PLUG |
| N 000472015000 | LOCK RING | |
| N 001473003017 | GROOVED PIN | |
| 260S | A 3094200044 | PROTECTIVE PLATE |
| A 3145860142 | REPAIR KIT | |
| Repalced by: A 3144200092 | ||
| 261 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 261 | A 3094200292 | REPAIR KIT |
| PAWL | ||
| A 0009900297 | RIVET | |
| COVERING TO CAB | ||
| 261N | N 910002004110 | RIVET |
| COVERING TO CAB | ||
| N 007988006105 | SCREW | |
| BEARING BRACKET TO COVERING | ||
| A 3094200612 | BRAKE LEVER | |
| Repalced by: A 3094201012 | ||
| 262 | A 3094201012 | BRAKE LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 262 | A 3094201512 | BRAKE LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 262 | A 3094202312 | BRAKE LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| A 3094200812 | BRAKE LEVER | |
| Repalced by: A 3094201212 | ||
| A 3094201212 | BRAKE LEVER | |
| A 3094201612 | BRAKE LEVER | |
| (BRAKE INTERMEDIATE LEVER) | ||
| 265 | A 3094200578 | BEARING BRACKET |
| BRAKE LEVER | ||
| 265 | A 3094200678 | BEARING BRACKET |
| BRAKE LEVER | ||
| 265 | A 3094200678 | BEARING BRACKET |
| BRAKE LEVER | ||
| 265 | A 3094201178 | BEARING BRACKET |
| BRAKE LEVER | ||
| 266 | A 3094270074 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 266 | A 3094270274 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 266 | A 3094270674 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 267 | N 007993016100 | SNAP RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 267B | A 3104270550 | BUSHING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 267E | N 000931010331 | SCREW |
| BRAKE LEVER TO BEARING BRACKET | ||
| 267K | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 267K | N 910113010000 | NUT |
| BRAKE LEVER TO BEARING BRACKET | ||
| 268 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 268 | N 304017008021 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 268 | N 000933010128 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 269 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO CROSS MEMBER | ||
| 269 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO CROSS MEMBER | ||
| 270 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 270 | N 910113010000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 271 | A 3094270489 | CONNECTOR |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 272 | N 001434008029 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 272 | N 001434008063 | PIN |
| Repalced by: N 001444008210 | ||
| 272 | N 001444008210 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 272 | N 001434008092 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 272 | N 001444008223 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 272S | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 272S | N 000125008443 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 273 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 273 | N 000137008212 | SPRING WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 273 | N 900055008002 | SPRING WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| N 000094002059 | COTTER PIN | |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| A 3094270210 | INTERMEDIATE LEVER | |
| Repalced by: A 3094270510 | ||
| A 3094270510 | INTERMEDIATE LEVER | |
| A 3094270310 | INTERMEDIATE LEVER | |
| 275 | A 3094200281 | LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 275 | A 3094200281 | LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 275 | A 3104200181 | LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 275H | A 3104201481 | LEVER |
| (INTERMEDIATE LEVER),HAND BRAKE LINKAGE | ||
| 275L | A 3104270550 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 275N | N 000931010331 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 275R | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275R | N 910113010000 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| A 3194270253 | SPACER TUBE | |
| 276 | A 3094270536 | CONSOLE |
| 276 | A 3094270536 | CONSOLE |
| 276 | A 3104270136 | CONSOLE |
| 277 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 277 | N 304017008021 | SCREW |
| CONSOLE TO CAB | ||
| 8X20 MM | ||
| 277 | N 304017008021 | SCREW |
| CONSOLE TO CAB | ||
| 8X20 MM | ||
| 277 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 277 | N 304017008053 | SCREW |
| CONSOLE TO CAB | ||
| 8X60 MM | ||
| A 3094270184 | SHIM | |
| Repalced by: A 3094270284 | ||
| 277B | A 3094270284 | SHIM |
| CONSOLE TO CAB | ||
| 278 | N 912004008102 | LOCK WASHER |
| CONSOLE TO CAB | ||
| N 000931010271 | SCREW | |
| Repalced by: N 304017010051 | ||
| N 304017010051 | SCREW | |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 280 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 280 | N 304017010002 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| M 10X30 | ||
| 280 | N 304017010002 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| M 10X30 | ||
| 280 | N 000931010282 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 10X40 MM | ||
| 281 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 281 | N 009021010209 | WASHER |
| 281E | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 281E | N 000125010532 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| A 3094270353 | SPACER TUBE | |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 282 | A 3094270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 282 | A 3094270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 282 | A 3104270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 283 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 283 | N 910113010000 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 285 | A 3094200674 | ROD |
| FRONT | ||
| 285 | A 3094201174 | ROD |
| FRONT | ||
| 285 | A 3094200774 | ROD |
| FRONT | ||
| 285 | A 3094201274 | ROD |
| FRONT | ||
| 285 | N 900331010667 | PULL ROD |
| FRONT | ||
| 285 | N 900331010667 | PULL ROD |
| FRONT | ||
| 285 | N 900331010668 | PULL ROD |
| FRONT | ||
| 286 | A 3094270689 | CONNECTOR |
| N 900333010001 | TURNBUCKLE | |
| 287 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 287 | N 304032010003 | NUT |
| R.H. THREAD | ||
| 288 | N 000934010035 | NUT |
| L.H. THREAD | ||
| A 3094271241 | BRACKET | |
| A 3099950144 | CLAMP | |
| N 000933005057 | SCREW | |
| N 912004005103 | LOCK WASHER | |
| N 000934005008 | NUT | |
| N 900331010267 | PULL ROD | |
| N 900331010668 | PULL ROD | |
| 292 | A 3214200176 | END PIECE |
| 292D | A 3104202074 | ROD |
| 292D | A 3104202174 | ROD |
| 292T | A 3104271289 | CONNECTOR |
| 293 | N 001434010125 | PIN |
| 293B | N 001444010228 | PIN |
| SHACKLE TO LEVER | ||
| 11 X 21 | ||
| 293D | N 001444010229 | PIN |
| SHACKLE TO LEVER | ||
| 11 X 36 | ||
| 293H | A 4252920074 | PIN |
| PULL ROD TO LEVER | ||
| 11X28 MM | ||
| 294 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 294 | N 000137010205 | SPRING WASHER |
| PULL ROD TO LEVER | ||
| 295 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 295 | N 000125010532 | WASHER |
| PULL ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO LEVER | ||
| A 3094200189 | SHACKLE | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 298 | A 3094200276 | END PIECE |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 001434010083 | PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| A 3099930510 | SPRING | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 300 | A 3199930810 | SPRING |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 300B | A 3104270083 | SPHERICAL PIECE |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 300F | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 300F | N 304014010004 | SCREW |
| AT FRAME | ||
| 300K | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 300K | N 910113010000 | NUT |
| AT FRAME | ||
| 300S | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 300S | N 000125010532 | WASHER |
| AT FRAME | ||
| 300W | A 3104270332 | BEARING BODY |
| LINE TO FRONT PANEL | ||
| 301 | A 3104200368 | SUPPORT |
| Repalced by: A 3104200568 | ||
| 301 | A 3104200568 | SUPPORT |
| BRAKE INTERMEDIATE SHAFT | ||
| 301 | A 3104200468 | SUPPORT |
| BRAKE INTERMEDIATE SHAFT | ||
| 301B | N 000931006187 | SCREW |
| Repalced by: N 304014006005 | ||
| 301B | N 304014006005 | SCREW |
| SUPPORT TO SPHERICAL PIECE | ||
| M 6X70 | ||
| 301H | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 301H | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 301H | N 910113006000 | NUT |
| SUPPORT TO SPHERICAL PIECE | ||
| 301L | A 3149931210 | SPRING |
| RELEASE SPRING TO BRAKE INTERMEDIATE SHAFT | ||
| A 3094200385 | BRAKE CABLE | |
| Repalced by: A 3094200185 | ||
| 302 | A 3094200185 | BRAKE CABLE |
| A 3094201085 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| A 3094200685 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| 302 | A 3094201385 | BRAKE CABLE |
| Repalced by: A 3094201685 | ||
| 302 | A 3094201685 | BRAKE CABLE |
| 3975 MM | ||
| A 3094201185 | BRAKE CABLE | |
| Repalced by: A 3094201485 | ||
| A 3094200785 | BRAKE CABLE | |
| Repalced by: A 3094201485 | ||
| 302 | A 3094201485 | BRAKE CABLE |
| Repalced by: A 3094201785 | ||
| 302 | A 3094201785 | BRAKE CABLE |
| 5045 MM | ||
| 302L | A 3104200485 | BRAKE CABLE |
| Repalced by: A 3104200985 | ||
| 302L | A 3104200985 | BRAKE CABLE |
| 303 | A 3094270296 | CUP |
| SEALING FOR WIRE CABLE | ||
| 303 | A 3094270296 | CUP |
| SEALING FOR WIRE CABLE | ||
| 303M | A 3104270096 | CUP |
| SEALING FOR WIRE CABLE | ||
| 304 | A 3094270077 | THIMBLE |
| BRAKE CABLE TO BRACKET | ||
| 304 | A 3094270077 | THIMBLE |
| BRAKE CABLE TO BRACKET | ||
| 305 | N 000931010282 | SCREW |
| BRAKE CABLE TO FORK | ||
| 306 | A 3094270153 | SPACER TUBE |
| BRAKE CABLE TO FORK | ||
| 307 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 307 | N 910113010000 | NUT |
| BRAKE CABLE TO FORK | ||
| 308 | A 3104270072 | NUT |
| BRAKE CABLE TO BRACKET | ||
| 309 | A 3149972882 | HOSE |
| BRAKE CABLE TO BRACKET | ||
| 45 MM | ||
| 310 | A 3094272941 | BRACKET |
| LEFT | ||
| 310 | A 3094273041 | BRACKET |
| RIGHT | ||
| A 3093250040 | BRACKET | |
| (CLAMPING PIECE) | ||
| 314 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 314 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| M 8X20 | ||
| 314 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 314 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 316 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 316 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 318 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 318 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
