Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002

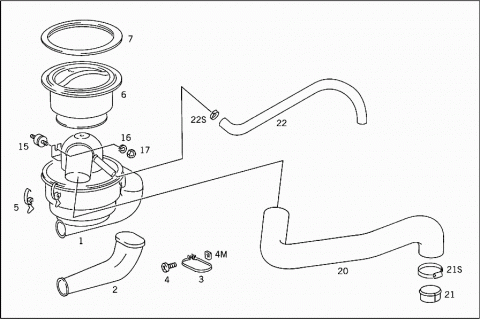

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0040945502 | AIR CLEANER |
| OIL BATH | ||
| MANN & HUMMEL | ||
| 002 | A 0000943608 | INTAKE PIPE |
| 003 | A 0000943842 | CLAMP |
| Repalced by: A 0000943942 | ||
| 003 | A 0000943942 | CLAMP |
| 004 | N 000084006133 | SCREW |
| 004M | N 000557006002 | NUT |
| Repalced by: N 000000004429 | ||
| 004M | N 000000004429 | NUT |
| 005 | A 0000940155 | FASTENER |
| Repalced by: A 0000941255 | ||
| 005 | A 0000941255 | FASTENER |
| 006 | A 0000946904 | FILTER ELEMENT |
| 007 | A 0000942980 | GASKET |
| 015 | A 0019872640 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 015 | A 0019875240 | RUBBER BUFFER |
| AIR CLEANER | ||
| 016 | N 912004008102 | LOCK WASHER |
| AIR CLEANER | ||
| 017 | N 304032008006 | NUT |
| AIR CLEANER | ||
| 020 | A 3095280108 | AIR INTAKE PIPE |
| Repalced by: A 3095282008 | ||
| 020 | A 3095282008 | AIR INTAKE PIPE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 021 | A 3095280084 | SHIM |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 021S | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 021S | N 000000000673 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 022 | A 3099970182 | HOSE |
| CRANKCASE BREATHING | ||
| 022S | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 022S | N 000000000667 | CLAMP |
| CRANKCASE BREATHING | ||
| 023 | A 3099970822 | HOSE |
| WATER DRAIN | ||
| 023 | A 3099970982 | HOSE |
| WATER DRAIN | ||
| 023 | A 3099975182 | HOSE |
| WATER DRAIN | ||

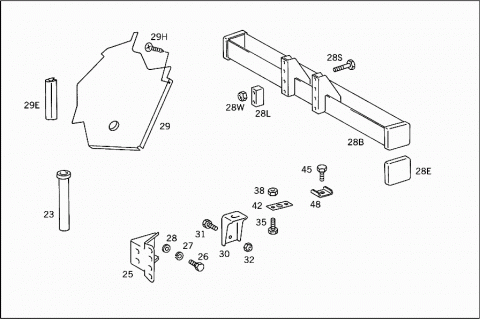

| 025 | A 3095250239 | BRACKET |
| Repalced by: A 3095251839 | ||
| 025 | A 3095251839 | BRACKET |
| Repalced by: A 3095202641 | ||
| 025 | A 3095202641 | BRACKET |
| FRONT BUMPER | ||
| 026 | N 000933010128 | SCREW |
| BRACKET TO SPRING FRONT BRACKET | ||
| 027 | N 912004010102 | LOCK WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 028 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 028 | N 000125010532 | WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 028B | A 3095200571 | BUMPER |
| Repalced by: A 3095201771 | ||
| 028B | A 3095201771 | BUMPER |
| 028E | A 3095250038 | CAP |
| 028L | A 3095250084 | SHIM |
| AT FRAME | ||
| 028S | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 028S | N 304017010050 | SCREW |
| AT FRAME | ||
| 028S | N 000931010271 | SCREW |
| Repalced by: N 304017010051 | ||
| 028S | N 304017010051 | SCREW |
| AT FRAME | ||
| 028S | N 000933010128 | SCREW |
| AT FRAME | ||
| 028W | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 028W | N 910113010000 | NUT |
| AT FRAME | ||
| 028W | N 910113010000 | NUT |
| AT FRAME | ||
| 029 | A 3096250039 | PARTITION PANEL |
| CAB | ||
| 029E | A 0009879672 | EDGE GUARD SECTION |
| CAB | ||
| 620 MM | ||
| A 3096220108 | COVERING | |
| CAB | ||
| 029H | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 029H | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 029H | N 000000000459 | SHEET METAL SCREW |
| CAB | ||
| A 3099971081 | GROMMET | |
| CAB | ||
| 030 | A 3093110363 | CONSOLE |
| Repalced by: A 3093111863 | ||
| 030 | A 3093111863 | CONSOLE |
| BODY MOUNTING | ||
| 031 | N 000933010164 | SCREW |
| BODY MOUNTING | ||
| 032 | N 913002010001 | NUT |
| BODY MOUNTING | ||
| N 910005010012 | RIVET | |
| BODY MOUNTING | ||
| 035 | N 000960012221 | SCREW |
| PLATFORM TO FRAME | ||
| 038 | N 913002012002 | NUT |
| PLATFORM TO FRAME | ||
| 042 | A 3148910111 | PLATE |
| PLATFORM TO FRAME | ||
| 045 | N 000960012222 | SCREW |
| PLATFORM TO FRAME | ||
| 048 | A 3148910113 | PLATE |
| PLATFORM TO FRAME | ||
