Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002

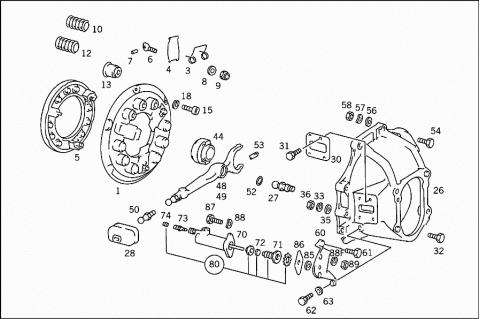

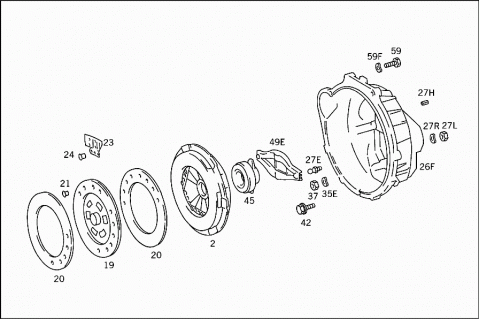

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0012508904 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022507304 | ||
| 002 | A 0022504904 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022507304 | ||
| 002 | A 0022504604 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022507304 | ||
| 002 | A 0022507304 | CLUTCH PRESSURE PLATE |
| 002 | A 0032506604 | CLUTCH PRESSURE PLATE |
| 003 | A 0002520427 | SPRING |
| 004 | A 0002524213 | RELEASE LEVER |
| 005 | A 0002508004 | CLUTCH PRESSURE PLATE |
| 006 | A 0002520374 | PIN |
| 007 | N 001481006002 | CLAMPING SLEEVE |
| 008 | A 0002520151 | SPACER RING |
| 009 | A 0002522772 | NUT |
| 010 | A 0002521820 | PRESSURE SPRING |
| 012 | A 0002524120 | PRESSURE SPRING |
| 013 | A 0002520335 | SLEEVE |
| 015 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 015 | N 000000000190 | SCREW |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 018 | N 912006008000 | LOCK WASHER |
| CLUTCH PRESSURE PLATE TO FLYWHEEL | ||
| 019 | A 0072508303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 019 | A 0032506503 | CLUTCH DISC |
| Repalced by: A 0072508203 | ||
| 019 | A 0072508203 | CLUTCH DISC |
| 019 | A 0072508903 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 019 | A 0072508803 | CLUTCH DISC |
| 020 | A 0012524210 | CLUTCH LINING |
| ONE-ROW RIVETING OF LINING;ASBESTOSFREE | ||
| 020 | A 0002528610 | CLUTCH LINING |
| DOUBLE-ROW RIVETING OF LINING | ||
| 020 | A 0002529310 | CLUTCH LINING |
| DOUBLE-ROW RIVETING OF LINING | ||
| 021 | A 0002521275 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 023 | A 0002521819 | LEAF SPRING |
| DOUBLE-ROW RIVETING OF LINING | ||
| 024 | A 0002521575 | RIVET |
| DOUBLE-ROW RIVETING OF LINING; LEAF SPRING TO CLUTCH DISC | ||
| 026 | A 3092500505 | HOUSING |
| CLUTCH | ||
| 026 | A 3092500405 | HOUSING |
| CLUTCH | ||
| 026 | A 3092500405 | HOUSING |
| CLUTCH | ||
| A 1152511601 | BELL HOUSING | |
| Repalced by: A 1152512601 | ||
| 026F | A 1152512601 | BELL HOUSING |
| 026F | A 6022510201 | BELL HOUSING |
| 027 | A 3099910020 | BALL PIVOT |
| 027E | A 1159910115 | BALL PIVOT |
| RELEASE YOKE | ||
| 027H | N 000007010102 | CYLINDRICAL PIN |
| BELL HOUSING | ||
| 027L | N 000936010008 | NUT |
| RELEASE YOKE | ||
| 027R | N 000137010201 | SPRING WASHER |
| RELEASE YOKE | ||
| 028 | A 1202540097 | BOOT |
| RELEASE YOKE | ||
| 030 | A 1202540058 | SEAL HOLDER |
| RELEASE YOKE | ||
| 031 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 031 | N 304017006018 | SCREW |
| RELEASE YOKE TO BELL HOUSING | ||
| 032 | N 000931012132 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 033 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 035 | N 000125013008 | WASHER |
| 035E | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 036 | N 000934012021 | NUT |
| BELL HOUSING TO TRANSMISSION | ||
| 037 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 037 | N 304032010003 | NUT |
| BELL HOUSING TO TRANSMISSION | ||
| 042 | A 0009900910 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 044 | A 3192500915 | RELEASE BEARING |
| 044 | A 0002501115 | RELEASE BEARING |
| 045 | A 0002503415 | RELEASE BEARING |
| 045 | A 0002505115 | RELEASE BEARING |
| 045 | A 0002505215 | RELEASE BEARING |
| 048 | A 3192900829 | RELEASE YOKE |
| Repalced by: A 3192930911 | ||
| 049 | A 3192930911 | RELEASE YOKE |
| 049 | A 3092930111 | RELEASE YOKE |
| A 1152900111 | RELEASE YOKE | |
| Repalced by: A 1152900029 | ||
| 049E | A 1152900029 | RELEASE YOKE |
| 050 | A 3199910115 | BALL PIVOT |
| 052 | N 071805016300 | SNAP RING |
| 053 | A 3199930125 | SPRING |
| 054 | N 000931010239 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| M10 X 80 | ||
| 054 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 054 | N 304017010050 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| M10 X 70 | ||
| 054 | N 304017010050 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| M10 X 70 | ||
| 056 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 056 | N 000125010532 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 057 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 058 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 058 | N 304032010003 | NUT |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 059 | N 000933010094 | SCREW |
| BELL HOUSING TO ENGINE | ||
| 059F | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 059F | N 000125010532 | WASHER |
| BELL HOUSING TO ENGINE | ||
| 060 | A 3092950331 | BEARING BRACKET |
| CLUTCH SLAVE CYLINDER | ||
| 061 | N 000931010272 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| 062 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 062 | N 304017008021 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| 063 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 063 | N 000137008212 | SPRING WASHER |
| BEARING BRACKET TO BELL HOUSING | ||
| 070 | A 0002957607 | SLAVE CYLINDER |
| CLUTCH | ||
| KUGELFISCHER | ||
| 070 | A 0012956807 | SLAVE CYLINDER |
| CLUTCH | ||
| TEVES | ||
| 071 | A 0002955783 | BOOT |
| Repalced by: A 2012950983 | ||
| 071 | A 2012950983 | BOOT |
| KUGELFISCHER | ||
| 072 | A 0002950373 | LOCK |
| 073 | A 3075530107 | VALVE |
| BREATHER | ||
| 074 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 074 | A 0004210887 | PROTECTIVE CAP |
| 080 | A 0002902867 | REPAIR KIT |
| Repalced by: A 0002903467 | ||
| 080 | A 0002903467 | REPAIR KIT |
| Repalced by: A 0002901111 | ||
| 080 | A 0002901111 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| KUGELFISCHER | ||
| 085 | A 3092950076 | WASHER |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 086 | A 3092950087 | SHIM |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 087 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 087 | N 304017008027 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 087 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 087 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 087 | A 0099900101 | SCREW |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 088 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 088 | N 000137008212 | SPRING WASHER |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 088F | N 912004008102 | LOCK WASHER |
| SLAVE CYLINDER TO BELL HOUSING | ||
| 089 | N 304032008006 | NUT |
| SLAVE CYLINDER TO BELL HOUSING | ||
