Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002

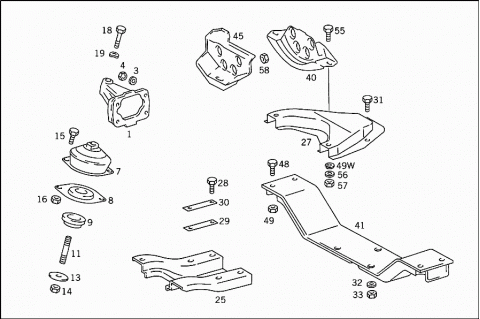

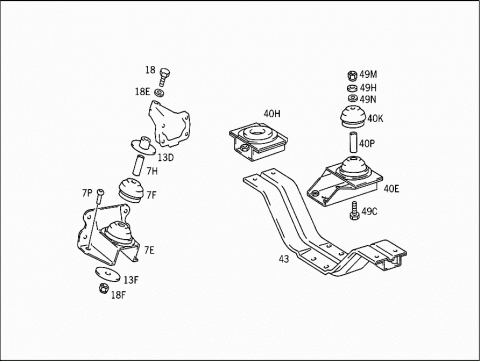

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 6152230604 | ENGINE SUPPORT |
| ENGINE FRONT SUSPENSION | ||
| 003 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 003 | N 000125010532 | WASHER |
| SUPPORTING ARM TO ENGINE | ||
| 004 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 004 | N 304032010002 | NUT |
| SUPPORTING ARM TO ENGINE | ||
| 007 | A 3092410213 | RUBBER MOUNTING |
| ENGINE SUSPENSION | ||
| 007E | A 3092402806 | CONSOLE |
| ENGINE SUSPENSION | ||
| 007F | A 3092410313 | RUBBER MOUNTING |
| ENGINE SUSPENSION | ||
| 007H | A 3092410053 | SPACER TUBE |
| ENGINE SUSPENSION | ||
| 007P | N 910005010014 | RIVET |
| CONSOLE TO SIDE MEMBER | ||
| 10X26 MM | ||
| 008 | A 3092420035 | PLATE |
| ENGINE SUSPENSION | ||
| 009 | A 1219870339 | RUBBER BUFFER |
| ENGINE SUSPENSION | ||
| 011 | N 000939012058 | STUD BOLT |
| ENGINE SUSPENSION | ||
| A 3099900540 | WASHER | |
| Repalced by: A 3092400076 | ||
| 013 | A 3092400076 | WASHER |
| ENGINE SUSPENSION | ||
| 013D | A 3092400026 | INTERMEDIATE PIECE |
| ENGINE SUSPENSION | ||
| 013F | A 3092410162 | THRUST WASHER |
| ENGINE SUSPENSION | ||
| 014 | N 000936012011 | NUT |
| Repalced by: N 304035012002 | ||
| 014 | N 304035012002 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 015 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 015 | N 304017008021 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 8X20 | ||
| 016 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 016 | N 913004008001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 018 | N 000931012132 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 12X50 | ||
| 018 | N 000960012222 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 12X130 | ||
| 018E | N 000125013008 | WASHER |
| 018F | N 913002012002 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 019 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 019 | N 000137012206 | SPRING WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 025 | A 3092420101 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 027 | A 3092420301 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 028 | N 000933010164 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| M 10X22 | ||
| 029 | A 3092420030 | CLAMP |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 030 | A 3092420026 | SHIM |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 031 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 031 | N 304017010019 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| M 10X25 | ||
| 032 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 032 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 033 | N 913002010001 | NUT |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 040 | A 3192400018 | RUBBER MOUNTING |
| ENGINE SUSPENSION | ||
| 040E | A 3092403406 | CONSOLE |
| ENGINE SUSPENSION | ||
| 040H | A 3092404406 | CONSOLE |
| ENGINE SUSPENSION | ||
| 040K | A 3092410313 | RUBBER MOUNTING |
| ENGINE SUSPENSION | ||
| 040P | A 3092410053 | SPACER TUBE |
| ENGINE SUSPENSION | ||
| 041 | A 3092400002 | ENGINE SUPPORT |
| REAR | ||
| 043 | A 3092400602 | ENGINE SUPPORT |
| Repalced by: A 3092401302 | ||
| 043 | A 3092401302 | ENGINE SUPPORT |
| REAR | ||
| 045 | A 1862420034 | SCREENING PLATE |
| RUBBER MOUNT | ||
| 048 | N 000933010164 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| M 10X22 | ||
| 049 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 049 | N 910113010000 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 049C | N 000960012184 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X85 | ||
| 049H | N 000125013008 | WASHER |
| 049M | N 910113012002 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 049N | N 009021013200 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 049W | N 912004010102 | LOCK WASHER |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| 055 | N 000933010164 | SCREW |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| M10X22 | ||
| 055 | N 000933010164 | SCREW |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| M10X22 | ||
| 056 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 056 | N 000125010532 | WASHER |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 056 | N 000125010532 | WASHER |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| 057 | N 913002010001 | NUT |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
| 058 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 058 | N 913004008001 | NUT |
| ENGINE MOUNTING TO REAR CROSS MEMBER | ||
