Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002

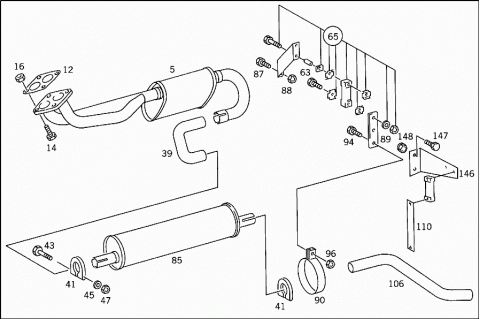

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3094900319 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094900919 | EXHAUST PIPE |
| FRONT | ||
| 001 | A 3094900619 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 3094902419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 004 | A 3094926201 | FRONT EXHAUST PIPE |
| FRONT PART | ||
| 005 | A 3094903919 | EXHAUST PIPE |
| Repalced by: A 3094904019 | ||
| 005 | A 3094904019 | EXHAUST PIPE |
| WITH PRE-MUFFLER | ||
| 006 | A 3094920013 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 008 | A 3094920245 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 009 | A 1074920345 | FLANGE |
| Repalced by: A 1264920745 | ||
| 009 | A 1264920745 | FLANGE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 915035000009 | SEAL RING |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | A 1234920080 | FLANGE GASKET |
| Repalced by: A 1234920380 | ||
| 012 | A 1234920380 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 012 | A 1234920280 | FLANGE GASKET |
| Repalced by: A 1234920380 | ||
| 012 | A 1234920380 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 013 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 013 | N 304017008053 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 014 | N 304017008028 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X50 MM | ||
| 015 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 015 | A 0009903250 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 016 | N 999901010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 3094900123 | PIPE ELBOW |
| Repalced by: A 3094920133 | ||
| 020 | A 3094920133 | PIPE ELBOW |
| FRONT | ||
| 023 | A 3094900701 | EXHAUST MUFFLER |
| FRONT | ||
| 024 | A 3094923241 | BRACKET |
| PIPE ELBOW AND MUFFLER TO FRONT SUPPORT | ||
| 026 | A 3094920516 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 026 | A 3094920516 | SUPPORT |
| CENTRAL EXHAUST PIPE | ||
| 029 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 029 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 032 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 032 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 032 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 038 | A 3094900122 | EXHAUST PIPE |
| Repalced by: A 3094923601 | ||
| 038 | A 3094923601 | FRONT EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 039 | A 3094927101 | FRONT EXHAUST PIPE |
| FROM FRONT MUFFLER TO REAR MUFFLER | ||
| 041 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 041 | A 1074900041 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 041 | A 1074900041 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 041 | A 1074900041 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 043 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 043 | N 304017008053 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X60 | ||
| 043 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 043 | N 304017008043 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X55 | ||
| 043 | N 304017008043 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 8X55 | ||
| 045 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 045 | N 000125008443 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 045 | N 000125008443 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 045 | N 000433008406 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 047 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 047 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 047 | A 1201420072 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 047 | A 1201420072 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 047 | A 1201420072 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 052 | A 3094921641 | BRACKET |
| PIPE ELBOW AND MUFFLER TO FRONT SUPPORT | ||
| 053 | A 3094922841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 054 | N 071555050500 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 055 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 055 | N 304017008034 | SCREW |
| CENTRAL EXHAUST PIPE | ||
| 056 | N 912004008007 | LOCK WASHER |
| CENTRAL EXHAUST PIPE | ||
| 063 | A 3095860049 | REPAIR KIT |
| Repalced by: A 3094900037 | ||
| 065 | A 3094900037 | SUSPENSION |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 065 | A 3094900037 | SUSPENSION |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 067 | A 3094920530 | PROTECTIVE PLATE |
| FRONT EXHAUST MUFFLER | ||
| 067 | A 3094920530 | PROTECTIVE PLATE |
| CENTRAL EXHAUST PIPE | ||
| A 3094922230 | PROTECTIVE PLATE | |
| CENTRAL EXHAUST PIPE | ||
| 069 | N 000933008145 | SCREW |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| M 8X16 | ||
| 071 | N 000931008266 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X40 | ||
| 071 | N 000931008266 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X40 | ||
| 071 | N 000931008244 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8 X 45 | ||
| 071 | N 000931008244 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8 X 45 | ||
| 071 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 071 | N 304017008028 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X50 | ||
| 071 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 071 | N 304017008043 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X55 | ||
| 071 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 071 | N 304017008053 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X60 | ||
| 072F | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 072F | N 000125008443 | WASHER |
| BRACKET TO SUPPORT | ||
| 073 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 073 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| A 3194901501 | EXHAUST MUFFLER | |
| Repalced by: A 3194901601 | ||
| 080 | A 3194901601 | EXHAUST MUFFLER |
| 084 | A 3094900801 | EXHAUST MUFFLER |
| (MAIN MUFFLER) | ||
| 085 | A 6014901801 | EXHAUST MUFFLER |
| (MAIN MUFFLER) | ||
| A 3094910050 | BUSHING | |
| Repalced by: A 3094280053 | ||
| 085E | A 3094280053 | SPACER TUBE |
| EXHAUST MUFFLER TO SUPPORT | ||
| 086 | A 3094920516 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 086 | A 3094920616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 087 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 088 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 089 | A 3184923841 | BRACKET |
| Repalced by: A 3184923441 | ||
| 089 | A 3184923441 | BRACKET |
| BRACKET TO DAMPING PAD | ||
| 090 | A 3094910141 | BRACKET |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 090 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER TO BRACKET | ||
| 094 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 094 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 8X20 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| EXHAUST MUFFLER TO BRACKET | ||
| 096 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 096 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 096 | A 1201420072 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 102 | A 3094900121 | EXHAUST PIPE |
| REAR | ||
| 102 | A 3094900221 | EXHAUST PIPE |
| REAR | ||
| 102 | A 3094901221 | EXHAUST PIPE |
| REAR | ||
| 102 | A 3094901321 | EXHAUST PIPE |
| REAR | ||
| 102 | A 3094903321 | EXHAUST PIPE |
| REAR | ||
| 102 | A 3094903421 | EXHAUST PIPE |
| REAR | ||
| 104 | A 3094922801 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 104 | A 3094922901 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 105 | A 3094926004 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 105 | A 3094926104 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 105 | A 3094925604 | REAR EXHAUST PIPE |
| 106 | A 3104921704 | REAR EXHAUST PIPE |
| 106 | A 3094927904 | REAR EXHAUST PIPE |
| 107 | A 3094926304 | REAR EXHAUST PIPE |
| REAR PART | ||
| 108 | A 3094921441 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET | ||
| 108 | A 3094922841 | BRACKET |
| EXHAUST PIPE TO NUT | ||
| 110 | A 3184924841 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET | ||
| 111 | N 071555050503 | CLAMP |
| Repalced by: N 000000001641 | ||
| 111 | N 000000001641 | CLAMP |
| Repalced by: A 9424310043 | ||
| 111 | A 9424310043 | CLAMP |
| BRACKET TO TAIL PIPE | ||
| 50.5 MM | ||
| 113 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 113 | N 304017008034 | SCREW |
| BRACKET TO TAIL PIPE | ||
| M 8X25 | ||
| 114 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 114 | A 1201420072 | NUT |
| BRACKET TO TAIL PIPE | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 118 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 118D | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 118D | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 118H | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 118H | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 118K | A 3094921841 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 119 | A 3094920172 | NUT |
| AT FRAME | ||
| 119E | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 119E | N 304017010019 | SCREW |
| AT SIDE MEMBER | ||
| 119H | N 912004010102 | LOCK WASHER |
| AT SIDE MEMBER | ||
| 119K | A 3094920530 | PROTECTIVE PLATE |
| EXHAUST PIPE TO NUT | ||
| A 1204910240 | CLAMP | |
| Repalced by: A 1144920040 | ||
| 120 | A 1144920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 120 | A 3094920040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 122 | A 1074900141 | CLAMP |
| Repalced by: A 1074900041 | ||
| 122 | A 1074900041 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 122 | A 1074900041 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 122 | A 1074900041 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 124 | N 000931008251 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X75 | ||
| 124 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 124 | N 304017008043 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 124 | N 304017008043 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X55 | ||
| 125 | N 000433008406 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 125 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 125 | N 000125008443 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 126 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 127 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| A 0019907751 | NUT | |
| Repalced by: N 913004008007 | ||
| 128 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 128 | A 1201420072 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 128 | A 1201420072 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 140 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE TO BRACKET | ||
| 140 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE TO BRACKET | ||
| 140 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE TO NUT | ||
| 140 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE TO BRACKET | ||
| 141 | A 3094921019 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 143 | A 3094921819 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 146 | A 3094921341 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 146 | A 3094921341 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| A 3094921741 | BRACKET | |
| REAR EXHAUST PIPE TO FRAME | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| REAR EXHAUST PIPE TO FRAME | ||
| 146H | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 146H | N 304017010019 | SCREW |
| REAR EXHAUST PIPE TO FRAME | ||
| 147 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 147 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 147F | N 913002010001 | NUT |
| REAR EXHAUST PIPE TO FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| REAR EXHAUST PIPE TO FRAME | ||
| 148 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 148 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 148 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 149 | N 000931008266 | SCREW |
| REAR EXHAUST PIPE TO FRAME | ||
| M 8X40 | ||
| 149 | N 000931008266 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X40 | ||
| 149 | N 000931008244 | SCREW |
| REAR EXHAUST PIPE TO FRAME | ||
| M 8X45 | ||
| 149 | N 000931008244 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X45 | ||
| 154 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 154 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO FRAME | ||
| 156 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO FRAME | ||
| 156 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 156 | N 912004008102 | LOCK WASHER |
| EXHAUST PIPE TO NUT | ||
| 158 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO FRAME | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| EXHAUST PIPE TO NUT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
