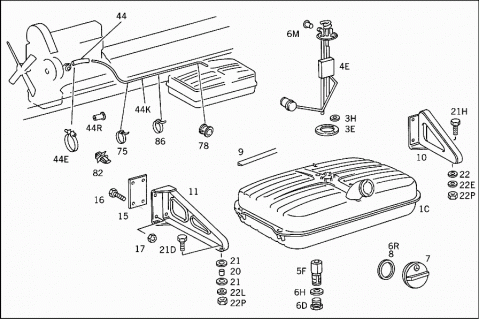

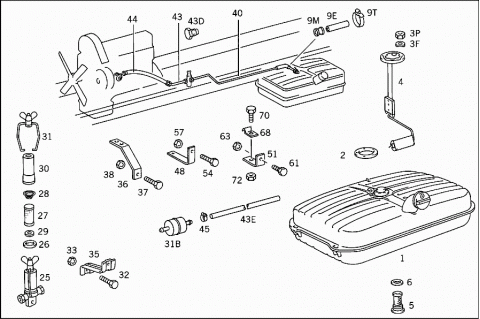

Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3094705901 | FUEL TANK |
| Repalced by: A 3094708801 | ||
| 001C | A 3094708801 | FUEL TANK |
| LESS SENDER UNIT | ||
| 60 L | ||
| 002 | A 1104710180 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003E | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003F | N 000137005203 | SPRING WASHER |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003H | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003P | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 004 | A 0015427517 | SENDER UNIT |
| 004E | A 0075424017 | SENDER UNIT |
| 005 | A 1204700186 | FUEL STRAINER |
| 005F | A 3094700206 | FUEL STRAINER |
| 006 | N 007603027100 | SEAL RING |
| AT SCREEN | ||
| 006D | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 006D | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 006H | N 915035000017 | SEAL RING |
| AT TANK | ||
| 006M | A 0009873745 | LOCKING CAP |
| RETURN | ||
| 006R | A 1104710280 | GASKET |
| A 1004700105 | FILLER CAP | |
| Repalced by: A 0004716330 | ||
| 007 | A 0004716330 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 007 | A 1244700005 | FILLER CAP |
| Repalced by: A 0004700730 | ||
| 007 | A 0004700730 | FUEL FILLER CAP |
| Repalced by: A 9014700005 | ||
| 007 | A 9014700005 | FILLER CAP |
| Repalced by: A 9014700105 | ||
| 007 | A 9014700105 | FILLER CAP |
| 008 | A 1154710079 | SEAL RING |
| A 3094710081 | BOOT | |
| (FILLER PIPE) | ||
| A 0009908720 | SCREW | |
| ON SIDE PANEL | ||
| 009 | A 0009876870 | RUBBER SECTION |
| 840 MM | ||
| 009E | N 073379006206 | HOSE |
| FUEL TANK BREATHING | ||
| 650 MM | ||
| 009M | A 3149970481 | GROMMET |
| FUEL TANK BREATHING | ||
| 009T | N 900288010001 | CLAMP |
| FUEL TANK BREATHING | ||
| A 3094700242 | SUPPORT | |
| Repalced by: A 3094701942 | ||
| 010 | A 3094701942 | SUPPORT |
| Repalced by: A 3094703242 | ||
| 010 | A 3094701942 | SUPPORT |
| 010 | A 3094701942 | SUPPORT |
| 010 | A 3094703242 | SUPPORT |
| FUEL TANK TO FRAME | ||
| A 3094700342 | SUPPORT | |
| Repalced by: A 3094702042 | ||
| A 3094702042 | SUPPORT | |
| Repalced by: A 3094703442 | ||
| 010 | A 3094703442 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700142 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 015 | A 3094750184 | SHIM |
| CONSOLE TO FRAME | ||
| 016 | N 000933010157 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X25 | ||
| 017 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 017 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| A 3094710053 | SPACER TUBE | |
| Repalced by: A 3094710153 | ||
| 020 | A 3094710153 | SPACER TUBE |
| FUEL TANK TO CONSOLE | ||
| A 3094710253 | SPACER TUBE | |
| Repalced by: A 1119900340 | ||
| 021 | A 3194710081 | BOOT |
| Repalced by: A 1119900340 | ||
| 021D | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 021D | N 304017008034 | SCREW |
| FUEL TANK TO CONSOLE | ||
| M 8X25 | ||
| 021H | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 021H | N 304017008027 | SCREW |
| FUEL TANK TO CONSOLE | ||
| M 8X30 | ||
| 021H | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 021H | N 304017008018 | SCREW |
| FUEL TANK TO CONSOLE | ||
| M 8X35 | ||
| 022 | A 1089900340 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 022E | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 022E | N 009021008213 | WASHER |
| FUEL TANK TO CONSOLE | ||
| Repalced by: N 000000003250 | ||
| 022E | N 000000003250 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 022L | N 000125013008 | WASHER |
| 022P | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 022P | N 913004008001 | NUT |
| FUEL TANK TO CONSOLE | ||
| 025 | A 0004778301 | FUEL FILTER |
| 026 | A 0004772880 | GASKET |
| 027 | A 0004775015 | FILTER ELEMENT |
| 028 | A 0009940837 | SNAP RING |
| 029 | A 0004772980 | GASKET |
| 030 | A 0004771516 | FILTER BOWL |
| 031 | A 0004771318 | MOUNTING BOW |
| 031B | A 0014773801 | FUEL FILTER |
| KNECHT | ||
| 031B | A 0014773901 | FUEL FILTER |
| MANN | ||
| 032 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 032 | N 304017006020 | SCREW |
| FUEL FILTER TO BRACKET | ||
| M 6X20 | ||
| 033 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 033 | N 913002006009 | NUT |
| FUEL FILTER TO BRACKET | ||
| 035 | A 3140940641 | BRACKET |
| FUEL FILTER | ||
| A 3094761236 | BRACKET | |
| Repalced by: A 3094761336 | ||
| 036 | A 3094761336 | BRACKET |
| FUEL FILTER | ||
| 037 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 037 | N 304017010019 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 038 | N 913002010001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 040 | A 3104282301 | LINE |
| FROM FUEL TANK TO FILTER | ||
| 2000 MM | ||
| 043 | A 3104282301 | LINE |
| FROM FILTER TO FUEL PUMP | ||
| 2000 MM | ||
| 043 | A 0004290801 | LINE |
| FROM FUEL TANK TO FILTER | ||
| 043D | A 1809900066 | UNION SCREW |
| LINE CONNECTION | ||
| 043E | A 0004295235 | HOSE |
| 044 | N 073379008200 | HOSE |
| 044 | N 073379008200 | HOSE |
| FROM FILTER TO ENGINE | ||
| 044 | N 073379008200 | HOSE |
| FROM TANK TO FILTER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FUEL LINE TO SENDER UNIT | ||
| 044E | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 044E | N 000000000665 | CLAMP |
| FUEL LINE TO FEED PUMP | ||
| 044E | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| A 0029971090 | LOOM TIE | |
| FUEL LINE TO SENDER UNIT | ||
| 044K | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 044K | A 0009872727 | PLASTIC PIPE |
| FROM TANK TO PUMP | ||
| 044R | N 915062006000 | SLEEVE |
| LINE MOUNTING | ||
| 045 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 045 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 045 | N 000000000665 | CLAMP |
| LINE MOUNTING | ||
| 045 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 045 | N 000000000665 | CLAMP |
| FUEL HOSE TO FUEL LINE | ||
| 048 | A 3094760036 | BRACKET |
| FUEL LINE | ||
| 051 | A 3094760136 | BRACKET |
| FUEL LINE | ||
| 054 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 054 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X20 | ||
| 057 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 057 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 061 | N 000933006102 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X15 | ||
| 063 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 063 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 063 | N 910113006000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 068 | A 1989950020 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 070 | N 000084006197 | SCREW |
| FUEL LINE TO BRACKET | ||
| M 6X16 | ||
| 072 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 072 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 072 | N 910113006000 | NUT |
| FUEL LINE TO BRACKET | ||
| 075 | A 0019978390 | LOOM TIE |
| FUEL LINE TO BRACKET | ||
| 280 MM | ||
| 078 | A 3094760150 | BUSHING |
| FUEL LINE TO FRAME | ||
| 078 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 078 | A 0009973481 | GROMMET |
| FUEL LINE TO FRAME | ||
| 082 | A 0049881378 | CLIP |
| FUEL LINE TO FRAME | ||
| 086 | A 0019978490 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 376 MM | ||
