Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002

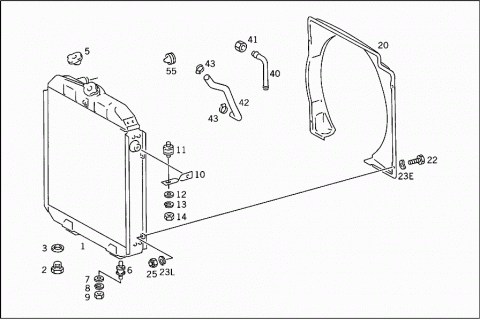

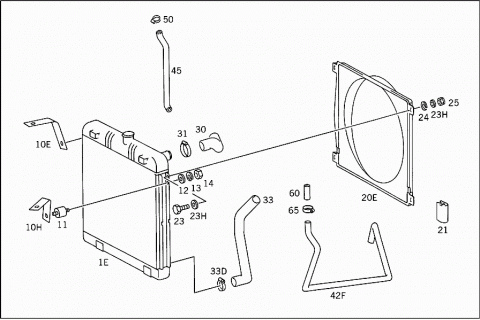

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RADIATOR | ||
| 001 | A 3095000102 | RADIATOR |
| BEHR | ||
| A 3095000002 | RADIATOR | |
| Repalced by: A 3095000702 | ||
| A 3095000702 | RADIATOR | |
| Repalced by: A 3095001702 | ||
| 001 | A 3095001702 | RADIATOR |
| BEHR | ||
| 001 | A 3095004402 | RADIATOR |
| AUTOKUEHLER GMBH HOFGEISMAR | ||
| 001E | A 3105000002 | RADIATOR |
| BEHR | ||
| 002 | N 007604014101 | SCREW PLUG |
| 003 | N 007603014405 | SEAL RING |
| 005 | A 0005010215 | RADIATOR CAP |
| Repalced by: A 0005012915 | ||
| 005 | A 0005012915 | RADIATOR CAP |
| BEHR | ||
| 005 | A 0005013615 | RADIATOR CAP |
| AUTOKUEHLER GMBH HOFGEISMAR | ||
| 005 | A 0005012115 | RADIATOR CAP |
| Repalced by: A 0005013515 | ||
| 005 | A 0005013515 | RADIATOR CAP |
| BEHR | ||
| A 0005010880 | GASKET | |
| O.D., | ||
| 37 MM | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 006 | A 0019875340 | RUBBER BUFFER |
| RADIATOR MOUNTING,BOTTOM | ||
| 007 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 007 | N 000125010532 | WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 007 | N 009021010107 | WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 008 | N 912004010102 | LOCK WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 009 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 009 | N 304032010003 | NUT |
| RADIATOR MOUNTING,BOTTOM | ||
| 010 | A 3095040240 | BRACKET |
| 010 | A 3095040840 | BRACKET |
| 010 | A 3095041440 | BRACKET |
| 010E | A 3095043440 | BRACKET |
| Repalced by: A 3184924841 | ||
| 010E | A 3184924841 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 010H | A 3095043540 | BRACKET |
| Repalced by: A 3184924841 | ||
| A 0019872640 | RUBBER BUFFER | |
| Repalced by: A 0019875240 | ||
| 011 | A 0019875240 | RUBBER BUFFER |
| RADIATOR BRACING,TOP | ||
| 012 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 012 | N 000125008443 | WASHER |
| RADIATOR BRACING,TOP | ||
| 013 | N 912004008102 | LOCK WASHER |
| RADIATOR BRACING,TOP | ||
| 014 | N 304032008006 | NUT |
| RADIATOR BRACING,TOP | ||
| 014 | N 304032008006 | NUT |
| RADIATOR BRACING,TOP | ||
| 020 | A 3195000555 | FAN SHROUD |
| A 3095000360 | FAN HOUSING | |
| Repalced by: A 3095051555 | ||
| 020 | A 3095051555 | FAN SHROUD |
| 020E | A 3095052155 | FAN SHROUD |
| RADIATOR BRACING,TOP | ||
| A 0009871036 | RUBBER SECTION | |
| Repalced by: A 0009870772 | ||
| 021 | A 0009876870 | RUBBER SECTION |
| 170 MM | ||
| 022 | N 000933005059 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 022 | N 000933005058 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 023 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 023 | N 304017006034 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 023 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 023 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 023E | N 000125005303 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 023H | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 023H | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 023L | N 912004005103 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 024 | N 912004006102 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 025 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 025 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 025 | N 910113006000 | NUT |
| FAN SHROUD TO RADIATOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| COOLING WATER LINE | ||
| 030 | A 3095010182 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095010882 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095011582 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095014482 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 031 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 031 | N 000000000670 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 031 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 031 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 033 | A 3095010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 3095010782 | HOSE | |
| Repalced by: A 3095011382 | ||
| 033 | A 3095011382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 033 | A 3095014382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 033D | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 033D | N 000000000670 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 033D | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 033D | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 033D | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 040 | A 3195001678 | PIPE ELBOW |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 041 | N 915017018200 | UNION NUT |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 042 | N 900271015037 | HOSE |
| 430 MM | ||
| A 3095062635 | HOSE | |
| Repalced by: A 3095062735 | ||
| 042 | A 3095062735 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 042F | A 3095063235 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 043 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 043 | N 000000000667 | CLAMP |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| A 3095060035 | HOSE | |
| Repalced by: A 3095061335 | ||
| 045 | A 3095061335 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 045 | A 3095063335 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 050 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 050 | N 000000000667 | CLAMP |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 050 | N 916026023001 | CLAMP |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 055 | A 3109970081 | GROMMET |
| 060 | N 900271018038 | HOSE |
| 18X27X60 | ||
| 065 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 065 | N 000000000667 | CLAMP |
