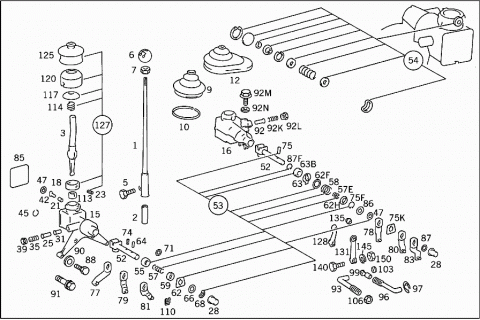

Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 711.0 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 711.1 | ||
| A 3092600739 | SHIFT LEVER | |
| A 3092600639 | SHIFT LEVER | |
| A 3092600939 | SHIFT LEVER | |
| Repalced by: A 3192600939 | ||
| 001 | A 3192600939 | SHIFT LEVER |
| UPPER PART | ||
| 002 | A 3092670096 | BOOT |
| 003 | A 3092670502 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 003 | A 3092671202 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 003 | A 3092671502 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 003 | A 3092671602 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 005 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 005 | N 304017008021 | SCREW |
| SHIFT LEVER | ||
| 006 | A 3222600140 | HANDLE |
| SHIFT LEVER | ||
| 006 | A 3222600040 | HANDLE |
| SHIFT LEVER | ||
| 007 | N 000936010010 | NUT |
| SHIFT LEVER | ||
| 009 | A 1362670296 | BOOT |
| CAB SEALING | ||
| 010 | A 1369940035 | SNAP RING |
| CAB SEALING | ||
| 012 | A 3092680096 | BOOT |
| Repalced by: A 3092680196 | ||
| 012 | A 3092680196 | BOOT |
| CAB SEALING | ||
| 015 | A 3092670637 | BEARING BRACKET |
| Repalced by: A 3092670937 | ||
| 015 | A 3092670937 | BEARING BRACKET |
| SHIFT LEVER | ||
| 016 | A 3092671537 | BEARING BRACKET |
| Repalced by: A 6672670037 | ||
| 016 | A 6672670037 | BEARING BRACKET |
| SHIFT LEVER | ||
| 018 | A 3192670005 | BEARING |
| SHIFT LEVER | ||
| 021 | A 3192670050 | BUSHING |
| SHIFT LEVER | ||
| 023 | N 001473005010 | GROOVED PIN |
| SHIFT LEVER | ||
| 025 | A 1539920005 | BUSHING |
| INTERLOCK PIN | ||
| 028 | A 3092670950 | BUSHING |
| SHIFTING TUBE | ||
| 031 | A 1362650048 | INTERLOCK PIN |
| REVERSE SPEED | ||
| 035 | A 1362650093 | PRESSURE SPRING |
| INTERLOCK PIN | ||
| 039 | A 1369970830 | SCREW PLUG |
| PRESSURE SPRING | ||
| 042 | A 3092670025 | SLIDING BLOCK |
| SHIFT LEVER | ||
| 045 | N 007993006100 | SNAP RING |
| SHIFT LEVER | ||
| 047 | N 000472035000 | LOCK RING |
| SHIFT LEVER | ||
| 052 | A 3092600482 | SHIFTING TUBE |
| SHIFT LEVER | ||
| 052 | A 3092601182 | SHIFTING TUBE |
| SHIFT LEVER | ||
| 053 | A 3092600050 | REPAIR KIT |
| SHIFTING PARTS | ||
| 054 | A 3092600150 | REPAIR KIT |
| SHIFTING PARTS | ||
| 055 | A 3092671050 | BUSHING |
| AT SHIFTING TUBE | ||
| 057 | A 3099933501 | SPRING |
| AT SHIFTING TUBE | ||
| 057E | A 3099938801 | SPRING |
| AT SHIFTING TUBE | ||
| 058 | A 3099938601 | SPRING |
| AT SHIFTING TUBE | ||
| 059 | A 3092670341 | STOP |
| AT SHIFTING TUBE | ||
| 062 | A 1152670676 | WASHER |
| AT SHIFTING TUBE | ||
| 062F | A 3099902540 | WASHER |
| AT SHIFTING TUBE | ||
| 062H | A 3179901440 | WASHER |
| Repalced by: A 3099902840 | ||
| 062H | A 3099902840 | WASHER |
| AT SHIFTING TUBE | ||
| 063 | A 3092670647 | SLOTTED GATE |
| AT SHIFTING TUBE | ||
| 063B | A 3092671050 | BUSHING |
| AT SHIFTING TUBE | ||
| 064 | A 1159910301 | PIN |
| AT SHIFTING TUBE | ||
| 066 | A 1159902540 | WASHER |
| Repalced by: A 6012671476 | ||
| 066 | A 6012671476 | WASHER |
| AT SHIFTING TUBE | ||
| 068 | N 900055018001 | SPRING WASHER |
| AT SHIFTING TUBE | ||
| 071 | A 3099901640 | WASHER |
| Repalced by: N 000988018022 | ||
| 071 | N 000988018022 | FITTED WASHER |
| AT SHIFTING TUBE | ||
| 074 | N 001481004027 | CLAMPING SLEEVE |
| AT SHIFTING TUBE | ||
| 075 | A 3099910201 | PIN |
| AT SHIFTING TUBE | ||
| 075F | A 0009942841 | LOCK |
| AT SHIFTING TUBE | ||
| 075K | A 1152670676 | WASHER |
| SHIFTING TUBE | ||
| 077 | A 3092603037 | LEVER |
| Repalced by: A 3092603537 | ||
| 077 | A 3092603537 | LEVER |
| REVERSE SPEED | ||
| 078 | A 3092605937 | LEVER |
| 1ST SPEED AND REVERSE | ||
| 079 | A 3092602837 | LEVER |
| 1ST AND 2ND SPEED | ||
| 080 | A 3092606037 | LEVER |
| 2ND AND 3RD SPEED | ||
| 081 | A 3092602937 | LEVER |
| Repalced by: A 3092603437 | ||
| 081 | A 3092603437 | LEVER |
| 3RD AND 4TH SPEED | ||
| 083 | A 3092606137 | LEVER |
| 4TH AND 5TH SPEED | ||
| 085 | A 3092670322 | COVER |
| COVER TO BEARING BRACKET | ||
| 086 | A 1159902540 | WASHER |
| Repalced by: A 6012671476 | ||
| 086 | A 6012671476 | WASHER |
| AT SHIFTING TUBE | ||
| 087 | N 900055018001 | SPRING WASHER |
| AT SHIFTING TUBE | ||
| 087F | N 000472035000 | LOCK RING |
| AT SHIFTING TUBE | ||
| 088 | N 000931007019 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 090 | N 000125007408 | WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 091 | N 914126007001 | SCREW |
| GEARSHIFT,TRANSMISSION | ||
| 092 | A 3092670774 | PIN |
| COVER TO BEARING BRACKET | ||
| 092K | A 3099938701 | SPRING |
| COVER TO BEARING BRACKET | ||
| 092L | A 1369970830 | SCREW PLUG |
| COVER TO BEARING BRACKET | ||
| 092M | N 914126008020 | SCREW |
| Repalced by: N 914126008078 | ||
| 092M | N 914126008078 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| M 8 X 60 | ||
| 092M | N 914126008018 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| M 8X55 | ||
| 092N | A 3099901940 | WASHER |
| GEARSHIFT,TRANSMISSION | ||
| 092N | A 3099901940 | WASHER |
| SHIFT LEVER,2ND AND 3RD SPEED | ||
| 093 | A 3092670717 | ROD |
| Repalced by: A 3092671017 | ||
| 093 | A 3092671017 | ROD |
| 1ST AND 2ND SPEED | ||
| 096 | A 3092670617 | ROD |
| Repalced by: A 3092670917 | ||
| 096 | A 3092670917 | ROD |
| 3RD AND 4TH SPEED | ||
| 096 | A 3092670917 | ROD |
| 1ST THRU 3RD SPEED AND REVERSE SPEED | ||
| 096 | A 3092671317 | ROD |
| 4TH AND 5TH SPEED | ||
| 097 | N 006799007007 | LOCK PLATE |
| SHIFTING ROD TO INTERMEDIATE LEVER | ||
| 099 | A 1152600353 | END PIECE |
| Repalced by: A 6012680027 | ||
| 099 | A 6012680027 | END PIECE |
| GEARSHIFT MECHANISM | ||
| 103 | A 1159920110 | BUSHING |
| GEARSHIFT MECHANISM | ||
| 106 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 106 | N 304035010001 | NUT |
| GEARSHIFT MECHANISM | ||
| 110 | A 0009941060 | LOCK |
| Repalced by: A 0009942960 | ||
| 110 | A 0009942960 | LOCK |
| Repalced by: A 0009944160 | ||
| 110 | A 0009944160 | PIN LOCK |
| SHIFTING ROD TO SHIFT LEVER | ||
| 110 | A 0009944160 | PIN LOCK |
| SHIFTING ROD TO SHIFT LEVER | ||
| 113 | A 6112670050 | BUSHING |
| Repalced by: A 3092671350 | ||
| 113 | A 3092671350 | BUSHING |
| GEARSHIFT LEVER LOWER PART | ||
| 114 | A 3199930301 | SPRING |
| GEARSHIFT LEVER LOWER PART | ||
| 117 | A 3192670008 | SPHERICAL PIECE |
| GEARSHIFT LEVER LOWER PART | ||
| 120 | A 3192670006 | COVER |
| GEARSHIFT LEVER LOWER PART | ||
| 125 | A 3192670196 | BOOT |
| GEARSHIFT LEVER LOWER PART | ||
| 127 | A 3092600295 | REPAIR KIT |
| Repalced by: A 6012600095 | ||
| 127 | A 6012600095 | REPAIR KIT |
| SHIFTING PARTS | ||
| 128 | A 3092604537 | LEVER |
| Repalced by: A 6672600739 | ||
| 128 | A 6672600739 | SHIFT LEVER |
| Repalced by: A 6012603937 | ||
| 128 | A 6012603937 | LEVER |
| 1ST THRU 4TH SPEED | ||
| 128 | A 6012603937 | LEVER |
| 2ND THRU 5TH SPEED | ||
| 131 | A 3092601837 | LEVER |
| Repalced by: A 3092604637 | ||
| 131 | A 3092604637 | LEVER |
| REVERSE SPEED | ||
| 131 | A 3092605637 | LEVER |
| Repalced by: A 6672600839 | ||
| 131 | A 6672600839 | SHIFT LEVER |
| Repalced by: A 6012604337 | ||
| 131 | A 6012604337 | LEVER |
| 1ST SPEED AND REVERSE | ||
| 135 | A 3092670350 | BUSHING |
| Repalced by: A 0009920510 | ||
| 135 | A 0009920510 | BUSHING |
| 135 | A 1159920210 | BUSHING |
| 140 | N 000933006127 | SCREW |
| SHIFT LEVER TO TRANSMISSION | ||
| 140 | N 000933006136 | SCREW |
| SHIFT LEVER TO TRANSMISSION | ||
| 145 | N 912004006102 | LOCK WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 145 | N 000137006204 | SPRING WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 150 | N 000934006007 | NUT |
| SHIFT LEVER TO TRANSMISSION | ||
