Transporto priemonė: L 408 G,L 409,L 410; VIN numerio dalis: 309002

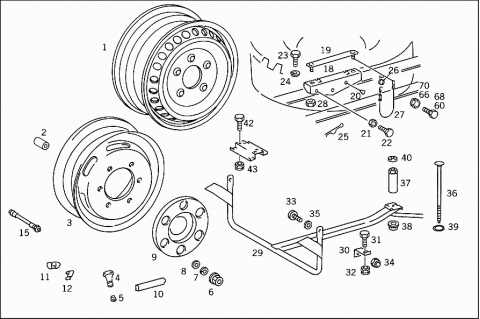

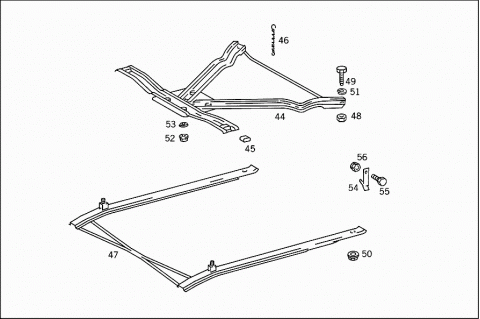

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 9014000202 | DISC WHEEL |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 002 | A 3094000202 | DISC WHEEL |
| Repalced by: A 3094001302 | ||
| 002 | A 9014030153 | SPACER TUBE |
| SPARE WHEEL CARRIER TO CROSS MEMBER | ||
| 003 | A 3094000402 | DISC WHEEL |
| Repalced by: A 3094001202 | ||
| 003 | A 3094002002 | DISC WHEEL |
| 4.50-16 | ||
| 004 | A 0004012713 | VALVE |
| Repalced by: A 0004016713 | ||
| 004 | A 0004016713 | VALVE |
| 005 | N 007757008600 | VALVE CAP |
| 006 | N 074361014202 | NUT |
| Repalced by: N 074361014205 | ||
| 006 | N 074361014205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 007 | N 074361014353 | LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 007 | A 9019900047 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 008 | A 3194020075 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 009 | A 3094000925 | HUB CAP |
| Repalced by: A 3104001725 | ||
| 009 | A 3104001725 | HUB CAP |
| FRONT | ||
| 010 | A 0009876870 | RUBBER SECTION |
| WHEEL COVERING,FRONT | ||
| 011 | A 1264010494 | BALANCING WEIGHT |
| 50 G | ||
| 011 | A 1264010594 | BALANCING WEIGHT |
| 60 G | ||
| 011 | A 1264010694 | BALANCING WEIGHT |
| 70 G | ||
| 012 | A 3194010028 | BRACKET |
| BALANCING WEIGHT | ||
| 012 | A 1244010528 | BRACKET |
| Repalced by: A 1264010828 | ||
| 012 | A 1264010828 | RETAINING SPRING |
| BALANCING WEIGHT | ||
| 015 | A 0004011313 | VALVE |
| REAR WHEEL | ||
| 015 | A 0004011413 | VALVE |
| REAR WHEEL | ||
| 018 | A 3094000339 | BRACKET |
| SPARE WHEEL | ||
| 019 | A 3094000839 | BRACKET |
| SPARE WHEEL | ||
| 020 | N 910005010012 | RIVET |
| BRACKET TO FRAME | ||
| 020 | N 910005010016 | RIVET |
| BRACKET TO FRAME | ||
| 021 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 021 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 022 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 022 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| M 10X30 | ||
| 022 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 022 | N 304017010019 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 023 | N 308676012012 | SCREW |
| SPARE WHEEL MOUNTING | ||
| 024 | N 074361014351 | LOCK WASHER |
| SPARE WHEEL MOUNTING | ||
| 025 | A 3144030073 | LOCK |
| SPARE WHEEL MOUNTING | ||
| 026 | N 005296020204 | RING |
| SPARE WHEEL MOUNTING | ||
| 027 | A 3094000085 | CHAIN |
| SPARE WHEEL MOUNTING | ||
| 028 | N 910113012002 | NUT |
| SPARE WHEEL MOUNTING | ||
| 029 | A 3094000441 | MOUNTING BOW |
| SPARE WHEEL CARRIER | ||
| 030 | A 3094030240 | BRACKET |
| MOUNTING BRACKET TO FRAME | ||
| 031 | N 000933008145 | SCREW |
| BRACKET TO FRAME | ||
| 032 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 032 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 033 | A 3094030075 | PIN |
| SPARE WHEEL CARRIER | ||
| 034 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 034 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 035 | N 900055014002 | SPRING WASHER |
| SPARE WHEEL CARRIER | ||
| 036 | A 3094030371 | SCREW |
| SPARE WHEEL CARRIER | ||
| 036 | A 3094030271 | SCREW |
| SPARE WHEEL CARRIER | ||
| 037 | A 3094000170 | CLAMPING SCREW |
| Repalced by: A 3094000470 | ||
| 037 | A 3094000470 | CLAMPING NUT |
| SPARE WHEEL CARRIER | ||
| 038 | A 0004000072 | NUT |
| SPARE WHEEL CARRIER | ||
| 039 | N 009045008002 | SNAP RING |
| SPARE WHEEL CARRIER | ||
| 040 | N 000125013008 | WASHER |
| A 3094030740 | BRACKET | |
| SPARE WHEEL CARRIER | ||
| 042 | N 000933008145 | SCREW |
| SPARE WHEEL CARRIER | ||
| 043 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 043 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 044 | A 3094003439 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 045 | A 3094030182 | RUBBER BUFFER |
| 046 | A 3094000085 | CHAIN |
| SPARE WHEEL CARRIER | ||
| 046 | A 3094000085 | CHAIN |
| SPARE WHEEL CARRIER | ||
| 047 | A 3094001342 | CONNECTING RAIL |
| SPARE WHEEL CARRIER | ||
| 048 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 048 | N 910113012003 | NUT |
| SPARE WHEEL CARRIER | ||
| 048 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 049 | A 3094030471 | SCREW |
| SPARE WHEEL CARRIER | ||
| 050 | A 0004000072 | NUT |
| SPARE WHEEL CARRIER | ||
| 051 | N 912004010102 | LOCK WASHER |
| SPARE WHEEL CARRIER | ||
| 052 | N 074361014202 | NUT |
| Repalced by: N 074361014205 | ||
| 052 | N 074361014205 | NUT |
| DISC WHEEL TO SUPPORT | ||
| 053 | N 074361014353 | LOCK WASHER |
| Repalced by: A 9019900047 | ||
| 053 | A 9019900047 | LOCK WASHER |
| DISC WHEEL TO SUPPORT | ||
| 054 | A 3094002239 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 055 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 055 | N 304017008021 | SCREW |
| SPARE WHEEL CARRIER | ||
| 056 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 056 | N 913004008001 | NUT |
| SPARE WHEEL CARRIER | ||
| 060 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 060 | N 304017010002 | SCREW |
| REAR SPRING BRACKET TO FRAME | ||
| 066 | N 913002010001 | NUT |
| REAR SPRING BRACKET TO FRAME | ||
| 068 | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 068 | N 304017010019 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 070 | N 913002010001 | NUT |
| CROSS MEMBER TO FRAME | ||
