Transporto priemonė: L 408 G,L 409; VIN numerio dalis: 309001

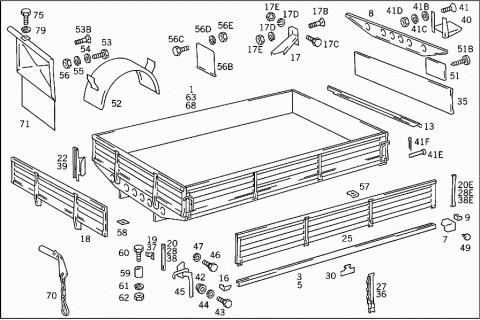

Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM | ||
| 001 | A 3096001203 | PLATFORM |
| Repalced by: A 3096008803 | ||
| 001 | A 3096008803 | PLATFORM |
| Repalced by: A 3096009503 | ||
| 001 | A 3096009503 | PLATFORM |
| LESS FLOOR PANELS | ||
| 3060X2000 | ||
| 001 | A 3096003421 | BODY |
| Repalced by: A 3096009203 | ||
| 001 | A 3096009203 | PLATFORM |
| 3560X2000 MM | ||
| 001 | A 3096001403 | PLATFORM |
| Repalced by: A 3096009003 | ||
| 001 | A 3096009003 | PLATFORM |
| 2054X2000 MM | ||
| 001 | A 3096009303 | PLATFORM |
| 3060X2260 MM | ||
| 001 | A 3096001303 | PLATFORM |
| Repalced by: A 3096008903 | ||
| 001 | A 3096008903 | PLATFORM |
| Repalced by: A 3096009603 | ||
| 001 | A 3096009603 | PLATFORM |
| LESS FLOOR PANELS | ||
| 4060X2000 MM | ||
| 001 | A 3096001503 | PLATFORM |
| Repalced by: A 3096009103 | ||
| 001 | A 3096009103 | PLATFORM |
| Repalced by: A 3096009803 | ||
| 001 | A 3096009803 | PLATFORM |
| LESS FLOOR PANELS | ||
| 3060X2000 MM | ||
| 001 | A 3096001421 | BODY |
| (PLATFORM) | ||
| 3060X2260 MM | ||
| 001 | A 3096001321 | BODY |
| Repalced by: A 3096002021 | ||
| 001 | A 3096002021 | BODY |
| LESS FLOOR PANELS | ||
| 4060X2260 MM | ||
| 003 | A 3096162085 | EDGING |
| Repalced by: A 3096160785 | ||
| 003 | A 3096160785 | EDGING |
| LEFT | ||
| 005 | A 3096161585 | EDGING |
| Repalced by: A 3096160885 | ||
| 005 | A 3096160885 | EDGING |
| RIGHT | ||
| 007 | A 3096160078 | CORNER PIECE |
| REAR | ||
| 008 | A 3096120914 | CROSS MEMBER |
| 008 | A 3096103114 | CROSS MEMBER |
| 2016 MM | ||
| 009 | A 3096160030 | HINGE MOUNTING |
| 009 | A 3096160030 | HINGE MOUNTING |
| 013 | A 3096161685 | EDGING |
| Repalced by: A 3096160885 | ||
| 013 | A 3096160885 | EDGING |
| REAR | ||
| 016 | A 3096160178 | CORNER PIECE |
| FRONT LEFT | ||
| 016 | A 3096160278 | CORNER PIECE |
| FRONT RIGHT | ||
| 017 | A 3096100034 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 017 | A 3096100434 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 017 | A 3096100234 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 017 | A 3096100134 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 017 | A 3096100534 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 017 | A 3096100334 | SUPPORT |
| SUBSTRUCTURE BRACING,REAR | ||
| 017B | N 000603008050 | SCREW |
| SUPPORT TO PLATFORM | ||
| M 8X45 | ||
| 017C | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 017C | N 304017008021 | SCREW |
| SUPPORT TO PLATFORM | ||
| M 8X20 | ||
| 017D | N 912004008102 | LOCK WASHER |
| SUPPORT TO PLATFORM | ||
| 017E | N 304032008006 | NUT |
| SUPPORT TO PLATFORM | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| SUPPORT TO PLATFORM | ||
| Repalced by: N 000000003250 | ||
| N 000000003250 | WASHER | |
| SUPPORT TO PLATFORM | ||
| 018 | A 3096200002 | FRONT PANEL |
| 2052X407 MM | ||
| 018 | A 3096200602 | FRONT PANEL |
| 2312X407 MM | ||
| 019 | A 3096270043 | RAIL |
| Repalced by: A 3096270116 | ||
| 019 | A 3096270116 | REINFORCEMENT |
| LATERAL | ||
| 020 | A 3096210022 | RAIL |
| Repalced by: A 3096210322 | ||
| 020E | A 3096210322 | RAIL |
| LATERAL | ||
| 022 | A 3096270116 | REINFORCEMENT |
| LATERAL | ||
| 025 | A 3096300103 | SIDE PANEL |
| LEFT AND RIGHT | ||
| 025 | A 3096309303 | SIDE PANEL |
| LEFT AND RIGHT | ||
| 025 | A 3096309303 | SIDE PANEL |
| LEFT AND RIGHT | ||
| 025 | A 3096300251 | SIDE PANEL |
| LEFT | ||
| 025 | A 3096301651 | SIDE PANEL |
| LEFT | ||
| 025 | A 3096301252 | SIDE PANEL |
| RIGHT | ||
| 025 | A 3096301352 | SIDE PANEL |
| RIGHT | ||
| 025 | A 3096300003 | SIDE PANEL |
| LEFT AND RIGHT | ||
| 025 | A 3096300003 | SIDE PANEL |
| LEFT AND RIGHT | ||
| 025 | A 3096300203 | SIDE PANEL |
| Repalced by: A 3096300903 | ||
| 025 | A 3096300903 | SIDE PANEL |
| LEFT | ||
| 025 | A 3096309403 | SIDE PANEL |
| LEFT | ||
| 025 | A 3096309403 | SIDE PANEL |
| LEFT | ||
| 025 | A 3096300203 | SIDE PANEL |
| Repalced by: A 3096304904 | ||
| 025 | A 3096304904 | SIDE PANEL |
| RIGHT | ||
| 025 | A 3096300652 | SIDE PANEL |
| RIGHT | ||
| 025 | A 3096300652 | SIDE PANEL |
| RIGHT | ||
| 027 | A 3096300082 | HINGE |
| 028 | A 3096210022 | RAIL |
| Repalced by: A 3096210322 | ||
| 028E | A 3096210322 | RAIL |
| LATERAL | ||
| 030 | A 3096370014 | BRACKET |
| CHAIN ON PLATFORM SIDE PANEL | ||
| 035 | A 3096400202 | REAR PANEL |
| Repalced by: A 3096403802 | ||
| 035 | A 3096403802 | REAR PANEL |
| 2052X407 MM | ||
| 035 | A 3096401902 | REAR PANEL |
| Repalced by: A 3096403902 | ||
| 035 | A 3096403902 | REAR PANEL |
| 2312X407 MM | ||
| 036 | A 3096300082 | HINGE |
| 037 | A 3096270043 | RAIL |
| Repalced by: A 3096270116 | ||
| 037 | A 3096270116 | REINFORCEMENT |
| LATERAL | ||
| 038 | A 3096210022 | RAIL |
| Repalced by: A 3096210322 | ||
| 038E | A 3096210322 | RAIL |
| LATERAL | ||
| 039 | A 3096270116 | REINFORCEMENT |
| LATERAL | ||
| 040 | A 3098500002 | FOLDING STEP |
| FOR REAR PANEL | ||
| 041 | N 000966008006 | SCREW |
| Repalced by: N 000966008031 | ||
| 041 | N 000966008031 | SCREW |
| FOLDING STEP TO REAR PANEL | ||
| 041B | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 041B | N 000125008443 | WASHER |
| FOLDING STEP TO REAR PANEL | ||
| 041C | N 912004008102 | LOCK WASHER |
| FOLDING STEP TO REAR PANEL | ||
| 041D | N 000917008007 | NUT |
| FOLDING STEP TO REAR PANEL | ||
| A 0019874740 | RUBBER BUFFER | |
| FOLDING STEP | ||
| 041E | N 001444012209 | PIN |
| PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE | ||
| 041F | N 000094003213 | COTTER PIN |
| PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE | ||
| A 3526370011 | PLATE | |
| THREADED | ||
| 042 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 043 | A 3609902101 | SCREW |
| WASHER TO FRONT AND REAR PANELS | ||
| 044 | N 912004010102 | LOCK WASHER |
| 045 | A 3526370063 | HOOK |
| FRONT LEFT AND REAR RIGHT | ||
| 045 | A 3526370163 | HOOK |
| FRONT RIGHT AND REAR LEFT | ||
| 046 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 046 | N 304017008016 | SCREW |
| HOOK TO PLATFORM SIDE PANEL | ||
| 047 | N 912004008102 | LOCK WASHER |
| HOOK TO PLATFORM SIDE PANEL | ||
| 049 | A 3099870040 | RUBBER BUFFER |
| 050 | A 3096003203 | PLATFORM |
| Repalced by: A 3096008803 | ||
| 050 | A 3096003503 | PLATFORM |
| Repalced by: A 3096009203 | ||
| 050 | A 3096004221 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096004321 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096004521 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096005021 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096003403 | PLATFORM |
| Repalced by: A 3096009003 | ||
| 050 | A 3096003303 | PLATFORM |
| Repalced by: A 3096008903 | ||
| 050 | A 3096004421 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096004621 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096005121 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 050 | A 3096005221 | BODY |
| SUBSTRUCTURE WITH FRONT PANEL AND FLOOR BOARDS | ||
| 051 | A 0005443705 | REFLECTOR |
| Repalced by: A 0008261741 | ||
| 051 | A 0008261741 | SIDE REFLECTOR |
| Repalced by: A 0008262440 | ||
| 051 | A 0008262440 | REFLECTOR |
| AMBER | ||
| 051B | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 051B | N 000000000453 | SHEET METAL SCREW |
| REFLECTOR TO PLATFORM | ||
| A 3096003503 | PLATFORM | |
| Repalced by: A 3098808803 | ||
| 052 | A 3098800021 | REAR FENDER |
| Repalced by: A 3098800221 | ||
| 052 | A 3098800221 | REAR FENDER |
| LEFT | ||
| 052 | A 3098800021 | REAR FENDER |
| Repalced by: A 3098800321 | ||
| 052 | A 3098800321 | REAR FENDER |
| RIGHT | ||
| 053 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 053 | N 304017008016 | SCREW |
| FENDER TO PLATFORM | ||
| M 8X16 | ||
| 053B | N 000603008027 | SCREW |
| FENDER TO PLATFORM | ||
| M 8X35 | ||
| 054 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 054 | N 009021008213 | WASHER |
| FENDER TO CROSS MEMBER | ||
| Repalced by: N 000000003250 | ||
| 054 | N 000000003250 | WASHER |
| FENDER TO CROSS MEMBER | ||
| 055 | N 912004008102 | LOCK WASHER |
| FENDER TO PLATFORM | ||
| 056 | N 304032008006 | NUT |
| FENDER TO PLATFORM | ||
| 056B | A 3198820005 | SPLASH GUARD |
| 056B | A 3098820005 | SPLASH GUARD |
| Repalced by: A 3098801422 | ||
| 056B | A 3098801422 | SPLASH GUARD |
| Repalced by: A 3098820005 | ||
| 056B | A 3098820005 | SPLASH GUARD |
| 056B | A 3098820005 | SPLASH GUARD |
| PLATFORM HAVING STEEL SUBSTRUCTURE | ||
| 056B | A 3098820005 | SPLASH GUARD |
| PLATFORM HAVING WOOD SIDE MEMBERS | ||
| 056C | N 007985005175 | SCREW |
| Repalced by: N 000000001181 | ||
| 056C | N 000000001181 | SCREW |
| MUD APRON TO FENDER | ||
| 056D | N 912004005103 | LOCK WASHER |
| MUD APRON TO FENDER | ||
| 056E | N 000934005008 | NUT |
| MUD APRON TO FENDER | ||
| 057 | A 3148910113 | PLATE |
| PLATFORM TO CHASSIS | ||
| 058 | A 3148910111 | PLATE |
| PLATFORM TO CHASSIS | ||
| 059 | A 3098990017 | BUSHING |
| PLATFORM TO CHASSIS | ||
| 060 | N 000960012221 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X80 | ||
| 060 | N 000960012222 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X130 | ||
| 061 | N 912004012100 | LOCK WASHER |
| PLATFORM TO CHASSIS | ||
| 062 | N 913002012002 | NUT |
| PLATFORM TO CHASSIS | ||

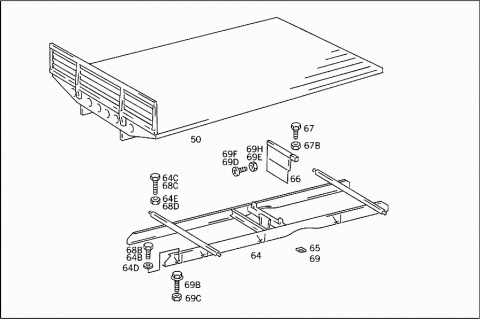

| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR DAUTEL THREE-SIDE DUMP TRUCK | ||
| 063 | A 3096000100 | PLATFORM |
| 3000X2000X350 MM | ||
| 064 | A 3096103301 | SUBSTRUCTURE |
| AUXILIARY FRAME | ||
| 064B | N 000933010094 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 10X40 | ||
| 064C | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 064C | N 308676012018 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X65 | ||
| 064D | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 064D | N 000125010532 | WASHER |
| AUXILIARY FRAME TO CHASSIS | ||
| 064E | N 913002012002 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| 065 | A 3148910111 | PLATE |
| AUXILIARY FRAME TO CHASSIS | ||
| 066 | A 3098800722 | SPLASH GUARD |
| LEFT | ||
| 066 | A 3098800822 | SPLASH GUARD |
| RIGHT | ||
| 067 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 067 | N 308676012026 | SCREW |
| M 12X35 | ||
| 067B | N 000934012022 | NUT |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR MEILLER THREE-SIDE-DUMP TRUCK | ||
| 068 | A 3096000000 | PLATFORM |
| 3000X2000X350 MM | ||
| 068 | A 3096000200 | PLATFORM |
| 3500X2000X300 MM | ||
| A 3096103001 | SUBSTRUCTURE | |
| A 3096104601 | SUBSTRUCTURE | |
| 068B | N 000933010094 | SCREW |
| M 10X40 | ||
| 068C | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 068C | N 308676012018 | SCREW |
| M 12X65 | ||
| 068D | N 913002012002 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| 069 | A 3148910111 | PLATE |
| AUXILIARY FRAME TO CHASSIS | ||
| 069B | N 900170014028 | SCREW |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| M 12X30 | ||
| 069C | N 074361014351 | LOCK WASHER |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| 069D | N 000084005183 | SCREW |
| FUSE BOX MOUNTING | ||
| 069E | N 000935005002 | NUT |
| FUSE BOX MOUNTING | ||
| 069F | N 000084006199 | SCREW |
| FUSE BOX MOUNTING | ||
| 069H | N 000934006007 | NUT |
| FUSE BOX MOUNTING | ||
| 070 | A 0003150806 | COUPLING PIN |
| WITH CHAIN | ||
| 071 | A 3098800422 | SPLASH GUARD |
| LEFT | ||
| 071 | A 3098800522 | SPLASH GUARD |
| RIGHT | ||
| 075 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 075 | N 308676012038 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| 079 | N 000127010200 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
