Transporto priemonė: L 608 D; VIN numerio dalis: 378302

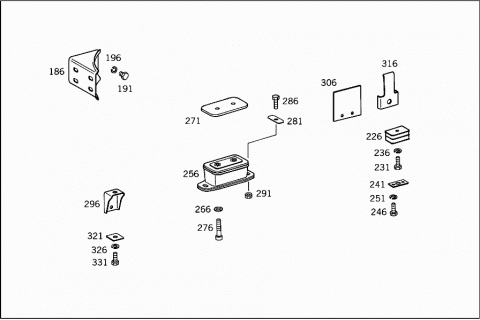

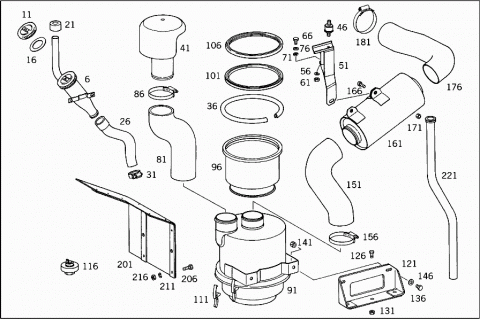

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3140100764 | OIL FILLER NECK |
| Repalced by: A 3140101464 | ||
| 006 | A 3140101464 | OIL FILLER NECK |
| Repalced by: A 3400107164 | ||
| 006 | A 3400107164 | OIL FILLER NECK |
| 011 | A 3520100168 | CAP |
| Repalced by: A 0000180702 | ||
| 011 | A 0000180702 | CAP |
| Repalced by: A 3440180168 | ||
| 011 | A 3440180168 | COVER |
| A 3440187002 | CAP | |
| Repalced by: A 3440180168 | ||
| A 3440180168 | COVER | |
| 016 | A 3520180180 | GASKET |
| Repalced by: A 0000180180 | ||
| 016 | A 3440187080 | GASKET |
| Repalced by: A 0000180180 | ||
| 016 | A 0000180180 | GASKET |
| 021 | A 3140180051 | SPACER RING |
| 026 | A 3140180182 | HOSE |
| Repalced by: A 3400187082 | ||
| 026 | A 3400187082 | HOSE |
| FROM OIL FILLER NECK TO OIL PAN | ||
| A 0009971490 | LOOM TIE | |
| Repalced by: A 0029970290 | ||
| 031 | A 0029970290 | LOOM TIE |
| Repalced by: N 916017032000 | ||
| 031 | H 990009970490 | LOOM TIE |
| Repalced by: N 916017032000 | ||
| 031 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 031 | N 000000000670 | CLAMP |
| AS REQUIRED | ||
| 031 | A 3789970490 | LOOM TIE |
| AS REQUIRED | ||
| A 3096260297 | PAD | |
| Repalced by: A 3097230495 | ||
| 036 | A 3097230495 | PAD |
| 036 | A 3789877470 | RUBBER SECTION |
| 041 | A 3095200401 | AIR INTAKE PIPE |
| Repalced by: A 3095201501 | ||
| 041 | A 3095201501 | AIR INTAKE PIPE |
| 046 | A 0019872640 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 046 | A 0019875240 | RUBBER BUFFER |
| 051 | A 3095200141 | BRACKET |
| 056 | N 912004008102 | LOCK WASHER |
| BRACKET TO RUBBER BUFFER | ||
| 061 | N 000934008010 | NUT |
| BRACKET TO RUBBER BUFFER | ||
| 066 | N 304017008007 | SCREW |
| 071 | N 912004008102 | LOCK WASHER |
| 076 | N 000125008417 | WASHER |
| 081 | A 3095280408 | AIR INTAKE PIPE |
| 086 | A 0019972190 | LOOM TIE |
| Repalced by: N 916017070000 | ||
| 086 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 086 | N 000000000674 | CLAMP |
| AS REQUIRED | ||
| H 990009970890 | LOOM TIE | |
| Repalced by: N 916018070000 | ||
| N 916017070000 | CLAMP | |
| Repalced by: N 000000000674 | ||
| N 000000000674 | CLAMP | |
| AS REQUIRED | ||
| A 3789970890 | LOOM TIE | |
| AS REQUIRED | ||
| 091 | A 0060940002 | AIR CLEANER |
| 096 | A 0010942204 | FILTER ELEMENT |
| 101 | A 0010941080 | GASKET |
| 106 | A 0000948180 | GASKET |
| 111 | A 0000940955 | FASTENER |
| N 000094004014 | COTTER PIN | |
| 116 | A 0000940368 | VACUUM BOX |
| A 0000940768 | VACUUM BOX | |
| 121 | A 3095280039 | SUPPORT |
| 126 | N 000933010035 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 131 | N 913004010008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 136 | N 000933008016 | SCREW |
| 141 | N 913004008100 | NUT |
| 146 | N 000125008417 | WASHER |
| 151 | A 3095280208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO MUFFLER | ||
| 156 | A 0029970490 | LOOM TIE |
| Repalced by: N 916018070000 | ||
| H 990009970990 | LOOM TIE | |
| Repalced by: N 916018070000 | ||
| N 916017070000 | CLAMP | |
| Repalced by: N 000000000674 | ||
| N 000000000674 | CLAMP | |
| AS REQUIRED | ||
| A 3789970890 | LOOM TIE | |
| AS REQUIRED | ||
| 161 | A 3095280608 | AIR INTAKE PIPE |
| A 3095280908 | AIR INTAKE PIPE | |
| 166 | N 000933010128 | SCREW |
| 171 | N 913004010008 | NUT |
| A 3095280308 | AIR INTAKE PIPE | |
| Repalced by: A 3095281008 | ||
| 176 | A 3095281008 | AIR INTAKE PIPE |
| 181 | A 0029970490 | LOOM TIE |
| Repalced by: N 916018070000 | ||
| H 990009970890 | LOOM TIE | |
| Repalced by: N 916018070000 | ||
| N 916017070000 | CLAMP | |
| Repalced by: N 000000000674 | ||
| N 000000000674 | CLAMP | |
| AS REQUIRED | ||
| A 3789970890 | LOOM TIE | |
| AS REQUIRED | ||
| A 3095250239 | BRACKET | |
| Repalced by: A 3785257239 | ||
| 186 | A 3785257239 | BRACKET |
| 191 | N 000933010107 | SCREW |
| BRACKET TO SPRING FRONT BRACKET | ||
| 196 | N 000127010202 | LOCK WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 201 | A 3095200181 | MUD APRON |
| 206 | N 000933005035 | SCREW |
| 211 | N 912004005100 | LOCK WASHER |
| 216 | N 000934005004 | NUT |
| 221 | A 3099970982 | HOSE |
| 226 | A 3093100277 | BUFFER |
| Repalced by: A 3083107277 | ||
| 226 | A 3083107277 | BUFFER |
| REAR | ||
| 226 | A 3783107377 | BUFFER |
| REAR | ||
| 226 | A 3783107277 | BUFFER |
| REAR | ||
| 231 | N 000912012134 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| 236 | N 007980012002 | LOCK WASHER |
| RUBBER MOUNTING TO BODY | ||
| 241 | A 3093110784 | SHIM |
| RUBBER MOUNTING TO FRAME | ||
| 246 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 251 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO FRAME | ||
| A 3093100577 | BUFFER | |
| Repalced by: A 3093100777 | ||
| 256 | A 3093100777 | BUFFER |
| A 3093100377 | BUFFER | |
| Repalced by: A 3093100677 | ||
| A 3093100677 | BUFFER | |
| 266 | N 006798010301 | SERRATED WASHER |
| RUBBER MOUNTING TO BODY | ||
| 271 | A 3093110184 | SHIM |
| RUBBER MOUNTING TO BODY | ||
| 276 | A 3099900020 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| A 0009905912 | SCREW | |
| RUBBER MOUNTING TO BODY | ||
| 281 | A 3093110684 | SHIM |
| RUBBER MOUNTING TO FRAME | ||
| 286 | N 000933010093 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 291 | N 913004010008 | NUT |
| RUBBER MOUNTING TO FRAME | ||
| 296 | A 3093110363 | CONSOLE |
| N 910005010014 | RIVET | |
| CONSOLE TO SIDE MEMBER | ||
| 306 | A 3093110484 | SHIM |
| BODY TO FRAME | ||
| N 007976005202 | SHEET METAL SCREW | |
| SHIM TO BODY | ||
| 316 | A 3093110084 | SHIM |
| BODY TO CONSOLES | ||
| 321 | A 3148910111 | PLATE |
| SHIM TO FRAME | ||
| 326 | N 000127012201 | LOCK WASHER |
| SHIM TO FRAME | ||
| 331 | N 000933012098 | SCREW |
| SHIM TO FRAME | ||
