Transporto priemonė: L 608 D; VIN numerio dalis: 378302
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

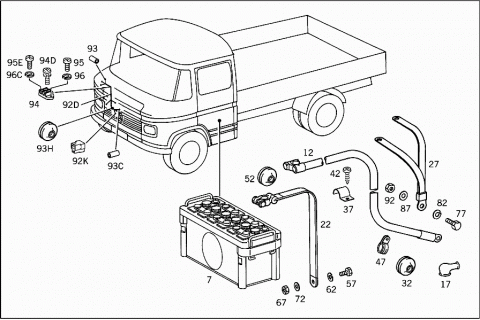

| 007 | A 0005413801 | BATTERY |
| 12V - 135AH | ||
| A 0005418101 | BATTERY | |
| Repalced by: A 3415417001 | ||
| 007 | A 3415417001 | BATTERY |
| 12V - 135 AH | ||
| 012 | A 0415400430 | POSITIVE CABLE |
| Repalced by: A 3785407030 | ||
| 012 | A 3785407030 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 017 | A 1365460035 | BOOT |
| 022 | A 3145400931 | NEG. CABLE |
| FROM BATTERY TO BATTERY SUPPORT | ||
| 027 | A 3095400341 | GROUND STRAP |
| 027 | A 3785407541 | GROUND STRAP |
| 032 | A 1869970781 | GROMMET |
| 037 | A 3045060441 | CLAMP |
| 042 | N 007981006205 | SHEET METAL SCREW |
| BATTERY POS. CABLE TO SIDE MEMBER | ||
| A 0009951801 | CLAMP | |
| Repalced by: N 916016008200 | ||
| 047 | N 916016008200 | CLAMP |
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 052 | A 3359970081 | GROMMET |
| 057 | N 000933010016 | SCREW |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 062 | N 000127010205 | LOCK WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 067 | N 000934010000 | NUT |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 072 | N 009021010100 | WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 077 | N 000933010034 | SCREW |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 082 | N 000127010205 | LOCK WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 087 | N 009021010100 | WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 092 | N 000934010000 | NUT |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 092D | A 3785400037 | ELECTRIC CABLE |
| FROM ALTERNATOR TO REGULATOR AND TO CABLE CONNECTOR | ||
| 092K | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 092K | A 0385452528 | PLUG |
| 093 | A 0009970381 | GROMMET |
| 093C | A 0009970581 | GROMMET |
| 093H | A 3109970081 | GROMMET |
| 094 | A 0005468041 | CABLE CONNECTOR |
| BIPOLAR | ||
| 094D | N 914032004203 | COMBINATION BOLT |
| CABLE HARNESS MOUNTING | ||
| 095 | N 007985006161 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 095E | N 007985004125 | SCREW |
| Repalced by: N 007985004107 | ||
| 095E | N 007985004107 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 096 | N 000127006203 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 096C | N 912004004102 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| A 0415401705 | CABLE HARNESS | |
| Repalced by: A 3785400005 | ||
| A 0415402305 | CABLE HARNESS | |
| Repalced by: A 3785400005 | ||
| A 0415402405 | CABLE HARNESS | |
| Repalced by: A 3785400005 | ||

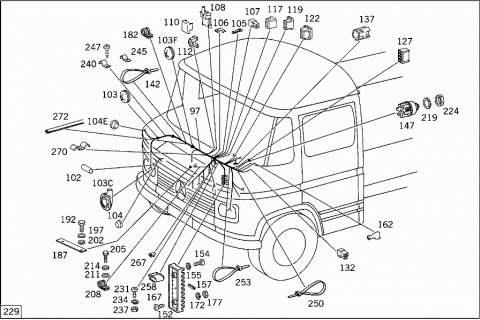

| 097 | A 3785400005 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 097 | A 3785400105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 097 | A 3785400205 | CABLE HARNESS |
| Repalced by: A 3785407405 | ||
| 097 | A 3785407405 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| A 3785407605 | CABLE HARNESS | |
| Repalced by: A 3785408005 | ||
| A 3785408005 | CABLE HARNESS | |
| MAIN CABLE HARNESS | ||
| 102 | A 0009970381 | GROMMET |
| 102 | A 0009970581 | GROMMET |
| 102 | A 0009970781 | GROMMET |
| 102 | A 0009970781 | GROMMET |
| 103 | A 1109970481 | GROMMET |
| TO 378 540 74 05 | ||
| A 3219970081 | GROMMET | |
| TO 378 540 74 05 | ||
| 103C | A 3149970181 | GROMMET |
| 103F | A 3219970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 103F | A 3359970081 | GROMMET |
| 103F | A 3109970181 | GROMMET |
| 104 | A 3099970081 | GROMMET |
| 104E | A 3099970681 | GROMMET |
| 104E | A 3109970081 | GROMMET |
| 105 | A 0005454626 | PIN BUSHING |
| 105 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 105 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 105 | A 0005453726 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 105 | A 0005454026 | PIN BUSHING |
| WITH DETENT | ||
| 105 | A 0005454026 | PIN BUSHING |
| WITH DETENT | ||
| 105 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 105 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 106 | A 0005453626 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| A 0005451745 | BOOT | |
| 107 | A 0015451028 | PIN BUSHING HOUSING |
| Repalced by: A 0015458728 | ||
| 107 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 107 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 107 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 108 | A 0025444928 | COVER |
| BIPOLAR | ||
| 110 | A 0005452403 | CAP |
| BIPOLAR | ||
| 112 | A 0015456528 | PLUG |
| Repalced by: A 0015458528 | ||
| 112 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 112 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 117 | A 0015452428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 117 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 117 | A 0035459528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 117 | A 0025459228 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 119 | A 0035450928 | PLUG |
| 4-POLE | ||
| 119 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 122 | A 0015452628 | PIN BUSHING HOUSING |
| Repalced by: A 0015452528 | ||
| 122 | A 0015452528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 122 | A 0035452128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 122 | A 0035451128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 122 | A 0055450428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 122 | A 0015458128 | PIN BUSHING HOUSING |
| 127 | A 0025459628 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 127 | A 0015458928 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 127 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 127 | A 0015457128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 132 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 132 | A 0385452528 | PLUG |
| 137 | A 0045451428 | PLUG |
| 137 | A 0065455528 | PIN BUSHING HOUSING |
| Repalced by: A 3455457028 | ||
| 137 | A 3455457028 | PIN BUSHING HOUSING |
| 142 | A 3789977190 | LOOM TIE |
| 147 | A 0005453013 | SWITCH |
| BOSCH | ||
| 147 | A 3415457213 | SWITCH BOX |
| VERINO-PAGLIERO | ||
| 152 | A 3145450001 | FUSE BOX |
| 154 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 155 | N 000127004205 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 157 | N 072581008101 | FUSE |
| 8 A | ||
| 162 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 162 | A 0005463335 | BOOT |
| 167 | N 007985005170 | SCREW |
| FUSE BOX TO BRACKET | ||
| 172 | N 912004005101 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 177 | N 000934005000 | NUT |
| FUSE BOX TO BRACKET | ||
| 182 | A 0009952101 | CLAMP |
| Repalced by: N 916016012200 | ||
| 182 | N 916016012201 | CLAMP |
| 187 | A 3141500173 | BRACKET |
| 192 | N 000933005011 | SCREW |
| BRACKET TO ALTERNATOR | ||
| 197 | N 000137005102 | SPRING WASHER |
| BRACKET TO ALTERNATOR | ||
| 202 | N 009021005100 | WASHER |
| BRACKET TO ALTERNATOR | ||
| 205 | N 000933006015 | SCREW |
| CLAMP TO ALTERNATOR | ||
| 208 | A 0009950501 | CLAMP |
| Repalced by: N 916016015201 | ||
| 208 | N 916016015201 | CLAMP |
| CLAMP TO ALTERNATOR | ||
| 211 | N 000137006102 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| 214 | N 009021006100 | WASHER |
| CLAMP TO ALTERNATOR | ||
| 219 | A 0005450176 | WASHER |
| SWITCH BOX TO WINDOW SILL GIRDER | ||
| 224 | A 0005450672 | NUT |
| SWITCH BOX TO WINDOW SILL GIRDER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 58 | ||
| 231 | N 007985006157 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 234 | N 000127006206 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 237 | N 000934006007 | NUT |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 240 | A 3129952420 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 245 | A 3049951520 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| Repalced by: A 1009950420 | ||
| 245 | A 1009950420 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 247 | N 007981006205 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 250 | A 0029972290 | LOOM TIE |
| MAIN CABLE HARNESS TO FIRE WALL,LEFT | ||
| 253 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 253 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS TO BODY | ||
| 258 | A 0009883478 | CLIP |
| 258 | A 0009885378 | CLIP |
| MAIN CABLE HARNESS TO WINDOW SILL CONNECTION PLATE | ||
| 267 | A 0009881778 | CLIP |
| 270 | A 3039950232 | CLAMP |
| Repalced by: A 3219950332 | ||
| 270 | A 3219950332 | CLAMP |
| MAIN CABLE HARNESS & STARTING CABLE TO CAB LEFT SIDE MEMBER | ||
| 272 | A 3099870072 | EDGE GUARD SECTION |
| Repalced by: A 0009876870 | ||
| 272 | A 0009876870 | RUBBER SECTION |
| FIRE WALL,LEFT | ||

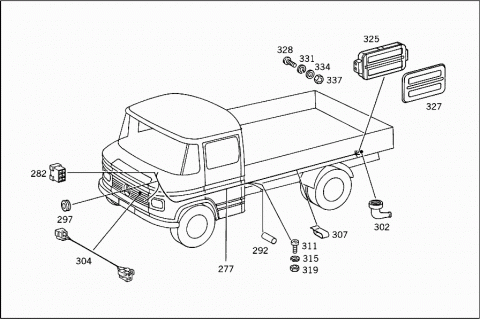

| 277 | A 0415400227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 277 | A 3105403727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 277 | A 3105400227 | ELECTRIC CABLE |
| Repalced by: A 0415400327 | ||
| 277 | A 0415400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 277 | A 3105403827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 277 | A 3105404527 | ELECTRIC CABLE |
| Repalced by: A 3785408427 | ||
| 277 | A 3785408427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 282 | A 0015453328 | PLUG |
| 282 | A 0015452828 | PIN BUSHING HOUSING |
| 282 | A 0015456028 | PLUG HOUSING |
| 282 | A 0025450628 | PLUG |
| 292 | A 0009970381 | GROMMET |
| 297 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 297 | A 0009972881 | GROMMET |
| 302 | A 0005400281 | PLUG SOCKET |
| 304 | A 3785407927 | ELECTRIC CABLE |
| ALTERNATOR BRANCH-OFF | ||
| 307 | A 3529950040 | CLAMP |
| ELECTRIC CABLE TO FRAME | ||
| 311 | N 007985006157 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 315 | N 000127006206 | LOCK WASHER |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 319 | N 000934006007 | NUT |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 325 | A 0005466141 | CABLE CONNECTOR |
| Repalced by: A 0005461741 | ||
| 325 | A 0005461741 | CABLE CONNECTOR |
| 327 | A 0005460781 | COVERING |
| WITH GASKET | ||
| TO 000 546 61 41 | ||
| 328 | N 007985004180 | SCREW |
| CABLE CONNECTOR | ||
| 331 | N 000127004206 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 334 | N 000125004303 | WASHER |
| CABLE CONNECTOR | ||
| 337 | N 000934004000 | NUT |
| CABLE CONNECTOR | ||

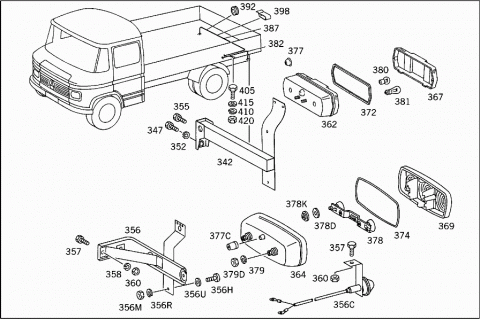

| 342 | A 3095400373 | BRACKET |
| LEFT | ||
| 342 | A 3095400473 | BRACKET |
| RIGHT | ||
| 347 | N 000933010016 | SCREW |
| 352 | N 000127010205 | LOCK WASHER |
| 355 | N 000933010034 | SCREW |
| 356 | A 3785207344 | BRACKET |
| LEFT | ||
| 356 | A 3785207344 | BRACKET |
| LEFT | ||
| 356 | A 3785207444 | BRACKET |
| TAIL LAMP | ||
| 356 | A 3785207444 | BRACKET |
| TAIL LAMP | ||
| 356C | A 3785207041 | BRACKET |
| LEFT | ||
| 356C | A 3785207041 | BRACKET |
| LEFT | ||
| 356C | A 3785207141 | BRACKET |
| RIGHT | ||
| 356C | A 3785207141 | BRACKET |
| RIGHT | ||
| 356H | N 000084006402 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 356H | N 000084006402 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 356M | N 000934006007 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 356M | N 000934006007 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 356R | N 000127006203 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 356R | N 000127006203 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 356U | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 356U | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| A 3785250082 | PROTECTIVE RAIL | |
| BRACKET TO FRAME | ||
| 357 | N 000933010090 | SCREW |
| BRACKET TO FRAME | ||
| M10X22 | ||
| 357 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| M10X20 | ||
| 357 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| M10X20 | ||
| 357 | N 000933010157 | SCREW |
| BRACKET TO FRAME | ||
| 358 | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 358 | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 358 | N 000127010202 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 360 | N 000934010009 | NUT |
| BRACKET TO FRAME | ||
| 360 | N 000934010009 | NUT |
| BRACKET TO FRAME | ||
| 360 | N 000934010005 | NUT |
| BRACKET TO FRAME | ||
| 362 | A 0015441203 | TAIL LAMP |
| LEFT | ||
| 362 | A 0015441403 | TAIL LAMP |
| RIGHT | ||
| 364 | A 3515447103 | TAIL LAMP |
| LEFT | ||
| 364 | A 3515447103 | TAIL LAMP |
| LEFT | ||
| 364 | A 3515447203 | TAIL LAMP |
| RIGHT | ||
| 364 | A 3515447203 | TAIL LAMP |
| RIGHT | ||
| 367 | A 0008269590 | LENS |
| Repalced by: A 0018265390 | ||
| 367 | A 0018265390 | LENS |
| LEFT | ||
| 367 | A 0008269690 | LENS |
| Repalced by: A 0018265490 | ||
| 367 | A 0018265490 | LENS |
| RIGHT | ||
| A 3515447090 | LENS | |
| WITH SCREWS | ||
| A 3515447090 | LENS | |
| WITH SCREWS | ||
| 369 | A 0015444590 | LENS |
| 369 | A 0015444590 | LENS |
| A 3515447070 | STUD | |
| A 3515447070 | STUD | |
| 372 | A 0005447980 | GASKET |
| Repalced by: A 0005447780 | ||
| 372 | A 0005447780 | GASKET |
| 374 | A 0005447580 | GASKET |
| 374 | A 0005447580 | GASKET |
| 377 | A 0009978081 | GROMMET |
| 377C | A 0019971581 | GROMMET |
| 377C | A 0019971581 | GROMMET |
| 378 | A 3515447038 | BRACKET |
| 378 | A 3515447038 | BRACKET |
| 378D | A 0005440376 | WASHER |
| Repalced by: A 0005440476 | ||
| 378D | A 0005440476 | WASHER |
| 378D | A 0005440476 | WASHER |
| 378K | A 0019901940 | WASHER |
| 378K | A 0019901940 | WASHER |
| 379 | N 000127008203 | LOCK WASHER |
| 379 | N 000127008203 | LOCK WASHER |
| 379D | N 000934008010 | NUT |
| 379D | N 000934008010 | NUT |
| 380 | N 072601012702 | BULB |
| TAIL LAMP | ||
| 380 | A 3515447094 | BULB |
| TAIL LAMP | ||
| 381 | N 072601012190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 382 | A 3095400327 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 382 | A 3785408027 | ELECTRIC CABLE |
| Repalced by: A 3785409027 | ||
| 382 | A 3785409027 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 382 | A 3785409027 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 387 | A 3095400427 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 387 | A 3785408127 | ELECTRIC CABLE |
| Repalced by: A 3785409127 | ||
| 387 | A 3785409127 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 387 | A 3785409127 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 392 | A 3129970481 | GROMMET |
| 392 | A 3129970481 | GROMMET |
| 392 | A 0009972281 | GROMMET |
| 392 | A 8339970081 | GROMMET |
| 392 | A 8339970081 | GROMMET |
| 398 | A 3129951040 | CLAMP |
| Repalced by: A 3415467175 | ||
| 398 | A 3449880078 | CLIP |
| Repalced by: A 3415467175 | ||
| 398 | A 3415467175 | CLAMP |
| ELECTRIC CABLE TO FRAME | ||
| 405 | N 000933010128 | SCREW |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 410 | N 000127010202 | LOCK WASHER |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 415 | N 009021010102 | WASHER |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 420 | N 000934010005 | NUT |
| GROUND CABLE TO LEFT SIDE MEMBER | ||

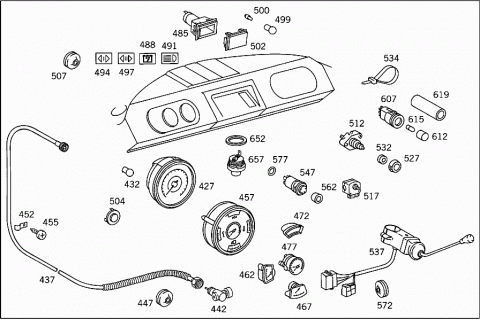

| 427 | A 0055426306 | SPEEDOMETER |
| Repalced by: A 0075422506 | ||
| 427 | A 0075422506 | SPEEDOMETER |
| 432 | A 3785440094 | BULB |
| 437 | A 0015427507 | FLEXIBLE SHAFT |
| Repalced by: A 3415420207 | ||
| 437 | H 993785420007 | FLEXIBLE SHAFT |
| Repalced by: A 3415420207 | ||
| 437 | A 3415420207 | FLEXIBLE SHAFT |
| 437 | A 3445427707 | FLEXIBLE SHAFT |
| 442 | A 0005425830 | ANGLE DRIVE |
| 442 | A 0015429030 | ANGLE DRIVE |
| 442 | A 3455424430 | ANGLE DRIVE |
| 442 | A 0025422330 | ANGLE DRIVE |
| 442 | A 0005424230 | ANGLE DRIVE |
| 442 | A 3455421330 | ANGLE DRIVE |
| 447 | A 3219970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 452 | A 3129952020 | CLAMP |
| Repalced by: A 3049951920 | ||
| 452 | A 3049951920 | CLAMP |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 452 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT TO CAB CROSS MEMBER | ||
| Repalced by: A 1009950420 | ||
| 452 | A 1009950420 | CLAMP |
| FLEXIBLE SHAFT TO CAB CROSS MEMBER | ||
| 455 | N 007981004279 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB STAY | ||
| 455 | N 007981006205 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB CROSS MEMBER | ||
| 457 | A 0025404447 | INSTRUMENT CLUSTER |
| 462 | A 0015424102 | OIL PRESSURE GAUGE |
| 467 | A 0005428503 | FUEL GAUGE DASH UNIT |
| 472 | A 0005420332 | TELL-TALE LAMP |
| 477 | A 0005429108 | AIR PRESSURE GAUGE |
| A 0129870040 | RUBBER BUFFER | |
| 485 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 488 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 491 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 494 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 497 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 499 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 3 W | ||
| 500 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 500 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 2 W | ||
| 502 | A 3089970035 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 502 | A 0009973535 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 504 | A 0009970425 | EXPANSION PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 507 | A 3129971681 | GROMMET |
| 512 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 512 | A 0005422125 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 512 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 3415427025 | POTENTIOMETER | |
| INSTRUMENT LIGHTING | ||
| "SCRAM" | ||
| 517 | A 0005421325 | POTENTIOMETER |
| BLOWER | ||
| 527 | A 0005420689 | KNOB |
| 527 | A 0005421089 | KNOB |
| 527 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 527 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 532 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| TO 000 542 14 25,000 542 21 25 | ||
| 532 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||
| TO 615 542 01 25 | ||
| 534 | A 0029976890 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 537 | A 0025452624 | SWITCH,AUTOMATIC |
| Repalced by: A 0035453324 | ||
| 537 | A 0035453324 | SWITCH,AUTOMATIC |
| 547 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 547 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 547 | A 0005459111 | SWITCH |
| CAB LIGHTING | ||
| 562 | A 0005451583 | CAP |
| Repalced by: A 3445450983 | ||
| 562 | A 3445450983 | CAP |
| "FAST-SLOW" | ||
| 562 | A 3445450883 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 562 | A 0005451883 | CAP |
| Repalced by: A 3445451283 | ||
| 562 | A 3445451283 | CAP |
| 572 | A 3149970281 | GROMMET |
| Repalced by: A 3359970081 | ||
| 572 | A 3359970081 | GROMMET |
| BLINKER-DIMMER SWITCH CABLE THRU BODY | ||
| 577 | N 007603014400 | SEAL RING |
| TEMPERATURE GAUGE SENDER UNIT | ||

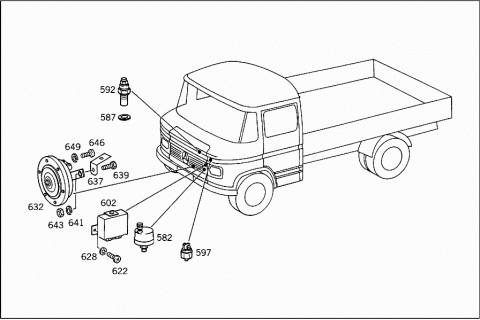

| 582 | A 0015424417 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 582 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 582 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 587 | N 007603014400 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| 592 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 592 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| A 3415457005 | RELAY | |
| N 007981004233 | SHEET METAL SCREW | |
| RELAY | ||
| N 040621005200 | INSULATING HOSE | |
| (PROTECTIVE SLEEVE) | ||
| 5X0.6X15 | ||
| 597 | A 0005454709 | SWITCH |
| Repalced by: A 0005455909 | ||
| 597 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 597 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| 597 | A 3085457009 | SWITCH |
| STOP LIGHT | ||
| A 0009909251 | NUT | |
| STOP LIGHT SWITCH TO CONSOLE | ||
| 602 | A 0015445132 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 602 | A 0025440932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 602 | A 0025447332 | SENDER UNIT |
| 602 | A 0015447932 | SENDER UNIT |
| 607 | A 0025457124 | SWITCH,AUTOMATIC |
| Repalced by: A 0045450224 | ||
| 607 | A 0045450224 | SWITCH |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 612 | A 0005453637 | BUTTON |
| 615 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| TO 002 545 71 24 | ||
| 615 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 615 | A 3785440094 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| TO 004 545 02 24 | ||
| 619 | N 040621030204 | INSULATING HOSE |
| PLUG SOCKET | ||
| 622 | N 007985006512 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 628 | N 000127006203 | LOCK WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 632 | A 0015427920 | HORN |
| Repalced by: A 0025425220 | ||
| 632 | A 0025425220 | HORN |
| Repalced by: A 0025426420 | ||
| 632 | A 0015428320 | HORN |
| Repalced by: A 0025426420 | ||
| 632 | A 0025425320 | HORN |
| Repalced by: A 0025426420 | ||
| 632 | A 0025426420 | HORN |
| BOSCH | ||
| 632 | A 0415420320 | HORN |
| Repalced by: A 3415420020 | ||
| 632 | A 0415420420 | HORN |
| Repalced by: A 3415420020 | ||
| 632 | A 3415420020 | HORN |
| Repalced by: A 3415427120 | ||
| 632 | A 3415427120 | HORN |
| BARIFFI | ||
| 632 | A 0035423220 | HORN |
| BOSCH | ||
| 632 | A 3415427020 | HORN |
| Repalced by: A 3415427220 | ||
| 632 | A 3415427220 | HORN |
| KOVAL | ||
| 637 | A 3095420140 | BRACKET |
| 639 | N 000933010016 | SCREW |
| HORN TO BRACKET | ||
| 641 | N 000127010205 | LOCK WASHER |
| HORN TO BRACKET | ||
| 643 | N 000934010000 | NUT |
| HORN TO BRACKET | ||
| 646 | N 007985004101 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 649 | N 000127004206 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 652 | A 3099900640 | WASHER |
| 657 | A 0005456314 | SWITCH |
| Repalced by: A 0015450214 | ||
| 657 | A 0015450214 | SWITCH |
| STARTING SWITCH | ||
| 657 | A 3215450114 | SWITCH |
| STARTING SWITCH | ||
| 657 | A 3415457014 | SWITCH |
| STARTING SWITCH | ||
| 657 | A 0005453914 | SWITCH |
| STARTING SWITCH | ||
| 657 | A 3785457014 | SWITCH |
| STARTING SWITCH | ||
| 657 | A 3455457314 | SWITCH |
| STARTING SWITCH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| A 0015454914 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
