Transporto priemonė: L 608 D; VIN numerio dalis: 378302

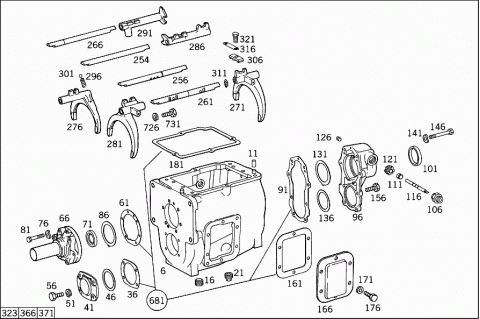

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 712.3 | ||
| A 3142600400 | TRANSMISSION | |
| Repalced by: A 3142601300 | ||
| A 3782607100 | TRANSMISSION | |
| Repalced by: A 3142601300 | ||
| A 3142601300 | TRANSMISSION | |
| 006 | A 3142600311 | TRANSMISSION CASE |
| 006 | H 993782600011 | TRANSMISSION CASE |
| 011 | N 000007010239 | CYLINDRICAL PIN |
| TRANSMISSION CASE | ||
| 016 | A 1869970032 | SCREW PLUG |
| OIL FILLING | ||
| A 0009971332 | SCREW PLUG | |
| Repalced by: A 0009972632 | ||
| 021 | A 0009972632 | SCREW PLUG |
| OIL DRAIN | ||
| 021 | A 0009973432 | SCREW PLUG |
| OIL DRAIN | ||
| A 3785840024 | UNIT IDENTIFICATION PLATE | |
| Repalced by: H 993785840338 | ||
| H 993785840338 | GUMMED LABEL | |
| N 001476003007 | GROOVED NAIL | |
| UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE | ||
| 036 | A 3142610580 | GASKET |
| Repalced by: A 3142611680 | ||
| 036 | A 3142611680 | GASKET |
| FRONT | ||
| 041 | A 3142610233 | COVER |
| Repalced by: A 3122611633 | ||
| 041 | A 3122611633 | COVER |
| FRONT | ||
| 046 | A 3122632152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.050 MM | ||
| 046 | A 3122632352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.070 MM | ||
| 046 | A 3122631452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.125 MM | ||
| 046 | A 3122631552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.24 MM | ||
| 046 | A 3122631652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 051 | N 912004008104 | LOCK WASHER |
| END COVER TO TRANSMISSION CASE | ||
| 056 | N 000933008036 | SCREW |
| END COVER TO TRANSMISSION CASE | ||
| 061 | A 3142610380 | GASKET |
| Repalced by: A 3122612179 | ||
| 061 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 061 | A 3122611180 | GASKET |
| FRONT | ||
| 066 | A 3142600221 | TRANSMISSION CASE COVER |
| FRONT | ||
| 071 | A 0059976946 | SEAL RING |
| Repalced by: A 0089971346 | ||
| 071 | A 0089971346 | SEAL RING |
| CASE COVER | ||
| 071 | A 0119978346 | SEAL RING |
| CASE COVER | ||
| 076 | N 000137008203 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 081 | N 000931008085 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 086 | A 3242620462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.36 MM | ||
| 086 | A 3242620562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.44 MM | ||
| 086 | A 3242620662 | THRUST WASHER |
| AS REQUIRED | ||
| 2.52 MM | ||
| 086 | A 3242620762 | THRUST WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| 086 | A 3242620862 | THRUST WASHER |
| AS REQUIRED | ||
| 2.68 MM | ||
| 086 | A 3242620962 | THRUST WASHER |
| AS REQUIRED | ||
| 2.76 MM | ||
| 086 | A 3242621062 | THRUST WASHER |
| AS REQUIRED | ||
| 2.84 MM | ||
| 086 | A 3142621462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.92 MM | ||
| 086 | A 3142621562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 086 | A 3142621662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.08 MM | ||
| 091 | A 3142610179 | GASKET |
| Repalced by: A 3142610480 | ||
| 091 | A 3142610480 | GASKET |
| Repalced by: A 3142611580 | ||
| 091 | A 3142611580 | GASKET |
| 096 | A 3142610120 | TRANSMISSION CASE COVER |
| 101 | N 006503048201 | SEAL RING |
| Repalced by: A 0089971246 | ||
| 101 | A 0089971246 | SEAL RING |
| CASE,REAR | ||
| 101 | A 0119978246 | SEAL RING |
| CASE,REAR | ||
| 106 | A 3212600086 | THREADED BUSHING |
| SPEEDOMETER DRIVE | ||
| 106 | A 3212610031 | THREADED BUSHING |
| SPEEDOMETER DRIVE | ||
| 111 | A 1202610080 | GASKET |
| SPEEDOMETER DRIVE | ||
| 116 | A 3142640032 | SHAFT |
| SPEEDOMETER | ||
| 121 | A 3122641331 | DRIVE GEAR |
| SPEEDOMETER | ||
| 126 | A 1532640055 | PLUG |
| SPEEDOMETER | ||
| 131 | A 3242620462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.36 MM | ||
| 131 | A 3242620562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.44 MM | ||
| 131 | A 3242620662 | THRUST WASHER |
| AS REQUIRED | ||
| 2.52 MM | ||
| 131 | A 3242620762 | THRUST WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| 131 | A 3242620862 | THRUST WASHER |
| AS REQUIRED | ||
| 2.68 MM | ||
| 131 | A 3242620962 | THRUST WASHER |
| AS REQUIRED | ||
| 2.76 MM | ||
| 131 | A 3242621062 | THRUST WASHER |
| AS REQUIRED | ||
| 2.84 MM | ||
| 131 | A 3142621462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.92 MM | ||
| 131 | A 3142621562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 131 | A 3142621662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.08 MM | ||
| 136 | A 3122632152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 136 | A 3122632352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.070 MM | ||
| 136 | A 3122631452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.125 MM | ||
| 136 | A 3122631552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.24 MM | ||
| 136 | A 3122631652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 141 | N 000137008203 | SPRING WASHER |
| REAR COVER TO TRANSMISSION | ||
| 146 | N 000931008278 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 8X70 | ||
| 146 | N 000931008255 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 8X70 SK | ||
| 156 | N 000933008066 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 8X28 | ||
| 161 | A 3122611080 | GASKET |
| LATERAL | ||
| 166 | A 3122611019 | TRANSMISSION CASE COVER |
| Repalced by: A 3142610019 | ||
| 166 | A 3142610019 | TRANSMISSION CASE COVER |
| LATERAL | ||
| 171 | N 007603010401 | SEAL RING |
| CASE COVER TO TRANSMISSION | ||
| 176 | N 000933010011 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 181 | A 3142610279 | GASKET |
| Repalced by: A 3142610280 | ||
| 181 | A 3142610280 | GASKET |
| Repalced by: A 3142611480 | ||
| 181 | A 3142611480 | GASKET |
| TOP | ||
| 186 | A 3142601314 | TRANSMISSION CASE COVER |
| TOP | ||
| 188 | A 3142680435 | BEARING |
| TOP | ||
| 188 | A 3102680035 | BEARING |
| TOP | ||
| 190 | A 3192670050 | BUSHING |
| TOP | ||
| 192 | N 001473005022 | GROOVED PIN |
| TOP | ||
| 194 | N 900189008200 | SLIP-IN BUSHING |
| TOP | ||
| 196 | A 3212650250 | BUSHING |
| TOP | ||
| 198 | A 3212650150 | BUSHING |
| LATERAL | ||
| 200 | A 3142650044 | GUIDE PIN |
| Repalced by: A 3442657044 | ||
| 200 | A 3442657044 | GUIDE PIN |
| SHIFT CASE | ||
| 202 | A 1369970830 | SCREW PLUG |
| SHIFT CASE | ||
| 204 | A 3142650074 | PIN |
| SHIFT CASE | ||
| 206 | N 000125013008 | WASHER |
| SHIFT CASE | ||
| 208 | N 000979012001 | NUT |
| SHIFT CASE | ||
| 210 | N 000094003221 | COTTER PIN |
| SHIFT CASE | ||
| 212 | N 000137008203 | SPRING WASHER |
| SHIFT CASE TO TRANSMISSION | ||
| 214 | N 000931008085 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M 8X50 | ||
| 214 | N 000931008238 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M 8X58 | ||
| 218 | A 1112600058 | BREATHER |
| TRANSMISSION CASE TOP COVER | ||
| 220 | A 3242650007 | LEVER |
| SHIFTING DOG | ||
| 222 | N 005402302104 | CYLINDRICAL ROLLER |
| TRANSMISSION CASE TOP COVER | ||
| 224 | N 000433015000 | WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 226 | N 000471015000 | LOCK RING |
| TRANSMISSION CASE TOP COVER | ||
| 228 | A 3212650416 | THRUST PIECE |
| Repalced by: A 3412657016 | ||
| 228 | A 3412657016 | THRUST PIECE |
| TRANSMISSION CASE TOP COVER | ||
| 230 | A 3219930501 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 232 | A 3219970103 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 234 | A 3212650248 | INTERLOCK PIN |
| Repalced by: A 3212650148 | ||
| 234 | A 3212650148 | INTERLOCK PIN |
| TRANSMISSION CASE TOP COVER | ||
| 236 | A 3219930601 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 238 | N 915015024000 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 240 | A 3142670025 | SLIDING BLOCK |
| SHIFT CASE | ||
| 242 | N 009045006001 | SNAP RING |
| SHIFT CASE | ||
| 246 | A 3142600246 | PLATE |
| SHIFT CASE | ||
| 248 | A 1369908240 | WASHER |
| DETENT PLATE TO COVER | ||
| 250 | N 900055008003 | SPRING WASHER |
| DETENT PLATE TO COVER | ||
| 252 | A 1362650272 | NUT |
| DETENT PLATE TO COVER | ||
| 254 | A 3142650605 | SHIFTING ROD |
| 1ST SPEED | ||
| 256 | A 3142650505 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 261 | A 3142650405 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 266 | A 3142650805 | SHIFTING ROD |
| REVERSE SPEED | ||
| 271 | A 3142650301 | SHIFTING FORK |
| Repalced by: A 3142650501 | ||
| 271 | A 3142650501 | SHIFTING FORK |
| 1ST SPEED | ||
| 276 | A 3142650402 | SHIFTING FORK |
| Repalced by: A 3142650602 | ||
| 276 | A 3142650602 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 314 265 13 02 | ||
| 281 | A 3142650502 | SHIFTING FORK |
| Repalced by: A 3142650702 | ||
| 281 | A 3142650702 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 286 | A 3142650223 | SHIFTING DOG |
| Repalced by: A 3142650623 | ||
| 286 | A 3142650623 | SHIFTING DOG |
| 1ST SPEED | ||
| 291 | A 3142650423 | SHIFTING DOG |
| Repalced by: A 3142650523 | ||
| 291 | A 3142650523 | SHIFTING DOG |
| REVERSE SPEED | ||
| 296 | A 3149930801 | SPRING |
| SHIFTING ROD | ||
| 301 | N 005401311000 | BALL |
| SHIFTING ROD | ||
| 306 | A 3122651236 | BRACKET |
| SHIFTING ROD | ||
| 306 | A 3122651036 | BRACKET |
| SHIFTING ROD | ||
| 311 | N 900055016300 | LOCK RING |
| SHIFTING ROD | ||
| 316 | A 3129940332 | LOCK |
| BRACKET TO TRANSMISSION CASE | ||
| 321 | N 000933008153 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 681 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 686 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 691 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 696 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 701 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 706 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 711 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 716 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 721 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 726 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 731 | ||
| 376 | A 3142620402 | DRIVE SHAFT |
| Repalced by: A 3142620802 | ||
| 376 | A 3142620802 | DRIVE SHAFT |
| 381 | A 3249930001 | SPRING |
| DRIVE SHAFT | ||
| 386 | A 3142620073 | LOCK |
| DRIVE SHAFT | ||
| 391 | A 0019816101 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 396 | A 3249940040 | SNAP RING |
| AS REQUIRED | ||
| 1.88 MM | ||
| 396 | A 3249940140 | SNAP RING |
| AS REQUIRED | ||
| 1.93 MM | ||
| 396 | A 3249940240 | SNAP RING |
| AS REQUIRED | ||
| 1.98 MM | ||
| 396 | A 3249940340 | SNAP RING |
| AS REQUIRED | ||
| 2.03 MM | ||
| 396 | A 3249940440 | SNAP RING |
| AS REQUIRED | ||
| 2.08 MM | ||
| 396 | A 3249940540 | SNAP RING |
| AS REQUIRED | ||
| 2.13 MM | ||
| 396 | A 3249940640 | SNAP RING |
| AS REQUIRED | ||
| 2.18 MM | ||
| 401 | A 0009813727 | ANGULAR CONTACT BEARING |
| LESS SHIFT LEVER;WITH BREATHER | ||
| 401 | A 0009813427 | ANGULAR CONTACT BEARING |
| LESS SHIFT LEVER;WITH BREATHER | ||
| 406 | A 3142621762 | THRUST WASHER |
| LESS SHIFT LEVER;WITH BREATHER | ||
| 411 | A 3242620072 | NUT |
| THRUST WASHER TO DRIVE SHAFT | ||
| 416 | A 0009813412 | ROLLER ASSEMBLY |
| Repalced by: A 0059818210 | ||
| 416 | A 0059818210 | NEEDLE BEARING |
| MAIN SHAFT,FRONT | ||
| 416 | A 0049817110 | NEEDLE BEARING |
| MAIN SHAFT,FRONT | ||
| 421 | A 3142620205 | MAIN SHAFT |
| 426 | A 3149930301 | SPRING |
| MAIN SHAFT | ||
| 431 | A 3142620674 | PIN |
| MAIN SHAFT | ||
| 436 | A 3142620262 | THRUST WASHER |
| AS REQUIRED | ||
| 5.55 MM | ||
| 436 | A 3142620362 | THRUST WASHER |
| AS REQUIRED | ||
| 5.65 MM | ||
| 436 | A 3142620462 | THRUST WASHER |
| AS REQUIRED | ||
| 5.75 MM | ||
| 436 | A 3142620562 | THRUST WASHER |
| AS REQUIRED | ||
| 5.85 MM | ||
| 436 | A 3142620662 | THRUST WASHER |
| AS REQUIRED | ||
| 5.95 MM | ||
| 436 | A 3142620762 | THRUST WASHER |
| AS REQUIRED | ||
| 6.05 MM | ||
| 436 | A 3142620862 | THRUST WASHER |
| AS REQUIRED | ||
| 6.15 MM | ||
| 436 | A 3142620962 | THRUST WASHER |
| AS REQUIRED | ||
| 6.25 MM | ||
| 436 | A 3142621062 | THRUST WASHER |
| AS REQUIRED | ||
| 6.35 MM | ||
| 436 | A 3142621162 | THRUST WASHER |
| AS REQUIRED | ||
| 6.45 MM | ||
| 436 | A 3142621262 | THRUST WASHER |
| AS REQUIRED | ||
| 6.55 MM | ||
| 441 | A 3142620734 | SYNCHRONIZER RING |
| 5TH SPEED | ||
| A 3142601045 | SYNCHRONIZER BODY | |
| A 3142601445 | SYNCHRONIZER BODY | |
| A 3142621135 | SYNCHRONIZER BODY | |
| Repalced by: A 3142621535 | ||
| A 3142620735 | SYNCHRONIZER BODY | |
| Repalced by: A 3142621535 | ||
| A 3142621535 | SYNCHRONIZER BODY | |
| 4TH AND 5TH SPEED | ||
| 451 | A 3149930001 | SPRING |
| 4TH AND 5TH SPEED | ||
| 456 | A 3142620574 | PIN |
| 4TH AND 5TH SPEED | ||
| 461 | A 3142620140 | FOLLOWER |
| 4TH AND 5TH SPEED | ||
| 466 | A 3142620237 | SYNCHRONIZER CONE |
| Repalced by: A 3142620437 | ||
| 466 | A 3142620437 | SYNCHRONIZER CONE |
| 4TH AND 5TH SPEED | ||
| A 3142620423 | SLIDING COLLAR | |
| Repalced by: A 3142621223 | ||
| A 3142621223 | SLIDING COLLAR | |
| 4TH AND 5TH SPEED | ||
| 471 | A 3142622435 | SYNCHRONIZER BODY |
| (PARTS KIT);4TH AND 5TH SPEED | ||
| 476 | A 3142602444 | GEAR |
| 4TH SPEED | ||
| 476 | A 3142603444 | GEAR |
| 4TH SPEED | ||
| 481 | A 3149810010 | NEEDLE BEARING |
| 4TH SPEED GEAR | ||
| 481 | A 3149810110 | NEEDLE BEARING |
| 4TH SPEED GEAR | ||
| 486 | A 3142621550 | BUSHING |
| AS REQUIRED | ||
| 39.5 MM | ||
| 486 | A 3142621750 | BUSHING |
| AS REQUIRED | ||
| 39.7 MM | ||
| 486 | A 3142621850 | BUSHING |
| AS REQUIRED | ||
| 39.8 MM | ||
| 486 | A 3142621950 | BUSHING |
| AS REQUIRED | ||
| 39.9 MM | ||
| 486 | A 3142622250 | BUSHING |
| AS REQUIRED | ||
| 40,2 MM | ||
| 491 | A 3142601644 | GEAR |
| AS REQUIRED | ||
| 496 | A 3149810012 | ROLLER ASSEMBLY |
| Repalced by: A 0019817012 | ||
| 496 | A 0019817012 | ROLLER ASSEMBLY |
| 2ND AND 3RD SPEED | ||
| 496 | A 3149810112 | ROLLER ASSEMBLY |
| Repalced by: A 3149810612 | ||
| 496 | A 3149810612 | ROLLER ASSEMBLY |
| 2ND AND 3RD SPEED | ||
| A 3142600745 | SYNCHRONIZER BODY | |
| A 3142620335 | SYNCHRONIZER BODY | |
| Repalced by: A 3142621735 | ||
| A 3142621735 | SYNCHRONIZER BODY | |
| 2ND AND 3RD SPEED | ||
| 506 | A 3149930001 | SPRING |
| 2ND AND 3RD SPEED | ||
| 511 | A 3142620574 | PIN |
| 2ND AND 3RD SPEED | ||
| 516 | A 3142620140 | FOLLOWER |
| 2ND AND 3RD SPEED | ||
| 521 | A 3142620237 | SYNCHRONIZER CONE |
| Repalced by: A 3142620437 | ||
| 521 | A 3142620437 | SYNCHRONIZER CONE |
| 2ND AND 3RD SPEED | ||
| A 3142620423 | SLIDING COLLAR | |
| Repalced by: A 3142621223 | ||
| A 3142621223 | SLIDING COLLAR | |
| 2ND AND 3RD SPEED | ||
| 526 | A 3142622235 | SYNCHRONIZER BODY |
| (PARTS KIT);2ND AND 3RD SPEED | ||
| 526 | A 3142622335 | SYNCHRONIZER BODY |
| (PARTS KIT);2ND AND 3RD SPEED | ||
| 531 | A 3142620212 | GEAR |
| 2ND SPEED | ||
| 536 | A 3149810012 | ROLLER ASSEMBLY |
| Repalced by: A 0019817012 | ||
| 536 | A 0019817012 | ROLLER ASSEMBLY |
| 536 | A 3149810112 | ROLLER ASSEMBLY |
| Repalced by: A 3149810612 | ||
| 536 | A 3149810612 | ROLLER ASSEMBLY |
| A 3142600525 | GEAR | |
| A 3142630233 | REVERSE IDLER GEAR | |
| Repalced by: A 3142630433 | ||
| A 3142630433 | REVERSE IDLER GEAR | |
| 541 | A 3142630633 | REVERSE IDLER GEAR |
| (PARTS KIT);1ST SPEED | ||
| 541 | A 3142630733 | REVERSE IDLER GEAR |
| (PARTS KIT);1ST SPEED | ||
| 546 | A 3149930001 | SPRING |
| 551 | A 3142620374 | PIN |
| 556 | A 3142620040 | FOLLOWER |
| 561 | A 3212620376 | BALL SOCKET |
| Repalced by: A 3142620076 | ||
| 561 | A 3142620076 | BALL SOCKET |
| 566 | A 3142620237 | SYNCHRONIZER CONE |
| Repalced by: A 3142620437 | ||
| 566 | A 3142620437 | SYNCHRONIZER CONE |
| 571 | A 3242600069 | SPRING |
| A 3142620323 | SLIDING COLLAR | |
| Repalced by: A 3142621023 | ||
| A 3142621023 | SLIDING COLLAR | |
| 1ST SPEED | ||
| 581 | A 3142621550 | BUSHING |
| AS REQUIRED | ||
| 39.5 MM | ||
| 581 | A 3142621750 | BUSHING |
| AS REQUIRED | ||
| 39.7 MM | ||
| 581 | A 3142621850 | BUSHING |
| AS REQUIRED | ||
| 39.8 MM | ||
| 581 | A 3142621950 | BUSHING |
| AS REQUIRED | ||
| 39.9 MM | ||
| 581 | A 3142622250 | BUSHING |
| AS REQUIRED | ||
| 40,2 MM | ||
| 586 | N 005402004203 | CYLINDRICAL ROLLER |
| Repalced by: A 3149810012 | ||
| 586 | A 3142620053 | SPACER TUBE |
| Repalced by: A 0019817012 | ||
| 586 | A 3149810012 | ROLLER ASSEMBLY |
| Repalced by: A 0019817012 | ||
| 586 | A 0019817012 | ROLLER ASSEMBLY |
| 1ST SPEED GEAR | ||
| 586 | A 3149810612 | ROLLER ASSEMBLY |
| 1ST SPEED GEAR | ||
| 591 | A 3142620211 | GEAR |
| 1ST SPEED | ||
| 596 | A 0019816101 | CYLINDR. ROLLER BEARING |
| MAIN SHAFT,REAR | ||
| 601 | A 3249940040 | SNAP RING |
| AS REQUIRED | ||
| 1.88 MM | ||
| 601 | A 3249940140 | SNAP RING |
| AS REQUIRED | ||
| 1.93 MM | ||
| 601 | A 3249940240 | SNAP RING |
| AS REQUIRED | ||
| 1.98 MM | ||
| 601 | A 3249940340 | SNAP RING |
| AS REQUIRED | ||
| 2.03 MM | ||
| 601 | A 3249940440 | SNAP RING |
| AS REQUIRED | ||
| 2.08 MM | ||
| 601 | A 3249940540 | SNAP RING |
| AS REQUIRED | ||
| 2.13 MM | ||
| 601 | A 3249940640 | SNAP RING |
| AS REQUIRED | ||
| 2.18 MM | ||
| 606 | A 0009813727 | ANGULAR CONTACT BEARING |
| OUTPUT FLANGE | ||
| 606 | A 0009813427 | ANGULAR CONTACT BEARING |
| OUTPUT FLANGE | ||
| 611 | A 3142640230 | DRIVE GEAR |
| SPEEDOMETER | ||
| 616 | A 3142620145 | FLANGE |
| (COUPLING FLANGE) | ||
| 621 | A 3142620072 | NUT |
| FLANGE TO MAIN SHAFT | ||
| 626 | A 3142630402 | COUNTERSHAFT |
| Repalced by: A 3142631002 | ||
| 626 | A 3142631002 | COUNTERSHAFT |
| 631 | A 3142630614 | GEAR |
| Repalced by: A 3142630514 | ||
| 631 | A 3142630514 | GEAR |
| Repalced by: A 3142631414 | ||
| 631 | A 3142631414 | GEAR |
| 4TH SPEED | ||
| 636 | A 3142630210 | GEAR |
| Repalced by: A 3142630710 | ||
| 636 | A 3142630710 | GEAR |
| CONSTANT | ||
| 641 | N 006888008004 | WOODRUFF KEY |
| COUNTERSHAFT | ||
| TO 314 263 05 14 | ||
| 641 | A 3149910267 | WOODRUFF KEY |
| COUNTERSHAFT | ||
| TO 314 263 14 14 | ||
| 646 | N 900055042301 | LOCK RING |
| COUNTERSHAFT | ||
| 651 | A 0019815705 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 651 | A 0019817105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 651 | A 0019819105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 651 | A 0059819705 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 656 | A 3142650108 | LEVER |
| REVERSE SPEED | ||
| 661 | A 3212650449 | SLIDE |
| 661 | A 3142650349 | SLIDE |
| 666 | A 3142650274 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 671 | A 3142600425 | GEAR |
| REVERSE SPEED | ||
| 676 | A 3142630230 | REVERSE IDLER SHAFT |
| 681 | A 3785867026 | REPAIR KIT |
| Repalced by: A 6882600400 | ||
| 681 | A 6882600400 | GASKET KIT |
| Repalced by: A 6882601000 | ||
| 681 | A 6882601000 | GASKET KIT |
| 686 | A 3142603039 | SHIFT LEVER |
| Repalced by: A 3142601739 | ||
| 686 | A 3142601739 | SHIFT LEVER |
| 686 | A 3782607139 | SHIFT LEVER |
| 686 | A 3102600139 | SHIFT LEVER |
| 686 | A 3782607439 | SHIFT LEVER |
| 691 | A 1109930401 | SPRING |
| 696 | A 3022670008 | SPHERICAL PIECE |
| 701 | A 3142680005 | COVER |
| Repalced by: A 3082680005 | ||
| 701 | A 3082680005 | COVER |
| 706 | A 3372670096 | BOOT |
| 706 | A 3522670196 | BOOT |
| 711 | A 3142680596 | BOOT |
| 711 | A 3142681296 | BOOT |
| 716 | N 000936010002 | NUT |
| 721 | A 3222600040 | HANDLE |
| 726 | N 000127014203 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 731 | N 000933014004 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
