Transporto priemonė: L 608 E; VIN numerio dalis: 378325
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 732.3 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR WHEEL BRAKE, SEE PARTS LIST: | ||
| 743.7 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SINGLE CIRCUIT BRAKE | ||

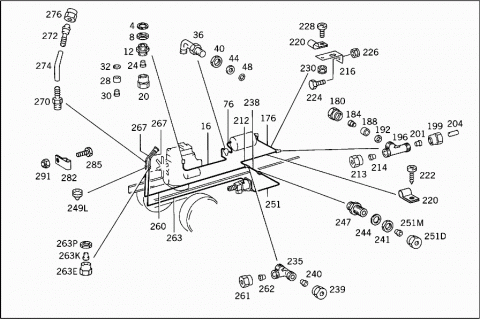

| 004 | N 007603022100 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 004 | N 007603022100 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 008 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 008 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 012 | N 074313018200 | FITTING |
| AT AIR COMPRESSOR | ||
| 012 | N 074313018200 | FITTING |
| AT AIR COMPRESSOR | ||
| 012 | N 074298022202 | DOUBLE FITTING |
| AT AIR COMPRESSOR | ||
| 016 | A 3784297001 | LINE |
| Repalced by: A 3784207026 | ||
| 016 | A 3784207026 | LINE |
| FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER | ||
| 18 MM | ||
| 016 | A 3784207026 | LINE |
| FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER | ||
| 18 MM | ||
| 016 | A 3784207626 | LINE |
| FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER | ||
| 15 MM | ||
| 020 | N 915018018000 | UNION NUT |
| 020 | N 915018018000 | UNION NUT |
| 020 | N 915018015000 | UNION NUT |
| 024 | N 003861018003 | GLAND |
| 024 | N 003861018003 | GLAND |
| 024 | N 003861015004 | GLAND |
| 028 | N 074297018302 | THRUST RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 028 | N 074297018302 | THRUST RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 030 | N 074297012400 | SLIP RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 032 | A 0004291584 | SEAL RING |
| Repalced by: N 915045015100 | ||
| 032 | N 915045015100 | SEAL RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 032 | N 915045015100 | SEAL RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 032 | N 074297012400 | SEAL RING |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 036 | N 074301026202 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 036 | N 074301026202 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 040 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 040 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 044 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 044 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 044 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 048 | A 0009870446 | O-RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 048 | A 0009870446 | O-RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||

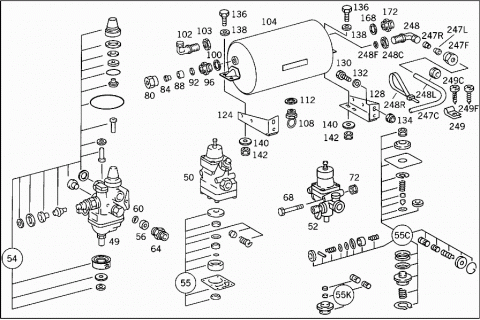

| 049 | A 0004319106 | PRESSURE REGULATOR |
| Repalced by: A 0014310606 | ||
| 050 | A 0014310606 | PRESSURE REGULATOR |
| Repalced by: A 0014310006 | ||
| 052 | A 0014310006 | PRESSURE REGULATOR |
| WABCO | ||
| 052 | A 0014310006 | PRESSURE REGULATOR |
| WABCO | ||
| 054 | A 0025864143 | REPAIR KIT |
| 054 | A 0025865043 | REPAIR KIT |
| 055 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 055 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06 | ||
| 055 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06 | ||
| 055C | A 0015864343 | REPAIR KIT |
| TO 001 431 00 06 | ||
| 055K | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06 | ||
| 056 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 056 | A 0009940203 | THRUST RING |
| 060 | A 0009870446 | O-RING |
| 064 | N 074298022202 | DOUBLE FITTING |
| 068 | N 000931008228 | SCREW |
| PRESSURE REGULATOR TO SUPPORT | ||
| 068 | N 000931008228 | SCREW |
| PRESSURE REGULATOR TO SUPPORT | ||
| 072 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO SUPPORT | ||
| 072 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO SUPPORT | ||
| 076 | A 3104290301 | LINE |
| Repalced by: A 3104200626 | ||
| 076 | A 3104200626 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 076 | A 3104200626 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 076 | A 3784207726 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 080 | N 915018015000 | UNION NUT |
| 080 | N 915018015000 | UNION NUT |
| 084 | N 003861015004 | GLAND |
| 084 | N 003861015004 | GLAND |
| 088 | N 915065015101 | THRUST RING |
| FRONT AIR RESERVOIR | ||
| 088 | N 915065015101 | THRUST RING |
| FRONT AIR RESERVOIR | ||
| 092 | N 915045012100 | SEAL RING |
| FRONT AIR RESERVOIR | ||
| 092 | N 915045012100 | SEAL RING |
| FRONT AIR RESERVOIR | ||
| 096 | N 074299022203 | DOUBLE FITTING |
| FRONT AIR RESERVOIR | ||
| 096 | N 074299022203 | DOUBLE FITTING |
| FRONT AIR RESERVOIR | ||
| 100 | N 007603022100 | SEAL RING |
| FRONT AIR RESERVOIR | ||
| 100 | N 007603022100 | SEAL RING |
| FRONT AIR RESERVOIR | ||
| 102 | N 074301022202 | ELBOW FITTING |
| FRONT AIR RESERVOIR | ||
| 102 | N 074315000200 | FITTING |
| FRONT AIR RESERVOIR | ||
| 103 | N 074305022202 | NUT |
| FRONT AIR RESERVOIR | ||
| 104 | A 3224302205 | RESERVOIR |
| Repalced by: A 3784307105 | ||
| 104 | A 3784307105 | RESERVOIR |
| 104 | A 3784307105 | RESERVOIR |
| A 3784307305 | RESERVOIR | |
| A 3784307305 | RESERVOIR | |
| 108 | A 0004321107 | VALVE |
| Repalced by: A 3514307581 | ||
| 108 | A 3514307581 | VALVE |
| Repalced by: A 0004322507 | ||
| 108 | A 0004322507 | VALVE |
| DRAIN | ||
| 108 | A 0004322507 | VALVE |
| DRAIN | ||
| 108 | A 0004322507 | VALVE |
| DRAIN | ||
| 108 | A 0004320807 | VALVE |
| Repalced by: A 3454300081 | ||
| 108 | A 3454300081 | VALVE |
| Repalced by: A 0004322407 | ||
| 108 | A 0004322407 | VALVE |
| DRAIN | ||
| 108 | A 0004322407 | VALVE |
| DRAIN | ||
| 112 | N 007603022102 | SEAL RING |
| DRAIN VALVE | ||
| 112 | N 007603022102 | SEAL RING |
| DRAIN VALVE | ||
| N 003901006005 | SCREW-IN FITTING | |
| N 007603012112 | SEAL RING | |
| 124 | A 3164920216 | SUPPORT |
| Repalced by: A 3784320016 | ||
| 124 | A 3784320016 | SUPPORT |
| LEFT | ||
| 124 | A 3784320016 | SUPPORT |
| LEFT | ||
| 128 | A 3164920316 | SUPPORT |
| Repalced by: A 3784320116 | ||
| 128 | A 3784320116 | SUPPORT |
| RIGHT | ||
| 128 | A 3784320116 | SUPPORT |
| RIGHT | ||
| 130 | N 000933010035 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 130 | N 000933010035 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 132 | N 000125010518 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 132 | N 000125010518 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 134 | N 913004010008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 134 | N 913004010008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 136 | N 304017008007 | SCREW |
| AIR RESERVOIR TO SUPPORT | ||
| 136 | N 304017008007 | SCREW |
| AIR RESERVOIR TO SUPPORT | ||
| 138 | N 000125008417 | WASHER |
| AIR RESERVOIR TO SUPPORT | ||
| 138 | N 000125008417 | WASHER |
| AIR RESERVOIR TO SUPPORT | ||
| 140 | N 009021008102 | WASHER |
| AIR RESERVOIR TO SUPPORT | ||
| 140 | N 009021008102 | WASHER |
| AIR RESERVOIR TO SUPPORT | ||
| 142 | N 913004008004 | NUT |
| AIR RESERVOIR TO SUPPORT | ||
| 142 | N 913004008004 | NUT |
| AIR RESERVOIR TO SUPPORT | ||
| 144 | N 007604016102 | SCREW PLUG |
| AT BRAKE BOOSTER | ||
| 146 | N 007603016100 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 168 | N 007603022102 | SEAL RING |
| 172 | N 074298022202 | DOUBLE FITTING |
| 176 | A 3104290401 | LINE |
| FROM AIR RESERVOIR TO T-FITTING | ||
| 180 | N 915018015000 | UNION NUT |
| 184 | N 003861015004 | GLAND |
| 188 | N 915065015101 | THRUST RING |
| 192 | N 915045012100 | SEAL RING |
| 196 | A 3169900070 | T-FITTING |
| 199 | N 915017012100 | UNION NUT |
| AT T-FITTING | ||
| 201 | N 003861012007 | GLAND |
| AT T-FITTING | ||
| 204 | A 3104290074 | PIN |
| AT T-FITTING | ||
| 212 | A 3104290801 | LINE |
| FROM T-FITTING TO T-FITTING | ||
| 213 | N 915017012100 | UNION NUT |
| 214 | N 003861012007 | GLAND |
| 216 | A 3524281740 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 220 | A 3609950401 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 222 | N 007516006105 | TAPPING SCREW |
| BRAKE LINE MOUNTING | ||
| 224 | N 000933008036 | SCREW |
| BRAKE LINE MOUNTING | ||
| 226 | N 913004008004 | NUT |
| BRAKE LINE MOUNTING | ||
| 228 | N 007985006192 | SCREW |
| BRAKE LINE MOUNTING | ||
| 230 | N 913004006002 | NUT |
| BRAKE LINE MOUNTING | ||
| 235 | A 0004311975 | THREADED UNION |
| 238 | A 3104290901 | LINE |
| FROM T-FITTING TO BULKHEAD FITTING | ||
| 239 | N 915017012100 | UNION NUT |
| 240 | N 003861012007 | GLAND |
| 241 | N 080705018001 | NUT |
| 244 | N 000125019004 | WASHER |
| 247 | N 003910012001 | BULKHEAD FITTING |
| 247C | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 247C | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247C | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247F | N 915017012100 | UNION NUT |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247F | N 915017012100 | UNION NUT |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247L | N 003861012007 | GLAND |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247L | N 003861012007 | GLAND |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247R | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 247R | N 915062009000 | SLEEVE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 247R | N 915062009000 | SLEEVE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 248 | N 074315012101 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| V | ||
| 248 | N 074315012101 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| V | ||
| 248 | A 0009907771 | ELBOW FITTING |
| 248 | A 0009907771 | ELBOW FITTING |
| 248C | N 074305022202 | NUT |
| AIR RESERVOIR,CONNECTION: | ||
| V | ||
| 248C | N 074305022202 | NUT |
| AIR RESERVOIR,CONNECTION: | ||
| V | ||
| 248F | A 0009870446 | O-RING |
| AIR RESERVOIR,CONNECTION: | ||
| V | ||
| 248F | A 0009870446 | O-RING |
| AIR RESERVOIR,CONNECTION: | ||
| V | ||
| 248L | A 3129970481 | GROMMET |
| SUPPLY LINE TO FRAME | ||
| 248L | A 3129970481 | GROMMET |
| SUPPLY LINE TO FRAME | ||
| 248R | A 0029972290 | LOOM TIE |
| LINE MOUNTING | ||
| 248R | A 0029972290 | LOOM TIE |
| LINE MOUNTING | ||
| 249 | A 3609950401 | CLAMP |
| LINE MOUNTING | ||
| 249 | A 3609950401 | CLAMP |
| LINE MOUNTING | ||
| 249 | A 3609950401 | CLAMP |
| LINE MOUNTING | ||
| 249C | N 007516006105 | TAPPING SCREW |
| LINE MOUNTING | ||
| 249C | N 007516006105 | TAPPING SCREW |
| LINE MOUNTING | ||
| 249C | N 007516006105 | TAPPING SCREW |
| LINE MOUNTING | ||
| 249F | N 007981006208 | SHEET METAL SCREW |
| LINE MOUNTING | ||
| 249F | N 007981006208 | SHEET METAL SCREW |
| LINE MOUNTING | ||
| 249L | A 1869970681 | GROMMET |
| PRESSURE GAUGE LINE THRU WINDOW SILL | ||
| 249L | A 1869970681 | GROMMET |
| PRESSURE GAUGE LINE THRU WINDOW SILL | ||

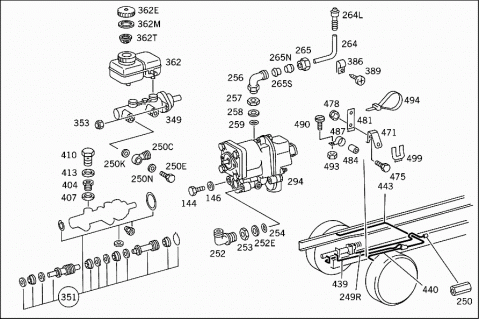

| 249R | A 3104206628 | LINE |
| FROM BRAKE BOOSTER TO HOSE | ||
| 250 | A 0004292736 | CONNECTOR |
| 250C | A 0004280830 | CONNECTOR |
| BRAKE LINE TO BRAKE BOOSTER ASSEMBLY | ||
| 250E | A 0009901763 | HOLLOW SCREW |
| BRAKE LINE TO BRAKE BOOSTER ASSEMBLY | ||
| 250K | N 007603012110 | SEAL RING |
| BRAKE LINE TO BRAKE BOOSTER ASSEMBLY | ||
| 250N | N 007603014102 | SEAL RING |
| BRAKE LINE TO BRAKE BOOSTER ASSEMBLY | ||
| 251 | A 3104291001 | LINE |
| Repalced by: A 3104201326 | ||
| 251 | A 3104201326 | LINE |
| FROM BULKHEAD FITTING TO BRAKE BOOSTER | ||
| 251 | A 3104201326 | LINE |
| FROM BULKHEAD FITTING TO BRAKE BOOSTER | ||
| 251D | N 915017012100 | UNION NUT |
| 251D | N 915017012100 | UNION NUT |
| 251M | N 003861012007 | GLAND |
| 251M | N 003861012007 | GLAND |
| A 0009903771 | ELBOW FITTING | |
| Repalced by: A 3089907171 | ||
| 252 | A 3089907171 | ELBOW FITTING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 252 | A 3089907171 | ELBOW FITTING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 252 | A 3089907171 | ELBOW FITTING |
| BRAKE BOOSTER,CONNECTION: | ||
| A | ||
| 252E | A 0004290727 | THRUST RING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 252E | A 0004290727 | THRUST RING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 252E | A 0004290727 | THRUST RING |
| BRAKE BOOSTER,CONNECTION: | ||
| A | ||
| 252E | A 3084297027 | THRUST RING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 252E | A 3084297027 | THRUST RING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 252E | A 3084297027 | THRUST RING |
| BRAKE BOOSTER,CONNECTION: | ||
| A | ||
| 253 | N 080705016003 | NUT |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 253 | N 080705016003 | NUT |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 253 | N 080705016003 | NUT |
| BRAKE BOOSTER,CONNECTION: | ||
| A | ||
| 254 | A 0029971640 | SEAL RING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 254 | A 0029971640 | SEAL RING |
| BRAKE BOOSTER,CONNECTION: | ||
| V | ||
| 254 | A 0029971640 | SEAL RING |
| BRAKE BOOSTER,CONNECTION: | ||
| A | ||
| 255 | N 007604016102 | SCREW PLUG |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 255 | N 007604016102 | SCREW PLUG |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 255K | N 007603016100 | SEAL RING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 255K | N 007603016100 | SEAL RING |
| BRAKE BOOSTER,"A" CONNECTION | ||
| 256 | A 0004292738 | ELBOW FITTING |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 256 | A 0004292738 | ELBOW FITTING |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 257 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 257 | N 000936012005 | NUT |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 257 | N 000936012005 | NUT |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 258 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 258 | A 0009940103 | THRUST RING |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 258 | A 0009940103 | THRUST RING |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 259 | A 0019875046 | SEALING CORD |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 259 | A 0019875046 | SEALING CORD |
| FROM BRAKE BOOSTER TO PRESSURE GAUGE | ||
| 260 | A 3105420043 | PIPE LINE |
| FROM T-FITTING TO INSTRUMENT CLUSTER | ||
| 261 | N 915017006100 | UNION NUT |
| 262 | N 003861006007 | GLAND |
| 263 | A 3105420143 | PIPE LINE |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 263E | N 915017006106 | UNION NUT |
| 263E | N 915017006100 | UNION NUT |
| 263K | N 003861006007 | GLAND |
| 263K | N 003861006007 | GLAND |
| 263P | N 080705012003 | NUT |
| 264 | A 0089976082 | HOSE |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 264 | A 0089976082 | HOSE |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 264L | A 0019975072 | FITTING |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 264L | A 0019975072 | FITTING |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 264L | A 3514297241 | FITTING |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 264L | A 3514297241 | FITTING |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 265 | N 915017006200 | UNION NUT |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 265 | N 915017006200 | UNION NUT |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 265 | A 3514297029 | UNION NUT |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 265 | A 3514297029 | UNION NUT |
| FROM BRAKE BOOSTER TO INSTRUMENT CLUSTER | ||
| 265 | N 915017006100 | UNION NUT |
| PRESSURE GAUGE LINES | ||
| 265 | N 915017006100 | UNION NUT |
| PRESSURE GAUGE LINES | ||
| 265N | N 003861006007 | GLAND |
| PRESSURE GAUGE LINES | ||
| 265N | N 003861006007 | GLAND |
| PRESSURE GAUGE LINES | ||
| 265S | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 265S | N 915062004000 | SLEEVE |
| PRESSURE GAUGE LINES | ||
| 265S | N 915062004000 | SLEEVE |
| PRESSURE GAUGE LINES | ||
| 267 | A 3105400661 | ELECTRIC CABLE |
| A 0019973472 | FITTING | |
| Repalced by: N 915059004000 | ||
| 270 | N 915059004000 | FITTING |
| 272 | A 0019975072 | FITTING |
| 274 | A 0089976082 | HOSE |
| 276 | N 915017006200 | UNION NUT |
| 282 | A 3049951020 | CLAMP |
| PRESSURE GAUGE LINE TO CAB CROSS MEMBER | ||
| 285 | N 000933006024 | SCREW |
| PRESSURE GAUGE LINE TO CAB CROSS MEMBER | ||
| 285 | N 000933006010 | SCREW |
| PRESSURE GAUGE LINE TO CAB CROSS MEMBER | ||
| 291 | N 913004006002 | NUT |
| PRESSURE GAUGE LINE TO CAB CROSS MEMBER | ||

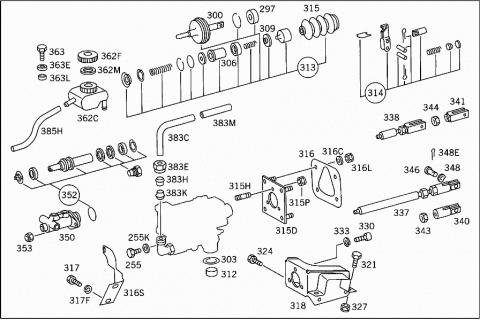

| 294 | A 0004314314 | BRAKE BOOSTER |
| 294 | A 0004314314 | BRAKE BOOSTER |
| 297 | A 0019977847 | SEAL RING |
| 297 | A 0019977847 | SEAL RING |
| 300 | A 0014316883 | PISTON |
| 300 | A 0014316883 | PISTON |
| 303 | A 0004310260 | SEAL RING |
| 303 | A 0004310260 | SEAL RING |
| 306 | A 0004316783 | PISTON |
| 306 | A 0004316783 | PISTON |
| 309 | A 0004312589 | SPRING RETAINER |
| 309 | A 0004312589 | SPRING RETAINER |
| 312 | A 0004290695 | AIR CLEANER |
| 312 | A 0004290695 | AIR CLEANER |
| 313 | H 983085860043 | REPAIR KIT |
| MAJOR | ||
| 313 | H 983085860043 | REPAIR KIT |
| MAJOR | ||
| 314 | H 983085860143 | REPAIR KIT |
| MINOR | ||
| 314 | H 983085860143 | REPAIR KIT |
| MINOR | ||
| 315 | H 993784260096 | CUP |
| 315 | A 3094260196 | CUP |
| 315 | A 3094260096 | CUP |
| 315 | A 3094260096 | CUP |
| 315D | A 3094300063 | REINFORCEMENT |
| BRAKE BOOSTER TO CAB | ||
| 315D | A 3094300063 | REINFORCEMENT |
| BRAKE BOOSTER TO CAB | ||
| 315H | N 000835010062 | STUD |
| BRAKE BOOSTER TO CAB | ||
| 315H | N 000835010062 | STUD |
| BRAKE BOOSTER TO CAB | ||
| 315P | N 913004010008 | NUT |
| BRAKE BOOSTER TO CAB | ||
| 315P | N 913004010008 | NUT |
| BRAKE BOOSTER TO CAB | ||
| 316 | A 3094350080 | GASKET |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 316 | A 3094350080 | GASKET |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 316C | N 000125008417 | WASHER |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 316C | N 000125008417 | WASHER |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 316L | N 913004008004 | NUT |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 316L | N 913004008004 | NUT |
| BRAKE BOOSTER TO FRONT PANEL | ||
| 316S | A 3094311740 | BRACKET |
| BRAKE BOOSTER BRACING | ||
| 316S | A 3094311740 | BRACKET |
| BRAKE BOOSTER BRACING | ||
| 317 | N 000933008212 | SCREW |
| BRACKET TO SIDE PLATE | ||
| 317 | N 000933008212 | SCREW |
| BRACKET TO SIDE PLATE | ||
| 317F | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE PLATE | ||
| 317F | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE PLATE | ||
| 318 | A 3104300211 | CONSOLE |
| 321 | N 000933010034 | SCREW |
| CONSOLE TO FRAME | ||
| 324 | N 000933010129 | SCREW |
| CONSOLE TO FRAME | ||
| 327 | N 913004010008 | NUT |
| CONSOLE TO FRAME | ||
| 330 | N 000912010006 | SCREW |
| AIR COMPRESSOR TO SUPPORT | ||
| 333 | N 007980010002 | LOCK WASHER |
| AIR COMPRESSOR TO SUPPORT | ||
| 337 | A 3104200674 | ROD |
| A 3094202474 | ROD | |
| Repalced by: A 3094202774 | ||
| 338 | A 3094202774 | ROD |
| 338 | A 3094202774 | ROD |
| 340 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| A 3099960001 | YOKE | |
| Repalced by: A 3099960301 | ||
| 341 | A 3099960301 | YOKE |
| 341 | A 3099960301 | YOKE |
| 343 | N 000934012031 | NUT |
| 344 | N 000934010035 | NUT |
| 344 | N 000934010035 | NUT |
| 346 | N 001434008108 | PIN |
| ROD TO BRAKE PEDAL | ||
| 346 | N 001434008108 | PIN |
| ROD TO BRAKE PEDAL | ||
| 348 | N 900055008001 | SPRING WASHER |
| ROD TO BRAKE PEDAL | ||
| 348 | N 900055008001 | SPRING WASHER |
| ROD TO BRAKE PEDAL | ||
| 348E | N 000094002053 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 348E | N 000094002053 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 349 | A 0024304601 | BRAKE MASTER CYLINDER |
| 349 | A 0034307001 | BRAKE MASTER CYLINDER |
| 349 | A 0034307001 | BRAKE MASTER CYLINDER |
| 349 | A 0034307001 | BRAKE MASTER CYLINDER |
| 350 | A 0024309801 | BRAKE MASTER CYLINDER |
| PEDAL ASSEMBLY | ||
| 351 | A 0005866643 | REPAIR KIT |
| TO 002 430 46 01 | ||
| 351 | A 0005866643 | REPAIR KIT |
| TO 002 430 46 01 | ||
| 352 | A 0015866543 | REPAIR KIT |
| TO 002 430 98 01 | ||
| 353 | N 913004008004 | NUT |
| MASTER CYLINDER TO BRAKE BOOSTER | ||

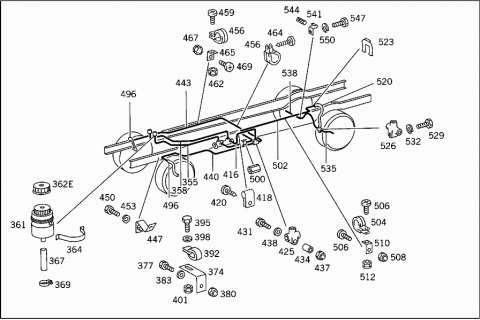

| 355 | A 3104201528 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 358 | A 3104201628 | LINE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 361 | A 0004316502 | RESERVOIR |
| 362 | A 0004318602 | RESERVOIR |
| 362 | A 0004318602 | RESERVOIR |
| 362 | A 0004318602 | RESERVOIR |
| 362C | A 0004318502 | RESERVOIR |
| 362E | A 0004313533 | FILLER CAP |
| TO 000 431 65 02 | ||
| 362E | A 0004313533 | FILLER CAP |
| TO 000 431 65 02 | ||
| 362F | A 0004311333 | FILLER CAP |
| Repalced by: A 0002950237 | ||
| 362F | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 362F | A 0004315433 | FILLER CAP |
| TO 000 431 85 02 | ||
| 362M | A 0009972940 | SEAL RING |
| 362M | A 0009972940 | SEAL RING |
| 362T | A 0004310034 | STRAINER |
| 362T | A 0004310034 | STRAINER |
| 363 | A 0004311371 | SCREW |
| TO 000 431 85 02 | ||
| 363E | A 0004316287 | PROTECTIVE CAP |
| TO 000 431 85 02 | ||
| 363L | A 0014310060 | SEAL RING |
| TO 000 431 85 02 | ||
| 364 | A 3094310043 | CLAMP |
| 367 | A 3099971682 | HOSE |
| 369 | N 916002014100 | CLAMP |
| 374 | A 3094280440 | BRACKET |
| 377 | N 000933010034 | SCREW |
| BRACKET TO FRAME | ||
| 380 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 383 | N 000125010518 | WASHER |
| BRACKET TO FRAME | ||
| 383C | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 383C | A 0009872827 | PLASTIC PIPE |
| DIAPHRAGM CYLINDER | ||
| 3300 MM | ||
| 383E | N 915017012100 | UNION NUT |
| FROM HOSE TO BRAKE BOOSTER | ||
| 383H | N 003861012007 | GLAND |
| FROM HOSE TO BRAKE BOOSTER | ||
| 383K | N 915062009000 | SLEEVE |
| FROM HOSE TO BRAKE BOOSTER | ||
| 383M | N 040621012200 | INSULATING HOSE |
| FROM HOSE TO BRAKE BOOSTER | ||
| 383P | N 003901012005 | SCREW-IN FITTING |
| CONTROL CABLE | ||
| 383Q | N 007603016105 | SEAL RING |
| CONTROL CABLE | ||

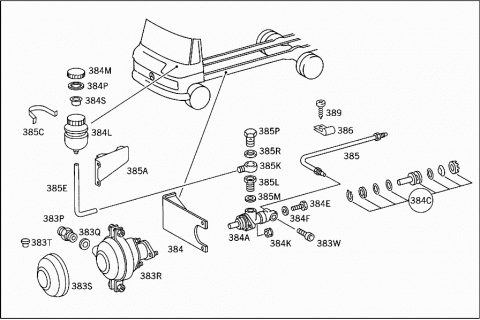

| 383R | A 0004317214 | BRAKE CYLINDER |
| Repalced by: A 0014319314 | ||
| 383R | A 0014319314 | BRAKE CYLINDER |
| AT AIR RESERVOIR | ||
| "WABCO" | ||
| 383S | A 0004311728 | DIAPHRAGM |
| 383T | A 0004210011 | PLUG |
| A 0004302568 | REPAIR KIT | |
| PARTS KIT | ||
| 383W | A 0004280032 | SCREW PLUG |
| DIAPHRAGM CYLINDER | ||
| 384 | A 3104300810 | BRACKET |
| 384A | A 0024305001 | BRAKE MASTER CYLINDER |
| AT AIR RESERVOIR | ||
| 384C | A 0025865143 | REPAIR KIT |
| TO 002 430 50 01 | ||
| 384E | N 000908010004 | SCREW PLUG |
| BRAKE MASTER CYLINDER | ||
| 384F | N 007603010110 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| 384K | N 913004008004 | NUT |
| BRAKE MASTER CYLINDER | ||
| 384L | A 0004316502 | RESERVOIR |
| 384M | A 0004313533 | FILLER CAP |
| TO 000 431 65 02 | ||
| 384P | A 0009972940 | SEAL RING |
| TO 000 431 65 02 | ||
| 384S | A 0004310034 | STRAINER |
| TO 000 431 65 02 | ||
| 385 | A 3784207329 | LINE |
| FROM MASTER CYLINDER TO INTERMEDIATE PIECE | ||
| 385A | A 3104301510 | BRACKET |
| AT BRAKE BOOSTER | ||
| 385C | A 3094310043 | CLAMP |
| 385E | A 3099970382 | HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 385H | A 0089979082 | HOSE |
| 1650 MM | ||
| 385K | A 0009905888 | BANJO UNION |
| Repalced by: N 915052006001 | ||
| 385K | N 915052006001 | BANJO UNION |
| 385L | A 3099900054 | NUT |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 385M | N 007603022100 | SEAL RING |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 385P | N 915036010100 | HOLLOW SCREW |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 385R | N 007603014100 | SEAL RING |
| REFILLING LINE TO BRAKE MASTER CYLINDER | ||
| 386 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 386 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 386 | N 916016008200 | CLAMP |
| PRESSURE GAUGE LINE TO CAB CROSS MEMBER | ||
| 389 | N 007981005214 | SHEET METAL SCREW |
| PRESSURE GAUGE LINE TO CAB CROSS MEMBER | ||
| 392 | A 0009951205 | CLAMP |
| BRAKE LINE TO BRACKET | ||
| 395 | N 000933006024 | SCREW |
| BRAKE LINE TO BRACKET | ||
| 398 | N 000125006421 | WASHER |
| BRAKE LINE TO BRACKET | ||
| 401 | N 913004006002 | NUT |
| BRAKE LINE TO BRACKET | ||
| 404 | A 3099900054 | NUT |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 407 | N 007603022102 | SEAL RING |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 410 | N 915036010100 | HOLLOW SCREW |
| 413 | N 007603014102 | SEAL RING |
| 416 | A 3104201428 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 418 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 418 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 418 | N 916016008200 | CLAMP |
| BRAKE LINE TO CAB SIDE MEMBER | ||
| 420 | N 007981005214 | SHEET METAL SCREW |
| BRAKE LINE TO CAB SIDE MEMBER | ||
| 425 | A 0004290437 | DISTRIBUTOR |
| Repalced by: A 3414297037 | ||
| 425 | A 3414297037 | DISTRIBUTOR |
| 425 | A 0004294337 | DISTRIBUTOR |
| Repalced by: A 3454297037 | ||
| 425 | A 3454297037 | DISTRIBUTOR |
| 431 | N 000931008227 | SCREW |
| DISTRIBUTOR TO FRAME | ||
| 434 | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO FRAME | ||
| 437 | N 913004008004 | NUT |
| DISTRIBUTOR TO FRAME | ||
| 438 | N 000125008417 | WASHER |
| DISTRIBUTOR TO FRAME | ||
| 439 | A 3104209128 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 439 | A 3104209128 | LINE |
| FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR | ||
| 440 | A 3784207229 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 440 | A 3094203528 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 440 | A 3104209428 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 440 | A 3784207029 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 440 | A 3104202529 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 443 | A 3104209528 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 443 | A 3094203728 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 443 | A 3784207129 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 443 | A 3104202629 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 447 | A 3094300110 | BRACKET |
| LEFT | ||
| 447 | A 3094300210 | BRACKET |
| RIGHT | ||
| 450 | N 000933010011 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 453 | N 000127010205 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 456 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 456 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 459 | N 007985006193 | SCREW |
| BRAKE LINE TO FRAME | ||
| 462 | N 913004006002 | NUT |
| BRAKE LINE TO FRAME | ||
| 464 | N 007516006103 | TAPPING SCREW |
| A 3604280143 | ANGLE | |
| Repalced by: A 3784280043 | ||
| 465 | A 3784280043 | ANGLE |
| BRAKE LINE TO FRAME | ||
| 467 | N 913004006002 | NUT |
| BRAKE LINE TO FRAME | ||
| 469 | N 007985006193 | SCREW |
| BRAKE LINE TO FRAME | ||
| 471 | A 3094280043 | ANGLE |
| LEFT | ||
| 471 | A 3094280443 | ANGLE |
| LEFT | ||
| 471 | A 3094280143 | ANGLE |
| RIGHT | ||
| 471 | A 3094280543 | ANGLE |
| RIGHT | ||
| 475 | N 000933010129 | SCREW |
| MOUNTING ANGLE TO FRAME | ||
| M 10X30 | ||
| 475 | N 000933010035 | SCREW |
| MOUNTING ANGLE TO FRAME | ||
| M 10X25 | ||
| 478 | N 913004010001 | NUT |
| MOUNTING ANGLE TO FRAME | ||
| 481 | A 3092920440 | BRACKET |
| 484 | A 3129970582 | HOSE |
| 487 | A 3129950935 | CLAMP |
| HOSE TO BRAKE LINE | ||
| 490 | N 000084004136 | SCREW |
| HOSE TO BRAKE LINE | ||
| 493 | N 000934004006 | NUT |
| HOSE TO BRAKE LINE | ||
| 494 | A 0019978390 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 494 | A 0019978490 | LOOM TIE |
| HOSE TO BRAKE LINE | ||
| A 0004287635 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| 496 | A 0024280535 | BRAKE HOSE |
| 496 | A 3414288035 | BRAKE HOSE |
| 496 | A 0014285535 | BRAKE HOSE |
| 499 | A 0004280073 | LOCK |
| Repalced by: A 0004280473 | ||
| 499 | A 0004280473 | BRACKET |
| BRAKE HOSE | ||
| 500 | A 0004292736 | CONNECTOR |
| 502 | A 3104201728 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 502 | A 3104206728 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 502 | A 3104206728 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 502 | A 3104201928 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 502 | A 3104206828 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 502 | A 3104206828 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 502 | A 3104206928 | LINE |
| FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE | ||
| 504 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 504 | N 916016008200 | CLAMP |
| 506 | N 007985006192 | SCREW |
| 508 | N 913002006003 | NUT |
| A 3604280143 | ANGLE | |
| Repalced by: A 3784280043 | ||
| 510 | A 3784280043 | ANGLE |
| 512 | N 913004006002 | NUT |
| 520 | A 0004280135 | BRAKE HOSE |
| 520 | A 0014283635 | BRAKE HOSE |
| 520 | A 3414287135 | BRAKE HOSE |
| 523 | A 0004280073 | LOCK |
| Repalced by: A 0004280473 | ||
| 523 | A 0004280473 | BRACKET |
| BRAKE HOSE | ||
| 526 | A 0004290437 | DISTRIBUTOR |
| Repalced by: A 3414297037 | ||
| 526 | A 3414297037 | DISTRIBUTOR |
| 526 | A 0004294337 | DISTRIBUTOR |
| Repalced by: A 3454297037 | ||
| 526 | A 3454297037 | DISTRIBUTOR |
| 529 | N 000933008066 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| 532 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 535 | A 3094205028 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 535 | A 3104208628 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 535 | A 3104208628 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 538 | A 3094205128 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 538 | A 3104208728 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 538 | A 3104208728 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 541 | A 3129951020 | CLAMP |
| BRAKE LINE TO AXLE TUBE | ||
| 544 | A 3129973482 | HOSE |
| BRAKE LINE TO AXLE TUBE | ||
| 547 | N 000933008175 | SCREW |
| BRAKE LINE TO AXLE TUBE | ||
| 550 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO AXLE TUBE | ||
| A 3094200188 | RATCHET ROD | |
| Repalced by: A 3094200288 | ||

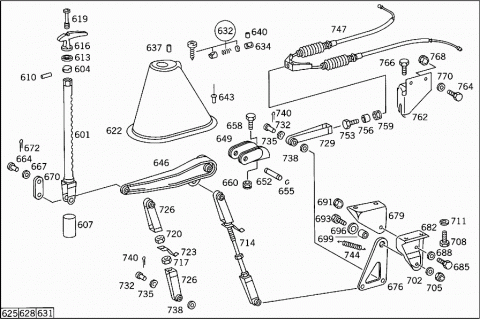

| 601 | A 3094200288 | RATCHET ROD |
| 601 | A 3094200288 | RATCHET ROD |
| 604 | A 3124271151 | SPACER RING |
| 607 | A 3534270095 | PROTECTIVE CAP |
| 610 | N 001473004021 | GROOVED PIN |
| 613 | A 3124271086 | DAMPING RING |
| 613 | A 3124271086 | DAMPING RING |
| 616 | A 3094270020 | HANDLE |
| 616 | A 3094270020 | HANDLE |
| 619 | N 914130010600 | SCREW |
| 619 | N 914130010600 | SCREW |
| 619 | N 914130010600 | SCREW |
| 622 | A 3094200144 | PROTECTIVE PLATE |
| 622 | A 3094200144 | PROTECTIVE PLATE |
| 625 | A 3124271215 | PAWL |
| Repalced by: A 3145860142 | ||
| 628 | A 1539930701 | SPRING |
| Repalced by: A 3145860142 | ||
| 631 | A 3129900043 | PLATE |
| Repalced by: A 3145860142 | ||
| 632 | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 632 | A 3144200092 | REPAIR KIT |
| 632 | A 3144200092 | REPAIR KIT |
| 634 | A 3099870115 | PLUG |
| 634 | A 3789977086 | PLUG |
| 634 | A 3789977086 | PLUG |
| 637 | N 001472003009 | GROOVED PIN |
| 637 | N 001472003009 | GROOVED PIN |
| 640 | N 001470003002 | GROOVED PIN |
| 640 | N 001470003002 | GROOVED PIN |
| 643 | N 910002004110 | RIVET |
| COVERING TO CAB | ||
| 643 | A 3789907097 | RIVET |
| COVERING TO CAB | ||
| 646 | A 3094201512 | BRAKE LEVER |
| 646 | A 3094201512 | BRAKE LEVER |
| 649 | A 3094200678 | BEARING BRACKET |
| 649 | A 3094200678 | BEARING BRACKET |
| 652 | A 3094270274 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 652 | A 3094270274 | PIN |
| BRAKE LEVER TO BEARING BRACKET | ||
| 655 | N 007993016100 | SNAP RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 655 | N 007993016100 | SNAP RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 658 | N 000933010128 | SCREW |
| BEARING BRACKET TO BRACKET AND TO CROSS MEMBER | ||
| 658 | N 000933010128 | SCREW |
| BEARING BRACKET TO BRACKET AND TO CROSS MEMBER | ||
| 660 | N 913004010008 | NUT |
| BEARING BRACKET TO BRACKET AND TO CROSS MEMBER | ||
| 660 | N 913004010008 | NUT |
| BEARING BRACKET TO BRACKET AND TO CROSS MEMBER | ||
| 664 | N 001444008214 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 664 | N 001444008214 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 667 | N 000433008403 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 667 | N 000433008403 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 670 | A 3094270489 | CONNECTOR |
| 672 | N 000094002059 | COTTER PIN |
| 672 | N 000094002059 | COTTER PIN |
| 676 | A 3104200181 | LEVER |
| 676 | A 3104200181 | LEVER |
| 679 | A 3094270536 | CONSOLE |
| 679 | A 3094270536 | CONSOLE |
| 682 | A 3104270036 | CONSOLE |
| 682 | A 3104270036 | CONSOLE |
| 685 | N 000933010035 | SCREW |
| CONSOLE TO CONSOLE | ||
| 685 | N 000933010035 | SCREW |
| CONSOLE TO CONSOLE | ||
| 688 | N 000125010518 | WASHER |
| CONSOLE TO CONSOLE | ||
| 688 | N 000125010518 | WASHER |
| CONSOLE TO CONSOLE | ||
| 691 | N 913004010008 | NUT |
| CONSOLE TO CONSOLE | ||
| 691 | N 913004010008 | NUT |
| CONSOLE TO CONSOLE | ||
| 693 | N 000931010054 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 693 | N 000931010054 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 696 | N 009021010102 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 696 | N 009021010102 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 699 | A 3104270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 699 | A 3104270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 702 | N 000125010518 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 702 | N 000125010518 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 705 | N 913004010008 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 705 | N 913004010008 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 708 | N 304017008007 | SCREW |
| CONSOLE TO CAB | ||
| 708 | N 304017008007 | SCREW |
| CONSOLE TO CAB | ||
| 711 | N 912004008102 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 711 | N 912004008102 | LOCK WASHER |
| CONSOLE TO CAB | ||
| 714 | A 3104200274 | ROD |
| 714 | A 3104200274 | ROD |
| 717 | N 000934010005 | NUT |
| 717 | N 000934010005 | NUT |
| 720 | N 000934010035 | NUT |
| 720 | N 000934010035 | NUT |
| 723 | A 3094270689 | CONNECTOR |
| 723 | A 3094270689 | CONNECTOR |
| 726 | A 3214200176 | END PIECE |
| 726 | A 3214200176 | END PIECE |
| 729 | A 3094200276 | END PIECE |
| 729 | A 3094200276 | END PIECE |
| 732 | N 001444010217 | PIN |
| 732 | N 001444010217 | PIN |
| 735 | N 900055010001 | SPRING WASHER |
| 735 | N 900055010001 | SPRING WASHER |
| 738 | N 000433010504 | WASHER |
| 738 | N 000433010504 | WASHER |
| 740 | N 000094003207 | COTTER PIN |
| 740 | N 000094003207 | COTTER PIN |
| 744 | A 3199930810 | SPRING |
| 744 | A 3199930810 | SPRING |
| A 3094201085 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| A 3094200685 | BRAKE CABLE | |
| Repalced by: A 3094201385 | ||
| 747 | A 3094201385 | BRAKE CABLE |
| 747 | A 3094201385 | BRAKE CABLE |
| 747 | A 3084207185 | BRAKE CABLE |
| 747 | A 3084207185 | BRAKE CABLE |
| A 3094201185 | BRAKE CABLE | |
| Repalced by: A 3094201485 | ||
| A 3094200785 | BRAKE CABLE | |
| Repalced by: A 3094201485 | ||
| 747 | A 3094201485 | BRAKE CABLE |
| 747 | A 3094201485 | BRAKE CABLE |
| 747 | A 3084207285 | BRAKE CABLE |
| 747 | A 3084207285 | BRAKE CABLE |
| 747 | A 3094201585 | BRAKE CABLE |
| 747 | A 3084207385 | BRAKE CABLE |
| 753 | N 000931010054 | SCREW |
| BRAKE CABLE TO FORK | ||
| 753 | N 000931010054 | SCREW |
| BRAKE CABLE TO FORK | ||
| 756 | A 3094270153 | SPACER TUBE |
| BRAKE CABLE TO FORK | ||
| 756 | A 3094270153 | SPACER TUBE |
| BRAKE CABLE TO FORK | ||
| 759 | N 913004010008 | NUT |
| BRAKE CABLE TO FORK | ||
| 759 | N 913004010008 | NUT |
| BRAKE CABLE TO FORK | ||
| A 3094271441 | BRACKET | |
| Repalced by: A 3084277041 | ||
| A 3094272341 | BRACKET | |
| Repalced by: A 3084277041 | ||
| 762 | A 3084277041 | BRACKET |
| LEFT | ||
| 762 | A 3084277041 | BRACKET |
| LEFT | ||
| A 3094271541 | BRACKET | |
| Repalced by: A 3084277141 | ||
| A 3094272441 | BRACKET | |
| Repalced by: A 3084277141 | ||
| 762 | A 3084277141 | BRACKET |
| RIGHT | ||
| 762 | A 3084277141 | BRACKET |
| RIGHT | ||
| 764 | N 304017008007 | SCREW |
| BRACKET TO FRAME | ||
| 764 | N 304017008007 | SCREW |
| BRACKET TO FRAME | ||
| 766 | N 304017008010 | SCREW |
| BRACKET TO FRAME | ||
| 766 | N 304017008010 | SCREW |
| BRACKET TO FRAME | ||
| 768 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 768 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 770 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 770 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| A 0025866743 | REPAIR KIT | |
| Repalced by: A 0004201371 | ||
| A 0004201371 | REPAIR KIT | |
| TO 001 431 12 06 | ||
| A 0004318186 | CUP | |
| Repalced by: A 0015864342 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
