Transporto priemonė: L 608 E; VIN numerio dalis: 378325

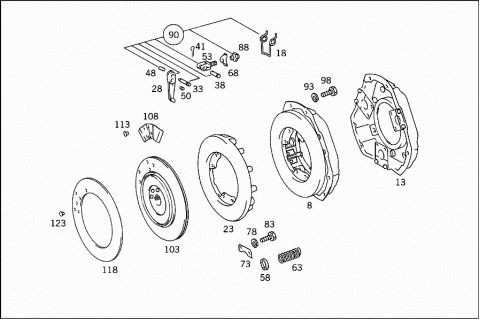

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0002509904 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501004 | ||
| 008 | A 0012507504 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501004 | ||
| 008 | A 0032501004 | CLUTCH PRESSURE PLATE |
| 008 | A 3082500004 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032501004 | ||
| 008 | A 0032501004 | CLUTCH PRESSURE PLATE |
| 013 | A 0002521632 | HOUSING |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 013 | H 983082520032 | HOUSING |
| TO 308 250 00 04 | ||
| 018 | A 0002520527 | SPRING |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 023 | A 0002507204 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002522206 | ||
| 023 | A 0002522206 | CLUTCH PRESSURE PLATE |
| WITH 8.00-MM BEARING BORE FOR RELEASE LEVER AND 19-NEEDLE BEARING | ||
| 023 | A 0002526212 | PRESSURE PLATE |
| WITH 8.10-MM BEARING BORE FOR RELEASE LEVER AND 20-NEEDLE BEARING | ||
| 023 | H 983082500104 | CLUTCH PRESSURE PLATE |
| TO 308 250 00 04 | ||
| 028 | A 0002522613 | RELEASE LEVER |
| TO 001 250 75 04 | ||
| 028 | A 0002525713 | RELEASE LEVER |
| WITH 11.00-MM BORE AND 19-NEEDLE BEARING | ||
| TO 003 250 10 04 | ||
| 028 | A 0002526413 | RELEASE LEVER |
| WITH 11.10-MM BORE AND 20-NEEDLE BEARING | ||
| 033 | A 0002520016 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 8.00 MM | ||
| 033 | A 0002523516 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 8.10 MM | ||
| 038 | A 0002520516 | SPINDLE |
| FOR BRACKETS | ||
| 8.00 MM | ||
| 038 | A 0002523616 | SPINDLE |
| FOR BRACKETS | ||
| 8.10 MM | ||
| 041 | N 000094002051 | COTTER PIN |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 041 | N 000094002030 | COTTER PIN |
| TO 308 250 00 04 | ||
| 048 | A 0002520018 | ROLLER |
| 050 | A 0002520975 | RIVET |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 053 | A 0002521014 | BRACKET |
| WITH 8.00-MM BEARING BORE FOR RELEASE LEVER AND 19-NEEDLE BEARING | ||
| 053 | A 0002523114 | BRACKET |
| WITH 8.10-MM BEARING BORE FOR RELEASE LEVER AND 20-NEEDLE BEARING | ||
| 058 | A 0002520024 | INSULATING WASHER |
| TO 001 250 75 04 | ||
| 063 | A 0002524720 | PRESSURE SPRING |
| TO 001 250 75 04 | ||
| 063 | A 0002527920 | PRESSURE SPRING |
| TO 003 250 10 04 | ||
| 063 | H 983082520020 | PRESSURE SPRING |
| TO 308 250 00 04 | ||
| 068 | A 0002520819 | LEAF SPRING |
| 073 | A 0002520573 | LOCK |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 078 | N 912004008104 | LOCK WASHER |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 083 | N 000933008005 | SCREW |
| TO 000 250 99 04,001 250 75 04, 003 250 10 04 | ||
| 088 | A 0002521171 | NUT |
| 090 | H 983085860025 | REPAIR KIT |
| TO 308 250 00 04 | ||
| 093 | N 912004008104 | LOCK WASHER |
| 098 | A 3122521071 | SCREW |
| 103 | A 0012500603 | CLUTCH DISC |
| Repalced by: A 0022507403 | ||
| 103 | A 3782500003 | CLUTCH DISC |
| Repalced by: A 3782507003 | ||
| 103 | A 3782507003 | CLUTCH DISC |
| 103 | A 0022507403 | CLUTCH DISC |
| 103 | A 0072501503 | CLUTCH DISC |
| 108 | A 0002520919 | LEAF SPRING |
| 113 | A 0002520175 | RIVET |
| Repalced by: A 0412520075 | ||
| 113 | A 0412520075 | RIVET |
| 118 | A 0002522310 | CLUTCH LINING |
| Repalced by: A 0002528110 | ||
| 118 | A 0002528110 | CLUTCH LINING |
| 123 | A 0002521275 | RIVET |

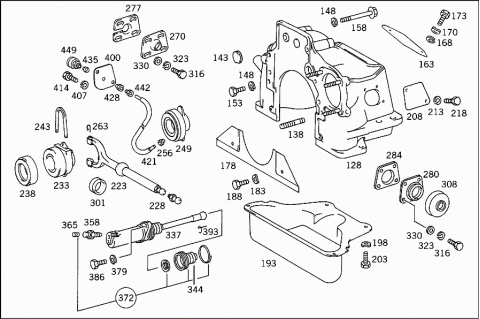

| 128 | A 3222500905 | HOUSING |
| Repalced by: A 3102500105 | ||
| 128 | A 3102500105 | HOUSING |
| 128 | A 3102510301 | BELL HOUSING |
| 128 | A 3082510001 | BELL HOUSING |
| 128 | A 3782510001 | BELL HOUSING |
| 128 | A 3412517001 | BELL HOUSING |
| A 3142540074 | PIN | |
| 138 | N 000939010041 | STUD BOLT |
| Repalced by: A 0009902805 | ||
| 138 | A 0009902805 | STUD |
| 143 | A 3242510083 | PLUG |
| 148 | N 000127012203 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 153 | N 000931012180 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X110,TO 308 251 00 01 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 341 251 70 01,378 251 00 01 | ||
| 158 | N 900170012005 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 163 | A 3242510004 | END COVER |
| Repalced by: A 3602510004 | ||
| 163 | A 3602510004 | END COVER |
| TO 341 251 70 01 | ||
| 168 | N 000127006206 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 170 | N 000137006101 | SPRING WASHER |
| TO 341 251 70 01 | ||
| 173 | N 000933006015 | SCREW |
| END COVER TO BELL HOUSING | ||
| 173 | N 000933006228 | SCREW |
| TO 341 251 70 01 | ||
| 178 | A 3122511006 | PROTECTIVE PLATE |
| TO 341 251 70 01 | ||
| 178 | A 3522510106 | PROTECTIVE PLATE |
| TO 378 251 00 01,308 251 00 01 | ||
| 183 | N 000137006102 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 188 | N 000933006010 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 193 | A 0122510002 | BELL HOUSING |
| Repalced by: A 3122511002 | ||
| 193 | A 3122511002 | BELL HOUSING |
| LOWER PART | ||
| 193 | A 3412517102 | BELL HOUSING |
| LOWER PART | ||
| TO 341 251 70 01 | ||
| 193 | A 3142510102 | BELL HOUSING |
| LOWER PART | ||
| TO 308 251 00 01,378 251 00 01 | ||
| 198 | N 000137006102 | SPRING WASHER |
| COVER PLATE TO BELL HOUSING | ||
| 203 | N 000933006010 | SCREW |
| COVER PLATE TO BELL HOUSING | ||
| 208 | A 3272510033 | COVER |
| 213 | N 912004008104 | LOCK WASHER |
| 218 | N 000933008014 | SCREW |
| 223 | A 3522500113 | RELEASE LEVER |
| 223 | A 3782507013 | RELEASE LEVER |
| 228 | A 3029910015 | BALL PIVOT |
| 228 | A 3789917015 | BALL PIVOT |
| 233 | A 3522500115 | RELEASE BEARING |
| 238 | A 0002540020 | RELEASE BEARING |
| 238 | A 0002540120 | RELEASE BEARING |
| 243 | A 3129870110 | STRIP |
| 249 | A 0002503115 | RELEASE BEARING |
| 249 | A 0002504015 | RELEASE BEARING |
| 249 | A 3082507015 | RELEASE BEARING |
| 256 | N 071428004102 | SCREW-IN FITTING |
| 263 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE BEARING | ||
| 270 | A 3522900031 | BEARING |
| 277 | A 3522930012 | BRACKET |
| 280 | A 3102500043 | BRACKET |
| FOR LEVER | ||
| 284 | A 3102540140 | BRACKET |
| INSIDE | ||
| 301 | A 3522540135 | BEARING |
| 308 | A 3142540197 | BOOT |
| 316 | N 000933008036 | SCREW |
| 323 | N 912004008104 | LOCK WASHER |
| 330 | N 000125008413 | WASHER |
| 337 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH RELEASE | ||
| 337 | A 3082957007 | SLAVE CYLINDER |
| A 0002951133 | ROD | |
| TO 308 295 70 07 | ||
| 344 | A 0002952983 | BOOT |
| TO 000 295 83 07 | ||
| A 0002950873 | LOCK | |
| Repalced by: A 0005863829 | ||
| A 0005863829 | REPAIR KIT | |
| TO 000 295 83 07 | ||
| 358 | A 3454317165 | VALVE |
| TO 000 295 83 07 | ||
| 365 | A 3454317287 | PROTECTIVE CAP |
| TO 000 295 83 07 | ||
| 372 | A 0005863829 | REPAIR KIT |
| TO 000 295 83 07 | ||
| 372 | A 3085867029 | REPAIR KIT |
| TO 308 295 70 07 | ||
| 379 | N 912004008104 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 386 | N 000933008153 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 393 | N 071805016402 | SECURING CLIP |
| ROD TO LEVER | ||
| 400 | A 3102500155 | COVER |
| BELL HOUSING | ||
| 407 | N 912004008104 | LOCK WASHER |
| 414 | N 000933008014 | SCREW |
| 421 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 421 | A 3089977182 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 421 | A 3949977182 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 428 | N 003871014100 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 435 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 442 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 449 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
