Transporto priemonė: L 608 E; VIN numerio dalis: 378325

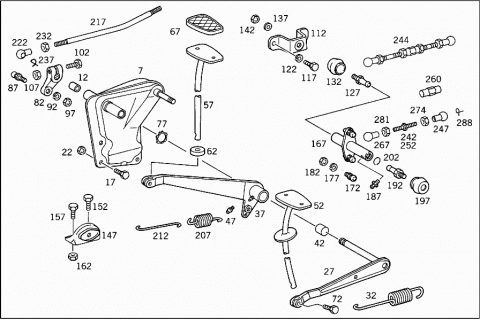

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3102900119 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| H 403198920117 | BUSHING | |
| Repalced by: A 3198920117 | ||
| 012 | A 3198920117 | BUSHING |
| 017 | N 000933010035 | SCREW |
| PEDAL BEARING BRACKET TO FRAME | ||
| 022 | N 913004010008 | NUT |
| PEDAL BEARING BRACKET TO FRAME | ||
| 027 | A 3092900216 | PEDAL |
| Repalced by: A 3092900716 | ||
| 027 | A 3092900716 | PEDAL |
| CLUTCH | ||
| 032 | A 3149931010 | SPRING |
| 032 | A 3129932510 | SPRING |
| 037 | A 3092900218 | PEDAL |
| BRAKE | ||
| 042 | A 3092920050 | BUSHING |
| 047 | N 071412008100 | GREASE NIPPLE |
| 052 | A 3092900724 | PEDAL PLATE |
| CLUTCH | ||
| 057 | A 3092900524 | PEDAL PLATE |
| CLUTCH | ||
| 062 | A 3092920086 | BUFFER |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 067 | A 3192920082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 072 | N 000933010035 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 077 | N 000983028000 | LOCK RING |
| PEDAL LEVER TO BEARING BRACKET | ||
| 082 | A 3092931210 | LEVER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 087 | A 3179910415 | BALL PIVOT |
| Repalced by: A 3099910015 | ||
| 087 | A 3099910015 | BALL PIVOT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 092 | N 000127010202 | LOCK WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 097 | N 000936010005 | NUT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 102 | N 000931008045 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 107 | N 913004008004 | NUT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 112 | A 3092931840 | BRACKET |
| INTERMEDIATE SHAFT | ||
| 117 | N 000933008153 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 122 | N 912004008104 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 127 | A 3149910115 | BALL PIVOT |
| CLUTCH SHAFT | ||
| 132 | A 3522930060 | SEAL RING |
| CLUTCH SHAFT | ||
| 137 | N 000125013008 | WASHER |
| CLUTCH SHAFT | ||
| 142 | N 913002012009 | NUT |
| CLUTCH SHAFT | ||
| 147 | A 3092900133 | BRACKET |
| 152 | N 000933010034 | SCREW |
| BRACKET TO FRAME | ||
| 157 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 162 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 167 | A 3092900126 | SHAFT |
| CLUTCH OPERATION | ||
| 172 | A 3099910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 172 | A 3099910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 172 | A 3789917115 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 177 | N 000127010205 | LOCK WASHER |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 182 | N 000934010000 | NUT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 187 | N 071412010100 | GREASE NIPPLE |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 192 | A 3149910115 | BALL PIVOT |
| CLUTCH SHAFT | ||
| 197 | A 3522930060 | SEAL RING |
| CLUTCH SHAFT | ||
| 202 | N 071805016300 | SNAP RING |
| CLUTCH SHAFT | ||
| 207 | A 3099930010 | SPRING |
| RELEASE SPRING | ||
| 212 | A 3092920042 | EXTENSION |
| RELEASE SPRING | ||
| 217 | A 3092931029 | ROD |
| CLUTCH OPERATION | ||
| 222 | A 0009912923 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 232 | N 000934010000 | NUT |
| CLUTCH OPERATION | ||
| 232 | N 000934012004 | NUT |
| CLUTCH OPERATION | ||
| 237 | N 071805016402 | SECURING CLIP |
| CLUTCH OPERATION | ||
| 242 | A 3092901139 | ROD |
| CLUTCH OPERATION | ||
| 244 | A 3782907039 | ROD |
| CLUTCH OPERATION | ||
| 247 | A 3099910422 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 252 | A 3782917033 | ROD |
| 252 | A 3782917133 | ROD |
| 260 | N 001479010000 | TURNBUCKLE |
| 267 | A 3099910522 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 274 | N 000934010000 | NUT |
| CLUTCH OPERATION | ||
| 274 | N 000934010000 | NUT |
| CLUTCH OPERATION | ||
| 281 | N 000934010035 | NUT |
| CLUTCH OPERATION | ||
| 281 | N 000934010035 | NUT |
| CLUTCH OPERATION | ||
| 288 | N 071805016402 | SECURING CLIP |
| CLUTCH OPERATION | ||

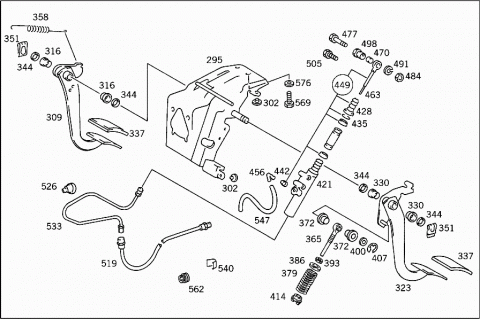

| 295 | A 3092901133 | BRACKET |
| PEDAL ASSEMBLY | ||
| 302 | A 1152910186 | STOP |
| PEDAL ASSEMBLY | ||
| 309 | A 3092900918 | PEDAL |
| BRAKE | ||
| 316 | A 1102910550 | BUSHING |
| 323 | A 3092901416 | PEDAL |
| CLUTCH | ||
| 330 | A 1102910550 | BUSHING |
| 337 | A 1102910182 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 344 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 351 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 358 | A 3099931110 | SPRING |
| BRAKE PEDAL RESET | ||
| 365 | A 3812900039 | ROD |
| CLUTCH PEDAL RESET | ||
| 372 | A 1102910750 | BUSHING |
| 379 | A 1109930501 | SPRING |
| CLUTCH PEDAL RESET | ||
| 386 | A 1112910491 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 393 | N 070616010003 | NUT |
| CLUTCH PEDAL RESET | ||
| 400 | N 000125008417 | WASHER |
| ROD TO LEVER | ||
| 407 | N 006799006003 | LOCK PLATE |
| ROD TO LEVER | ||
| 414 | A 3092910091 | SPRING RETAINER |
| CLUTCH PEDAL RESET | ||
| 421 | A 0002957706 | MASTER CYLINDER |
| CLUTCH | ||
| 421 | A 3082957006 | MASTER CYLINDER |
| CLUTCH | ||
| 428 | A 0002951583 | BOOT |
| TO 000 295 77 06 | ||
| 435 | N 000472019000 | LOCK RING |
| TO 000 295 77 06 | ||
| 442 | A 0009971186 | PLUG |
| TO 000 295 77 06 | ||
| 449 | A 0005862929 | REPAIR KIT |
| TO 000 295 77 06 | ||
| 449 | A 3085867129 | REPAIR KIT |
| TO 308 295 70 06 | ||
| 456 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 463 | A 1152900639 | ROD |
| (PISTON ROD) | ||
| 470 | A 1102950250 | BUSHING |
| 477 | N 000931006191 | SCREW |
| MASTER CYLINDER TO SUPPORT | ||
| 484 | N 913004006002 | NUT |
| MASTER CYLINDER TO SUPPORT | ||
| 491 | N 912004008102 | LOCK WASHER |
| PISTON ROD TO LEVER | ||
| 498 | A 1152950172 | NUT |
| PISTON ROD TO LEVER | ||
| 505 | N 000933008212 | SCREW |
| PISTON ROD TO LEVER | ||
| A 3782907035 | SHAFT | |
| 519 | A 3092950035 | HOSE |
| 526 | A 1109971481 | GROMMET |
| MASTER CYLINDER LINE THRU CAB FLOOR | ||
| 533 | A 3092900013 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 533 | A 3092900013 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 533 | A 3782907013 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 540 | A 1072950073 | LOCK |
| CLUTCH HOSE TO BRACKET AT CAB | ||
| 547 | A 0009971252 | HOSE |
| 547 | A 0009971052 | HOSE |
| 562 | A 3099970381 | GROMMET |
| 569 | N 304017008007 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 576 | N 000125008417 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
