Transporto priemonė: L 608 E; VIN numerio dalis: 378325

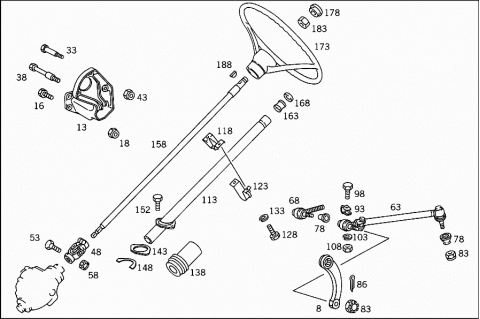

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR STEERING, SEE PARTS LIST: | ||
| 760.0 | ||
| 008 | A 3094630901 | PITMAN ARM |
| 013 | A 3094612240 | STEERING SUPPORT |
| 013 | A 3084617040 | STEERING SUPPORT |
| 016 | N 000931010212 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 016 | N 000931010239 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 018 | N 913004010008 | NUT |
| 033 | A 3099900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 038 | A 3099900214 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 043 | A 0019900951 | NUT |
| Repalced by: N 913004012003 | ||
| 043 | N 913004012003 | NUT |
| STEERING TO STEERING BRACKET | ||
| A 4214600357 | UNIVERSAL JOINT | |
| Repalced by: A 4214600457 | ||
| 048 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600157 | ||
| 048 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 048 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 048 | A 3164600057 | UNIVERSAL JOINT |
| 048 | A 3444607057 | UNIVERSAL JOINT |
| 048 | A 3444607257 | UNIVERSAL JOINT |
| 048 | A 3444607157 | UNIVERSAL JOINT |
| A 4069905014 | SCREW | |
| Repalced by: A 3169900114 | ||
| 053 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING | ||
| A 0019901651 | NUT | |
| Repalced by: N 913004008000 | ||
| 058 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING | ||
| 063 | A 3094601205 | DRAG LINK |
| Repalced by: A 3094602905 | ||
| 063 | A 3094602905 | DRAG LINK |
| Repalced by: A 3094203105 | ||
| 063 | A 3094603105 | DRAG LINK |
| 068 | A 0003305035 | JOINT |
| LEMFOERDER | ||
| 068 | A 3103301335 | JOINT |
| EHRENREICH | ||
| A 3103300435 | JOINT | |
| LEMFOERDER | ||
| 078 | A 0003300085 | BOOT |
| Repalced by: A 0004631896 | ||
| 078 | A 0004631896 | BOOT |
| 083 | N 000979014006 | NUT |
| 086 | N 000094003222 | COTTER PIN |
| 093 | A 0003380563 | CLAMP |
| 093 | A 0003382745 | CLAMP |
| 098 | N 000960010023 | SCREW |
| 103 | N 912004010102 | LOCK WASHER |
| 108 | N 000934010015 | NUT |
| A 3094600416 | STEER. COLUMN JACKET TUBE | |
| Repalced by: A 3104600016 | ||
| 113 | A 3104600016 | STEER. COLUMN JACKET TUBE |
| 118 | A 3094610045 | STEERING COLUMN BRACKET |
| 123 | A 3094600165 | STRAP |
| 128 | N 304017008007 | SCREW |
| 133 | N 912004008102 | LOCK WASHER |
| 138 | A 3094620596 | BOOT |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 143 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 148 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 152 | A 3103300435 | JOINT |
| 158 | A 3094600309 | STEERING SHAFT |
| 163 | A 3124621050 | BUSHING |
| 168 | A 3124621065 | RING |
| 173 | A 3144600303 | STEERING WHEEL |
| 173 | A 3784640001 | STEERING WHEEL |
| 173 | A 3084607003 | STEERING WHEEL |
| A 0004640131 | CAP | |
| Repalced by: A 0004641231 | ||
| 178 | A 0004641231 | CAP |
| Repalced by: A 3454647131 | ||
| 178 | A 3454647131 | CAP |
| STEERING WHEEL TO STEERING COLUMN | ||
| 178 | A 0004642631 | CAP |
| STEERING WHEEL TO STEERING COLUMN | ||
| 183 | N 000439022203 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 188 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
