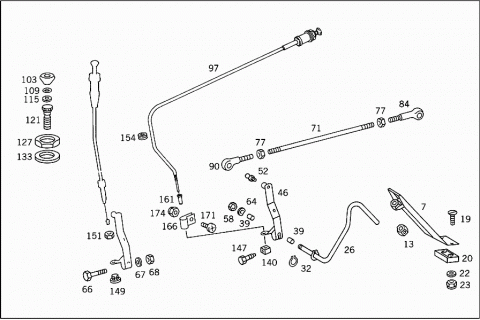

Transporto priemonė: L 613 D; VIN numerio dalis: 313402
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3093001304 | ACCELERATOR PEDAL |
| 013 | A 3093010022 | JOINT |
| 019 | N 000963006031 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X16 | ||
| 019 | N 000965006040 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M 6X30 | ||
| 020 | A 3093010184 | SHIM |
| ACCELERATOR PEDAL TO CAB | ||
| 022 | N 000125006421 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| Repalced by: N 000125006449 | ||
| 022 | N 000125006449 | WASHER |
| ACCELERATOR PEDAL TO CAB | ||
| 023 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 023 | N 913004006001 | NUT |
| ACCELERATOR PEDAL TO CAB | ||
| 026 | A 3093002325 | LEVER |
| Repalced by: A 3103000425 | ||
| 026 | A 3103000425 | LEVER |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 032 | N 900055010402 | RETAINING RING |
| 039 | A 3193010150 | BUSHING |
| 046 | A 3093002525 | LEVER |
| Repalced by: A 3103000025 | ||
| 046 | A 3103000025 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 046 | A 3103000525 | LEVER |
| INTERMEDIATE LEVER | ||
| 052 | N 071803008207 | BALL PIVOT |
| 058 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 058 | N 308673010000 | NUT |
| LEVER TO LEVER | ||
| 064 | N 000137010201 | SPRING WASHER |
| LEVER TO LEVER | ||
| 066 | N 000931006114 | SCREW |
| Repalced by: N 304017006012 | ||
| 066 | N 304017006012 | SCREW |
| LEVER TO LEVER | ||
| 067 | N 000125006421 | WASHER |
| LEVER TO LEVER | ||
| Repalced by: N 000125006449 | ||
| 067 | N 000125006449 | WASHER |
| LEVER TO LEVER | ||
| 068 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 068 | N 913004006001 | NUT |
| LEVER TO LEVER | ||
| 071 | A 3133010115 | ROD |
| FROM LEVER TO INTERMEDIATE LEVER AT ENGINE | ||
| 077 | N 000934006007 | NUT |
| 084 | A 0009914822 | BALL SOCKET |
| 090 | A 0009914722 | BALL SOCKET |
| A 3143001107 | KNOB | |
| Repalced by: A 3183000007 | ||
| 097 | A 3183000007 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 097 | A 3093000807 | KNOB |
| Repalced by: A 3093000907 | ||
| 097 | A 3093000907 | KNOB |
| WITH SPINDLE,WIRE CABLE,AND END PIECE | ||
| 103 | A 3523020201 | KNOB |
| 103 | A 3093020001 | KNOB |
| 109 | A 3523020176 | WASHER |
| 115 | A 3129902140 | WASHER |
| 121 | A 3523020308 | GUIDE |
| 127 | A 3129901151 | NUT |
| 127 | A 0003020072 | NUT |
| Repalced by: A 3129901151 | ||
| 127 | A 3129901151 | NUT |
| 133 | A 0019900040 | WASHER |
| 133 | A 0003020052 | SPACER WASHER |
| 140 | A 3093020068 | END PIECE |
| Repalced by: A 1233000086 | ||
| 140 | A 1233000086 | END PIECE |
| WIRE CABLE TO LEVER | ||
| 147 | A 3099900015 | SCREW |
| Repalced by: N 000933005058 | ||
| 147 | N 000933005058 | SCREW |
| WIRE CABLE TO LEVER | ||
| 149 | A 3093020050 | BUSHING |
| PUSH ROD TO LEVER | ||
| 151 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 151 | N 304035008001 | NUT |
| PUSH ROD TO LEVER | ||
| 154 | A 0009972881 | GROMMET |
| WIRE CABLE THRU WINDOW SILL | ||
| 161 | A 3183020091 | GROMMET |
| WIRE CABLE TO BRACKET | ||
| 166 | A 3609950301 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 171 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 171 | N 000000001145 | SCREW |
| WIRE CABLE TO BRACKET | ||
| 174 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 174 | N 913004006001 | NUT |
| WIRE CABLE TO BRACKET | ||
