Transporto priemonė: L 613 D; VIN numerio dalis: 313404

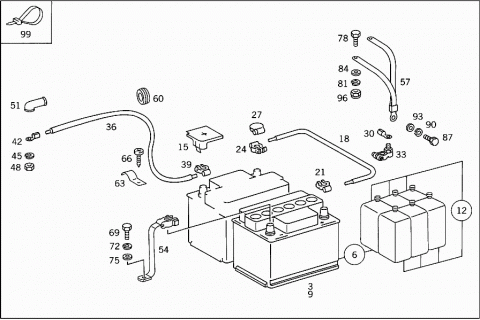

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0005419401 | BATTERY | |
| Repalced by: A 0005417401 | ||
| 003 | A 0005417401 | BATTERY |
| Repalced by: A 0025419901 | ||
| 003 | A 0025419901 | BATTERY |
| 12V/70AH | ||
| 006 | A 1235400101 | BATTERY |
| Repalced by: A 1405400001 | ||
| 006 | A 1405400001 | BATTERY |
| Repalced by: A 0035417501 | ||
| 006 | A 0035417501 | BATTERY |
| PARTS KIT | ||
| 009 | A 0015417901 | BATTERY |
| Repalced by: A 0025414301 | ||
| 009 | A 0025414301 | BATTERY |
| Repalced by: A 0045412301 | ||
| 009 | A 0045412301 | BATTERY |
| 12 V/66 AH | ||
| 012 | A 0009890515 | BATTERY ACID BOTTLE SET |
| Repalced by: A 0009891315 | ||
| 012 | A 0009891315 | BATTERY ACID BOTTLE SET |
| TO 001 541 79 01 | ||
| 015 | A 0005462335 | BOOT |
| POS. POLE | ||
| A 3095402530 | POSITIVE CABLE | |
| Repalced by: N 072551050880 | ||
| A 3135400131 | NEG. CABLE | |
| Repalced by: N 072551050880 | ||
| N 072551050880 | ELECTRIC CABLE | |
| Repalced by: N 922002050000 | ||
| N 922002050000 | ELECTRIC CABLE | |
| Repalced by: A 6735460011 | ||
| 018 | A 6735460011 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| N 922002070000 | ELECTRIC CABLE | |
| Repalced by: A 6735460013 | ||
| 018 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 021 | N 072332011100 | SOLDERING TERMINAL |
| FROM BATTERY I TO BATTERY II | ||
| 021 | N 072332013100 | SOLDERING TERMINAL |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 024 | N 072332011200 | SOLDERING TERMINAL |
| FROM BATTERY I TO BATTERY II | ||
| 024 | N 072332013200 | SOLDERING TERMINAL |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 027 | A 0005463735 | BOOT |
| NEG.POLE | ||
| 030 | N 046234010008 | CABLE SHOE |
| FROM BATTERY I TO BATTERY II | ||
| 030 | N 046234012001 | CABLE SHOE |
| FROM BATTERY I TO BATTERY II | ||
| 033 | A 0005469844 | CLAMPING PIECE |
| BATTERIES I AND II,POS.POLE | ||
| 033 | A 3095460044 | CLAMPING PIECE |
| BATTERIES I AND II,NEG.POLE | ||
| A 3105400130 | POSITIVE CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| N 922002070000 | ELECTRIC CABLE | |
| Repalced by: A 6735460013 | ||
| 036 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 039 | N 072332013100 | SOLDERING TERMINAL |
| FROM BATTERY TO STARTING MOTOR | ||
| 042 | N 046234010007 | CABLE SHOE |
| FROM BATTERY TO STARTING MOTOR | ||
| 045 | N 912004010102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 048 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 048 | N 304035010001 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| A 3095460035 | BOOT | |
| Repalced by: A 0005460135 | ||
| 051 | A 0005460135 | BOOT |
| POS. CABLE | ||
| 054 | A 3145400931 | NEG. CABLE |
| FROM BATTERY TO BATTERY SUPPORT | ||
| A 3095400541 | GROUND STRAP | |
| Repalced by: A 3135400041 | ||
| 057 | A 3135400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB SIDE MEMBER | ||
| 060 | A 1869970781 | GROMMET |
| ELECTRIC CABLE THRU DRIVER'S SEAT BOX | ||
| A 3045060441 | CLAMP | |
| Repalced by: A 3049950220 | ||
| A 3049950220 | CLAMP | |
| Repalced by: A 3129952420 | ||
| 063 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 063 | A 1109950401 | CLAMP |
| LINE TO CAB | ||
| 066 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 066 | N 007981006305 | SHEET METAL SCREW |
| LINE TO CAB | ||
| 069 | N 000933010128 | SCREW |
| NEG. CABLE TO BATTERY SUPPORT | ||
| 072 | N 912004010102 | LOCK WASHER |
| NEG. CABLE TO BATTERY SUPPORT | ||
| 075 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 075 | N 009021010209 | WASHER |
| NEG. CABLE TO BATTERY SUPPORT | ||
| 078 | N 000125010532 | WASHER |
| Repalced by: N 304017010043 | ||
| 078 | N 304017010043 | SCREW |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 081 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 084 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 084 | N 009021010209 | WASHER |
| GROUND STRAP TO CAB SIDE MEMBER | ||
| 087 | N 000933010128 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 090 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 093 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 093 | N 009021010209 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 096 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 096 | N 304032010003 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 099 | A 0019978390 | LOOM TIE |

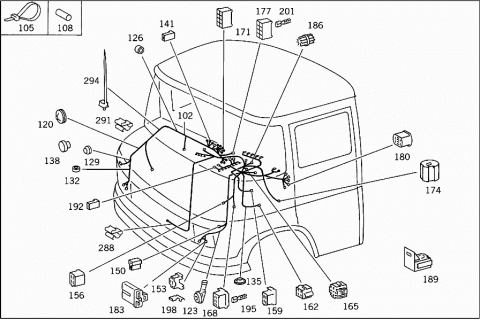

| 102 | A 3135400005 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 102 | A 3135400105 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 102 | A 3135400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 102 | A 3135401305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 102 | A 3135400505 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 102 | A 3135401405 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| A 0019979590 | LOOM TIE | |
| Repalced by: A 0019978390 | ||
| 105 | A 0019978390 | LOOM TIE |
| 108 | A 0009970181 | GROMMET |
| 108 | A 0009970381 | GROMMET |
| 108 | A 0009970581 | GROMMET |
| 108 | A 0009970681 | GROMMET |
| 120 | A 1109970481 | GROMMET |
| 123 | A 3149970181 | GROMMET |
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 126 | A 3359970081 | GROMMET |
| 129 | A 3099970081 | GROMMET |
| 132 | A 3099970681 | GROMMET |
| 135 | A 3109970081 | GROMMET |
| 138 | A 6018260024 | GROMMET |
| 141 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 150 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 153 | A 0015458528 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 156 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 159 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 162 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 165 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 168 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 171 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 174 | A 0055459928 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 177 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 180 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 183 | A 0025459528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 186 | A 0045451428 | PLUG |
| 8-POLE | ||
| 189 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 192 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 195 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 195 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 195 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 195 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 198 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 198 | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 4 MM2 | ||
| 201 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 204 | N 000084006132 | SCREW |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 207 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||

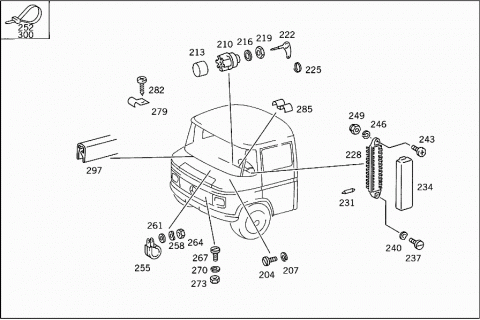

| 210 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 213 | A 3099971181 | GROMMET |
| A 0005450176 | WASHER | |
| Repalced by: A 0005450376 | ||
| 216 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| A 0005450672 | NUT | |
| Repalced by: A 0005451072 | ||
| 219 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 222 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 225 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 228 | A 3145450001 | FUSE BOX |
| 10-POLE; TERMINALS 1-2-3;5-6;7-8;9-10 SHUNTED | ||
| 228 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 228 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 231 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 231 | N 072581008101 | FUSE |
| 8 A | ||
| 234 | A 0005452303 | CAP |
| FUSE BOX | ||
| N 914025004103 | COMBINATION BOLT | |
| CABLE TO FUSE BOX | ||
| 237 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 240 | N 000137004202 | SPRING WASHER |
| CABLE TO FUSE BOX | ||
| 243 | N 007985005175 | SCREW |
| FUSE BOX TO BRACKET | ||
| 243 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 243 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 243 | N 000000001149 | HEXALOBULAR BOLT |
| FUSE BOX | ||
| 246 | N 912004005103 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 249 | N 000934005008 | NUT |
| FUSE BOX TO BRACKET | ||
| 249 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 249 | N 913004006001 | NUT |
| FUSE BOX | ||
| 252 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| A 0009950501 | CLAMP | |
| Repalced by: N 916016015201 | ||
| 255 | N 916016015201 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 258 | N 000137005203 | SPRING WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 258 | N 000137006204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 261 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 261 | N 009021005205 | WASHER |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 264 | N 000934005008 | NUT |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 264 | N 000934006007 | NUT |
| CABLE TO ALTERNATOR | ||
| 267 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 267 | N 000000001145 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 270 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 273 | N 000934006007 | NUT |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 279 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 279 | A 1109950401 | CLAMP |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 282 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 282 | N 007981006305 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 285 | A 3039950232 | CLAMP |
| MAIN CABLE HARNESS & STARTING CABLE TO CAB LEFT SIDE MEMBER | ||
| 288 | A 0009881778 | CLIP |
| OIL-PRESSURE-GAUGE-SENDER-UNIT CABLE | ||
| 291 | A 0009885378 | CLIP |
| MAIN CABLE HARNESS TO WINDOW SILL CONNECTION PLATE | ||
| 294 | A 0005461143 | BRACKET |
| MAIN CABLE HARNESS TO WINDOW SILL CONNECTION PLATE | ||
| 297 | A 0009876870 | RUBBER SECTION |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 300 | A 0019978390 | LOOM TIE |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 3095407937 | ELECTRIC CABLE | |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 303 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 306 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 309 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 315 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 315 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 318 | A 0018220220 | BLINKER LAMP |
| FRONT LEFT AND RIGHT,LATERAL | ||
| 321 | A 0018227220 | BLINKER LAMP |
| LEFT | ||
| 321 | A 0018227320 | BLINKER LAMP |
| RIGHT | ||
| 324 | A 6018220002 | PAD |
| 327 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 327 | N 072601024192 | BULB |
| 24 V/21 W | ||
| 327 | N 072601024801 | BULB |
| 24 V/2 W | ||
| 328 | N 072601012800 | BULB |
| 12 V/2 W | ||
| 330 | A 0009909236 | SHEET METAL SCREW |
| Repalced by: N 007981002306 | ||
| 330 | N 007981002306 | SHEET METAL SCREW |
| Repalced by: N 007981002322 | ||
| 330 | N 007981002322 | SHEET METAL SCREW |
| BLINKER LAMP | ||
| 333 | N 007981004257 | SHEET METAL SCREW |
| Repalced by: N 000000000463 | ||
| 333 | N 000000000463 | TAPPING SCREW |
| BLINKER LAMP TO BODY | ||
| 4.8X22 | ||
| 333 | N 007981004252 | SHEET METAL SCREW |
| BLINKER LAMP TO BODY | ||
| 4.8X13 | ||
| 336 | N 006797005110 | TOOTHED WASHER |
| BLINKER LAMP TO BODY | ||
| 382 | A 3135401227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO TELL-TALE LAMP | ||
| 382 | A 3135401627 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO TELL-TALE LAMP | ||

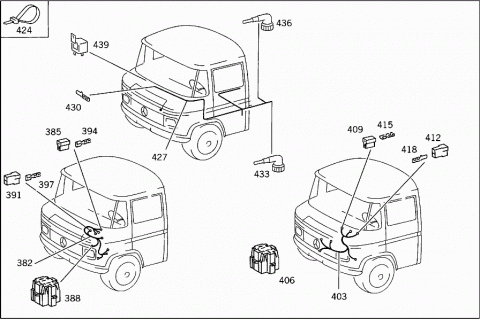

| 385 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 388 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 391 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 394 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 394 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 394 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 394 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 397 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 403 | A 3095400408 | CABLE HARNESS |
| Repalced by: A 3095400508 | ||
| 403 | A 3095400508 | CABLE HARNESS |
| FROM FLUID RESERVOIR TO TELL-TALE LAMP | ||
| 406 | A 0065450728 | PIN BUSHING HOUSING |
| 409 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 412 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 415 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 415 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 415 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 415 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 418 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 424 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 427 | A 3135401327 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO ELECTRIC MOTOR | ||
| 430 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 433 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 436 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 439 | A 0005455505 | RELAY |
| BRAKE FLUID CONTROL | ||
| 439 | A 0005458305 | RELAY |
| BRAKE FLUID CONTROL | ||
| 442 | A 3105403827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3135400127 | ELECTRIC CABLE | |
| Repalced by: A 3135400327 | ||
| 442 | A 3135400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3135401027 | ELECTRIC CABLE | |
| Repalced by: A 3135401127 | ||
| 442 | A 3105403927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3105404527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3135400227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3135401127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||

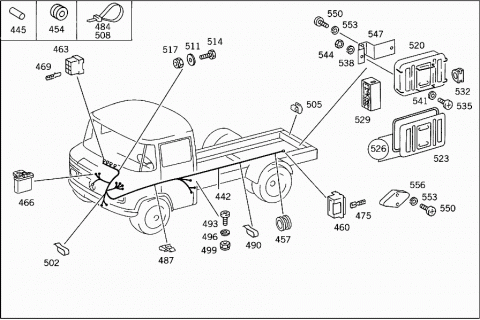

| 442 | A 3135400108 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3135400208 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3135400327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3135400408 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 442 | A 3135400508 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 445 | A 0009970381 | GROMMET |
| 445 | A 0009970581 | GROMMET |
| A 0009972781 | GROMMET | |
| Repalced by: A 0009972881 | ||
| 454 | A 0009972881 | GROMMET |
| 454 | A 0005461237 | GROMMET |
| 457 | A 3359970081 | GROMMET |
| 460 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 463 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 466 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 469 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 469 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 475 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 475 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 475 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 475 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 475 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4 MM2 | ||
| 484 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 487 | A 0005460875 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| A 3219950140 | CLAMP | |
| Repalced by: A 3099950240 | ||
| 490 | A 3099950240 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 493 | N 007985006128 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 496 | N 912004006102 | LOCK WASHER |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 499 | N 000934006007 | NUT |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 502 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 505 | A 0049882678 | CLIP |
| 508 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 508 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 511 | N 009021006005 | WASHER |
| A 3094760636 | BRACKET | |
| CABLE HARNESS MOUNTING | ||
| 514 | N 000933010128 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 517 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 517 | N 910113010000 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 520 | A 0005466141 | CABLE CONNECTOR |
| REAR | ||
| A 0005469541 | CABLE CONNECTOR | |
| Repalced by: A 0015463341 | ||
| A 0015463341 | CABLE CONNECTOR | |
| Repalced by: A 0015463841 | ||
| A 0015463841 | CABLE CONNECTOR | |
| Repalced by: A 0015465441 | ||
| 520 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| A 0005460481 | COVERING | |
| Repalced by: A 0005460581 | ||
| 523 | A 0005460581 | COVERING |
| 526 | A 0005460781 | COVERING |
| WITH GASKET | ||
| A 0045458928 | PLUG | |
| Repalced by: A 0105456728 | ||
| 529 | A 0105456728 | PLUG |
| 532 | A 0009872844 | EXPANSION PLUG |
| CABLE CONNECTOR | ||
| 535 | N 007985004179 | SCREW |
| CABLE CONNECTOR | ||
| 535 | N 007985005175 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 538 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 538 | N 912004005103 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 541 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 541 | N 000125004319 | WASHER |
| CABLE CONNECTOR | ||
| 541 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 541 | N 000433005304 | WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 544 | N 000934004006 | NUT |
| CABLE CONNECTOR | ||
| 544 | N 000934005008 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| A 3095403573 | BRACKET | |
| Repalced by: A 3095405173 | ||
| A 3095405173 | BRACKET | |
| Repalced by: A 6675400273 | ||
| 547 | A 6675400273 | BRACKET |
| CABLE CONNECTOR | ||
| 550 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 550 | N 000000001146 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X16 | ||
| 550 | N 007985008107 | SCREW |
| M 8X20 | ||
| 553 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 553 | N 912004008102 | LOCK WASHER |
| 556 | A 3095460084 | SHIM |
| 559 | A 3095407827 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| A 3095402832 | ELECTRIC CABLE | |
| Repalced by: A 3095402932 | ||
| 559 | A 3095402932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 559 | A 3095406932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 562 | A 3095407927 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 562 | A 3095402932 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| A 3095407032 | ELECTRIC CABLE | |
| Repalced by: A 3095409632 | ||
| 562 | A 3095409632 | ELECTRIC CABLE |
| FROM REAR CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 565 | A 0009970381 | GROMMET |
| PIN BUSHING | ||
| 568 | A 3805461937 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 571 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 0005455326 | PIN BUSHING | |
| LESS DETENT | ||
| 2.5 MM2 | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 574 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 574 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 574 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 574 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 577 | A 0009970434 | SCREW |
| CABLE SEALING AT TAIL LAMPS | ||
| 580 | A 0009910145 | RING |
| CABLE SEALING AT TAIL LAMPS | ||
| A 3095440050 | BUSHING | |
| Repalced by: A 0009975486 | ||
| 583 | A 0009975486 | PLUG |
| CABLE SEALING AT TAIL LAMPS | ||
| 586 | A 0005461237 | GROMMET |
| REAR CABLE CONNECTOR | ||
| 589 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 592 | A 0015460144 | CLAMPING PIECE |
| 595 | A 3129970481 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 595 | A 3129970481 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 595 | A 0009972281 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 595 | A 8839970081 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 598 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 598 | A 0009973481 | GROMMET |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 604 | A 0005461143 | BRACKET |
| ELECTRIC CABLE TO BRACKET | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 607 | A 0005460875 | CLAMP |
| RIGHT TAIL LAMP CABLE TO FRAME | ||
| 607 | A 0005460875 | CLAMP |
| RIGHT TAIL LAMP CABLE TO REAR CROSS MEMBER | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 610 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 613 | N 000933010128 | SCREW |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 616 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 616 | N 009021010209 | WASHER |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 619 | N 912004010102 | LOCK WASHER |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| 622 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 622 | N 304032010003 | NUT |
| GROUND CABLE TO LEFT SIDE MEMBER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRACKETS & TAIL LAMPS ON DELIVERY VAN, SEE BODY PARTS LIST,GROUP 82 | ||

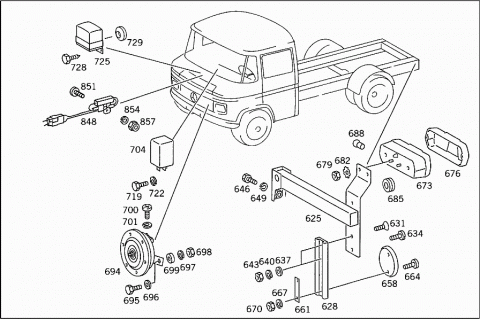

| 625 | A 3095401873 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3095402373 | BRACKET | |
| Repalced by: A 3095403873 | ||
| 625 | A 3095403873 | BRACKET |
| LEFT TAIL LAMP | ||
| 625 | A 3095401973 | BRACKET |
| RIGHT TAIL LAMP | ||
| A 3095402773 | BRACKET | |
| Repalced by: A 3095403973 | ||
| 625 | A 3095403973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 625 | A 3095440638 | BRACKET |
| TAIL LAMP | ||
| 628 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 631 | N 000963006001 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 631 | N 000963006005 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 634 | N 000084006197 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 634 | N 000084006137 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| M 6X20 | ||
| A 3095440084 | SHIM | |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 637 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| Repalced by: N 000125006449 | ||
| 637 | N 000125006449 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 640 | N 912004006102 | LOCK WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 643 | N 000934006007 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 646 | N 000933010128 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 646 | N 000933010105 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 646 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 646 | N 304017008016 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 649 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| 658 | A 0005443305 | REFLECTOR |
| 661 | A 3225440184 | SHIM |
| REFLECTOR TO BRACKET | ||
| 664 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 667 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 670 | N 000934005008 | NUT |
| REFLECTOR TO BRACKET | ||
| A 0015445403 | TAIL LAMP | |
| Repalced by: A 0025441503 | ||
| 673 | A 0025441503 | TAIL LAMP |
| LEFT | ||
| 673 | A 0015447603 | TAIL LAMP |
| Repalced by: A 0015449203 | ||
| 673 | A 0015449203 | TAIL LAMP |
| LEFT | ||
| A 0015445303 | TAIL LAMP | |
| Repalced by: A 0025441403 | ||
| 673 | A 0025441403 | TAIL LAMP |
| RIGHT | ||
| 673 | A 0015447503 | TAIL LAMP |
| Repalced by: A 0015449103 | ||
| 673 | A 0015449103 | TAIL LAMP |
| RIGHT | ||
| A 0015445203 | TAIL LAMP | |
| Repalced by: A 0025441303 | ||
| 673 | A 0025441303 | TAIL LAMP |
| LEFT | ||
| 673 | A 0015447803 | TAIL LAMP |
| LEFT | ||
| A 0015445503 | TAIL LAMP | |
| Repalced by: A 0025441603 | ||
| 673 | A 0025441603 | TAIL LAMP |
| RIGHT | ||
| 673 | A 0015447703 | TAIL LAMP |
| RIGHT | ||
| 676 | A 0015447790 | LENS |
| LEFT | ||
| 676 | A 0015447890 | LENS |
| RIGHT | ||
| 679 | N 000934006007 | NUT |
| TAIL LAMP TO BRACKET | ||
| 682 | N 006798006103 | SERRATED WASHER |
| TAIL LAMP TO BRACKET | ||
| 685 | A 6019972181 | GROMMET |
| CABLE INTO TAIL LAMP | ||
| 688 | N 072601012702 | BULB |
| TAIL LAMP | ||
| 688 | N 072601024702 | BULB |
| Repalced by: N 072601024704 | ||
| 688 | N 072601024704 | BULB |
| TAIL LIGHT | ||
| 24 V/10 W | ||
| 688 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 688 | N 072601024190 | BULB |
| Repalced by: N 072601024192 | ||
| 688 | N 072601024192 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 24 V/21 W | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 694 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 694 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 694 | A 0035422720 | HORN |
| 694 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 694 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 694 | A 0035422720 | HORN |
| 694 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 694 | A 0045424420 | HORN |
| HELLA | ||
| 694 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 694 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 694 | A 0045424420 | HORN |
| BOSCH | ||
| A 0035425320 | HORN | |
| Repalced by: A 0025426720 | ||
| 695 | N 000933010128 | SCREW |
| HORN TO BRACKET | ||
| 695 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 695 | N 304017008034 | SCREW |
| HORN TO FRAME | ||
| 696 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 696 | N 000125008443 | WASHER |
| HORN TO FRAME | ||
| 697 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 697 | N 912004008102 | LOCK WASHER |
| HORN TO FRAME | ||
| 698 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 698 | N 304032010003 | NUT |
| HORN TO BRACKET | ||
| 698 | N 304032008006 | NUT |
| HORN TO FRAME | ||
| 699 | A 3044310076 | WASHER |
| HORN TO FRAME | ||
| 700 | N 007985004123 | SCREW |
| CABLE TO DISC-TYPE HORN | ||
| 701 | N 912004004102 | LOCK WASHER |
| CABLE TO DISC-TYPE HORN | ||
| A 0025444832 | SENDER UNIT | |
| Repalced by: A 0025449832 | ||
| 704 | A 0025449832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0025444132 | SENDER UNIT | |
| Repalced by: A 0025448632 | ||
| 704 | A 0025448632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| HELLA | ||
| 704 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 704 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 704 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 704 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 704 | A 0025448432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 704 | A 0025449532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 707 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 707 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 710 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 713 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 713 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 713 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 716 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 716 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 719 | N 007985005157 | SCREW |
| BLINKER SENDER UNIT | ||
| 722 | N 912004005103 | LOCK WASHER |
| BLINKER SENDER UNIT | ||
| A 0011548406 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021543606 | ||
| A 0021543606 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021547406 | ||
| 725 | A 0021547406 | REGULATOR AND CUT-OUT |
| 728 | N 007976004217 | SHEET METAL SCREW |
| Repalced by: N 914128004303 | ||
| 728 | N 914128004303 | SHEET METAL SCREW |
| REGULATOR TO VENTILATION DUCT | ||
| 729 | A 3109970181 | GROMMET |
| REGULATOR FEED CABLE TO VENTILATION DUCT | ||
| A 0035453324 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035455724 | ||

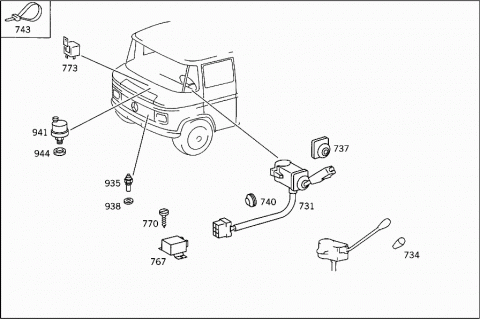

| 731 | A 0035455724 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 731 | A 0055453124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 734 | A 0005454437 | BUTTON |
| 737 | A 0005453445 | BOOT |
| 740 | A 3359970081 | GROMMET |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY | ||
| 743 | A 0019978390 | LOOM TIE |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE TO SUSPENDED PEDAL SUPPORT | ||
| A 1009870044 | EXPANSION PLUG | |
| Repalced by: A 3099970981 | ||
| 746 | A 3099970981 | GROMMET |
| TO PLUG THE BORE IN WINDOW SILL LOWER PART | ||
| 749 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 752 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 755 | A 0005459111 | SWITCH |
| CAB LAMP | ||
| A 0015450311 | SWITCH | |
| Repalced by: A 0015450511 | ||
| 758 | A 0015450511 | SWITCH |
| CAB LAMP | ||
| A 0015450411 | SWITCH | |
| Repalced by: A 0015450611 | ||
| 758 | A 0015450611 | SWITCH |
| CAB LAMP | ||
| 761 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 761 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 761 | A 0005451883 | CAP |
| CAB LAMP | ||
| 764 | A 0005452883 | CAP |
| CAB LAMP | ||
| 767 | A 0055450524 | SENDER UNIT |
| Repalced by: A 0055451324 | ||
| 767 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 767 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| 767 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 767 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 767 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 767 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 770 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 770 | N 007981006305 | SHEET METAL SCREW |
| WIPER PULSE SENDER UNIT | ||
| 773 | A 0005455505 | RELAY |
| IGNITION/STARTING SWITCH | ||
| 773 | A 0005458305 | RELAY |
| IGNITION/STARTING SWITCH | ||
| 773 | A 0005458305 | RELAY |
| BRAKE LINING WEAR | ||
| 773 | A 0005458405 | RELAY |
| Repalced by: A 0035459605 | ||
| 773 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 773 | A 0035459605 | RELAY |
| BRAKE LINING WEAR | ||
| 773 | A 0035459605 | RELAY |
| ALTERNATOR TERMINAL D+ | ||
| 776 | A 0005421325 | POTENTIOMETER |
| HEATER BLOWER | ||
| 776 | A 0005421725 | POTENTIOMETER |
| HEATER BLOWER | ||
| A 0005421089 | KNOB | |
| Repalced by: A 3095420089 | ||
| 779 | A 3095420089 | KNOB |
| SYMBOL: HEATER BLOWER | ||
| 782 | A 0005450372 | NUT |
| HEATER BLOWER SWITCH | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 785 | A 0015454914 | SWITCH |
| STARTING MOTOR | ||
| 788 | A 3099900640 | WASHER |
| SWITCH | ||
| 791 | A 3099870244 | EXPANSION PLUG |
| HEATER-PLUG INDICATOR RESISTOR | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| 794 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| A 0005422525 | POTENTIOMETER | |
| Repalced by: A 0005422925 | ||

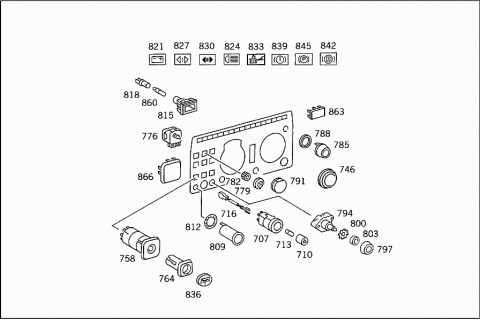

| A 0005422925 | POTENTIOMETER | |
| Repalced by: A 6155420125 | ||
| 794 | A 6155420125 | POTENTIOMETER |
| INTERIOR LIGHTING | ||
| A 0005423025 | POTENTIOMETER | |
| Repalced by: A 6155420225 | ||
| 794 | A 6155420225 | POTENTIOMETER |
| INTERIOR LIGHTING | ||
| A 0005421189 | KNOB | |
| Repalced by: A 0005421889 | ||
| 797 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| 800 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING SWITCH | ||
| 803 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005451472 | NUT | |
| Repalced by: A 0029906251 | ||
| 803 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005453926 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005454426 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005453526 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| 809 | A 0015458526 | PLUG SOCKET |
| HAND LAMP | ||
| 809 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 809 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 812 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| A 0015450615 | TELL-TALE LAMP | |
| Repalced by: A 0005451630 | ||
| 815 | A 0005451630 | SHELL |
| 815 | A 0015451815 | TELL-TALE LAMP |
| 818 | A 0005452319 | SOCKET |
| 821 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| A 0005453790 | LENS | |
| Repalced by: A 0035453290 | ||
| 821 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 824 | A 0005451190 | LENS |
| HIGH BEAM | ||
| A 0005455290 | LENS | |
| Repalced by: A 0035453390 | ||
| A 0035453390 | LENS | |
| Repalced by: A 0065451990 | ||
| 824 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 827 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| A 0005455390 | LENS | |
| Repalced by: A 0035454190 | ||
| A 0035454190 | LENS | |
| Repalced by: A 0035455290 | ||
| 827 | A 0035455290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 830 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 833 | A 0025452790 | LENS |
| MAINTENANCE OF AIR CLEANER | ||
| 833 | A 0025452990 | LENS |
| MAINTENANCE OF AIR CLEANER | ||
| A 0005459090 | LENS | |
| Repalced by: A 0005459590 | ||
| 836 | A 0005459590 | LENS |
| INTERIOR LIGHTING | ||
| A 0005454990 | LENS | |
| Repalced by: A 0035453890 | ||
| 839 | A 0035453890 | LENS |
| BRAKE LINING WEAR INDICATOR | ||
| A 0005455090 | LENS | |
| Repalced by: A 0055458890 | ||
| 842 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| A 0005455190 | LENS | |
| Repalced by: A 0035453790 | ||
| 845 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 848 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 851 | N 007985005157 | SCREW |
| RESISTOR TO WINDOW SILL | ||
| 854 | N 912004005103 | LOCK WASHER |
| RESISTOR TO WINDOW SILL | ||
| 857 | N 000934005008 | NUT |
| RESISTOR TO WINDOW SILL | ||
| 860 | N 072601012800 | BULB |
| TELL-TALE LAMP | ||
| 860 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 863 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 863 | A 0009974335 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 866 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||

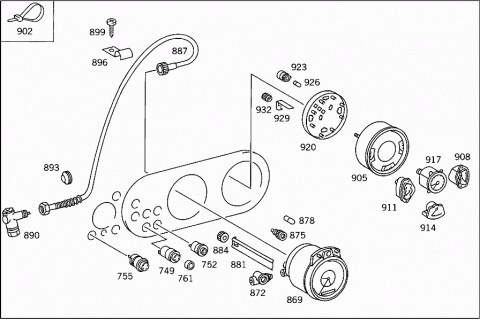

| 869 | A 0075429210 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| A 0095424310 | TACHOGRAPH | |
| Repalced by: A 0095424410 | ||
| A 0095424410 | TACHOGRAPH | |
| Repalced by: A 0085425310 | ||
| 869 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 872 | A 0025429330 | ANGLE DRIVE |
| TO 009 542 43,44,10 007 542 92 10 | ||
| A 0005423394 | DIAGRAM PAPER | |
| TO 007 542 92 10,008 542 27 10, 009 542 43 10,009 542 44 10 | ||
| 875 | A 0005421347 | COUPLER |
| TACHOGRAPH | ||
| 878 | N 072601012800 | BULB |
| 2 W | ||
| 878 | A 0015442594 | BULB |
| 1.2 W | ||
| 878 | A 0015442694 | BULB |
| 1.2 W | ||
| 881 | A 0005421840 | BRACKET |
| TACHOGRAPH | ||
| A 0005421172 | NUT | |
| Repalced by: N 000934005008 | ||
| 884 | N 000934005008 | NUT |
| TACHOGRAPH | ||
| A 0015427507 | FLEXIBLE SHAFT | |
| Repalced by: A 0055425007 | ||
| 887 | A 0055425007 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 887 | A 0045428607 | FLEXIBLE SHAFT |
| 2000 MM | ||
| 887 | A 0045428807 | FLEXIBLE SHAFT |
| 2300 MM | ||
| 890 | A 0025427630 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.882 | ||
| 890 | A 0025427630 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.882 | ||
| 890 | A 0025421830 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.714 | ||
| 890 | A 0025422130 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.789 | ||
| 890 | A 0025423930 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.909 | ||
| 890 | A 0025423930 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.909 | ||
| 890 | A 0025427330 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.736 | ||
| 890 | A 0025427330 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.736 | ||
| 890 | A 0025427030 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.937 | ||
| 890 | A 0025427030 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.937 | ||
| 890 | A 0025422730 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.761 | ||
| 890 | A 0025422730 | ANGLE DRIVE |
| RATIO 1: | ||
| 0.761 | ||
| 893 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 893 | A 3099971081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| A 3049951920 | CLAMP | |
| Repalced by: A 3049951620 | ||
| 896 | A 3049951620 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 896 | A 3049951520 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| Repalced by: A 1009950420 | ||
| 896 | A 1009950420 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 896 | A 3609951901 | CLAMP |
| FLEXIBLE SHAFT TO CAB | ||
| 899 | N 007981004279 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB | ||
| 899 | N 007981006208 | SHEET METAL SCREW |
| Repalced by: N 007981006305 | ||
| 899 | N 007981006305 | SHEET METAL SCREW |
| FLEXIBLE SHAFT TO CAB | ||
| 902 | A 0019978390 | LOOM TIE |
| BRACKET MOUNTING | ||
| 905 | A 0025406647 | INSTRUMENT CLUSTER |
| A 0025408947 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035408747 | ||
| A 0035408747 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407347 | ||
| 905 | A 0035407347 | INSTRUMENT CLUSTER |
| A 0025405747 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407547 | ||
| A 0035407547 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407247 | ||
| 905 | A 0035407247 | INSTRUMENT CLUSTER |
| A 0025405847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035405447 | ||
| A 0035405447 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407847 | ||
| A 0035407847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035409647 | ||
| 905 | A 0035409647 | INSTRUMENT CLUSTER |
| 908 | A 0035421005 | TEMPERATURE GAUGE |
| TO 002 540 66 47 | ||
| 908 | A 0035423805 | TEMPERATURE GAUGE |
| TO 002 540 89 47,002 540 57 47 | ||
| 908 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 87 47,003 540 75 47 | ||
| 908 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 908 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47 | ||
| 908 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 96 47 | ||
| 908 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 72 47/73 47 | ||
| 911 | A 0015424102 | OIL PRESSURE GAUGE |
| TO 002 540 66 47 | ||
| 911 | A 0025420202 | OIL PRESSURE GAUGE |
| TO 002 540 89 47,002 540 57 47 | ||
| 911 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 87 47,003 540 75 47 | ||
| 911 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 911 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 911 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 911 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 540 72 47/73 47 | ||
| 914 | A 0005428503 | FUEL GAUGE DASH UNIT |
| TO 002 540 66 47 | ||
| 914 | A 0015425103 | FUEL GAUGE DASH UNIT |
| TO 002 540 89 47,002 540 57 47 | ||
| 914 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 87 47,003 540 75 47 | ||
| 914 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 58 47,003 540 54 47 | ||
| 914 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| 914 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 542 96 47 | ||
| 914 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 540 72 47/73 47 | ||
| 917 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002540 5747,002540 5847,003540 5447 | ||
| 917 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47,003 540 75 47 | ||
| 917 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| A 0015422708 | AIR PRESSURE GAUGE | |
| Repalced by: A 0015424208 | ||
| 917 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 72 47/73 47 | ||
| 920 | A 0005422178 | CONNECTION PLATE |
| TO 002540 5747,002540 5847,003540 5447 | ||
| 920 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47 | ||
| 920 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 75 47 | ||
| 920 | A 0005423278 | CONNECTION PLATE |
| TO 003 540 87 47 | ||
| 920 | A 0005422878 | CONNECTION PLATE |
| TO 002 540 81 47 | ||
| 920 | A 0005423578 | CONNECTION PLATE |
| TO 003 540 96 47 | ||
| 920 | A 0005423678 | CONNECTION PLATE |
| TO 003 540 72 47 | ||
| 920 | A 0005423878 | CONNECTION PLATE |
| TO 003 540 73 47 | ||
| 923 | A 0005451219 | SOCKET |
| 926 | N 072601012800 | BULB |
| 2 W | ||
| 926 | N 072601024801 | BULB |
| 2 W | ||
| 929 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 932 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| 935 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 938 | N 007603014400 | SEAL RING |
| TEMPERATURE GAUGE | ||
| A 0015424917 | SENDER UNIT | |
| Repalced by: A 0045428917 | ||
| 941 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 944 | N 007603014400 | SEAL RING |
| OIL PRESSURE GAUGE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
