Transporto priemonė: L 613 D; VIN numerio dalis: 313404

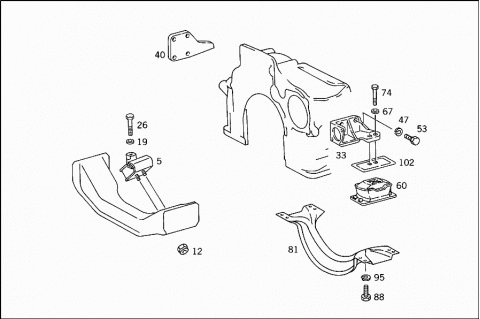

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3812400817 | RUBBER MOUNTING |
| Repalced by: A 6152400317 | ||
| 005 | A 3812400917 | RUBBER MOUNTING |
| Repalced by: A 6152400317 | ||
| 005 | A 3812401217 | RUBBER MOUNTING |
| Repalced by: A 6152400317 | ||
| 005 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 012 | N 910113012002 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 019 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 026 | N 000960016237 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 033 | A 3132420005 | SUPPORTING ARM |
| LEFT REAR | ||
| 040 | A 3132420105 | SUPPORTING ARM |
| RIGHT REAR | ||
| 047 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO ENGINE | ||
| 053 | N 000933016065 | SCREW |
| Repalced by: N 304017016008 | ||
| 053 | N 304017016008 | HEXAGON HEAD BOLT |
| 060 | A 3132400018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 067 | A 3609901840 | WASHER |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 074 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 074 | N 000961014064 | SCREW |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| 081 | A 3133120007 | ENGINE CROSS MEMBER |
| REAR | ||
| 088 | N 000961012151 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 095 | N 912004012100 | LOCK WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 102 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
