Transporto priemonė: L 613 D; VIN numerio dalis: 313404

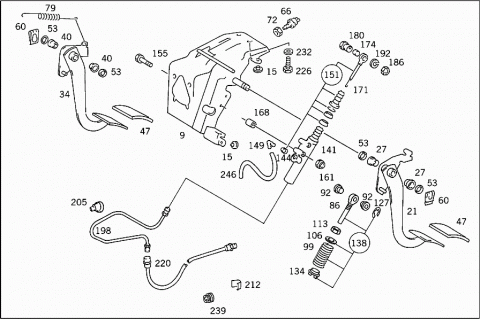

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 3092901333 | BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 009 | A 3132900033 | BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 015 | A 1152910186 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 021 | A 3092901716 | PEDAL |
| Repalced by: A 3092902016 | ||
| 021 | A 3092902016 | PEDAL |
| Repalced by: A 3102900316 | ||
| 021 | A 3102900316 | PEDAL |
| Repalced by: A 3102900416 | ||
| 021 | A 3102900416 | PEDAL |
| CLUTCH | ||
| 027 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 027 | A 1242920050 | BUSHING |
| 034 | A 3092900918 | PEDAL |
| BRAKE | ||
| 040 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 040 | A 1242920050 | BUSHING |
| 047 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 047 | A 1072910182 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 053 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 060 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 066 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 066 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 072 | A 0009909251 | NUT |
| STOP LIGHT SWITCH | ||
| 079 | A 3099931110 | SPRING |
| RELEASE SPRING | ||
| 086 | A 3132900039 | ROD |
| Repalced by: A 3132900139 | ||
| 086 | A 3132900139 | ROD |
| Repalced by: A 3102900439 | ||
| 086 | A 3102900439 | ROD |
| OVER-CENTER ACTING SPRING | ||
| 092 | A 3132910050 | BUSHING |
| Repalced by: A 3132900139 | ||
| 099 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 106 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 113 | N 070616010003 | NUT |
| SPRING TO PUSH ROD | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| PUSH ROD TO PEDAL | ||
| 127 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 134 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 138 | A 3092900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 141 | A 0012951406 | MASTER CYLINDER |
| Repalced by: A 0002959106 | ||
| 141 | A 0002959106 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 141 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 141 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| A 0002951583 | BOOT | |
| N 000472019000 | LOCK RING | |
| A 0009974235 | PLUG | |
| Repalced by: A 0009971186 | ||
| 144 | A 0009971186 | PLUG |
| 149 | A 3092950036 | INTERMEDIATE PIECE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 151 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 151 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| 155 | N 000933006147 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| M 6X45,TO 000 295 91 06 | ||
| 155 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 155 | N 000933006151 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| M X50,TO 333 295 77 06 | ||
| 161 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 161 | N 913004006001 | NUT |
| MASTER CYLINDER TO CONSOLE | ||
| 168 | A 3092950053 | SPACER TUBE |
| MASTER CYLINDER TO CONSOLE | ||
| TO 000 295 91 06 | ||
| 171 | A 1152900639 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 171 | A 3102900339 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 174 | A 1102950250 | BUSHING |
| 180 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 180 | N 304017008016 | SCREW |
| ROD TO LEVER | ||
| M 8X16 | ||
| 180 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 180 | N 304017008018 | SCREW |
| ROD TO LEVER | ||
| M 8X35 | ||
| 186 | A 1152950172 | NUT |
| ROD TO LEVER | ||
| 186 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 186 | N 913004008001 | NUT |
| ROD TO LEVER | ||
| A 1232950150 | BUSHING | |
| ROD TO LEVER | ||
| 192 | N 912004008102 | LOCK WASHER |
| ROD TO LEVER | ||
| 198 | A 3404201129 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 700 MM | ||
| 205 | A 1109971481 | GROMMET |
| Repalced by: A 1079970881 | ||
| 205 | A 1079970881 | GROMMET |
| Repalced by: A 0079975881 | ||
| 205 | A 0079975881 | GROMMET |
| MASTER CYLINDER LINE THRU CAB FLOOR | ||
| 212 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 212 | A 1072950173 | LOCK |
| CLUTCH HOSE TO BRACKET AT CAB | ||
| 220 | A 3092950035 | HOSE |
| FROM CLUTCH HOSE TO SLAVE CYLINDER | ||
| 226 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 226 | N 304017008021 | SCREW |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 232 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 232 | N 000125008443 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 239 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 239 | A 0009972881 | GROMMET |
| RESERVOIR LINE THRU CAB WINDOW SILL | ||
| 246 | A 0099973882 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
