Transporto priemonė: L 613 D; VIN numerio dalis: 313404

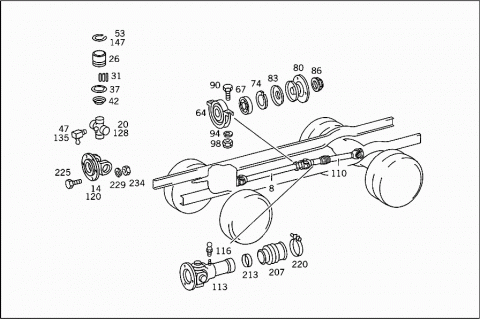

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
008	A 3104100004	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1000 MM
008	A 3104100104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1094 MM
014	A 3024110011	DRIVE FLANGE
	A 3104100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3024100031
	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
020	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
026	A 3224100542	BEARING BUSHING
031	A 3189810287	NEEDLE
		SET = 132 PIECES
037	A 3224110080	GASKET
042	A 3124111233	EXPANSION PLUG
047	N 071412008302	GREASE NIPPLE
053	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
053	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
053	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
053	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
053	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
053	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
	A 3104100922	INTERMEDIATE BEARING
	Repalced by: A 3095860141
	A 3104100622	INTERMEDIATE BEARING
	Repalced by: A 3095860141
	A 3095860141	REPAIR KIT
	Repalced by: A 3094100110
	A 3094100110	REPAIR KIT
	Repalced by: A 3104100822
064	A 3104100822	INTERMEDIATE BEARING
		INTERMEDIATE SHAFT BEARING
067	A 0019815925	BALL BEARING
067	A 0019811025	BALL BEARING
074	N 912009072200	SNAP RING
080	A 3104100230	CENTERING FLANGE
083	A 3104130061	PROTECTIVE CAP
086	A 3104110072	NUT
086	A 3104110172	NUT
090	N 000933010105	SCREW
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
094	N 912004010102	LOCK WASHER
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
098	N 913002010001	NUT
		INTERMEDIATE SHAFT BEARING TO CROSS MEMBER
110	A 3104100102	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		897 MM
110	A 3104100202	PROPELLER SHAFT
	Repalced by: A 3224102502
110	A 3224102502	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1640 MM
113	A 3234100108	UNIVERSAL JOINT YOKE
116	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
116	N 071412008102	GREASE NIPPLE
120	A 3024110011	DRIVE FLANGE
	A 3104100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3024100031
	A 3024100031	UNIVERSAL JOINT CROSS
	Repalced by: A 3854100231
128	A 3854100231	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
135	N 071412008302	GREASE NIPPLE
147	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
147	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
147	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
147	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
147	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
147	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
207	A 3144100080	BOOT
213	A 3284110051	SPACER RING
220	N 916002078100	CLAMP
		A 78/12
220	N 916002070101	CLAMP
		A 70/12
225	A 3219901501	SCREW
	Repalced by: A 3539900001
225	A 3539900001	SCREW
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
229	N 912004010102	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
234	N 000934010010	NUT
		PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
