Transporto priemonė: L 613 D; VIN numerio dalis: 313404

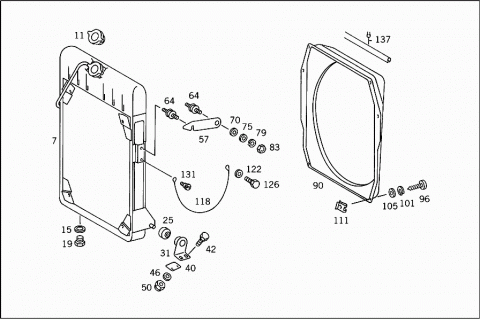

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3135000802 | RADIATOR |
| 011 | A 0005013615 | RADIATOR CAP |
| 015 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 019 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 025 | A 3135010081 | RUBBER PAD |
| 031 | A 3135000032 | STAY |
| LEFT BOTTOM | ||
| 031 | A 3135000132 | STAY |
| RIGHT BOTTOM | ||
| 040 | A 3135040084 | SHIM |
| STAY TO SIDE MEMBER | ||
| 042 | N 000933010145 | SCREW |
| STAY TO SIDE MEMBER | ||
| M 10X35 | ||
| 042 | N 000933010157 | SCREW |
| STAY TO SIDE MEMBER | ||
| M 10X28 | ||
| 046 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 046 | N 000125010532 | WASHER |
| STAY TO SIDE MEMBER | ||
| 050 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 050 | N 910113010000 | NUT |
| STAY TO SIDE MEMBER | ||
| 057 | A 3135010020 | BRACKET |
| RADIATOR MOUNTING | ||
| 064 | A 0019875240 | RUBBER BUFFER |
| RADIATOR MOUNTING | ||
| 070 | A 3135010076 | WASHER |
| RADIATOR MOUNTING | ||
| 075 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 075 | N 000125008443 | WASHER |
| RADIATOR MOUNTING | ||
| 079 | N 912004008102 | LOCK WASHER |
| RADIATOR MOUNTING | ||
| 083 | N 304032008006 | NUT |
| RADIATOR MOUNTING | ||
| 090 | A 3135050155 | FAN SHROUD |
| 096 | N 007971004328 | SHEET METAL SCREW |
| FAN SHROUD TO RADIATOR | ||
| 101 | N 912004005103 | LOCK WASHER |
| FAN SHROUD TO RADIATOR | ||
| 105 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 105 | N 000433005304 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 111 | A 0009940545 | LOCK |
| FAN SHROUD TO RADIATOR | ||
| 118 | A 3135000030 | WIRE CABLE |
| 122 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 122 | N 000125008443 | WASHER |
| WIRE CABLE TO BRACKET | ||
| 126 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 126 | N 304017008039 | SCREW |
| WIRE CABLE TO BRACKET | ||
| 131 | N 000923008005 | SCREW |
| WIRE CABLE TO RADIATOR | ||
| M 8X8 | ||
| 131 | N 000923008001 | SCREW |
| WIRE CABLE TO RADIATOR | ||
| M 8X10 | ||
| 137 | A 0009876870 | RUBBER SECTION |
| 144 | A 3135010182 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 151 | A 3135010282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 157 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 157 | N 000000000671 | CLAMP |
| 163 | A 3135060335 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 169 | A 3139870041 | RUBBER RING |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 169 | A 3139870141 | RUBBER RING |
| FROM RADIATOR TO THERMOSTAT | ||
| 176 | A 3135060235 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 179 | A 3095062435 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 182 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 182 | N 000000000668 | CLAMP |
| HEATING WATER LINE | ||
| 182 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 182 | N 000000000667 | CLAMP |
| HEATING WATER LINE | ||
| 192 | A 3522000454 | LINE |
| DE-AERATION | ||
| 205 | A 3522002518 | PIPE ELBOW |
| DE-AERATION LINE TO HEATING LINE | ||
| 205 | A 3522002818 | PIPE ELBOW |
| DE-AERATION LINE TO HEATING LINE | ||
| 214 | N 917003022003 | GASKET |
| DE-AERATION LINE TO HEATING LINE | ||
| 219 | A 3522030080 | GASKET |
| Repalced by: A 3522032480 | ||
| 219 | A 3522032480 | GASKET |
| Repalced by: A 3522032680 | ||
| 219 | A 3522032680 | GASKET |
| DE-AERATION LINE TO HEATING LINE | ||
