Transporto priemonė: L 613 D; VIN numerio dalis: 313404

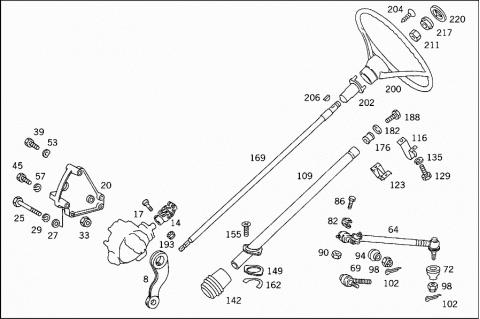

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 760.3 | ||
| A 3134630101 | PITMAN ARM | |
| Repalced by: A 3134630201 | ||
| 008 | A 3134630201 | PITMAN ARM |
| 008 | A 3134630401 | PITMAN ARM |
| 014 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 014 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 014 | A 0004600157 | UNIVERSAL JOINT |
| 017 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 017 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| A 4214600457 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| 020 | A 3104610340 | STEERING SUPPORT |
| 025 | N 000931010258 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X55 | ||
| 025 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 025 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 025 | N 304017010053 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X50 | ||
| 025 | N 000933010145 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X35 | ||
| 025 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 025 | N 304017010002 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X30 | ||
| 027 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 027 | N 000125010532 | WASHER |
| STEERING SUPPORT TO FRAME | ||
| 029 | N 912004010102 | LOCK WASHER |
| STEERING SUPPORT TO FRAME | ||
| 033 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 033 | N 910113010000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 039 | A 3099900914 | SCREW |
| Repalced by: A 3099901014 | ||
| 039 | A 3099901014 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 045 | N 000961012122 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M12X40 | ||
| 045 | N 000960012230 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M12X70 | ||
| 053 | N 900055012001 | SPRING WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 057 | N 912004012100 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 064 | A 3134600005 | DRAG LINK |
| Repalced by: A 3134600105 | ||
| 064 | A 3134600105 | DRAG LINK |
| 069 | A 0004604348 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 069 | A 0004605648 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 072 | A 0003300985 | BOOT |
| STEERING JOINT | ||
| 082 | A 0003382845 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 086 | N 000960010023 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 090 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 090 | N 910113010002 | HEXAGON NUT |
| DRAG LINK END TO DRAG LINK | ||
| 094 | A 0003300985 | BOOT |
| FIXED PART OF JOINT | ||
| 098 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 098 | N 000979016007 | NUT |
| DRAG LINK TO LEVER | ||
| 102 | N 000094004056 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 109 | A 3094602016 | STEER. COLUMN JACKET TUBE |
| 109 | A 3134601116 | STEER. COLUMN JACKET TUBE |
| 116 | A 3094610045 | STEERING COLUMN BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 123 | A 3094600165 | STRAP |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 129 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 129 | N 304017008021 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 135 | N 912004008102 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 142 | A 3104620296 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 149 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 155 | N 000966006020 | SCREW |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 162 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| A 3094602509 | STEERING SHAFT | |
| Repalced by: A 3094603409 | ||
| 169 | A 3094603409 | STEERING SHAFT |
| 169 | A 3134621001 | STEERING SHAFT |
| 169 | A 3134621301 | STEERING SHAFT |
| 176 | A 3124621050 | BUSHING |
| STEERING COLUMN BEARING | ||
| 182 | A 3124621065 | RING |
| STEERING COLUMN BEARING | ||
| 188 | A 3169900114 | SCREW |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| M 8X38 | ||
| 193 | A 0019901651 | NUT |
| Repalced by: N 913004008005 | ||
| 193 | N 910113008001 | NUT |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| A 3144600303 | STEERING WHEEL | |
| Repalced by: A 3104640001 | ||
| 200 | A 3104640001 | STEERING WHEEL |
| 200 | A 3134640201 | STEERING WHEEL |
| 202 | A 3134620055 | RING HALF |
| STEERING COLUMN MOUNTED SWITCH RESET | ||
| 204 | N 007983002205 | SHEET METAL SCREW |
| STEERING WHEEL TO STEERING COLUMN | ||
| 206 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 211 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 217 | A 0004642631 | CAP |
| STEERING WHEEL TO STEERING COLUMN | ||
| 220 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
