Mercedes-benz | iAUTO.lt

Transporto priemonė: L 710 D; VIN numerio dalis: 692102

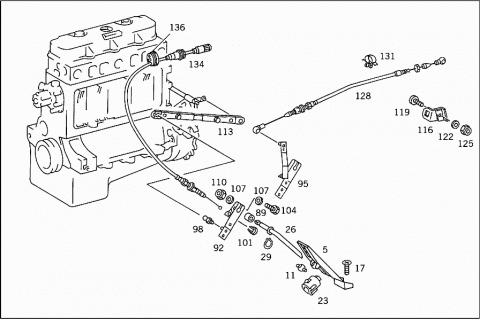

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL

#	Kodas	Pavadinimas
005	A 6733000004	ACCELERATOR PEDAL
011	A 3093010022	JOINT
017	N 000965006064	SCREW
		PEDAL TO CAB FLOOR
023	A 1263010141	STOP
		FULL THROTTLE
026	A 6673000225	LEVER
	Repalced by: A 3843007625
026	A 3843007625	LEVER
		(PEDAL LEVER)
029	N 900055010403	RETAINING RING
		TO 667 300 02 25
	N 006799009001	LOCK PLATE
		TO 384 300 76 25
089	A 3193010150	BUSHING
		(CONTROL LEVER)
092	A 6673000125	LEVER
		(CONTROL LEVER)
095	A 6883007025	LEVER
098	N 071803008200	BALL PIVOT
101	A 3093020050	BUSHING
		CONTROL LEVER
104	N 000931006197	SCREW
		CONTROL LEVER TO PEDAL LEVER
		M 6X30
107	N 000125006421	WASHER
		CONTROL LEVER TO PEDAL LEVER
110	N 913004006002	NUT
		CONTROL LEVER TO PEDAL LEVER
		M 6
113	A 6683010015	ROD
116	A 6673000040	BRACKET
119	N 000933006230	SCREW
		BRACKET TO COWL
		M6X25
122	N 000125006421	WASHER
		BRACKET TO COWL
125	N 000934006006	NUT
		BRACKET TO COWL
128	A 6883007130	WIRE CABLE
		MANUAL IDLING CONTROL
131	A 0009956044	CLAMP
		BOWDEN CABLE TO CAB
134	A 3863007132	WIRE CABLE
		ENGINE SHUT-OFF
134	A 6923007032	WIRE CABLE
		ENGINE SHUT-OFF
136	A 6679970681	GROMMET
		WIRE CABLE
		TO 386 300 71 32

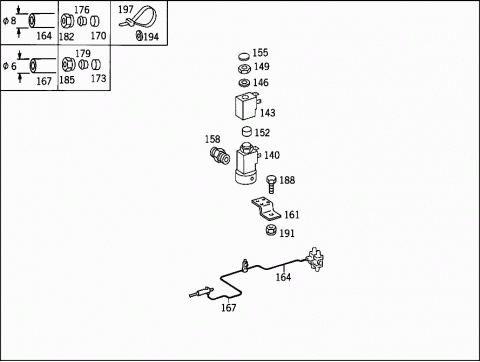

140	A 6889977336	VALVE
		3/2-WAY;ENGINE SHUT-OFF
		"WABCO"
140	A 3459977336	VALVE
		3/2-WAY;ENGINE SHUT-OFF
		"SCHRADER"
143	A 3647630056	MAGNET
		TO 345 997 73 36
146	A 0139971648	SEAL RING
		TO 345 997 73 36
149	A 0004310472	NUT
		TO 345 997 73 36
152	A 0004311868	VALVE PART
		TO 345 997 73 36
155	A 0014311687	PROTECTIVE CAP
		TO 345 997 73 36
158	A 6924297036	CONNECTOR
		3/2-WAY;ENGINE SHUT-OFF
161	A 6884317040	BRACKET
		3/2-WAY SOLENOID VALVE
164	A 0089979082	HOSE
		FROM 3/2-WAY VALVE TO CYLINDER
167	A 0089976082	HOSE
		FROM 3/2-WAY VALVE TO CYLINDER
170	N 915062006000	SLEEVE
		HOSE TO VALVE
173	N 915062004000	SLEEVE
		COMPRESSED AIR LINE
176	N 003861008005	GLAND
		HOSE TO VALVE
179	N 003861006008	GLAND
		COMPRESSED AIR LINE
182	N 915017008100	UNION NUT
		HOSE TO VALVE
185	N 915017006100	UNION NUT
		COMPRESSED AIR LINE
188	N 000933008274	SCREW
191	N 913004008004	NUT
194	N 007603016401	SEAL RING
197	A 3449977290	LOOM TIE
	Repalced by: A 3459977390
197	A 3459977390	LOOM TIE
