Transporto priemonė: L 710 D; VIN numerio dalis: 692102
Grupė: 43 EXHAUST BRAKE

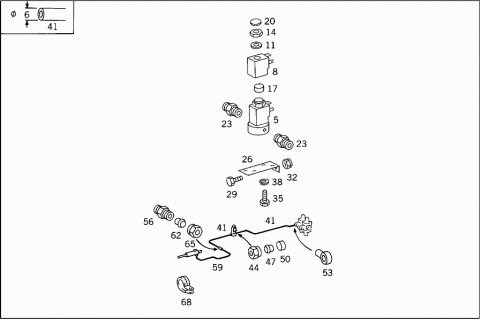

52309
# Kodas Pavadinimas
005 A 6889977336 VALVE
"WABCO"
005 A 3459977336 VALVE
"SCHRADER"
008 A 3647630056 MAGNET
TO 345 997 73 36
011 A 0139971648 SEAL RING
TO 345 997 73 36
014 A 0004310472 NUT
TO 345 997 73 36
017 A 0004311868 VALVE PART
TO 345 997 73 36
020 A 0014311687 PROTECTIVE CAP
TO 345 997 73 36
023 A 3454297736 CONNECTOR
026 A 6884347040 BRACKET
029 N 000933010254 SCREW
BRACKET TO RIGHT SIDE MEMBER
032 N 913004010008 NUT
BRACKET TO RIGHT SIDE MEMBER
035 N 000933005095 SCREW
VALVE TO BRACKET
038 N 912004005100 LOCK WASHER
VALVE TO BRACKET
041 A 0089976082 HOSE
4X6 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE
T YYYYYYYYYYYY PART NAME MISSING
FROM 3/2-WAY VALVE TO CONNECTOR
044 N 915017006100 UNION NUT
047 N 003861006007 GLAND
050 N 915062004000 SLEEVE
053 N 915052004002 BANJO UNION
056 N 003902006001 CONNECTION FITTING
FROM 3/2-WAY VALVE TO EXHAUST BRAKE CYLINDER
056 N 074298012202 DOUBLE FITTING
FROM 3/2-WAY VALVE TO EXHAUST BRAKE CYLINDER
059 A 6884208928 LINE
FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE
062 N 003861006007 GLAND
065 N 915017006100 UNION NUT
068 N 916016006201 CLAMP
LINE MOUNTING
