Transporto priemonė: L 710 D; VIN numerio dalis: 692102

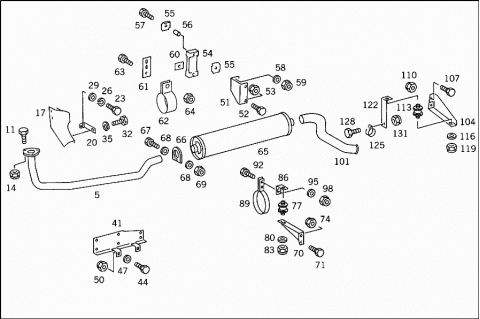

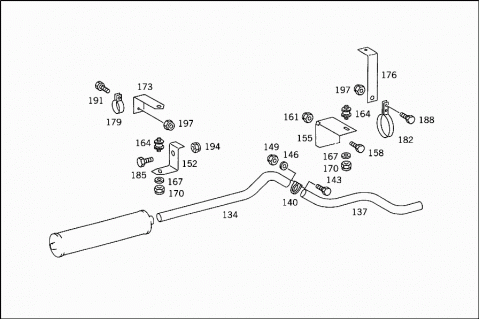

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6924907019 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6884907119 | EXHAUST PIPE |
| FRONT | ||
| 011 | N 000933010260 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X32 | ||
| 011 | N 000933010255 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X35 | ||
| 011 | N 000933010255 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 10X35 | ||
| 014 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| 017 | A 6884907030 | PROTECTIVE PLATE |
| 020 | A 6884927041 | BRACKET |
| BRACKET TO HEAT SHIELD | ||
| 023 | N 000933006183 | SCREW |
| PROTECTIVE PLATE TO ENGINE | ||
| 026 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO ENGINE | ||
| 029 | N 000125006421 | WASHER |
| PROTECTIVE PLATE TO ENGINE | ||
| 032 | N 000933006220 | SCREW |
| PROTECTIVE PLATE TO ENGINE | ||
| M 6X16 | ||
| 035 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO ENGINE | ||
| 041 | A 6884207044 | PROTECTIVE PLATE |
| HEAT SHIELD | ||
| 044 | N 000961010038 | SCREW |
| HEAT SHIELD TO FRAME | ||
| M 10X1X25 | ||
| 047 | N 000125010517 | WASHER |
| HEAT SHIELD TO FRAME | ||
| 050 | N 913004010010 | NUT |
| HEAT SHIELD TO FRAME | ||
| 051 | A 3084920016 | SUPPORT |
| SUPPORT TO SIDE MEMBER | ||
| 052 | N 000933010035 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 053 | N 913004010008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 054 | A 3084927082 | DAMPING PAD |
| DAMPING PAD TO EXHAUST PIPE | ||
| 055 | A 1204920118 | BASE PLATE |
| DAMPING PAD TO EXHAUST PIPE | ||
| 056 | A 1209911140 | SPACER TUBE |
| DAMPING PAD TO EXHAUST PIPE | ||
| 057 | N 000931008181 | SCREW |
| DAMPING PAD TO EXHAUST PIPE | ||
| M 8X45 | ||
| 057 | N 000931008058 | SCREW |
| DAMPING PAD TO EXHAUST PIPE | ||
| M 8X40 | ||
| 058 | N 000125008417 | WASHER |
| DAMPING PAD TO EXHAUST PIPE | ||
| 059 | N 913004008001 | NUT |
| DAMPING PAD TO EXHAUST PIPE | ||
| 060 | A 1204920083 | INSULATION |
| DAMPING PAD TO EXHAUST PIPE | ||
| 061 | A 6884917516 | SUPPORT |
| DAMPING PAD TO EXHAUST PIPE | ||
| 062 | N 071555075503 | CLAMP |
| DAMPING PAD TO EXHAUST PIPE | ||
| 75.5 | ||
| 063 | N 000933010260 | SCREW |
| DAMPING PAD TO EXHAUST PIPE | ||
| M 10X32 | ||
| 064 | N 913004010000 | NUT |
| DAMPING PAD TO EXHAUST PIPE | ||
| 065 | A 6884900001 | EXHAUST MUFFLER |
| 065 | A 6884900101 | EXHAUST MUFFLER |
| 065 | A 6884900201 | EXHAUST MUFFLER |
| 065 | A 6734900001 | EXHAUST MUFFLER |
| 065 | A 6924907001 | EXHAUST MUFFLER |
| 065 | A 6174900301 | EXHAUST MUFFLER |
| 065 | A 6884900301 | EXHAUST MUFFLER |
| 065 | A 6884900401 | EXHAUST MUFFLER |
| 065 | A 6884907101 | EXHAUST MUFFLER |
| 066 | A 6684920040 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 067 | N 000931008220 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M 8X100 | ||
| 068 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 069 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 069 | A 1201420072 | HEXAGON NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 070 | A 6884917341 | BRACKET |
| EXHAUST MUFFLER | ||
| 071 | N 000933010254 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 071 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 074 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 074 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 074 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 077 | A 0019873140 | RUBBER BUFFER |
| 080 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 080 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 083 | N 913004010008 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 086 | A 6884917316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 089 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 092 | N 000933008270 | SCREW |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| M 8X25 | ||
| 095 | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 098 | N 913004008004 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 098 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 098 | A 1201420072 | HEXAGON NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 101 | A 6884927301 | FRONT EXHAUST PIPE |
| (TAIL PIPE) | ||
| 101 | A 6924927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 101 | A 6884927204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 104 | A 6884917141 | BRACKET |
| TAIL PIPE | ||
| 107 | N 000933010254 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 107 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 | ||
| 110 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 113 | A 0019873140 | RUBBER BUFFER |
| 116 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 119 | N 913004010008 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 122 | A 6884917116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 122 | A 6884917416 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 125 | N 071555075503 | CLAMP |
| TAIL PIPE | ||
| 128 | N 000933010260 | SCREW |
| BRACKET AND CLAMP TO TAIL PIPE | ||
| 131 | N 913004010000 | NUT |
| BRACKET AND CLAMP TO TAIL PIPE | ||
| 134 | A 6884927104 | REAR EXHAUST PIPE |
| 137 | A 6884927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 140 | A 6684920340 | CLAMP |
| REAR EXHAUST PIPES | ||
| 143 | N 000931008422 | SCREW |
| REAR EXHAUST PIPES | ||
| M 8X115 | ||
| 146 | N 000125008417 | WASHER |
| REAR EXHAUST PIPES | ||
| 149 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 149 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPES | ||
| 152 | A 6884927141 | BRACKET |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 155 | A 6884927241 | BRACKET |
| FRAME | ||
| 158 | N 000933010254 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 M | ||
| 158 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| M 10X28 MM | ||
| 161 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 164 | A 0019873140 | RUBBER BUFFER |
| BRACKET TO BRACKET | ||
| 167 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 170 | N 913004010008 | NUT |
| BRACKET TO BRACKET | ||
| 173 | A 6884927116 | SUPPORT |
| SHOCK ABSORBER MOUNTING | ||
| 176 | A 6884927016 | SUPPORT |
| FRAME | ||
| 179 | N 071555075503 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 182 | A 6684920440 | CLAMP |
| FRAME | ||
| 185 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| M 10X35 MM | ||
| 188 | N 000933008270 | SCREW |
| CLAMP TO SUPPORT | ||
| M 8X25 MM | ||
| 191 | N 000933008278 | SCREW |
| CLAMP TO BRACKET | ||
| M 8X28 MM | ||
| 194 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 197 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 197 | A 1201420072 | HEXAGON NUT |
| CLAMP TO BRACKET | ||
