Transporto priemonė: L 710 D; VIN numerio dalis: 692102

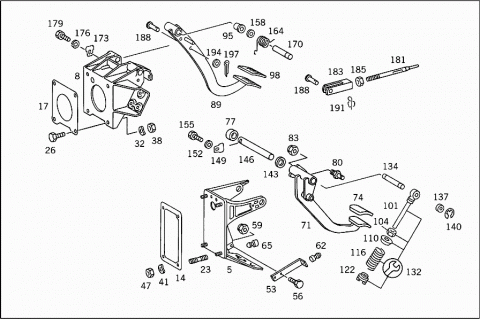

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 008 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 014 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 014 | A 6452940280 | GASKET |
| BEARING BRACKET TO CAB | ||
| 017 | A 3842947080 | GASKET |
| BEARING BRACKET TO CAB | ||
| 023 | A 6882920070 | STUD |
| BEARING BRACKET TO CAB | ||
| 026 | N 000933008150 | SCREW |
| BEARING BRACKET TO CAB | ||
| M8X35 | ||
| 032 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 032 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 038 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| M 8 | ||
| 038 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| 041 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 047 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| M 8 | ||
| 053 | A 6882910030 | STOP |
| Repalced by: A 3842907032 | ||
| 053 | A 3842907032 | STOP |
| (ANGLE) | ||
| A 3012910241 | STOP | |
| TO 384 290 70 32 | ||
| N 000934008008 | NUT | |
| TO 384 290 70 32 | ||
| 056 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X20 | ||
| 059 | N 913004006002 | NUT |
| STOP TO BEARING BRACKET | ||
| 062 | A 6732910286 | STOP |
| Repalced by: A 6882917386 | ||
| 062 | A 6882917386 | STOP |
| CLUTCH PEDAL | ||
| TO 688 291 00 30 | ||
| 065 | A 6882917286 | STOP |
| Repalced by: A 3842917086 | ||
| 065 | A 3842917086 | STOP |
| CLUTCH PEDAL | ||
| TO 688 291 75 86 | ||
| 071 | A 6882907016 | PEDAL |
| CLUTCH | ||
| 074 | A 2012910282 | PAD |
| Repalced by: A 1102910182 | ||
| 074 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 077 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 080 | A 6882910074 | PIN |
| CLUTCH PEDAL | ||
| 083 | N 913002010001 | NUT |
| CLUTCH PEDAL | ||
| 089 | A 3842907018 | PEDAL |
| BRAKE | ||
| 095 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 3812901439 | ROD |
| 104 | N 000439010221 | NUT |
| 110 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 116 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 132 | A 6882900093 | REPAIR KIT |
| 134 | A 6452910374 | PIN |
| Repalced by: A 3842917074 | ||
| 134 | A 3842917074 | PIN |
| PUSH ROD TO CLUTCH PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 140 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO CLUTCH PEDAL | ||
| TO 645 291 03 74 | ||
| N 000471008001 | LOCK RING | |
| TO 384 291 70 74 | ||
| 143 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 146 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 149 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 149 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 152 | N 000125006421 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 155 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 158 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 164 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 170 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 170 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 173 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 173 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 176 | N 000127006203 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 179 | N 000933006223 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 181 | A 6884260230 | ROD |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 183 | A 3849967001 | YOKE |
| PUSH ROD | ||
| 185 | N 000934012022 | NUT |
| PUSH ROD | ||
| M 12X1.5 | ||
| 188 | A 1262920074 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 188 | A 3529910007 | PIN |
| BRAKE PEDAL PUSH ROD | ||
| 191 | N 912011102000 | LOCK |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 194 | N 000433010504 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 197 | N 000094003207 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 3.2X16 | ||

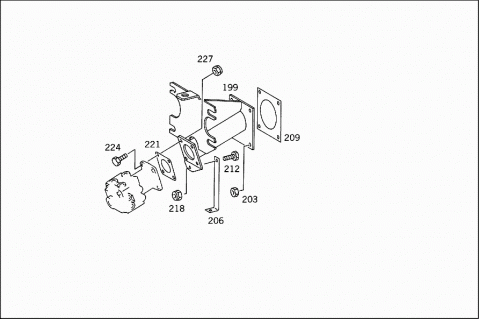

| 199 | A 6884300210 | BRACKET |
| 203 | N 900073008100 | NUT |
| 203 | A 3449900358 | NUT |
| 206 | A 6884310395 | WEB |
| 209 | A 6884310080 | GASKET |
| BRACKET TO FIRE WALL AND TO PEDAL BEARING BRACKET | ||
| 212 | N 000933008271 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X20 | ||
| 212 | N 000933008268 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X16 | ||
| 218 | N 913004008004 | NUT |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| 221 | A 3134310080 | GASKET |
| BRAKE VALVE TO BRACKET | ||
| 224 | N 000933008270 | SCREW |
| BRAKE VALVE TO BRACKET | ||
| M 8X28 | ||
| 227 | N 913004008004 | NUT |
| BRAKE VALVE TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
