Transporto priemonė: L 710 D; VIN numerio dalis: 692102

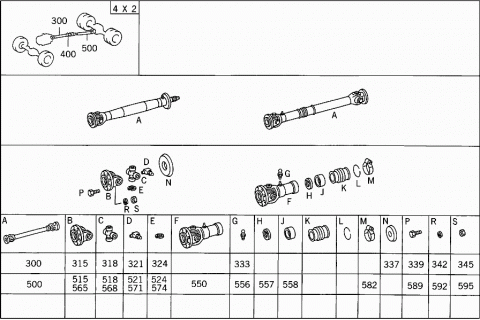

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 3764100204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1290 MM | ||
| 300 | A 6884100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1466 MM | ||
| 315 | A 3524110011 | DRIVE FLANGE |
| FLEXIBLE JOINT DISC | ||
| A 3454107031 | UNIVERSAL JOINT CROSS | |
| 318 | A 3024100031 | UNIVERSAL JOINT CROSS |
| 321 | N 071412008300 | GREASE NIPPLE |
| CM 8X1 | ||
| 321 | A 3459977288 | GREASE NIPPLE |
| 324 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 324 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 324 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 324 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 324 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 324 | A 3449947535 | SNAP RING |
| 2.600 MM | ||
| 324 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 324 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 324 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 324 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 324 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 324 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 324 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 324 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 324 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 324 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 324 | A 3449947435 | SNAP RING |
| 2.575 MM | ||
| 333 | N 071412008100 | GREASE NIPPLE |
| AM 8X1 | ||
| 337 | A 3524130061 | PROTECTIVE CAP |
| INTERMEDIATE SHAFT BEARING | ||
| 339 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 339 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 342 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| TO 352 990 04 01 | ||
| 345 | N 000934010042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| M 10X1 | ||

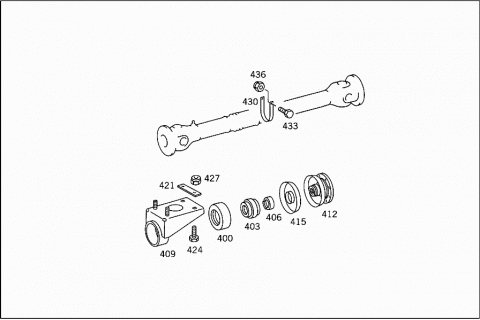

| 400 | A 3524130012 | RUBBER MOUNTING |
| 403 | A 3454100051 | BALL BEARING |
| 403 | A 3524100051 | BALL BEARING |
| 406 | A 3124131231 | BEARING RING |
| 409 | A 3454100140 | BRACKET |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 409 | A 3454100240 | BRACKET |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 412 | A 3524100130 | CENTERING FLANGE |
| INTERMEDIATE SHAFT BEARING | ||
| 415 | A 3524130061 | PROTECTIVE CAP |
| 421 | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 424 | N 000961010039 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X1X30 | ||
| 427 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| M 10X1 | ||
| 430 | A 6884110082 | REBOUND STRAP |
| 433 | N 000933008272 | SCREW |
| REBOUND STRAP TO CROSS MEMBER | ||
| M 8X18 | ||
| 436 | N 913004008004 | NUT |
| REBOUND STRAP TO CROSS MEMBER | ||
| M 8 | ||
| 500 | A 3414100207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 500 | A 3414100007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 515 | A 3524110011 | DRIVE FLANGE |
| FLEXIBLE JOINT DISC | ||
| A 3454107031 | UNIVERSAL JOINT CROSS | |
| 518 | A 3024100031 | UNIVERSAL JOINT CROSS |
| 521 | A 3459977288 | GREASE NIPPLE |
| CM 8X1 | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| CM 8X1 | ||
| 524 | A 3449947135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3129941135 | SNAP RING |
| 2.500 MM | ||
| 524 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 524 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 524 | A 3129941335 | SNAP RING |
| 2.600 MM | ||
| 524 | A 3449947635 | SNAP RING |
| 2.625 MM | ||
| 524 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 524 | A 3449947835 | SNAP RING |
| 2.675 MM | ||
| 524 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 524 | A 3449948035 | SNAP RING |
| 2.725 MM | ||
| 524 | A 3129941735 | SNAP RING |
| 2.750 MM | ||
| 524 | A 3449948135 | SNAP RING |
| 2.750 MM | ||
| 550 | A 3414100908 | UNIVERSAL JOINT YOKE |
| 556 | N 071412008100 | GREASE NIPPLE |
| 557 | A 3374130080 | SEAL RING |
| 558 | A 3214110158 | SEAL HOLDER |
| 565 | A 3524110011 | DRIVE FLANGE |
| FLEXIBLE JOINT DISC | ||
| A 3454107031 | UNIVERSAL JOINT CROSS | |
| 568 | A 3024100031 | UNIVERSAL JOINT CROSS |
| 571 | N 071412008300 | GREASE NIPPLE |
| CM 8X1 | ||
| 571 | A 3459977288 | GREASE NIPPLE |
| CM 8X1 | ||
| 574 | A 3449947235 | SNAP RING |
| 2.525 MM | ||
| 574 | A 3449947335 | SNAP RING |
| 2.550 MM | ||
| 574 | A 3129941635 | SNAP RING |
| 2.550 MM | ||
| 574 | A 3449947735 | SNAP RING |
| 2.650 MM | ||
| 574 | A 3129941435 | SNAP RING |
| 2.650 MM | ||
| 574 | A 3449947935 | SNAP RING |
| 2.700 MM | ||
| 574 | A 3129941535 | SNAP RING |
| 2.700 MM | ||
| 574 | A 3129941735 | SNAP RING |
| AS REQUIRED | ||
| 2.750 MM | ||
| 574 | A 3449948135 | SNAP RING |
| AS REQUIRED | ||
| 2.750 MM | ||
| 582 | A 3419977790 | CLAMP |
| 582 | N 916002078100 | CLAMP |
| 589 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 589 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| 592 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| TO 352 990 04 01 | ||
| 595 | N 000934010042 | NUT |
| PROPELLER SHAFT TO INTERMEDIATE BEARING AND TO REAR AXLE | ||
| M 10X1 | ||
