Transporto priemonė: MBO 800/38; VIN numerio dalis: 684088

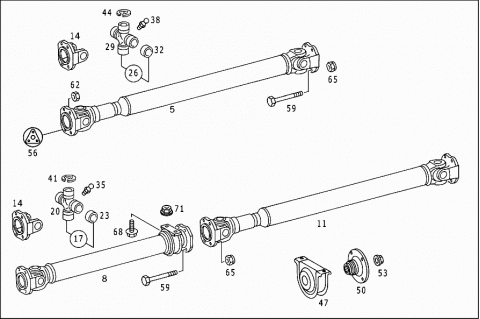

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6844104202 | PROPELLER SHAFT |
| Repalced by: A 6844104602 | ||
| 005 | A 6844104602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 005 | A 6844104602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 008 | A 6844104302 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 6844102102 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 6844102002 | PROPELLER SHAFT |
| FRONT | ||
| 011 | A 6844104002 | PROPELLER SHAFT |
| REAR | ||
| 011 | A 6844104702 | PROPELLER SHAFT |
| REAR | ||
| TO RA 746.680 | ||
| 014 | A 6844110011 | DRIVE FLANGE |
| 014 | A 6844110011 | DRIVE FLANGE |
| 014 | A 6844110011 | DRIVE FLANGE |
| 014 | A 6844110011 | DRIVE FLANGE |
| 017 | A 6844100031 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 020 | A 6844114031 | UNIVERSAL JOINT CROSS |
| 023 | A 6844104042 | BEARING BUSHING |
| 026 | A 6844100031 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 026 | A 6844100031 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 026 | A 6844100031 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 029 | A 6844114031 | UNIVERSAL JOINT CROSS |
| 029 | A 6844114031 | UNIVERSAL JOINT CROSS |
| 029 | A 6844114031 | UNIVERSAL JOINT CROSS |
| 032 | A 6844104042 | BEARING BUSHING |
| 032 | A 6844104042 | BEARING BUSHING |
| 032 | A 6844104042 | BEARING BUSHING |
| 035 | A 6849974088 | GREASE NIPPLE |
| 038 | A 6849974088 | GREASE NIPPLE |
| 038 | A 6849974088 | GREASE NIPPLE |
| 041 | A 6844110073 | LOCK |
| 044 | A 6844110073 | LOCK |
| 044 | A 6844110073 | LOCK |
| 044 | A 6844110073 | LOCK |
| 047 | A 6844104022 | INTERMEDIATE BEARING |
| 050 | A 6844114045 | FLANGE |
| 053 | A 6844114072 | NUT |
| 056 | A 0004101528 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 056 | A 0004101528 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 056 | A 0004101528 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 059 | A 0079901101 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 059 | N 308676012010 | HEXAGON HEAD BOLT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M12X1.5X40 | ||
| 059 | A 0079901101 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 062 | N 308673012002 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| ISO | ||
| 062 | N 000934012013 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| DIN | ||
| 065 | N 308673012003 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| 065 | N 308673012002 | HEXAGON NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M12X1.5 | ||
| 065 | N 308673012003 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| M12X1,25-10 | ||
| 068 | A 0029902704 | SCREW |
| PROPELLER SHAFT | ||
| M 12X1,5X30 | ||
| 071 | A 0009906750 | NUT |
| PROPELLER SHAFT | ||
