Transporto priemonė: MB 100 D; VIN numerio dalis: 631332
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

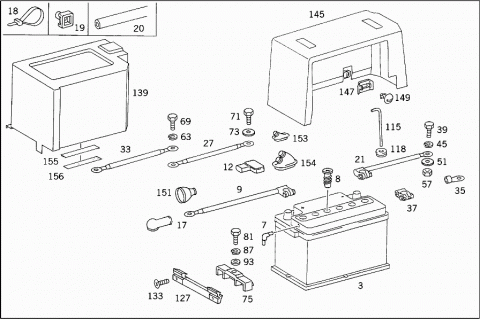

| 003 | A 6315410801 | BATTERY |
| LESS ACID | ||
| 12V/66 AH | ||
| 003 | A 0035417501 | BATTERY |
| LESS ACID | ||
| 12V/74 AH | ||
| 003 | A 6315410701 | BATTERY |
| LESS ACID | ||
| 12V/55 AH | ||
| 003 | A 0035416601 | BATTERY |
| LESS ACID | ||
| 12V/62 AH | ||
| A 0019979386 | PLUG | |
| 007 | A 6315410038 | PIPE |
| Repalced by: A 0005410038 | ||
| 007 | A 0005410038 | PIPE |
| Repalced by: A 0009903872 | ||
| 007 | A 0009903872 | DISTRIBUTOR |
| NOT INCLUDED IN RANGE OF DELIVERY OF: | ||
| 631 541 07 01/08 01 | ||
| 008 | A 0005411947 | VENT |
| 009 | A 6735460011 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 009 | A 6315401230 | POSITIVE CABLE |
| Repalced by: A 6315401630 | ||
| 009 | A 6315401630 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 009 | N 922002035000 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 009 | A 6315401130 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 009 | A 6735460011 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 012 | A 6319974181 | GROMMET |
| BATTERY POS. POLE | ||
| 017 | A 1115460035 | BOOT |
| 018 | A 6319971490 | LOOM TIE |
| Repalced by: A 3779977690 | ||
| 018 | A 3779977690 | LOOM TIE |
| BATTERY CABLE MOUNTING | ||
| 018 | A 0019978390 | LOOM TIE |
| BATTERY CABLE MOUNTING | ||
| 019 | A 6319971390 | LOOM TIE |
| BATTERY CABLE MOUNTING | ||
| 020 | A 6318210687 | PROTECTIVE TUBE |
| BATTERY CABLE MOUNTING | ||
| 021 | A 6315400830 | NEG. CABLE |
| Repalced by: A 6315400131 | ||
| 021 | A 6315400131 | NEG. CABLE |
| FROM BATTERY TO GROUND POINT | ||
| 021 | N 922002050000 | ELECTRIC CABLE |
| Repalced by: A 6735460011 | ||
| 021 | A 6735460011 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND POINT | ||
| 021 | A 6735460011 | ELECTRIC CABLE |
| GROUND TO ENGINE AND TO FRAME | ||
| 021 | A 6735460011 | ELECTRIC CABLE |
| GROUND TO FRAME | ||
| 021 | A 6315401530 | NEG. CABLE |
| Repalced by: A 6315400231 | ||
| 021 | A 6315400231 | NEG. CABLE |
| Repalced by: A 6315400331 | ||
| 021 | A 6315400331 | NEG. CABLE |
| FROM BATTERY TO GROUND POINT | ||
| 021 | N 922002035000 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND POINT | ||
| 027 | N 922002035000 | LINE |
| GROUND TO ENGINE AND TO FRAME | ||
| 033 | A 6315400930 | POSITIVE CABLE |
| Repalced by: A 6315400341 | ||
| 033 | A 6315400341 | GROUND STRAP |
| GROUND TO FRAME | ||
| 033 | A 6315401330 | POSITIVE CABLE |
| Repalced by: A 6315400441 | ||
| 033 | A 6315400441 | GROUND STRAP |
| Repalced by: A 6315400841 | ||
| 033 | A 6315400841 | GROUND STRAP |
| GROUND TO FRAME | ||
| 033 | N 922002035000 | ELECTRIC CABLE |
| GROUND TO FRAME | ||
| 035 | N 046234010008 | CABLE SHOE |
| BATTERY CABLE | ||
| 037 | N 072332011200 | SOLDERING TERMINAL |
| NEG. CABLE | ||
| 039 | N 000933010198 | SCREW |
| GROUND STRAP TO BODY | ||
| N 000125008418 | WASHER | |
| GROUND STRAP | ||
| N 000934008010 | NUT | |
| GROUND STRAP | ||
| 045 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO BODY | ||
| 051 | N 009021010202 | WASHER |
| GROUND STRAP TO BODY | ||
| 057 | N 000934010014 | NUT |
| GROUND STRAP TO BODY | ||
| 063 | N 912004010102 | LOCK WASHER |
| GROUND TO FRAME | ||
| 069 | N 000933010105 | SCREW |
| GROUND TO FRAME | ||
| 071 | N 000933008013 | SCREW |
| GROUND STRAP TO ENGINE BLOCK | ||
| 073 | N 000125008418 | WASHER |
| GROUND STRAP TO ENGINE BLOCK | ||
| 075 | A 6318950066 | STOP |
| Repalced by: A 6318950166 | ||
| 075 | A 6318950166 | STOP |
| Repalced by: A 6318950266 | ||
| 075 | A 6318950266 | STOP |
| BATTERY MOUNTING | ||
| 081 | N 000933006084 | SCREW |
| BATTERY MOUNTING | ||
| 081 | N 000933008160 | SCREW |
| BATTERY MOUNTING | ||
| 087 | N 912004006102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 087 | N 912004008100 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 093 | N 000125006421 | WASHER |
| BATTERY MOUNTING | ||
| 093 | N 000125008417 | WASHER |
| BATTERY MOUNTING | ||
| 115 | A 0029975982 | HOSE |
| 118 | A 0009973181 | GROMMET |
| 127 | A 6315410010 | SUPPORT |
| 133 | N 000965005053 | SCREW |
| M 5X30 | ||
| 133 | N 000965005026 | SCREW |
| M 5X30 | ||
| 139 | A 6315410903 | COVER |
| BATTERY COVERING | ||
| 145 | A 6315410703 | COVER |
| Repalced by: A 6315400029 | ||
| 145 | A 6315400029 | CAP |
| BATTERY COVERING | ||
| 147 | A 6315410076 | WASHER |
| 149 | A 6315410144 | HOOK |
| 151 | A 6319972581 | GROMMET |
| 153 | A 6319972881 | GROMMET |
| 154 | A 6319972981 | GROMMET |
| A 6319970081 | GROMMET | |
| 155 | A 6319832113 | BAND |
| UPPER PART | ||
| 155 | A 4617782887 | MOUNTING STRIP |
| UPPER PART | ||
| 156 | A 6319832313 | BAND |
| LOWER PART | ||
| 156 | A 4617782987 | MOUNTING STRIP |
| LOWER PART | ||
| 157 | A 6315402305 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 157 | A 6315403705 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 157 | A 6315405005 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 160 | A 6315453226 | PLUG SOCKET |
| 160 | A 6315453926 | PLUG SOCKET |
| 163 | A 6315451028 | PLUG |
| 163 | A 0015458628 | PLUG |
| 169 | A 6315451426 | PLUG SOCKET |
| 169 | A 6315452526 | PIN BUSHING |
| 169 | A 0005455326 | PIN BUSHING |
| 169 | A 6315452026 | PIN BUSHING |
| 169 | A 0005453726 | PIN BUSHING |
| 181 | A 6315452226 | PIN BUSHING |
| 181 | A 0005453726 | PIN BUSHING |
| 181 | A 6315452326 | PIN BUSHING |
| 181 | A 0075458426 | PIN BUSHING |
| 187 | A 6315452426 | PIN BUSHING |
| 187 | A 0025454026 | FLAT PIN BUSHING |
| 193 | A 6315451926 | PIN BUSHING |
| 193 | A 0005453726 | PIN BUSHING |
| 193 | A 6315452126 | PIN BUSHING |
| 193 | A 0005454626 | PIN BUSHING |
| 211 | A 6315452726 | PLUG SOCKET |
| 211 | A 6315452826 | PIN BUSHING |
| 211 | A 0005453626 | PIN BUSHING |
| 211 | A 6315452926 | PIN BUSHING |
| 223 | A 6315453026 | PIN BUSHING |
| 229 | A 6315450328 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 229 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 229 | A 6315453328 | PLUG |
| BIPOLAR | ||
| 233 | A 0055457228 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 235 | A 6315450428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 235 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 241 | A 0065456828 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 247 | A 6315450726 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 247 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 250 | A 6315452228 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 252 | A 6315452328 | PLUG |
| 3-POLE | ||
| 253 | A 6315451128 | PLUG |
| 3-POLE | ||
| 253 | A 0045455526 | PLUG HOUSING |
| 3-POLE | ||
| 259 | A 6315450528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 259 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| A 0155459628 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 265 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 265 | A 6315450526 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 265 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| A 0135459328 | PLUG HOUSING | |
| 8-POLE | ||
| 277 | A 0115455128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 277 | A 6315453128 | PLUG |
| 4-POLE | ||
| 277 | A 6315453228 | PLUG |
| 4-POLE | ||
| 283 | A 6115450128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 289 | A 6315450828 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 289 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 292 | A 6315450626 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 292 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 294 | A 6315450026 | PLUG SOCKET |
| UNIPOLAR | ||
| 296 | A 6315450128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 296 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 297 | A 6315451428 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 297 | A 6315451528 | PIN BUSHING HOUSING |
| 5-POLE | ||
| A 0155459528 | PLUG | |
| 5-POLE | ||
| 297 | A 6315452828 | PLUG |
| 5-POLE | ||
| 298 | A 6315452928 | PLUG |
| 5-POLE | ||
| 300 | A 6315453028 | PLUG |
| 5-POLE | ||
| 302 | A 6315451628 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 303 | A 6315451728 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 304 | A 6315451828 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 305 | A 6315452028 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 306 | A 6315452128 | PIN BUSHING HOUSING |
| 11-POLE | ||
| 307 | A 6315453326 | PIN BUSHING |
| 307 | A 6315453426 | PIN BUSHING |
| 308 | A 6315460640 | CABLE SHOE |
| 308 | N 046225004102 | CABLE SHOE |
| 308 | A 6315461240 | CABLE SHOE |
| 308 | N 046225004101 | CABLE SHOE |
| 308 | A 6315461140 | CABLE SHOE |
| 308 | N 046225004102 | CABLE SHOE |
| 308 | A 6315461340 | CABLE SHOE |
| 308 | N 046225006100 | CABLE SHOE |
| 308 | A 6315460340 | CABLE SHOE |
| 308 | N 046225004102 | CABLE SHOE |
| 308 | A 6315461740 | CABLE SHOE |
| 325 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 331 | A 3779977590 | LOOM TIE |
| 331 | A 3779977690 | LOOM TIE |
| 331 | A 0019978390 | LOOM TIE |
| A 6315450145 | BOOT | |
| A 6315450045 | BOOT | |
| 337 | A 0009970281 | GROMMET |
| Repalced by: A 0009970381 | ||
| 337 | A 0009970381 | GROMMET |
| 337 | A 0009970581 | GROMMET |
| 343 | A 6319970781 | GROMMET |
| 346 | A 6319972681 | GROMMET |
| 347 | A 6319973381 | GROMMET |
| STOP LIGHT SWITCH | ||
| 348 | A 6319973981 | GROMMET |
| WIPER SWITCH | ||
| 349 | A 6679970181 | GROMMET |
| BLINKER LAMP | ||
| 350 | A 0079976581 | GROMMET |
| BLINKER LAMP | ||
| 351 | A 0005452245 | BOOT |
| (LIGHT SWITCH) | ||
| 352 | A 0015452826 | PIN BUSHING |
| 355 | A 0005453704 | LIGHT SWITCH |
| 358 | N 000933004029 | SCREW |
| Repalced by: N 000933004015 | ||
| 358 | N 000933004015 | SCREW |
| (LIGHT SWITCH) | ||
| 361 | A 6315450003 | CAP |
| Repalced by: A 0055450228 | ||
| 361 | A 0055450228 | PIN BUSHING HOUSING |
| 369 | N 000934008010 | NUT |
| GROUND CABLE TO BRACKET | ||
| 371 | N 000125008417 | WASHER |
| GROUND CABLE TO BRACKET | ||
| 373 | A 6315403707 | CABLE HARNESS |
| Repalced by: A 6315403907 | ||
| 373 | A 6315403907 | CABLE HARNESS |
| 373 | A 6315405807 | CABLE HARNESS |
| Repalced by: A 6315403907 | ||
| 373 | A 6315403807 | CABLE HARNESS |
| Repalced by: A 6315404207 | ||
| 373 | A 6315404207 | CABLE HARNESS |
| 373 | A 6315405707 | CABLE HARNESS |
| Repalced by: A 6315407607 | ||
| 373 | A 6315407607 | CABLE HARNESS |
| 385 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 390 | A 6315450828 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 391 | A 6315450626 | PLUG SOCKET |
| 8-POLE | ||
| 409 | A 6315452126 | PIN BUSHING |
| 409 | A 0005454626 | PIN BUSHING |
| 409 | A 6315451926 | PIN BUSHING |
| 409 | A 0005453726 | PIN BUSHING |
| 409 | A 6315452026 | PIN BUSHING |
| 409 | A 0005453726 | PIN BUSHING |
| 409 | A 6315452226 | PIN BUSHING |
| 409 | A 0005453726 | PIN BUSHING |
| 409 | A 6315452326 | PIN BUSHING |
| 409 | A 0075458426 | PIN BUSHING |
| 409 | A 6315452426 | PIN BUSHING |
| 409 | A 0025454026 | FLAT PIN BUSHING |
| 412 | A 0005451745 | BOOT |
| 415 | A 6315460640 | CABLE SHOE |
| 415 | A 6315461540 | CABLE SHOE |
| 417 | A 6315451028 | PLUG |
| 417 | A 0015458628 | PLUG |
| 421 | A 0095451428 | PLUG |
| TOP | ||
| A 0035452626 | ROUND PIN BUSHING | |
| A 0015453726 | PIN BUSHING | |
| 427 | A 0015452626 | PLUG SOCKET |
| Repalced by: A 0015454426 | ||
| 427 | A 0015454426 | ROUND PIN BUSHING |
| 427 | A 0015454426 | PLUG SOCKET |
| 433 | A 0085452028 | PIN BUSHING HOUSING |
| BOTTOM | ||
| 439 | A 0009970281 | GROMMET |
| Repalced by: A 0009970381 | ||
| 439 | A 0009970381 | GROMMET |
| 445 | A 6319972781 | GROMMET |
| 447 | A 6319973481 | GROMMET |
| 449 | A 6319973081 | GROMMET |
| 450 | A 6315460035 | BOOT |
| 450 | A 3805403581 | PLUG SOCKET |
| 452 | A 6319971090 | LOOM TIE |
| ELECTRIC CABLE TO SUBSTRUCTURE | ||
| 454 | A 6315400305 | CABLE HARNESS |
| (PRE-GLOW TIME RELAY) | ||
| 454 | A 6315404805 | CABLE HARNESS |
| (PRE-GLOW TIME RELAY) | ||
| 457 | A 0115455228 | PLUG |
| Repalced by: A 0125451028 | ||
| 457 | A 0125451028 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 458 | A 0085452028 | PIN BUSHING HOUSING |
| 460 | A 6315452326 | PIN BUSHING |
| 460 | A 0075458426 | PIN BUSHING |
| 463 | A 0015453726 | PLUG SOCKET |
| 463 | A 0035452626 | ROUND PIN BUSHING |
| 464 | A 6315450128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 464 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 465 | A 0015452626 | PIN BUSHING |
| Repalced by: A 0015454426 | ||
| 465 | A 0015454426 | ROUND PIN BUSHING |
| 466 | A 0095451428 | COVER |
| 469 | A 6315461040 | CABLE SHOE |
| 469 | N 046225005100 | CABLE SHOE |
| 475 | A 3778210187 | PROTECTIVE TUBE |
| Repalced by: A 0009970381 | ||
| 475 | A 0009970381 | GROMMET |
| A 6315402405 | CABLE HARNESS | |
| FROM PLUG CONNECTION TO ENGINE | ||
| 477 | A 6315450026 | PLUG SOCKET |
| UNIPOLAR | ||
| 477 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 478 | A 6315451028 | PLUG |
| 478 | A 0015458628 | PLUG |
| 479 | A 6315461140 | CABLE SHOE |
| 479 | N 046225004102 | CABLE SHOE |
| 480 | A 3778210187 | PROTECTIVE TUBE |
| 481 | N 007985004147 | SCREW |
| STARTING MOTOR TERMINAL 50 | ||
| 482 | N 000125008418 | WASHER |
| STARTING MOTOR TERMINAL 30 | ||
| 483 | A 6315450740 | BRACKET |
| 487 | N 910002004132 | RIVET |
| BRACKET MOUNTING | ||
| 489 | A 6315470002 | REGULATOR AND CUT-OUT |
| FUEL GAUGE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE ALSO CHASSIS STANDARD VERSION NO.: | ||
| MF 7702; GR.47 | ||
| 491 | N 914127006201 | SHEET METAL SCREW |
| REGULATOR MOUNTING | ||
| 493 | A 6315450940 | BRACKET |
| RELAY | ||
| 493 | A 6315452040 | BRACKET |
| RELAY | ||
| 496 | A 0005456003 | CAP |
| 499 | A 6315450573 | LOCK |
| 2 A | ||
| 499 | A 6315450073 | LOCK |
| 3 A | ||
| 499 | N 072581000300 | FUSE |
| 3 A | ||
| 499 | A 6315450473 | LOCK |
| 5 A | ||
| 499 | A 6315450473 | LOCK |
| 5 A | ||
| 499 | A 0025450734 | FUSE |
| Repalced by: N 072581000302 | ||
| 499 | N 072581000302 | FUSE |
| 5 A | ||
| 499 | N 072581000302 | FUSE |
| 5 A | ||
| 499 | A 6315450173 | LOCK |
| 7.5 A | ||
| 499 | A 0025450834 | FUSE |
| 7,5 A | ||
| 499 | A 6315450273 | LOCK |
| 10 A | ||
| 499 | A 0025450934 | FUSE |
| 10 A | ||
| 499 | A 6315450373 | LOCK |
| 15 A | ||
| 499 | A 0025451034 | FUSE |
| Repalced by: N 072581000305 | ||
| 499 | N 072581000305 | FUSE |
| 15 A | ||
| A 0005452173 | LOCK | |
| 25 A | ||
| A 0025451234 | FUSE | |
| Repalced by: N 072581000307 | ||
| N 072581000307 | FUSE | |
| 25 A | ||
| 505 | A 6315450105 | RELAY |
| Repalced by: A 6315450405 | ||
| 505 | A 6315450505 | RELAY |
| Repalced by: A 6315450405 | ||
| 505 | A 6315450405 | RELAY |
| BRAKE FLUID LEVEL AND HORN | ||
| MAI | ||
| 505 | A 6315450405 | RELAY |
| BRAKE FLUID LEVEL AND HORN | ||
| MAI | ||
| 511 | A 6315450705 | RELAY |
| LIGHT SWITCH | ||
| 511 | A 6315451005 | RELAY |
| (INTERMITTENT ACTION SWITCH) | ||
| 517 | A 0025444832 | SENDER UNIT |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| BOSCH | ||
| 517 | A 0025444132 | SENDER UNIT |
| HELLA | ||
| 517 | A 6315450305 | RELAY |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| "MAI" | ||
| 517 | A 6315440032 | SENDER UNIT |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| HELLA | ||
| 523 | A 0025454232 | CONTROL UNIT |
| (PRE-GLOW TIME RELAY) | ||
| 523 | A 0085450032 | CONTROL UNIT |
| (PRE-GLOW TIME RELAY) | ||
| 524 | A 0005450334 | FUSE |
| PRE-GLOW TIME RELAY | ||
| 526 | A 0005454145 | BOOT |
| PRE-GLOW TIME RELAY | ||
| 527 | N 914022005101 | COMBINATION BOLT |
| AM 5X10 | ||
| 529 | N 000934006007 | NUT |
| PRE-GLOW TIME RELAY | ||
| 535 | N 000137006204 | SPRING WASHER |
| PRE-GLOW TIME RELAY | ||
| 541 | N 006797005231 | TOOTHED WASHER |
| PRE-GLOW TIME RELAY | ||
| 547 | N 000934005008 | NUT |
| PRE-GLOW TIME RELAY | ||
| 553 | A 6315450210 | SWITCH |
| HEADLAMP,BLINKER,HORN | ||
| 553 | A 6315400044 | SWITCH |
| HEADLAMP,BLINKER,HORN | ||
| 559 | A 6315450222 | SWITCH |
| PANE WIPER | ||
| 559 | A 6315400144 | SWITCH |
| PANE WIPER | ||
| 565 | N 000933005036 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 571 | N 006798005102 | SERRATED WASHER |
| STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN JACKET TUBE | ||
| 572 | A 6315450609 | SWITCH |
| WIPER MOTOR CONTACT | ||
| 574 | N 900055012005 | LOCK RING |
| CONTACT SWITCH TO FRONT GRILLE | ||
| 576 | A 6319900951 | NUT |
| CONTACT SWITCH TO FRONT GRILLE | ||
| 576 | A 6319901051 | NUT |
| CONTACT SWITCH TO FRONT GRILLE | ||
| 578 | A 6319973881 | GROMMET |
| Repalced by: A 6319975181 | ||
| 578 | A 6319975181 | GROMMET |
| CONTACT SWITCH TO FRONT GRILLE | ||
| 580 | A 1075450530 | SHELL |
| SWITCH TO INSTRUMENT PANEL | ||
| 583 | A 2015400183 | HANDLE |
| SWITCH TO INSTRUMENT PANEL | ||
| 586 | A 6315451315 | BULB |
| SWITCH | ||
| 12V 1.2 W | ||
| 586 | N 072601012230 | BULB |
| SWITCH | ||
| 12V 1.2 W | ||
| 589 | N 000433017004 | WASHER |
| SWITCH TO INSTRUMENT PANEL | ||
| 595 | A 1075450072 | NUT |
| SWITCH TO INSTRUMENT PANEL | ||
| 601 | A 0055459324 | SWITCH,AUTOMATIC |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 602 | A 6315420025 | POTENTIOMETER |
| 604 | N 072601012230 | BULB |
| 607 | A 6315400066 | ADAPTER FRAME |
| 607 | A 6115400066 | ADAPTER FRAME |
| A 6315450097 | SPRING | |
| 613 | A 6315420120 | HORN |
| Repalced by: A 6385420020 | ||
| 613 | A 6385420020 | HORN |
| 619 | N 000933008212 | SCREW |
| HORN TO CHASSIS | ||
| N 009021008213 | WASHER | |
| HORN TO CHASSIS | ||
| 625 | N 000934008013 | NUT |
| HORN TO CHASSIS | ||
| 628 | A 6319973081 | GROMMET |
| A 6315420506 | SPEEDOMETER | |
| 631 | A 6315420406 | SPEEDOMETER |
| Repalced by: A 6315420706 | ||
| 631 | A 6315420706 | SPEEDOMETER |
| LESS TRIP ODOMETER READING IN KILOMETERS | ||
| "BRESSEL" | ||
| 631 | A 6315420606 | SPEEDOMETER |
| LESS TRIP ODOMETER READING IN KILOMETERS | ||
| "VEGLIA" | ||
| 632 | A 0005451219 | SOCKET |
| TO VDO | ||
| 633 | A 0005400927 | ELECTRIC CABLE |
| TO BRESSEL | ||
| 634 | N 072601012800 | BULB |
| 12 V/2 W;TO VDO | ||
| N 072601012240 | BULB | |
| 634 | A 6315440094 | BULB |
| W 12V/2W;TO BRESSEL | ||
| 637 | A 6315420403 | FUEL GAUGE DASH UNIT |
| "VDO" | ||
| 637 | A 6315420303 | FUEL GAUGE DASH UNIT |
| "BRESSEL" | ||
| 637 | A 6315420503 | FUEL GAUGE DASH UNIT |
| Repalced by: A 6315420603 | ||
| 637 | A 6315420603 | FUEL GAUGE DASH UNIT |
| "VEGLIA" | ||
| 637 | A 6315420703 | FUEL GAUGE DASH UNIT |
| "JAEGER" | ||
| 638 | A 0005451219 | SOCKET |
| TO VDO | ||
| A 0005452319 | SOCKET | |
| 639 | A 6315440093 | LAMP SOCKET |
| TO BRESSEL | ||
| 640 | N 072601012800 | BULB |
| H 12 V/2 W; TO VDO | ||
| 640 | A 6315440094 | BULB |
| W 12 V/2 W; TO BRESSEL | ||
| N 072601012240 | BULB | |
| 643 | A 6315420405 | TEMPERATURE GAUGE |
| 643 | A 6315420305 | TEMPERATURE GAUGE |
| Repalced by: A 6315420505 | ||
| 643 | A 6315420505 | TEMPERATURE GAUGE |
| "VEGLIA" | ||
| 645 | A 0005451219 | SOCKET |
| TO VDO | ||
| A 0005452319 | SOCKET | |
| 647 | A 6315440093 | LAMP SOCKET |
| TO BRESSEL | ||
| 648 | N 072601012800 | BULB |
| H 12 V/2 W;TO VDO | ||
| 648 | A 6315440094 | BULB |
| W 12 V/2 W; TO BRESSEL | ||
| N 072601012240 | BULB | |
| 649 | A 6315450215 | TELL-TALE LAMP |
| Repalced by: A 6315451515 | ||
| 649 | A 6315450515 | TELL-TALE LAMP |
| Repalced by: A 6315451515 | ||
| 649 | A 6315451515 | TELL-TALE LAMP |
| Repalced by: A 6315452415 | ||
| 649 | A 6315452415 | TELL-TALE LAMP |
| "BRESSEL" | ||
| A 6315400149 | INDICATOR | |
| 650 | A 6315400549 | INDICATOR |
| LEFT | ||
| "BRESSEL" | ||
| A 6315400249 | INDICATOR | |
| 651 | A 6315400649 | INDICATOR |
| RIGHT | ||
| "BRESSEL" | ||
| 652 | A 6315450290 | LENS |
| TO 631 545 02 15,HELLA | ||
| A 6315450490 | LENS | |
| TO 631 545 05 15,BRESSEL | ||
| 653 | A 6315403605 | CABLE HARNESS |
| WITH SOCKET | ||
| TO 631 545 05 15/15 15/24 15 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 631 540 01 49/02 49 | ||
| 654 | A 6315450715 | TELL-TALE LAMP |
| TO 631 545 02 15,HELLA | ||
| 654 | A 6315450815 | TELL-TALE LAMP |
| TO 631 545 05 15/15 15/24 15 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 631 540 05 49/06 49, BRESSEL | ||
| 654 | N 072601012230 | BULB |
| TO 631 545 05 15/15 15/24 15 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 631 540 05 49/06 49,BRESSEL | ||
| 655 | A 6315460069 | PLUG |
| TO 631 545 05 15/15 15/24 15 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 631 540 05 49/06 49, BRESSEL | ||
| 656 | A 6315400168 | SHAFT |
| 657 | A 6315401073 | BRACKET |
| 658 | N 000933008123 | SCREW |
| BRACKET TO ENGINE | ||
| 659 | A 3779977690 | LOOM TIE |
| SPEEDOMETER CABLE TO FUEL HOSE | ||
| 659 | A 0019978390 | LOOM TIE |
| SPEEDOMETER CABLE TO FUEL HOSE | ||
| 659 | A 0019978390 | LOOM TIE |
| SPEEDOMETER CABLE TO BRACKET | ||
| 659 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| 660 | A 6319971390 | LOOM TIE |
| SPEEDOMETER CABLE TO BRACKET | ||
| 661 | A 0005424230 | ANGLE DRIVE |
| Repalced by: A 0025428830 | ||
| 661 | A 0025428830 | ANGLE DRIVE |
| RATIO: | ||
| 39:8 | ||
| 661 | A 0015427630 | ANGLE DRIVE |
| RATIO: | ||
| 39:8 | ||
| 661 | A 0005424330 | ANGLE DRIVE |
| RATIO: | ||
| 40:7 | ||
| 669 | A 6319950101 | CLAMP |
| FLEXIBLE SHAFT TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
