Transporto priemonė: MB 100 D; VIN numerio dalis: 631332

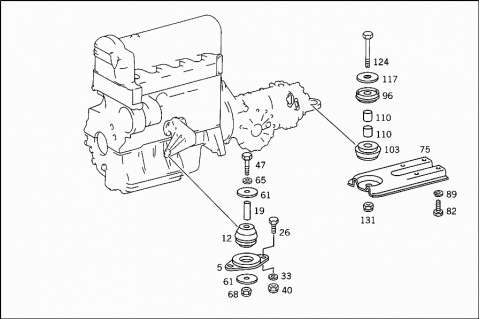

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6312410045 | FLANGE |
| 012 | A 6312410065 | RUBBER BUFFER |
| 019 | A 3092410053 | SPACER TUBE |
| Repalced by: A 6312410153 | ||
| 019 | A 6312410153 | SPACER TUBE |
| 026 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 10X25 | ||
| 033 | N 000125010518 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 040 | N 913002010001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 047 | N 000960012216 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X120 | ||
| 047 | N 000960012153 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| M 12X110 | ||
| 061 | A 3092410162 | THRUST WASHER |
| Repalced by: A 6312420166 | ||
| 061 | A 6312420166 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 065 | N 000125013008 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 068 | N 913002012002 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 075 | A 6312420202 | SUPPORT |
| 082 | N 000933010128 | SCREW |
| M 10X20 | ||
| 089 | N 912004010102 | LOCK WASHER |
| 096 | A 6312420013 | RUBBER MOUNTING |
| 103 | A 6312420113 | RUBBER MOUNTING |
| 110 | A 6312420353 | SPACER TUBE |
| 117 | A 6312420166 | WASHER |
| 124 | N 308676012039 | SCREW |
| M 12X70 | ||
| 131 | N 913004012008 | NUT |
