Transporto priemonė: MB 100 D; VIN numerio dalis: 631332

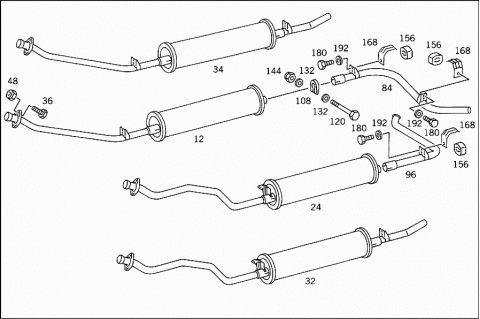

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 6314901701 | EXHAUST MUFFLER |
| WITH FRONT PIPE | ||
| 012 | A 6314902601 | EXHAUST MUFFLER |
| WITH FRONT PIPE | ||
| 024 | A 6314902701 | EXHAUST MUFFLER |
| 032 | A 6314903101 | EXHAUST MUFFLER |
| 034 | A 6314901601 | EXHAUST MUFFLER |
| 034 | A 6314902901 | EXHAUST MUFFLER |
| 036 | N 000931008327 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X55 | ||
| 048 | N 999901008005 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 084 | A 6314902121 | EXHAUST PIPE |
| REAR | ||
| 084 | A 6314902221 | EXHAUST PIPE |
| REAR | ||
| A 6314903021 | EXHAUST PIPE | |
| Repalced by: A 6314903521 | ||
| A 6314903521 | EXHAUST PIPE | |
| REAR | ||
| 096 | A 6314902521 | EXHAUST PIPE |
| A 6314900015 | CLAMP | |
| PARTS KIT | ||
| A 1074900041 | CLAMP | |
| PARTS KIT | ||
| 108 | A 6314920240 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| TO 631 490 00 15 | ||
| 120 | N 000931008189 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X85,TO 631 490 00 15 | ||
| 120 | N 000931008327 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55,TO 107 490 00 41 | ||
| 132 | N 007349008003 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 144 | N 913004008004 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 156 | A 3814920082 | DAMPING PAD |
| REAR EXHAUST PIPE | ||
| 168 | A 6314900240 | BRACKET |
| 180 | N 000933008145 | SCREW |
| 192 | N 000440009103 | WASHER |
