Transporto priemonė: MB 100 D; VIN numerio dalis: 631332

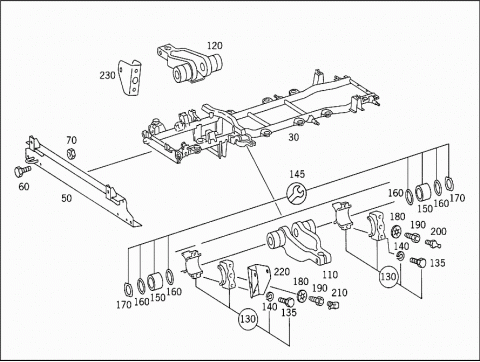

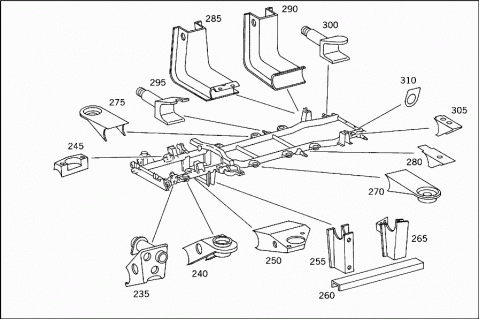

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 030 | A 6313107702 | FRAME |
| Repalced by: A 6313108702 | ||
| 030 | A 6313108702 | FRAME |
| Repalced by: A 6313100903 | ||
| 030 | A 6313100903 | FRAME |
| 030 | A 6313105403 | FRAME |
| 030 | A 6313107502 | FRAME |
| Repalced by: A 6313109102 | ||
| 030 | A 6313109102 | FRAME |
| 030 | A 6313102303 | FRAME |
| 030 | A 6313107402 | FRAME |
| Repalced by: A 6313109202 | ||
| 030 | A 6313109202 | FRAME |
| 030 | A 6313102203 | FRAME |
| 030 | A 6313108102 | FRAME |
| 030 | A 6313102503 | FRAME |
| A 6313100212 | EXTENSION | |
| FRONT | ||
| A 6313100712 | EXTENSION | |
| FRONT | ||
| A 6313100612 | EXTENSION | |
| FRONT | ||
| A 6313100312 | EXTENSION | |
| FRONT | ||
| A 6313100512 | EXTENSION | |
| FRONT | ||
| 050 | A 6313100622 | CROSS MEMBER |
| FRONT | ||
| 050 | A 6313101422 | CROSS MEMBER |
| FRONT | ||
| A 6313302243 | BEARING BRACKET | |
| 060 | N 000931010260 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 070 | N 913004010008 | NUT |
| CROSS MEMBER TO FRAME | ||
| 110 | A 6313304307 | TRANSVERSE CONTROL ARM |
| LEFT | ||
| 120 | A 6313304407 | TRANSVERSE CONTROL ARM |
| RIGHT | ||
| 130 | A 6313301243 | BEARING BRACKET |
| PARTS KIT | ||
| 135 | N 308676012039 | SCREW |
| COVER TO BEARING BRACKET | ||
| M 12X70 | ||
| 140 | N 912004012100 | LOCK WASHER |
| COVER TO BEARING BRACKET | ||
| 145 | A 6313306407 | REPAIR KIT |
| FRONT AXLE CONTROL ARM | ||
| 150 | A 6313330012 | BUSHING |
| FRONT AXLE CONTROL ARM | ||
| 160 | A 6313330064 | RUBBER RING |
| FRONT AXLE CONTROL ARM | ||
| 160 | A 0119970745 | SEAL RING |
| FRONT AXLE CONTROL ARM | ||
| 170 | A 6313330176 | WASHER |
| FRONT AXLE CONTROL ARM | ||
| 180 | N 006797010251 | TOOTHED WASHER |
| FRONT AXLE CONTROL ARM | ||
| 190 | A 6313330071 | SCREW |
| HOLLOW SCREW | ||
| 200 | N 071412008100 | GREASE NIPPLE |
| FRONT AXLE CONTROL ARM | ||
| 210 | N 071412008300 | GREASE NIPPLE |
| FRONT AXLE CONTROL ARM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BENT | ||
| A 6319970188 | GREASE NIPPLE | |
| STRAIGHT | ||
| 220 | A 6313230624 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 230 | A 6313230724 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 235 | A 6314600529 | STEERING BRACKET |
| LEFT | ||
| A 6313101109 | BRACKET | |
| BRACKET TO ANTINOISE CAPSULE | ||
| 240 | A 6313100667 | BODY SUPPORT |
| Repalced by: A 6313101567 | ||
| 240 | A 6313101567 | BODY SUPPORT |
| LEFT AND RIGHT OUTSIDE | ||
| 240 | A 6313101567 | BODY SUPPORT |
| RIGHT | ||
| 240 | A 6313101467 | BODY SUPPORT |
| Repalced by: A 6313101567 | ||
| 240 | A 6313101567 | BODY SUPPORT |
| LEFT | ||
| 245 | A 6312410602 | SUPPORT |
| ENGINE RIGHT SUPPORT | ||
| 250 | A 6312400140 | BRACKET |
| Repalced by: A 6312400240 | ||
| 250 | A 6312400240 | BRACKET |
| ENGINE LEFT SUPPORT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR ADDITIONAL PARTS,SEE GROUP: | ||
| "54" | ||
| A 6313200343 | BRACKET | |
| 255 | A 6313330903 | BEARING BRACKET |
| LEFT AND RIGHT | ||
| 260 | A 6313300168 | WEB |
| RIGHT | ||
| 260 | A 6313300068 | WEB |
| LEFT | ||
| 265 | A 6313301743 | BEARING BRACKET |
| Repalced by: A 6313331103 | ||
| 265 | A 6313331103 | BEARING BRACKET |
| RIGHT | ||
| 265 | A 6313301643 | BEARING BRACKET |
| Repalced by: A 6313331003 | ||
| 265 | A 6313331003 | BEARING BRACKET |
| LEFT | ||
| A 6314311340 | BRACKET | |
| LINE TO HOSE | ||
| A 6314311840 | BRACKET | |
| LINE TO HOSE | ||
| 270 | A 6313100767 | BODY SUPPORT |
| 270 | A 6313100767 | BODY SUPPORT |
| 275 | A 6313101067 | BODY SUPPORT |
| A 6313101167 | BODY SUPPORT | |
| LEFT | ||
| A 6313101267 | BODY SUPPORT | |
| RIGHT | ||
| 280 | A 6313170211 | SUPPORT |
| 285 | A 6313260863 | BEARING BRACKET |
| REAR AXLE SHOCK ABSORBER,RIGHT | ||
| 285 | A 6313260863 | BEARING BRACKET |
| REAR AXLE SHOCK ABSORBER,RIGHT | ||
| 285 | A 6313260763 | BEARING BRACKET |
| REAR AXLE SHOCK ABSORBER,LEFT | ||
| 285 | A 6313260763 | BEARING BRACKET |
| REAR AXLE SHOCK ABSORBER,LEFT | ||
| 290 | A 6313200243 | BRACKET |
| REAR AXLE SHOCK ABSORBER,RIGHT | ||
| 290 | A 6313200143 | BRACKET |
| REAR AXLE SHOCK ABSORBER,LEFT | ||
| 295 | A 6313250103 | REAR SPRING BRACKET |
| FRONT | ||
| 295 | A 6313250203 | REAR SPRING BRACKET |
| FRONT | ||
| 300 | A 6313250003 | REAR SPRING BRACKET |
| REAR | ||
| 305 | A 6313170711 | SUPPORT |
| 305 | A 6313170711 | SUPPORT |
| 310 | A 6313150732 | TOW HOOK |
